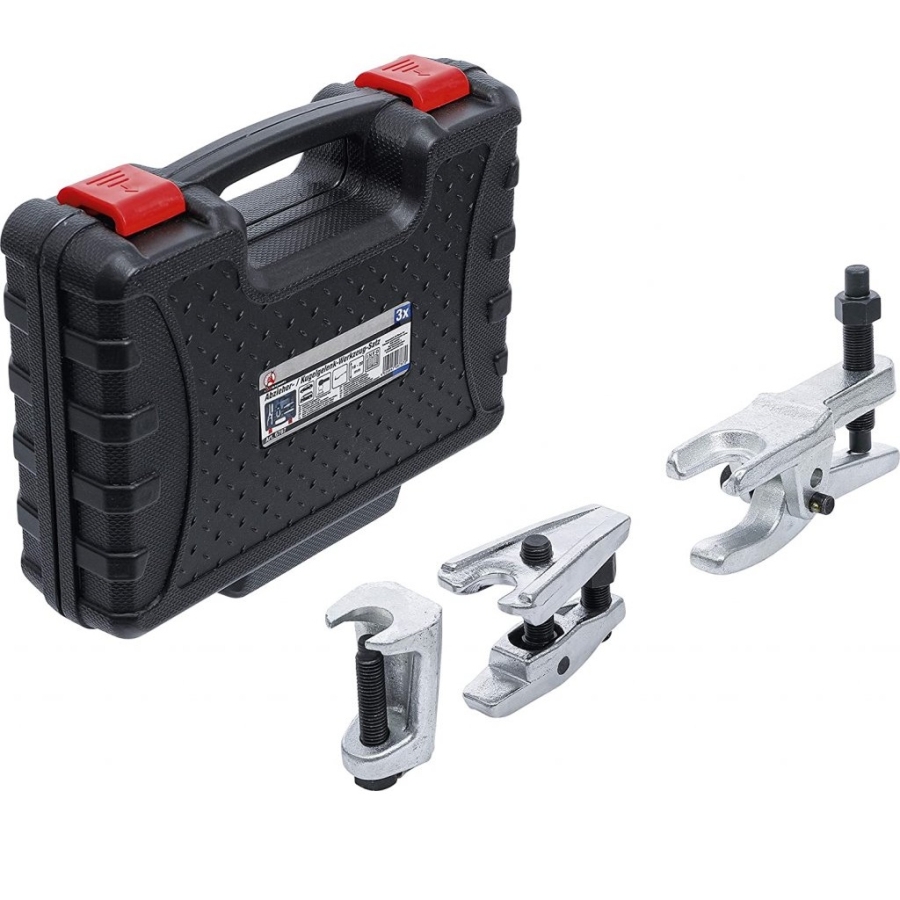

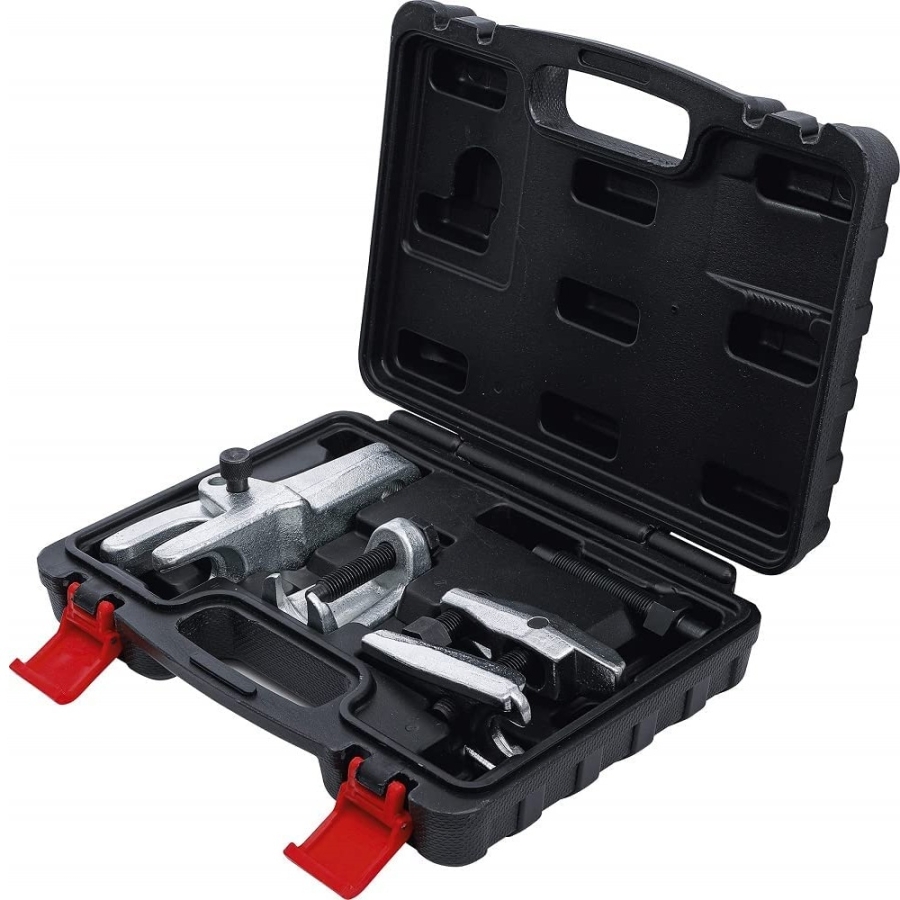

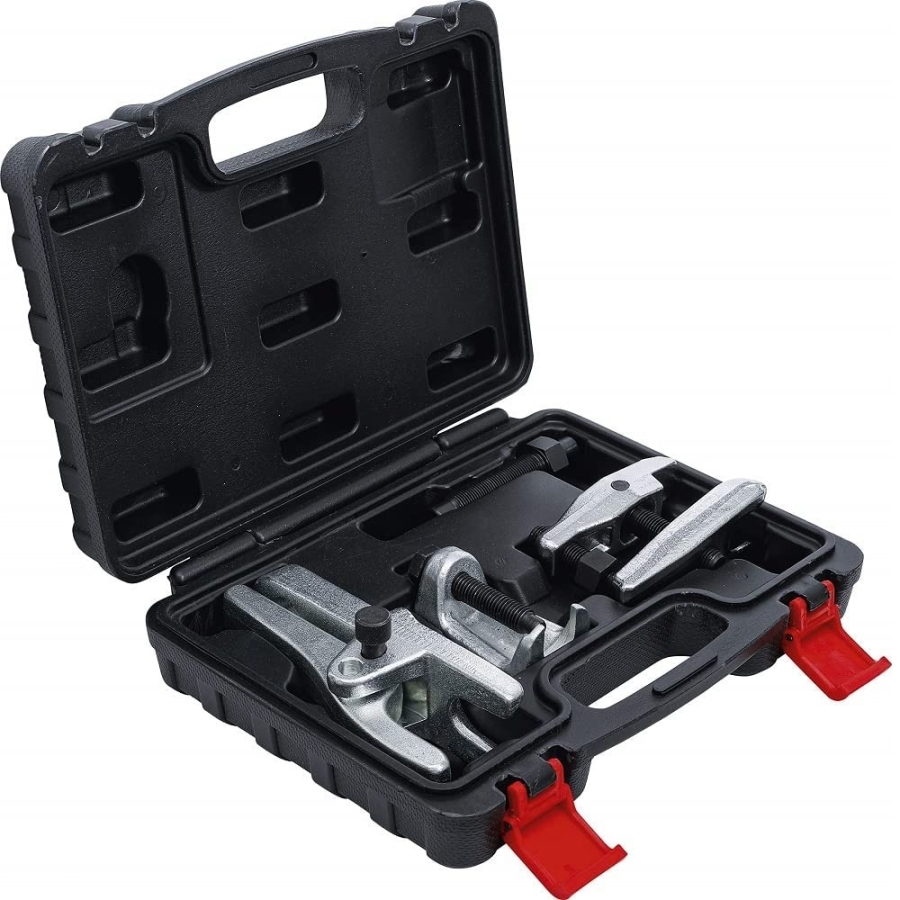

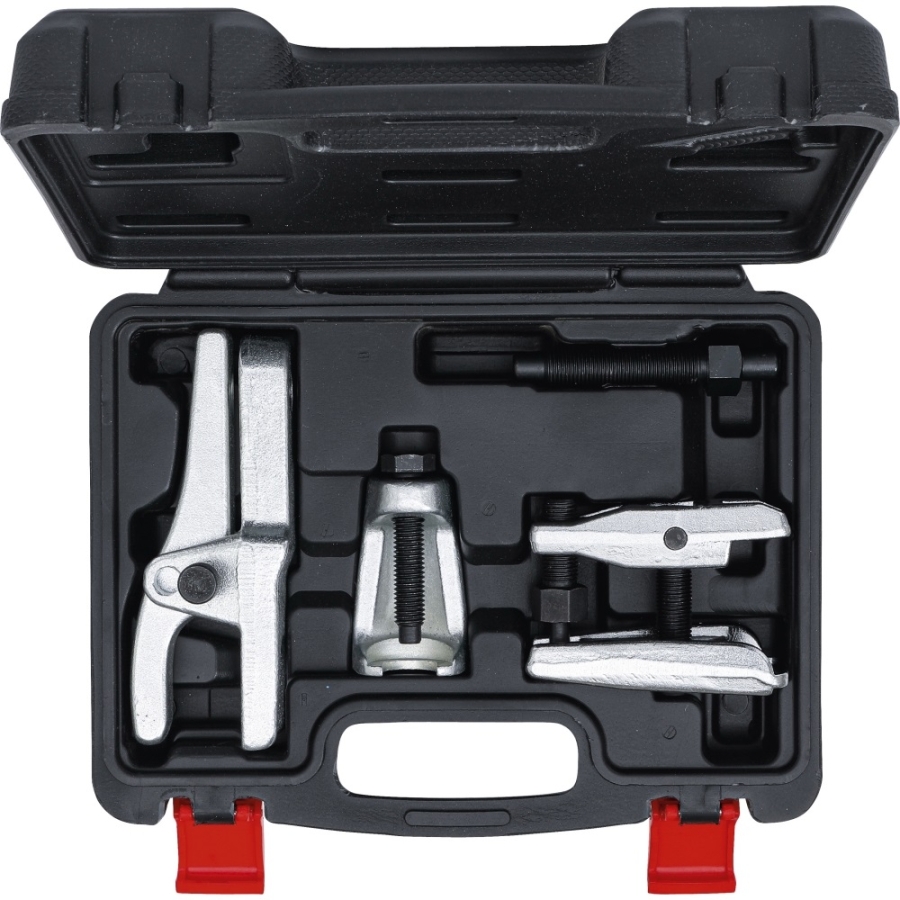

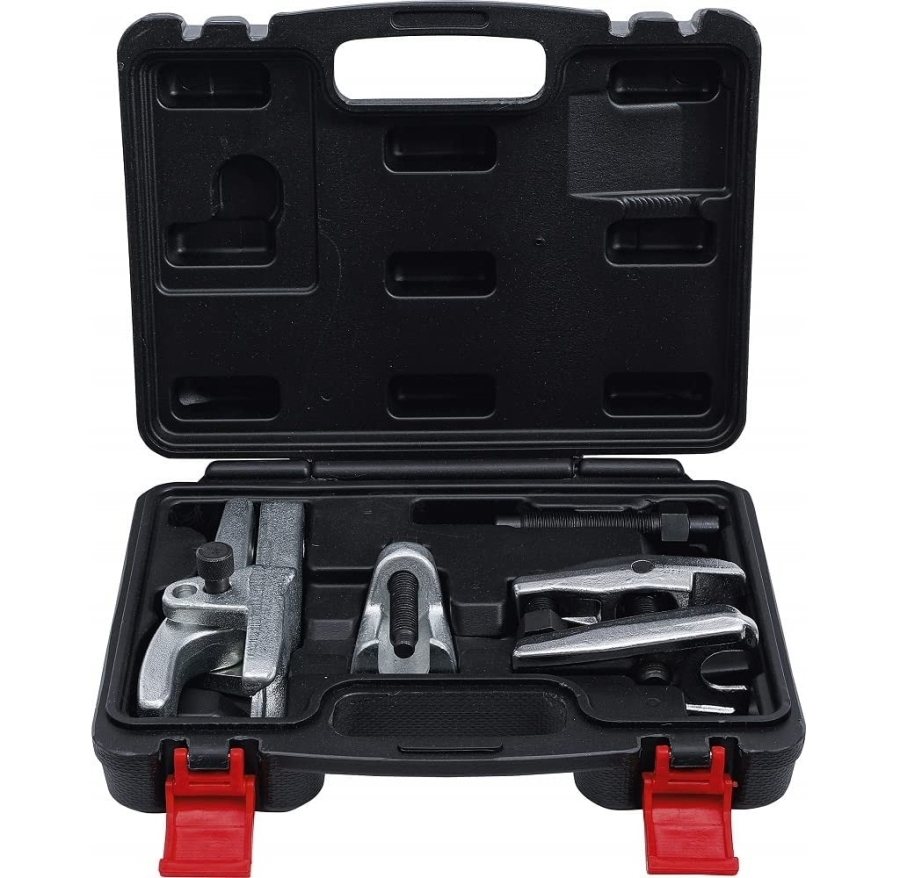

3-Piece Ball Joint Separator Set

This versatile 3-piece separator set is designed for removing ball joints, stabilizer joints, tie rod ends and other press-fit suspension and steering components.

The set covers a wide range of applications and is suitable for servicing vehicles from many manufacturers, including Ford, Volkswagen, Mercedes-Benz, Audi, Škoda, Citroën, Peugeot, Renault, Fiat, Mazda and Toyota.

Wide Vehicle Compatibility

Suitable for most passenger cars and light commercial vehicles from:

• Ford
• Volkswagen
• Mercedes-Benz
• Audi
• Škoda
• Citroën
• Peugeot
• Renault
• Fiat
• Mazda
• Toyota

and many other vehicle manufacturers.

Separator Tool 1 – Two-Stage Ball Joint Separator

Designed for separating ball joints in steering and suspension systems.

Specifications:

• Fork opening: 16–20 mm
• Separation range: Two-stage, max. 35 / 56 mm
• Spindle thread: M16 x 1.5
• Drive: 21 mm external hex
• Forged and zinc-plated construction

The offset lower lever provides an extended separation range and improved accessibility.

Separator Tool 2 – Tie Rod Ball Joint Separator

Designed for separating tie rod ball joints.

Specifications:

• Fork opening: 19 mm
• Separation range: Max. 50 mm
• Spindle thread: M12 x 1.75
• Drive: 18 mm external hex
• Forged and zinc-plated construction

Separator Tool 3 – Ball Joint Separator

Designed for steering and suspension ball joints.

Specifications:

• Fork opening: 20 mm
• Separation range: Max. 58 mm
• Spindle thread: M14 x 1.5
• Drive: 19 mm external hex
• Forged and zinc-plated construction

Professional Suspension Service Tool Set

The combination of three different separator designs makes this set suitable for a broad range of suspension and steering repairs. The forged construction ensures durability and high separating force, making the tools ideal for professional workshop use.
