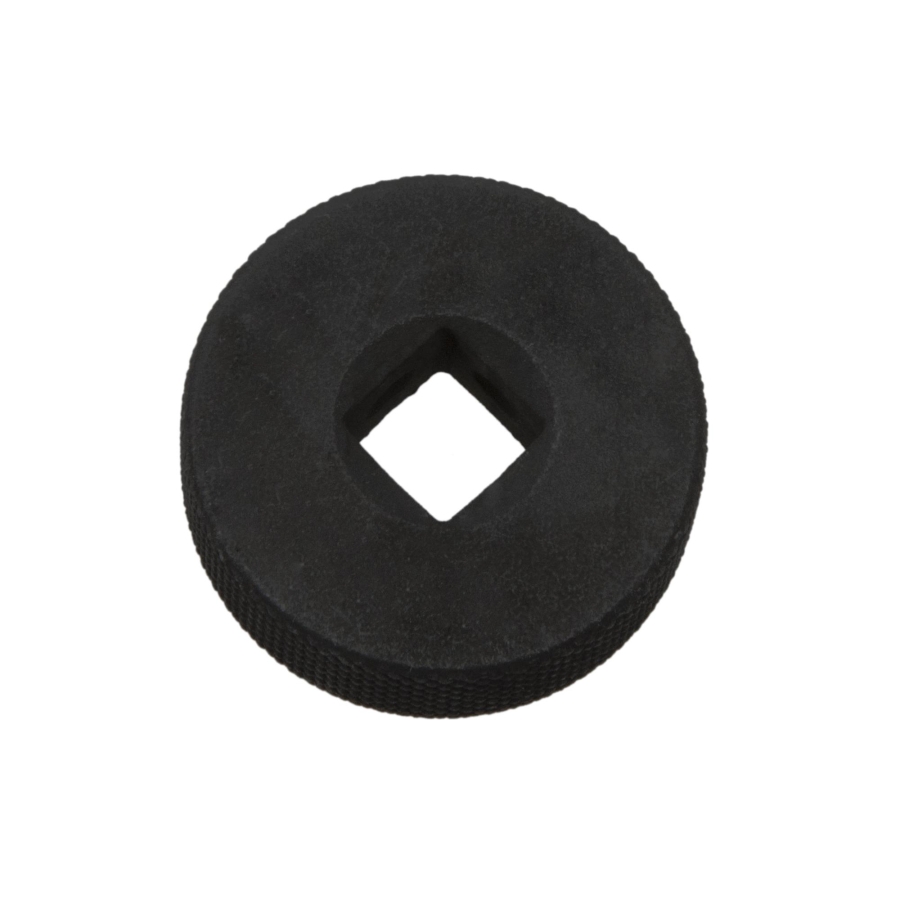

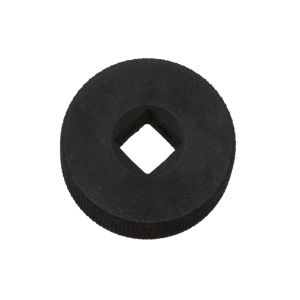

4-Pin Thermostat Socket for VAG 1.0, 1.2, 1.4 & 1.5 TSI and 1.4 & 1.6 TDI as T10508

Price: €19.50 38.14лв.

Code:

121480
Weight:

0.079 Kgs

Overview:

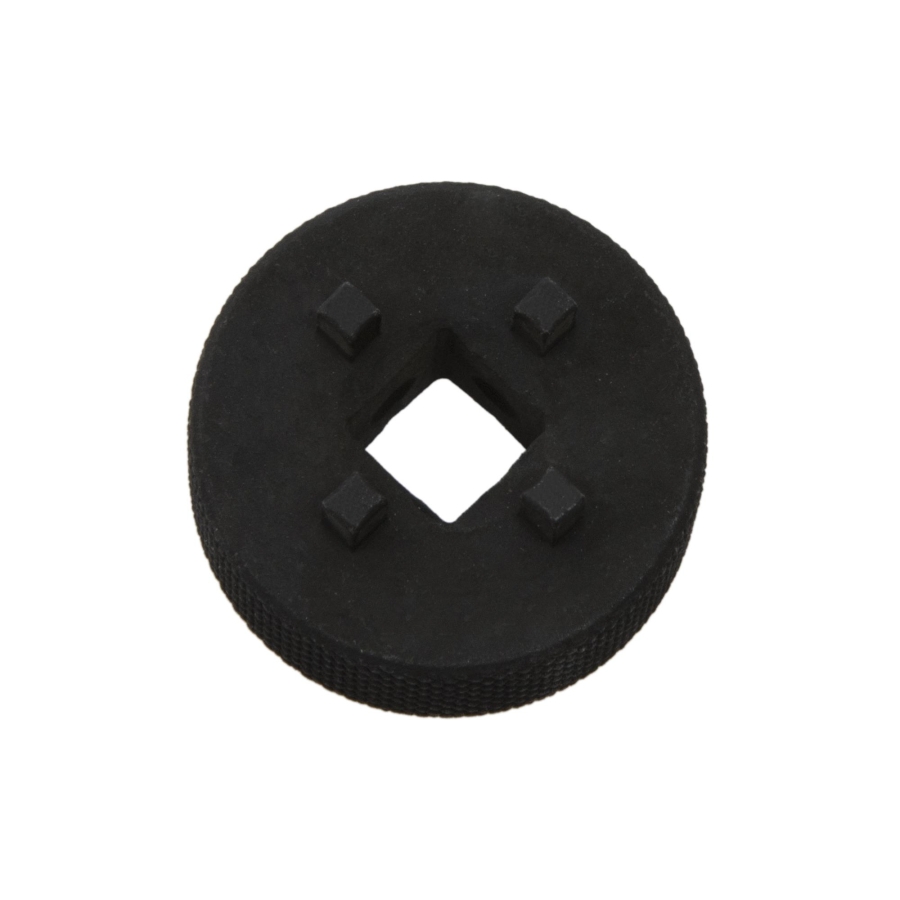

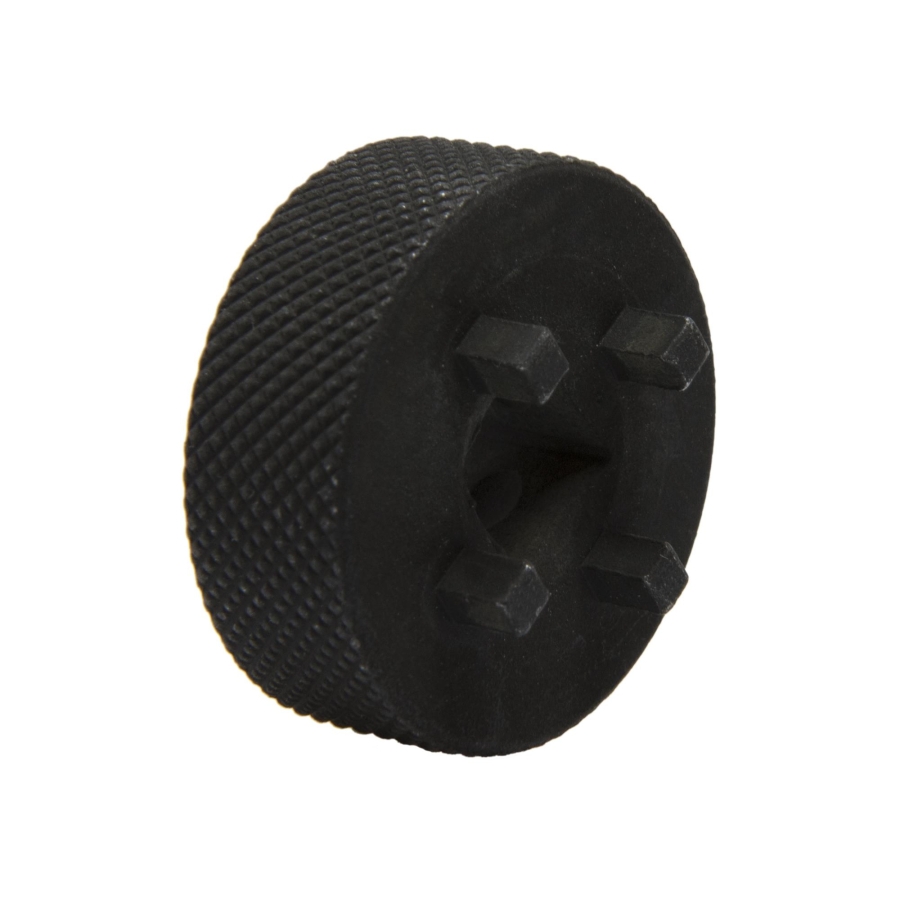

✔ 4-pin thermostat socket for VAG engines
✔ Required for removing and installing the main coolant circuit thermostat
✔ 3/8" square drive
✔ Suitable for numerous VAG TSI and TDI engines
✔ To be used as VAG T10508

4-Pin Thermostat Socket for VAG 1.0, 1.2, 1.4 & 1.5 TSI and 1.4 & 1.6 TDI as T10508

Send to friend

Rate this product

This 4-pin thermostat socket is required for removing and installing the thermostat for the main engine coolant circuit on a wide range of VAG petrol and diesel engines.

The thermostat is located beneath the intake manifold under a cover mounted on the water pump. The special 4-pin design ensures secure engagement with the thermostat housing during service.

Operation

The thermostat uses a standard right-hand thread:

Turn counterclockwise to remove.
Turn clockwise to install and lock.

The thermostat housing contains an internal stop. Do not overtighten the thermostat regulator.

The tool is driven using a 3/8" square drive.

Installation Notes

During installation:

Ensure that the thermostat locating pin is correctly seated in the guide within the thermostat housing.
Replacing the thermostat for the small coolant circuit requires removal of the water pump.
According to the manufacturer, the timing belt should always be replaced whenever the water pump is replaced.

Reference Tightening Torques

(Reference vehicle: Audi A1 (8X) 1.4 TFSI, 125 HP, Engine Code CZCA)

Water pump belt camshaft sprocket bolt: 20 Nm + 90°
Timing belt cover: 8 Nm
Thermostat housing to coolant pump: 7 Nm
Thermostat cover to thermostat housing: 7 Nm

Compatible Vehicles

Audi: A1 / A3 / A4 / A5 / Q2 / Q3

Seat: Cupra / Alhambra / Arona / Ateca / Ibiza / Leon / Tarraco / Toledo

Skoda: Fabia / Kamiq / Karoq / Kodiaq / Octavia / Rapid / Scala / Superb / Yeti

VW: Beetle / Caddy / Golf / Jetta / Passat / Polo / Scirocco / Sharan / T-Cross / Tiguan / Touran / Up!

Compatible Engine Codes

CAVF / CHZB / CHZD / CHZE / CHZL / CHZJ / CJZA / CJZC / CJZD / CMBA / CNUB / CPTA / CPWA / CTJB / CTHF / CUKB / CUKC / CXSA / CXSB / CXUA / CYVA / CYVB / CZCA / CZCC / CZDA / CZDB / CZDD / CZEA / DBYA / DGEA / DGEB / DGXA / DKJA / DKRA / DKRF / DKLA / DKLD / DLAC

OEM Reference

To be used as:

VAG T10508

Original numbers are for comparison purposes only. This is not an original manufacturer tool/product.
