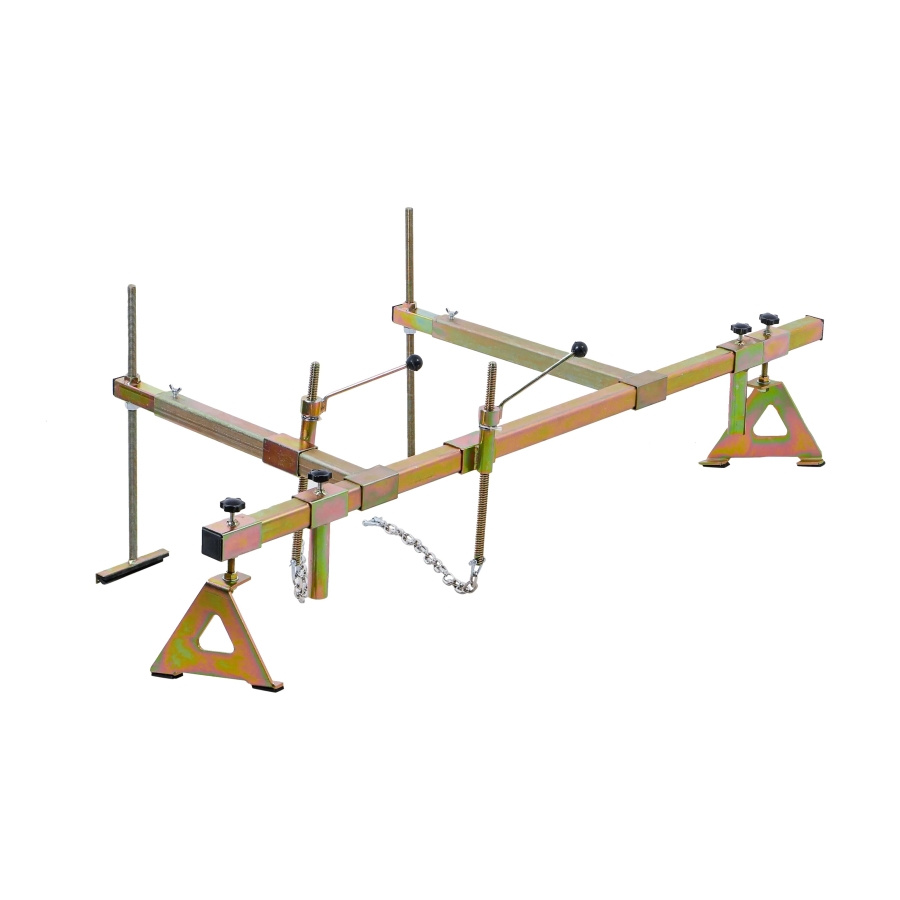

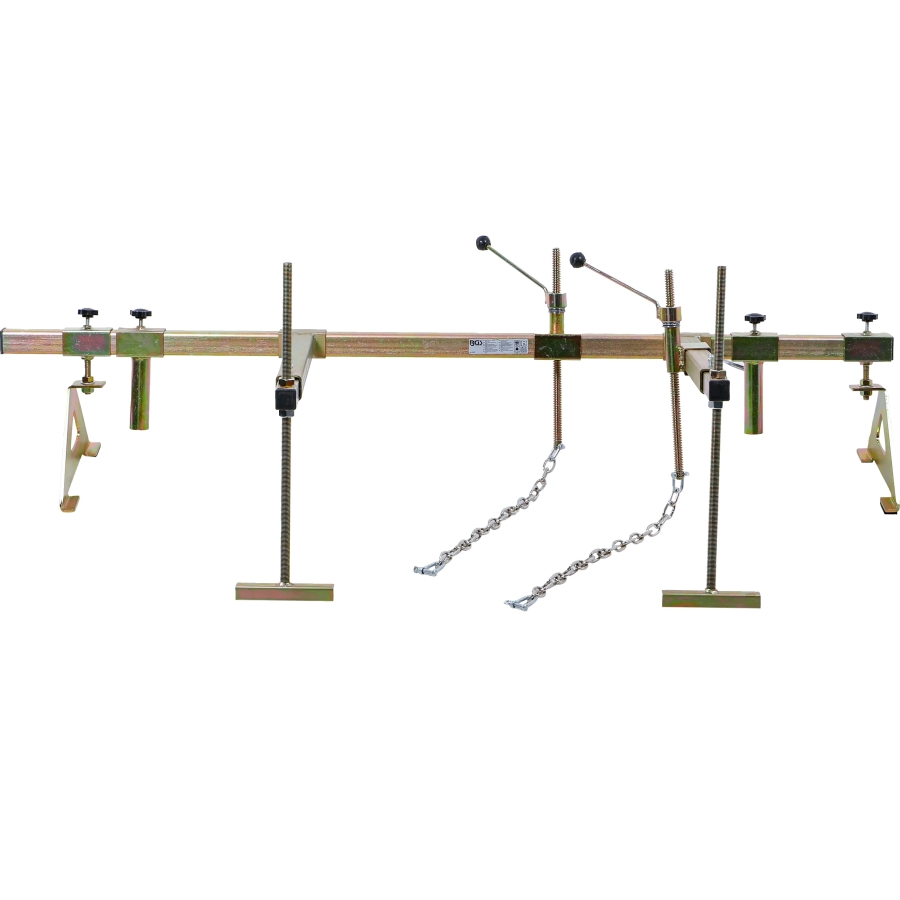

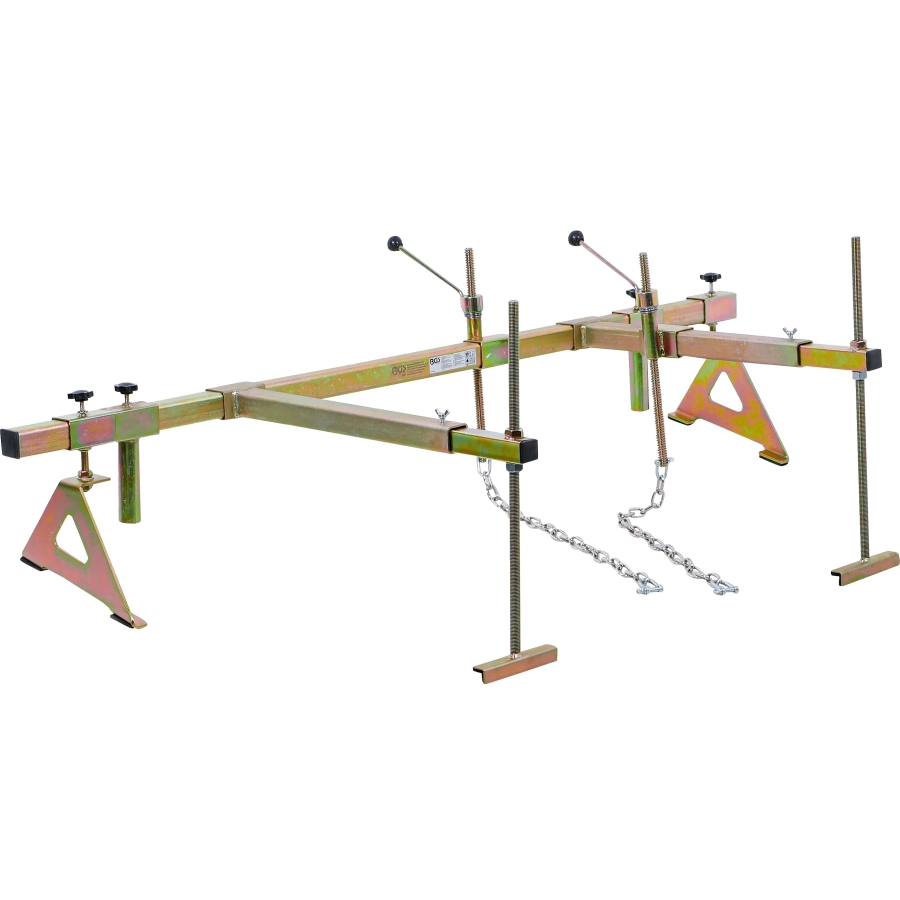

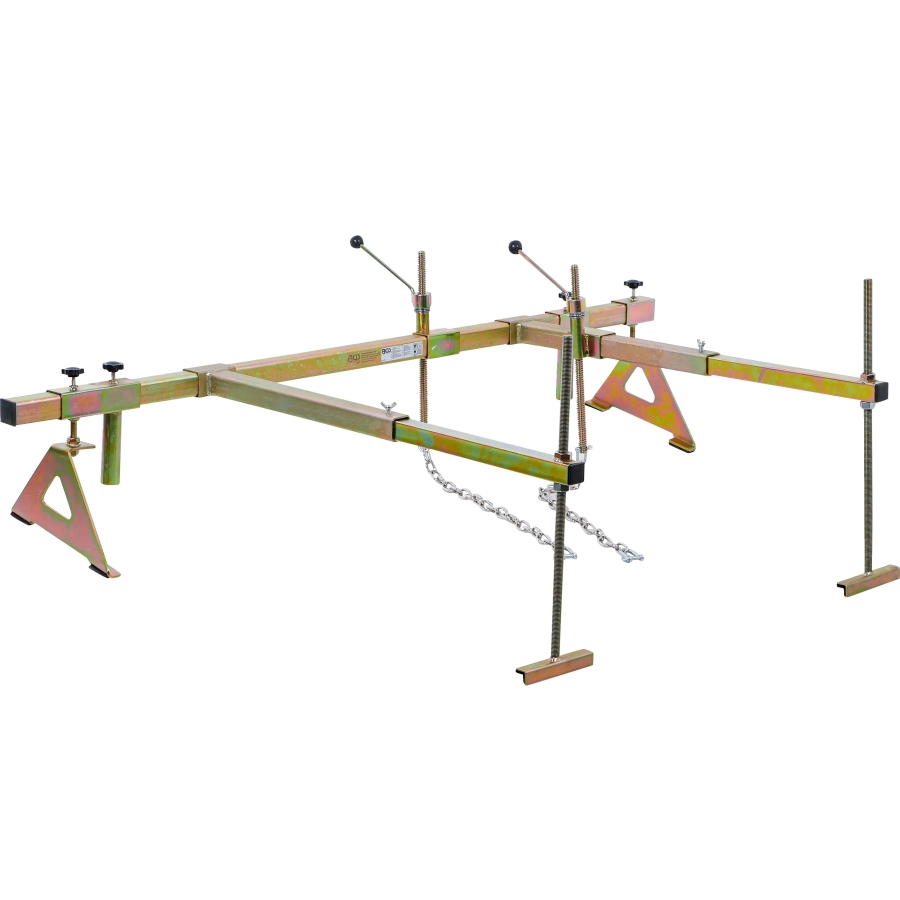

Engine Support Bridge with Four-Point Support, 510–845 mm, 315 kg

Price: €429.00

Code:

9237
Weight:

15.550 Kgs

Overview:
✔ Securely supports engines during and after gearbox removal
✔ Four-point support helps prevent engine twisting and tilting
✔ Particularly suitable for vehicles with subframes
✔ Two adjustable longitudinal supports with rubber-protected feet
✔ Can also be used conventionally without the longitudinal supports
✔ Adjustable width up to 1,500 mm
✔ Longitudinal supports adjustable from 510 to 845 mm
✔ Maximum load capacity: 315 kg
✔ Includes two 530 mm chains with shackles

Engine Support Bridge with Four-Point Support, 510–845 mm, 315 kg

Send to friend

Rate this product

This heavy-duty engine support bridge is designed to support engines safely during and after gearbox removal on front-wheel-drive vehicles. Its reinforced construction resists twisting and deformation while helping prevent unwanted movement or tilting of the engine.

Four-Point Support System

The two longitudinal supports provide additional support against the vehicle’s lock carrier, making the bridge particularly suitable for vehicles equipped with a subframe.

Rubber-protected support feet help prevent damage to the contact surfaces. Two positionable support hooks allow the lifting points to be adapted to the engine and vehicle configuration.

Flexible Configuration

The adjustable design accommodates different vehicle widths and engine positions. When four-point support is not required, the bridge can also be used conventionally without the longitudinal supports.
