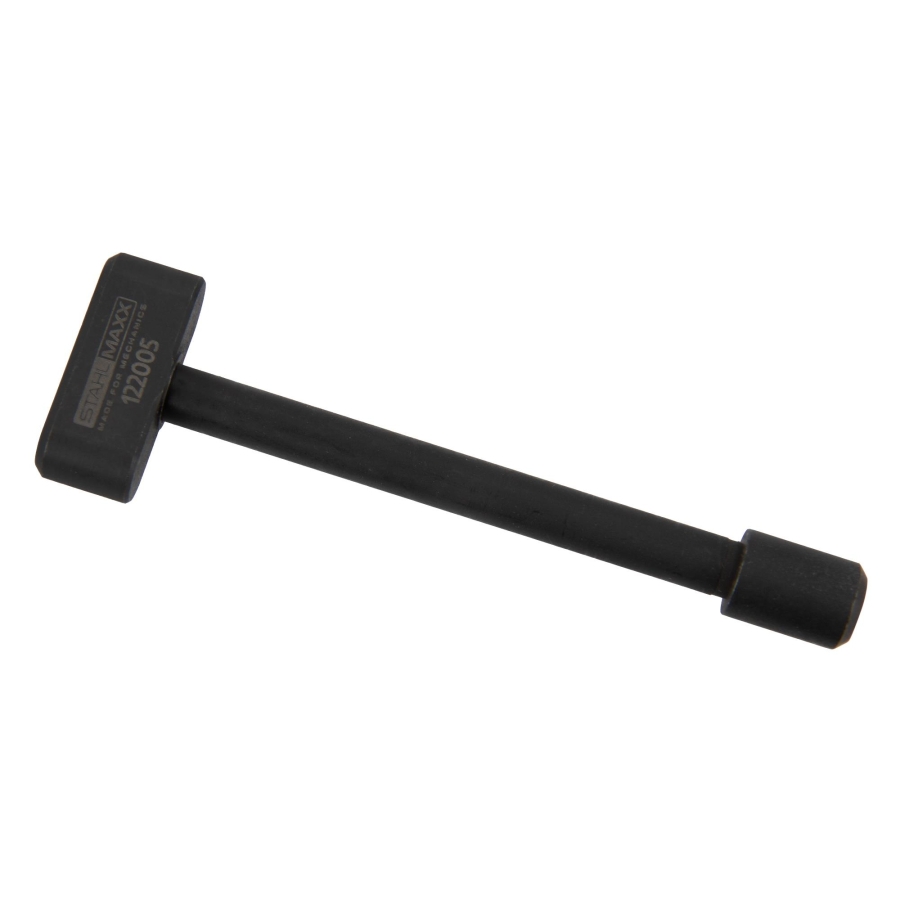

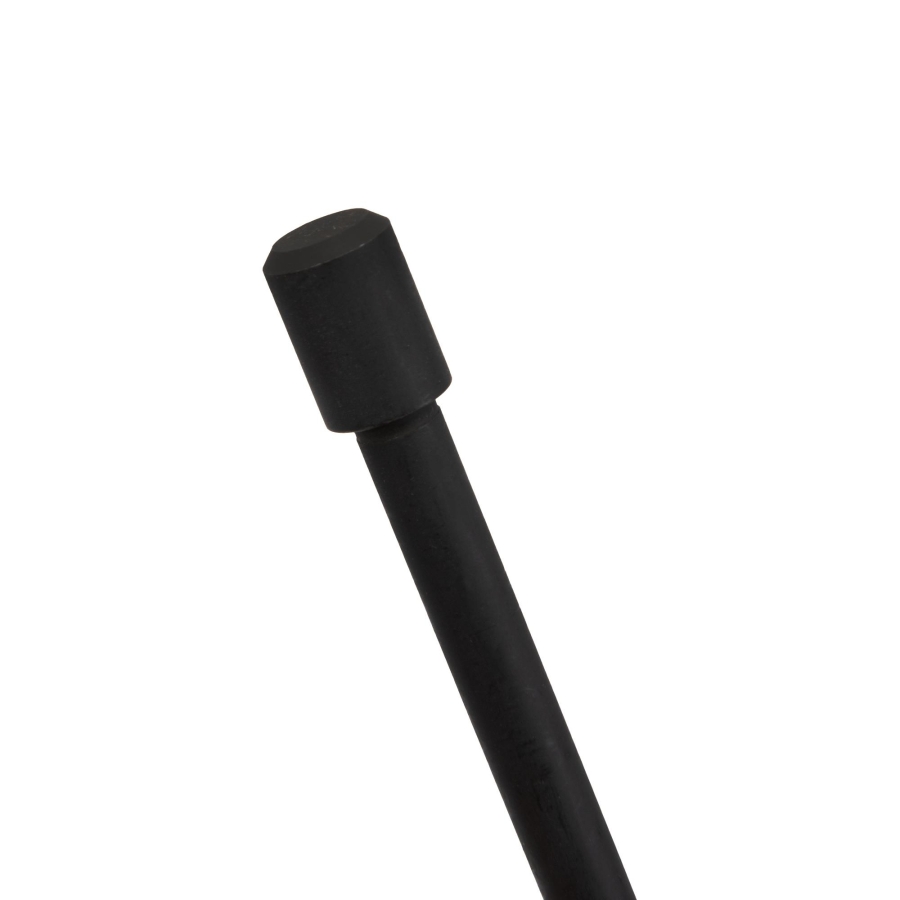

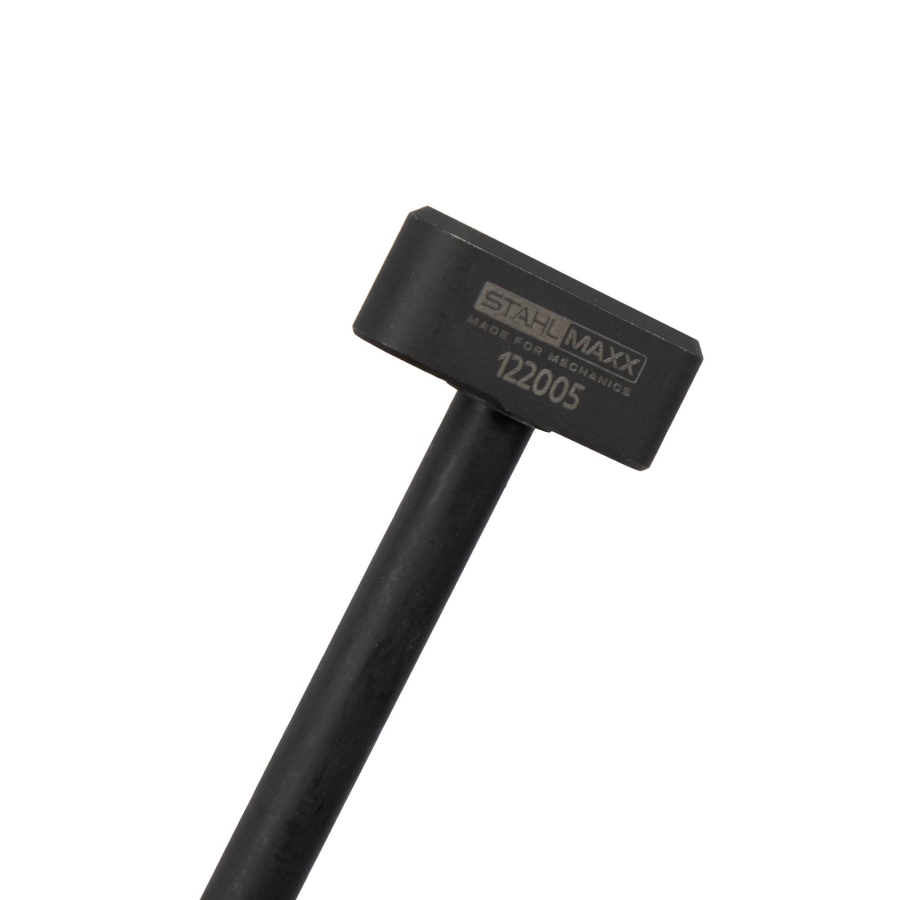

Locating Pin for Crankshaft Oil Seal Installation Tool, Item no. 106575, as VAG T10578, Ford 303-1780

Price: €26.50 51.83лв.
  • Code:
    122005
  • Weight:
    0.035 Kgs

Overview:
✔ Adapter pin for extending the crankshaft oil seal installation tool, Item no. 106575
✔ Required for selected VAG 1.5L EA211 EVO and Ford 1.5L EcoBoost engines
✔ Replaces the existing right-hand adapter pin on the base tool
✔ Suitable for engine codes DADA, DFYA, DHFA and DPCA
✔ Used with selected Elring, Vaico, VAG and Ford crankshaft oil seals
✔ Base tool, Item no. 106575, is additionally required
✔ To be used as VAG T10578 and Ford 303-1780

In Stock (1 pcs) • 5-10 Days Delivery

Add to wishlist
New Product
Locating Pin for Crankshaft Oil Seal Installation Tool, Item no. 106575, as VAG T10578, Ford 303-1780
Locating Pin for Crankshaft Oil Seal Installation Tool, Item no. 106575, as VAG T10578, Ford 303-1780 Locating Pin for Crankshaft Oil Seal Installation Tool, Item no. 106575, as VAG T10578, Ford 303-1780 Locating Pin for Crankshaft Oil Seal Installation Tool, Item no. 106575, as VAG T10578, Ford 303-1780
Send to friend
Rate this product

This locating pin extends the application range of the crankshaft oil seal installation tool, Item no. 106575, as VAG T10134.

It is required for installing the crankshaft oil seal on selected VAG 1.5L 4-valve EA211 EVO and Ford 1.5L EcoBoost engines.

Only these 1.5L engine applications require the existing adapter pin to be replaced.

Installation Information

Viewed in the installation direction, replace the right-hand adapter pin with the black ball using this newer locating pin, as VAG T10578 and Ford 303-1780.

When positioning the base tool, the flattened section for the oil sump must face downward.

Required Base Tool

The following base tool is additionally required for use:

  • Item no. 106575, as VAG T10134

This product is an extension pin only and cannot be used independently.

Suitable Engine Codes

DADA, DFYA, DHFA, DPCA

Compatible Oil Seals

  • Elring 523.120
  • Vaico V10-4859

Compatible VAG Oil Seal Reference Numbers

04C 103 170 G, 04C 103 170 H, 04E 103 170 A, 04E 103 170 AE, 04E 103 170 B, 04E 103 170 D, 04E 103 170 L, 04E 103 170 Q, 05E 103 170

Compatible Ford Oil Seal Reference Numbers

VWN3CA6K292EA, 2 586 691

To Be Used As

  • VAG T10578
  • Ford 303-1780



Original numbers are for comparison purposes only; this is not an original tool!

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.
0 vehicles found
AUDI A1 CITY CARVER (GBH) (07.2019 - ) 35 TFSI (150 hp, 110 kW) AUDI A1 Sportback (GBA) (07.2018 - ) 35 TFSI (150 hp, 110 kW) AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.5 TFSI (150 hp, 110 kW) AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.5 TFSI (150 hp, 110 kW) AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 35 TFSI (150 hp, 110 kW) AUDI A3 Limousine (8VS, 8VM) (05.2013 - 07.2019) 1.5 TFSI (150 hp, 110 kW) AUDI A3 Limousine (8VS, 8VM) (05.2013 - 07.2019) 35 TFSI (150 hp, 110 kW) AUDI A3 Limousine (8YS) (04.2020 - ) 35 TFSI (150 hp, 110 kW) AUDI A3 Limousine (8YS) (04.2020 - ) 35 TFSI Mild Hybrid (150 hp, 110 kW) AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.5 TFSI (150 hp, 110 kW) AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 30 g-tron (131 hp, 96 kW) AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 35 TFSI (150 hp, 110 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 30 g-tron (131 hp, 96 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 35 TFSI (150 hp, 110 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 35 TFSI Mild Hybrid (150 hp, 110 kW) AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 35 TFSI (150 hp, 110 kW) AUDI Q3 (F3B) (07.2018 - ) 35 TFSI (150 hp, 110 kW) AUDI Q3 (F3B) (07.2018 - ) 35 TFSI Mild Hybrid (150 hp, 110 kW) AUDI Q3 Sportback (F3N) (06.2019 - ) 35 TFSI (150 hp, 110 kW) AUDI Q3 Sportback (F3N) (06.2019 - ) 35 TFSI Mild Hybrid (150 hp, 110 kW) SEAT ARONA (KJ7) (07.2017 - ) 1.5 TSI (150 hp, 110 kW) SEAT ATECA (KH7, KHP) (04.2016 - ) 1.5 TSI (150 hp, 110 kW) SEAT ATECA (KH7, KHP) (04.2016 - ) 1.5 TSI AWD (150 hp, 110 kW) SEAT IBIZA V (KJ1) (01.2017 - ) 1.5 TSI (150 hp, 110 kW) SEAT LEON (5F1) (09.2012 - ) 1.5 TGi (131 hp, 96 kW) SEAT LEON (5F1) (09.2012 - ) 1.5 TSI (150 hp, 110 kW) SEAT LEON (KL1) (11.2019 - ) 1.5 TGI CNG (131 hp, 96 kW) SEAT LEON (KL1) (11.2019 - ) 1.5 TSI (150 hp, 110 kW) SEAT LEON (KL1) (11.2019 - ) 1.5 eTSI (150 hp, 110 kW) SEAT LEON ST (5F8) (09.2012 - ) 1.5 TGi (131 hp, 96 kW) SEAT LEON ST (5F8) (09.2012 - ) 1.5 TSI (150 hp, 110 kW) SEAT LEON Estate (KL8) (03.2020 - ) 1.5 TSI (150 hp, 110 kW) SEAT LEON Estate (KL8) (03.2020 - ) 1.5 eTSI (150 hp, 110 kW) SEAT TARRACO (KN2) (09.2018 - ) 1.5 TSI ACT (150 hp, 110 kW) SKODA KAMIQ (NW4) (07.2019 - ) 1.5 TSI (150 hp, 110 kW) SKODA KAROQ (NU7) (07.2017 - ) 1.5 TSI (150 hp, 110 kW) SKODA KAROQ (NU7) (07.2017 - ) 1.5 TSI AWD (150 hp, 110 kW) SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.5 TSI (150 hp, 110 kW) SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.5 TSI AWD (150 hp, 110 kW) SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.5 TSI (150 hp, 110 kW) SKODA OCTAVIA IV Estate (5E5, 5E6) (11.2012 - 02.2017) 1.5 TSI (150 hp, 110 kW) SKODA OCTAVIA IV Estate (5E5, 5E6) (11.2012 - 02.2017) 1.5 TSI G-TEC (130 hp, 96 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.5 TSI (150 hp, 110 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.5 TSI G-TEC (131 hp, 96 kW) SKODA OCTAVIA V Estate (NX5) (11.2019 - ) 1.5 TSI (150 hp, 110 kW) SKODA OCTAVIA V Estate (NX5) (11.2019 - ) 1.5 TSI G-TEC (131 hp, 96 kW) SKODA SCALA (NW1) (02.2019 - ) 1.5 TSI (150 hp, 110 kW) SKODA SUPERB III (3V3) (03.2015 - ) 1.5 TSI (150 hp, 110 kW) SKODA SUPERB III (3V3) (03.2015 - ) 1.5 TSi AWD (150 hp, 110 kW) SKODA SUPERB III Estate (3V5) (03.2015 - ) 1.5 TSi (150 hp, 110 kW) VW ARTEON (3H7, 3H8) (03.2017 - 07.2020) 1.5 TSI (150 hp, 110 kW) VW ARTEON SHOOTING BRAKE (3H9) (06.2020 - ) 1.5 TSi (150 hp, 110 kW) VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.5 TSI (150 hp, 110 kW) VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.5 TGI (130 hp, 96 kW) VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.5 TSI (150 hp, 110 kW) VW GOLF VII Estate (BA5, BV5) (04.2013 - 05.2018) 1.5 TGI (131 hp, 96 kW) VW GOLF VII Estate (BA5, BV5) (04.2013 - 05.2018) 1.5 TSI (150 hp, 110 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.5 TGI (131 hp, 96 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.5 TSI (150 hp, 110 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.5 eTSI (150 hp, 110 kW) VW GOLF VIII Estate (CG5) (08.2020 - ) 1.5 TSI (150 hp, 110 kW) VW GOLF VIII Estate (CG5) (08.2020 - ) 1.5 eTSI (150 hp, 110 kW) VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.5 TSI (150 hp, 110 kW) VW PASSAT B8 Estate (3G5, CB5) (08.2014 - 11.2017) 1.5 TSI (150 hp, 110 kW) VW POLO VI (AW1, BZ1) (06.2017 - ) 1.5 TSI (150 hp, 110 kW) VW T-CROSS (C11) (12.2018 - ) 1.5 TSI (150 hp, 110 kW) VW T-ROC (A11) (07.2017 - ) 1.5 TSI (150 hp, 110 kW) VW T-ROC (A11) (07.2017 - ) 1.5 TSI AWD (150 hp, 110 kW) VW T-ROC Cabriolet (AC7) (12.2019 - ) 1.5 TSI (150 hp, 110 kW) VW TIGUAN (5N_) (09.2007 - 07.2018) 1.5 (150 hp, 110 kW) VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.5 TSI (150 hp, 110 kW) VW TIGUAN ALLSPACE (BW2) (03.2017 - ) 1.5 TSI (150 hp, 110 kW) VW TOURAN (5T1) (05.2015 - 07.2019) 1.5 TSI (150 hp, 110 kW)
