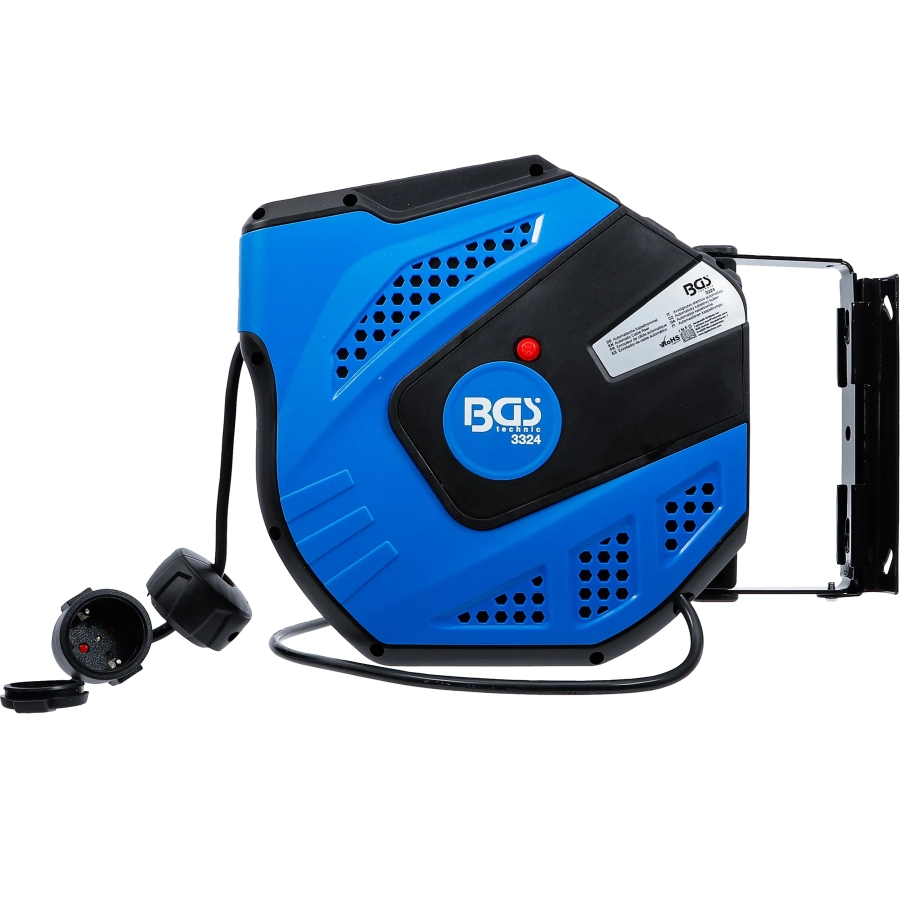

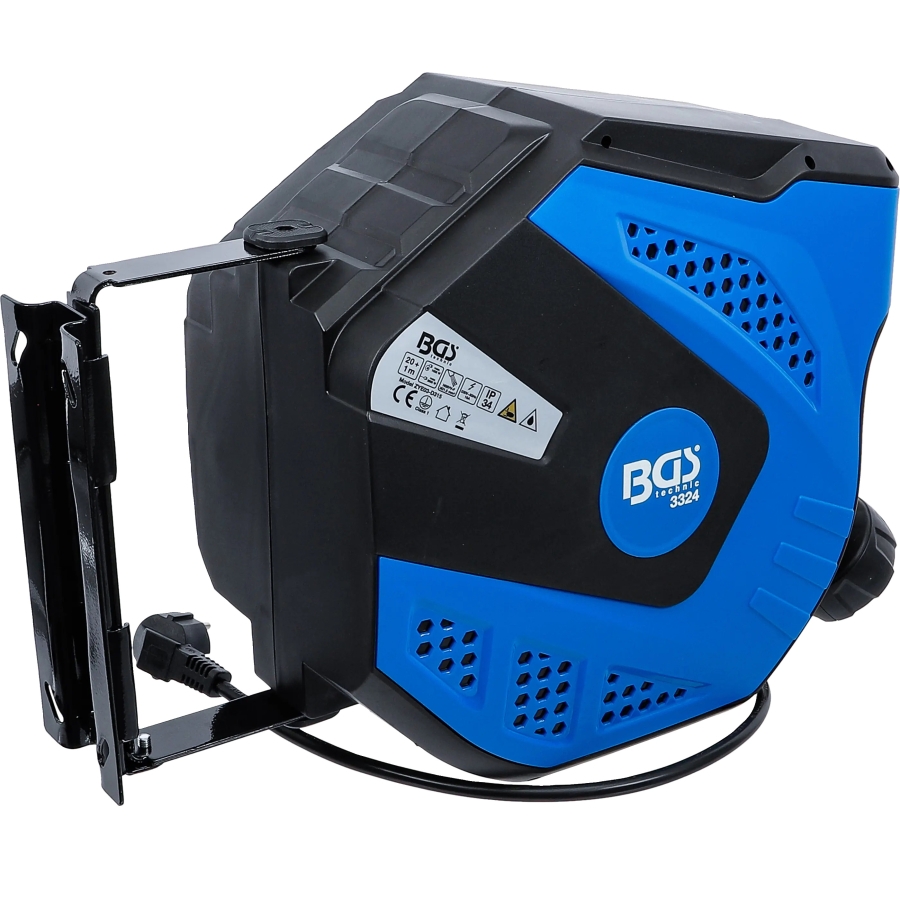

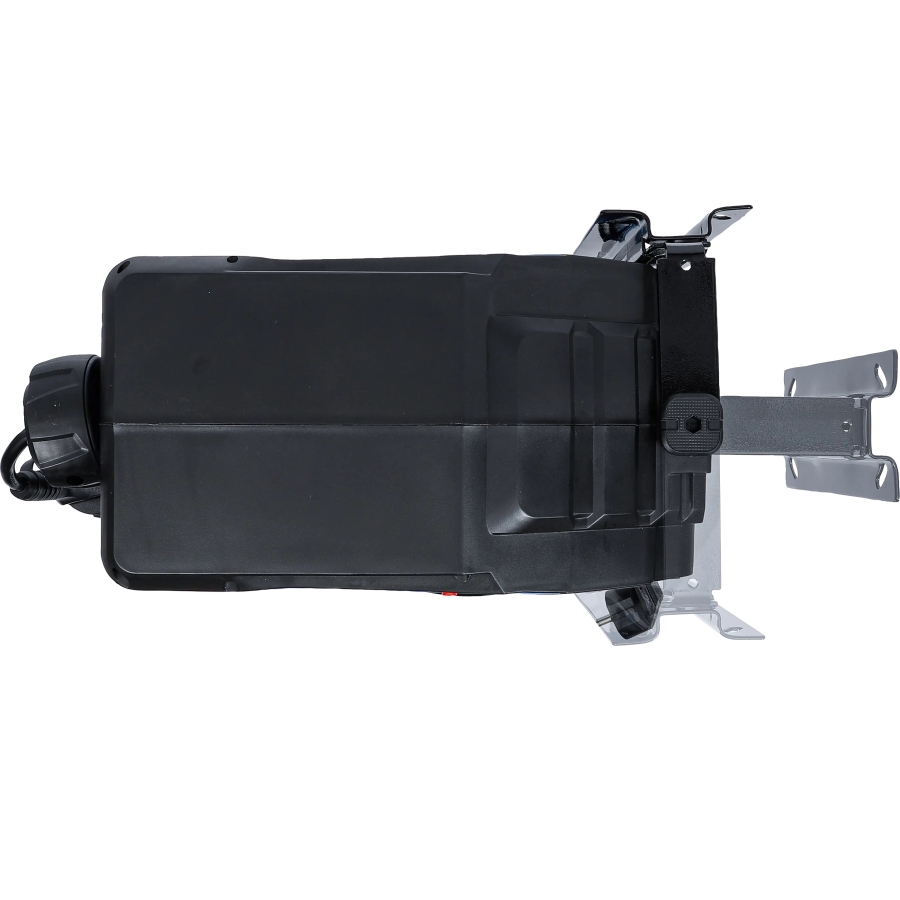

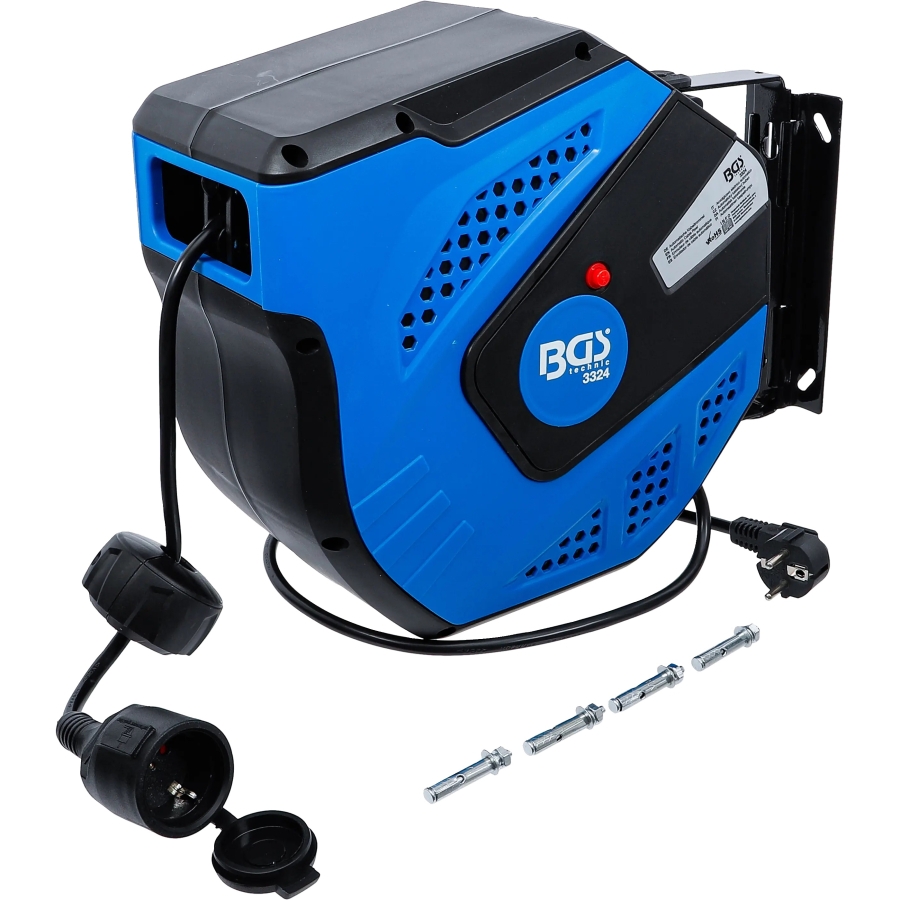

Automatic Retractable Cable Reel 20 m, 3 × 1.5 mm², IP20
-
Code:3324
-
Weight:7.386 Kgs
Overview:
✔ 20 m cable with automatic retraction
✔ Conductor configuration of 3 × 1.5 mm²
✔ Includes a bracket for wall mounting
✔ One socket and a 1 m supply lead
✔ Suitable for indoor use, with IP20 protection
✔ Maximum load: 1,000 W when wound, 3,000 W when fully unwound
The automatic cable reel provides an extension supply for 230 V electrical appliances. It includes a wall-mounting bracket and automatically retracts the 20 m cable after use.
The connected load must not exceed 1,000 W with the cable wound or 3,000 W with the cable fully unwound.
Mounting and cable retraction
The supplied bracket allows the reel to be mounted on a wall. Automatic cable retraction keeps the cable stored when not in use. A separate 1 m supply lead connects the reel to the power source.
The reel is intended for indoor use and has an IP20 protection rating.
Technical specifications
- Retractable cable length: 20 m
- Conductor configuration: 3 × 1.5 mm²
- Supply lead length: 1 m
- Rated voltage: 230 V
- Maximum power, wound: 1,000 W
- Maximum power, fully unwound: 3,000 W
- Sockets: 1
- Cable retraction: Automatic
- Mounting: Wall bracket included
- Electrical protection class: I
- Ingress protection: IP20
- Use: Indoors
- Length: 455 mm
- Height: 316 mm
- Width: 184 mm
- Net weight: 6.7 kg
