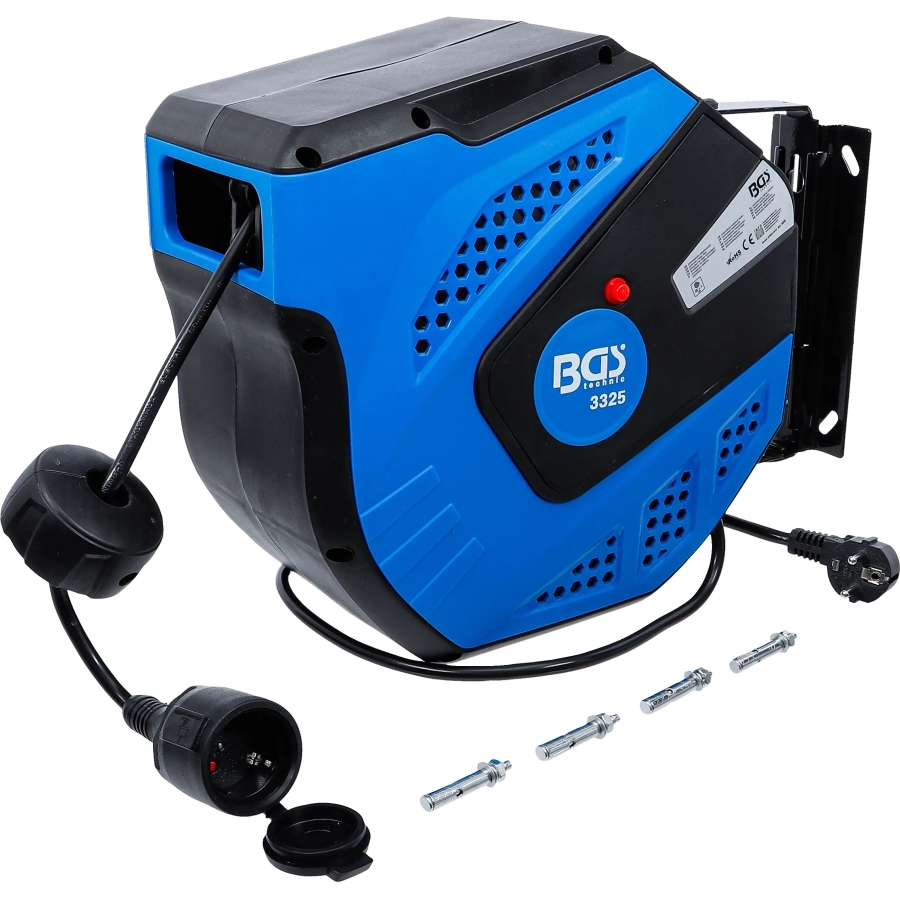

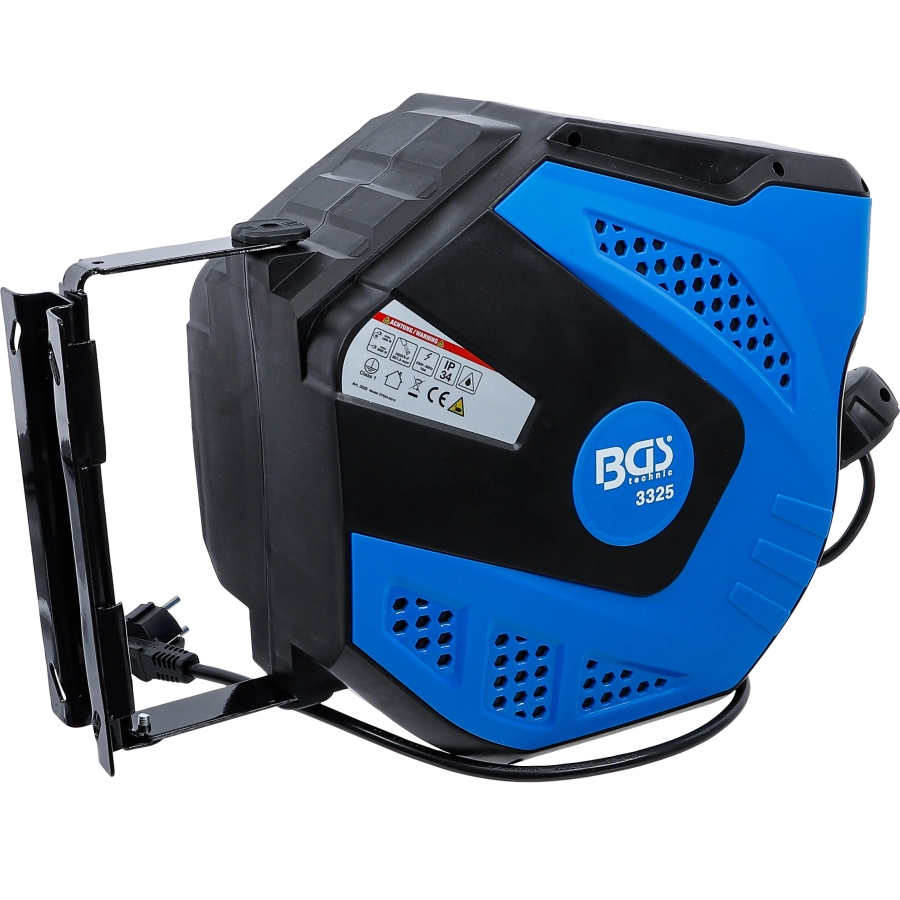

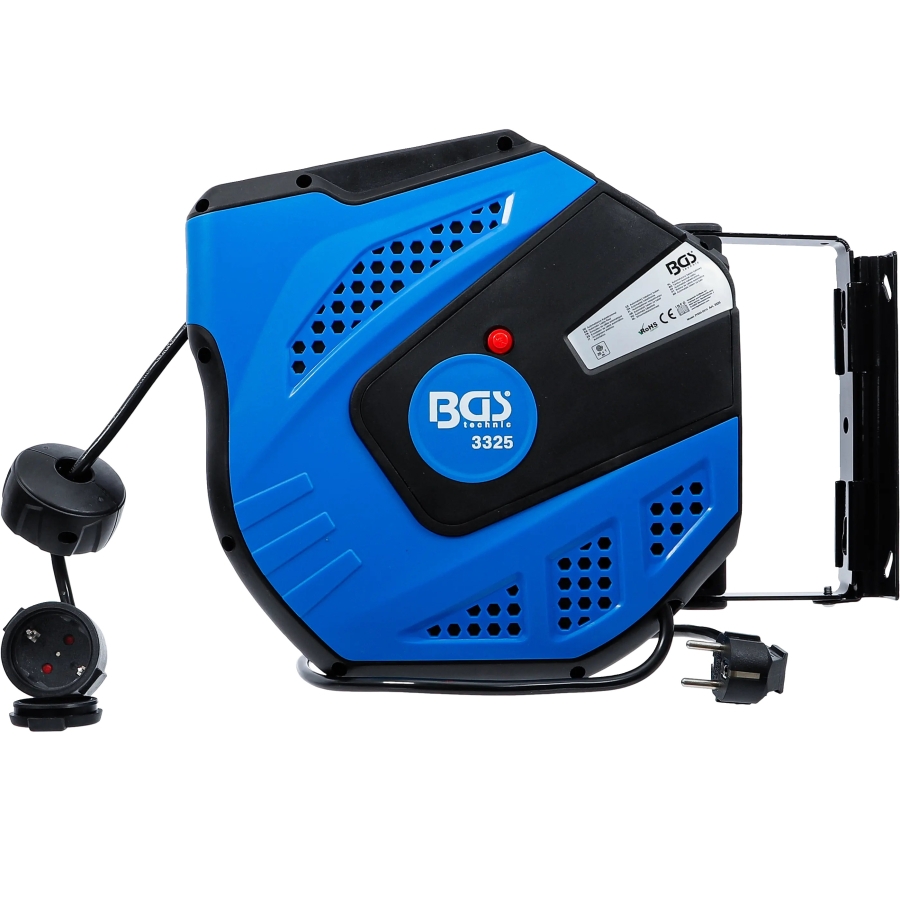

Automatic Retractable Cable Reel, 25 m
-
Code:3325
-
Weight:8.032 Kgs
Overview:
✔ 25 m cable with automatic retraction
✔ Includes a bracket for wall mounting
✔ One socket and a 1 m supply lead
✔ Suitable for indoor use, with IP20 protection
✔ Thermal cut-out trips if the cable temperature becomes too high
✔ Maximum load: 1,000 W when wound, 3,000 W when fully unwound
The automatic cable reel provides an extension supply for 230 V electrical appliances. It includes a wall-mounting bracket and automatically retracts the 25 m cable after use.
The connected load must not exceed 1,000 W with the cable wound or 3,000 W with the cable fully unwound.
Mounting and cable retraction

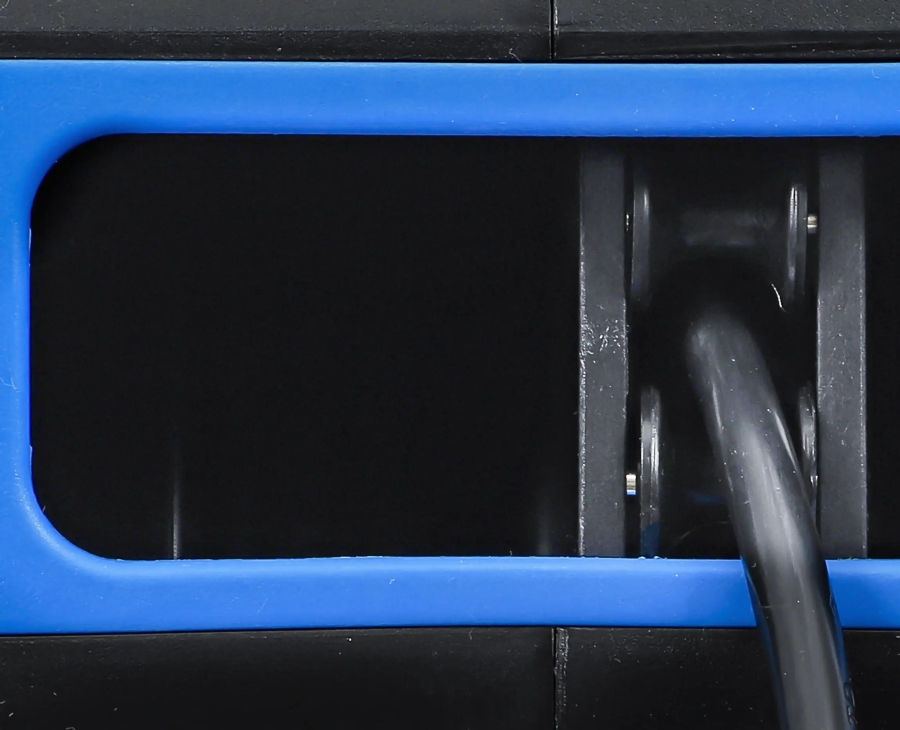

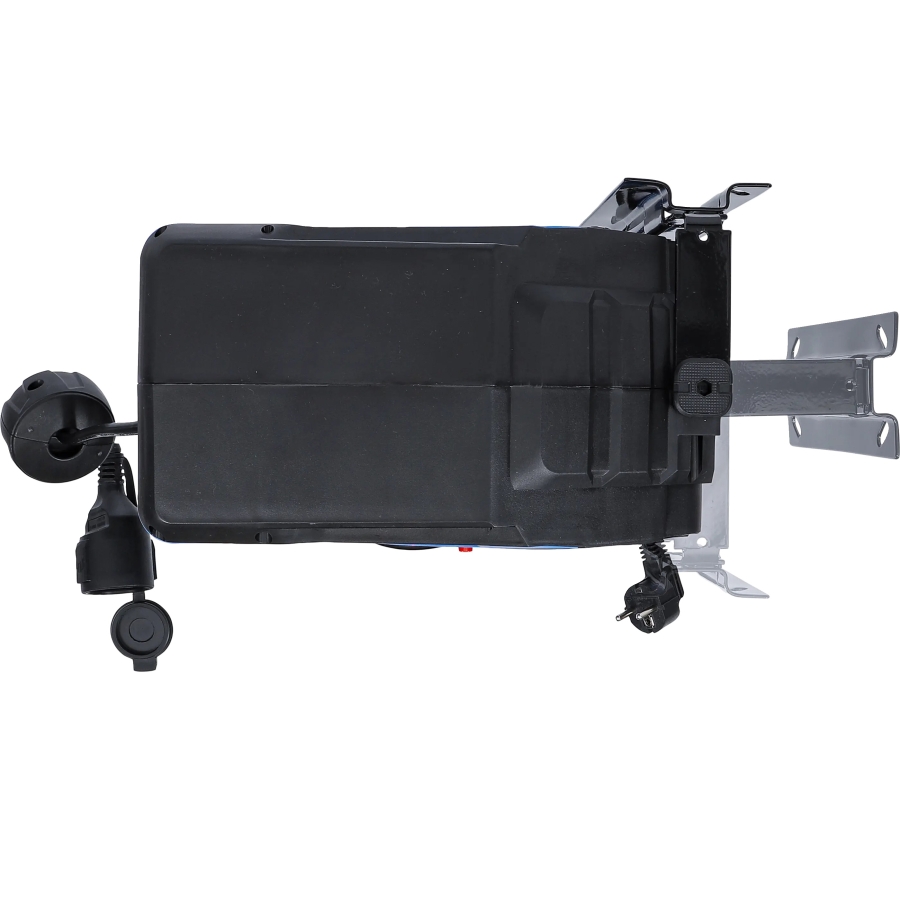

The supplied bracket allows the reel to be mounted on a wall. Automatic cable retraction helps keep the cable stored when not in use. A separate 1 m supply lead connects the reel to the power source.
Thermal protection
An integrated thermal cut-out trips if the cable temperature becomes too high. The reel is intended for indoor use and has an IP20 protection rating.
Technical specifications
- Retractable cable length: 25 m
- Supply lead length: 1 m
- Rated voltage: 230 V
- Maximum power, wound: 1,000 W
- Maximum power, fully unwound: 3,000 W
- Sockets: 1
- Cable retraction: Automatic
- Mounting: Wall bracket included
- Electrical protection class: I
- Ingress protection: IP20
- Overheating protection: Thermal cut-out
- Use: Indoors
- Length: 455 mm
- Height: 316 mm
- Width: 184 mm
- Net weight: 8 kg
