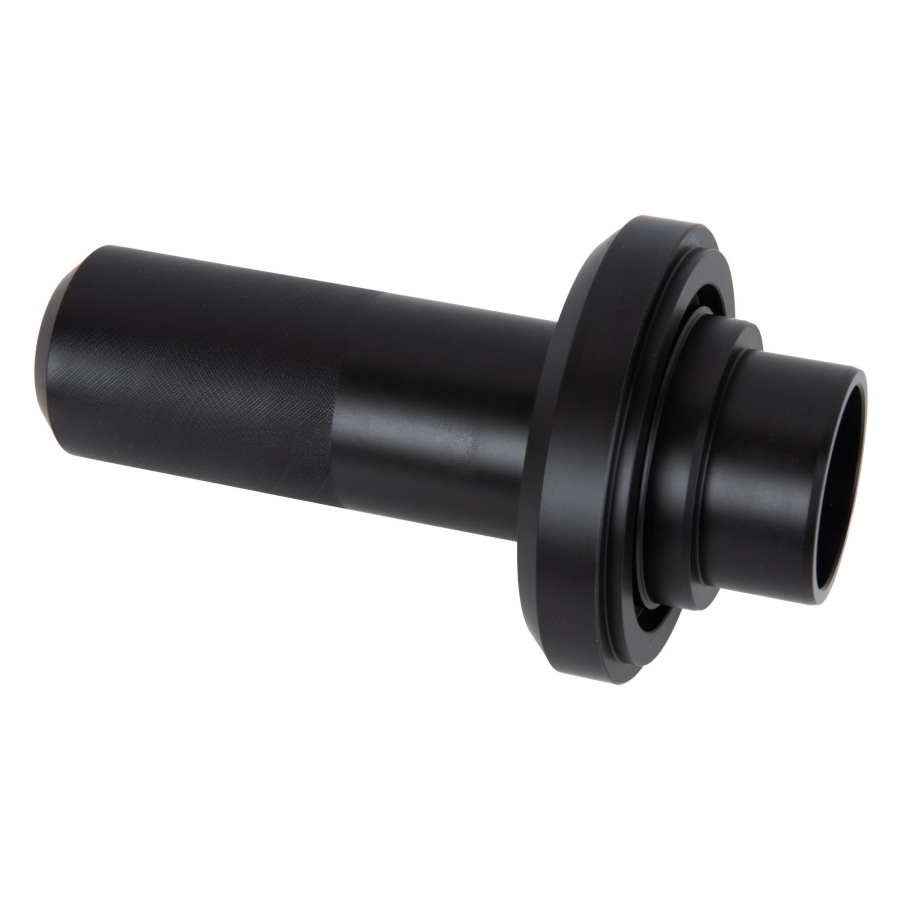

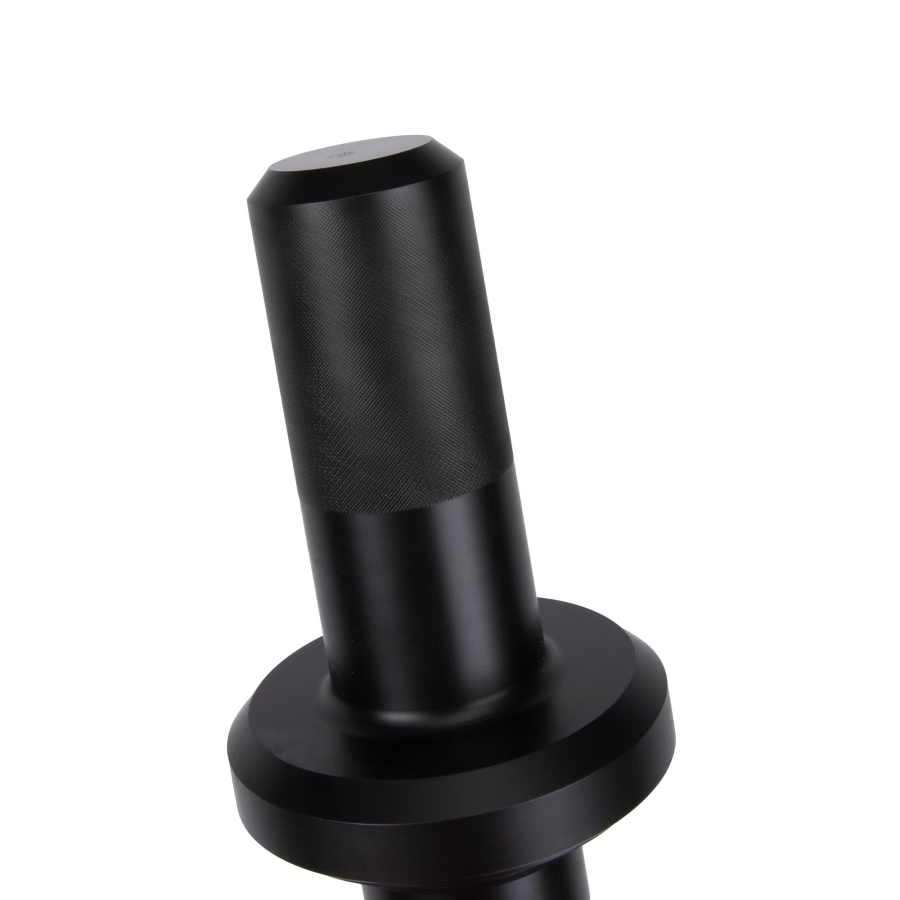

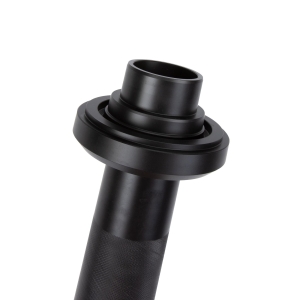

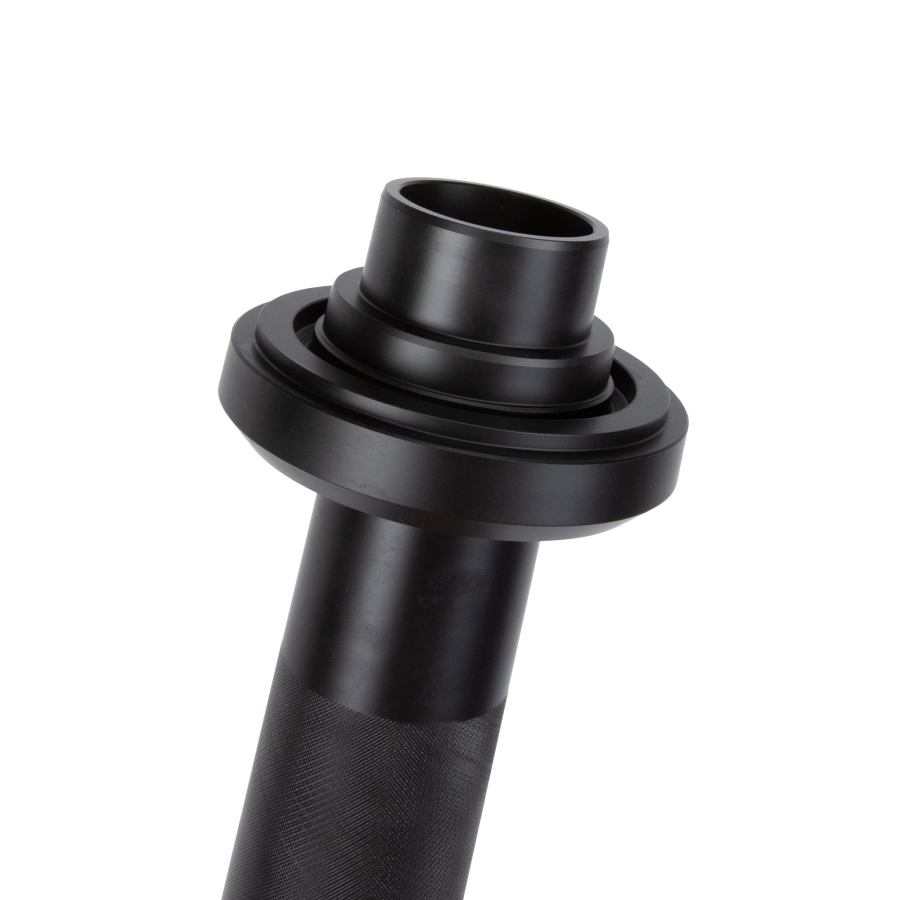

Transfer Case Output Shaft Seal Installer for VTG300 / ATC35L, as BMW 271440, item.no. 0495242

Special tool designed for installation of the radial shaft seal on the output shaft of BMW transfer cases connected to the propeller shaft in all-wheel-drive vehicle models equipped with VTG300 / ATC35L transfer cases.

According to BMW repair guidelines, the radial shaft seal must always be replaced during leakage repairs or servicing work on the output shaft of transfer cases with designation ATC300 / ATC35L.

The seal is installed using the mounting tool together with a rubber or plastic hammer.

Service Notes

The driveshaft flange is secured with a retaining ring and can be removed using a universal 3-arm puller.

Before installation, ensure the O-ring is correctly positioned in the spline connection.

If only this shaft seal is replaced, the propeller shaft can remain installed in the vehicle.

Compatible BMW Vehicle Models

Suitable for the following BMW AWD and xDrive models:

• 1 Series: F20, F21
• 2 Series: F22, F23
• 3 Series: E90, E91, E92, F30, F31, F34, F35
• 4 Series: F32, F33, F36
• 5 Series: E60, E61, F07, F10, F11, F18
• 6 Series: F06, F12, F13
• 7 Series: F01, F02
• X1 Series: E84
• X3 Series: E83, F25
• X4 Series: F26
• X5 Series: E70, F15, F85
• X6 Series: E71, F16, F86

Compatible Seal Reference Numbers

Suitable for shaft seals:

• 52 x 75 x 8/12

Reference numbers:

• BMW: 27107546667
• Corteco: 01035173B

Tool Reference Numbers

To be used as:

• BMW 271440
• BMW 27 1 440
• item.no. 83300495242
• item.no. 0495242

Product Features

• Stahlmaxx quality tool
• High-quality materials
• Precision manufacturing
• Designed according to repair manual specifications
• Suitable for professional workshop use

Original numbers are provided for comparison purposes only. This is not an original BMW tool.
