BMW Camshaft Installation Tool N53 N54 as 118550 118551 118552
-
Code:9647
-
Weight:1.700 Kgs
Overview:
✔ Professional camshaft installation tool for BMW N53 and N54 engines
✔ Enables controlled valve spring compression during installation
✔ Prevents camshaft damage during mounting
✔ Designed for safe and precise engine assembly
✔ Suitable for workshop and professional engine repair
✔ Used as OEM 11 8 550, 11 8 551, 11 8 552
This professional camshaft installation tool is specifically developed for safe mounting of camshafts on BMW N53 and N54 engines. It allows controlled compression of valve springs during installation, ensuring proper positioning and reducing mechanical stress on the camshaft.
Prevents Camshaft Damage
During installation, uncontrolled force on valve springs can lead to camshaft damage or breakage. This tool ensures even and controlled pressure, significantly reducing the risk of damage and ensuring a safe installation process.
Applications
Installation of camshafts on BMW N53 and N54 engines
Valve spring compression during engine service
Professional workshop and engine repair use
Compatibility
BMW engines: N53, N54
OEM Reference
Used as: 11 8 550, 11 8 551, 11 8 552

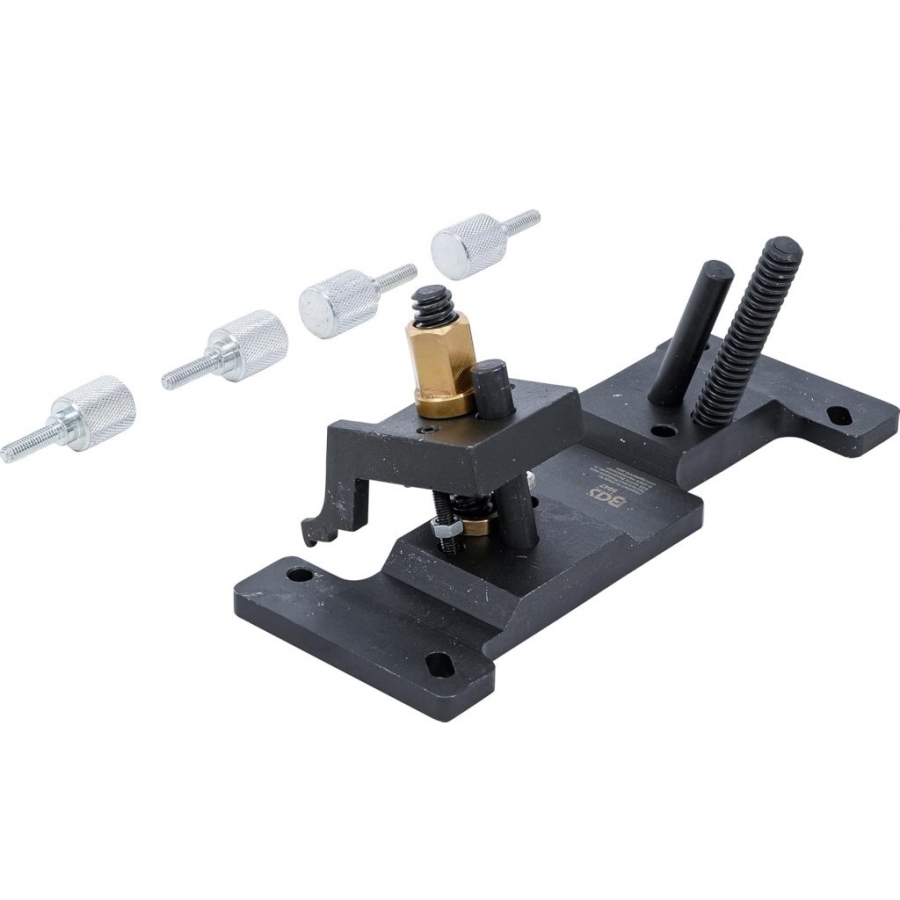

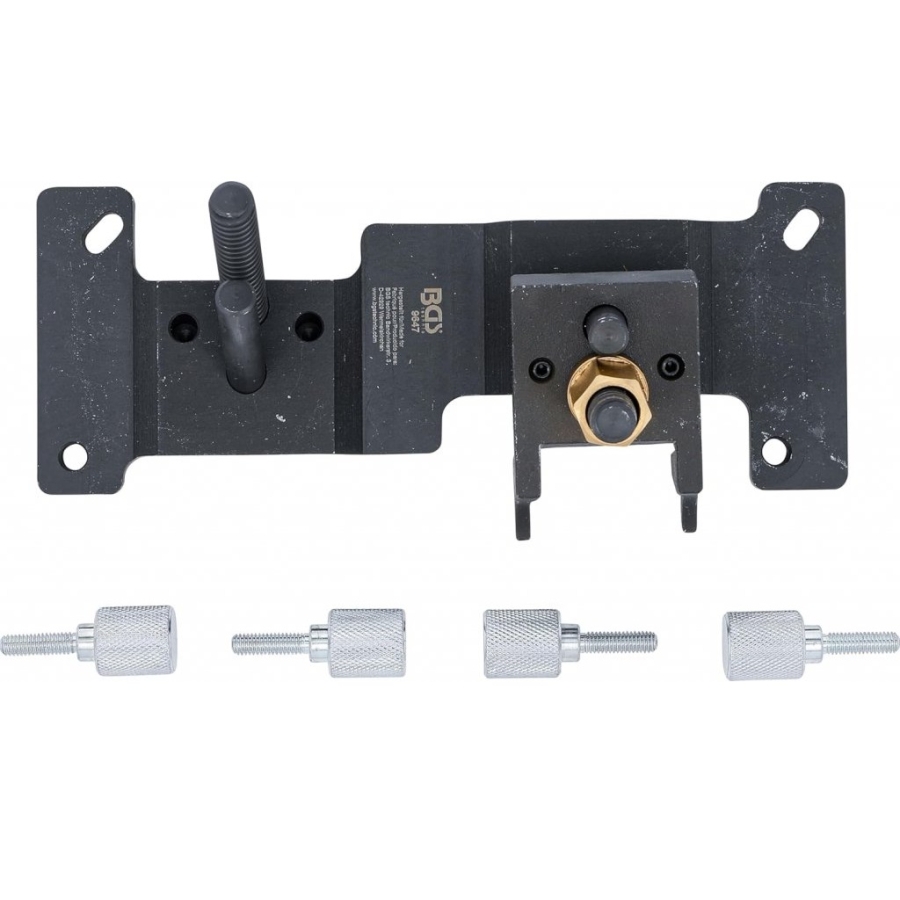

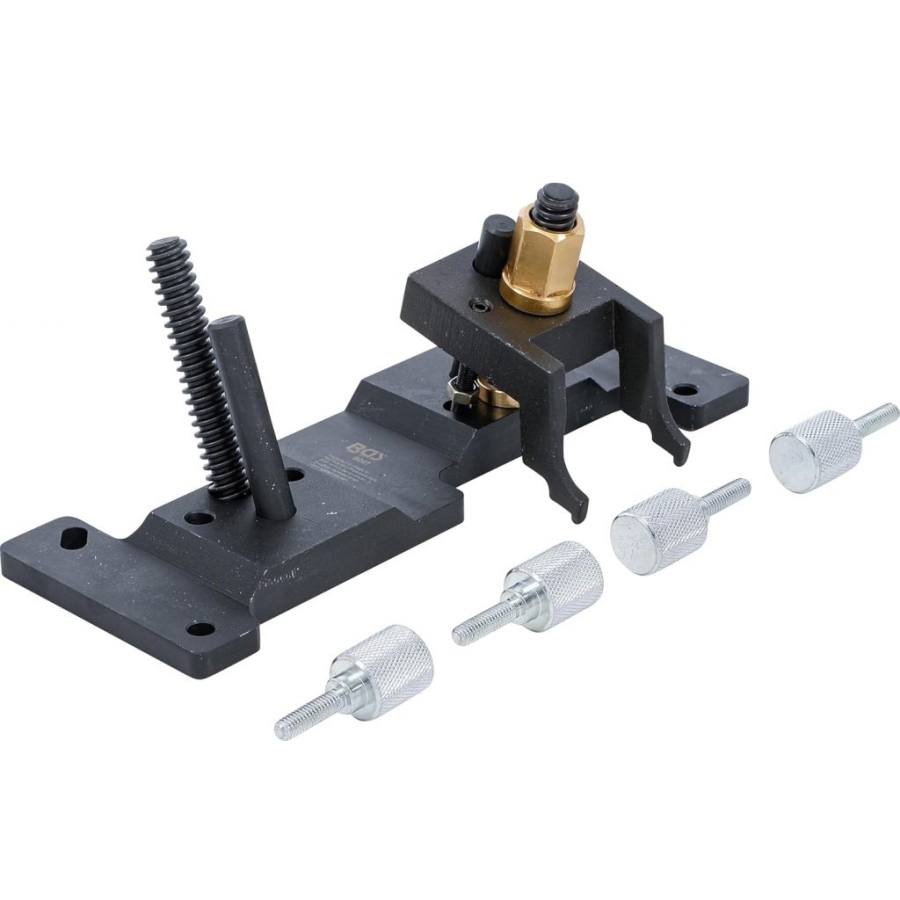

Scope of Delivery
1 × Camshaft installation tool (item.no. 11 8 550)
1 × Valve spring compressor (item.no. 11 8 551)
1 × Mounting bolts set (item.no. 11 8 552)
Original tool numbers are for identification purposes only. This is not an original OEM tool.

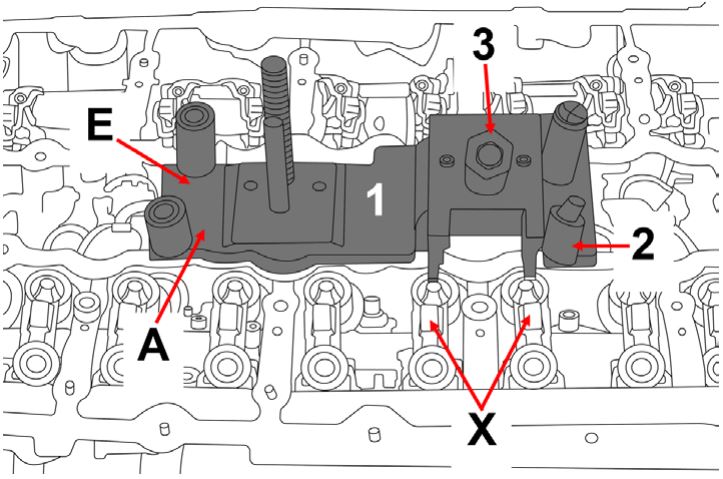

Application
- Pre-install the valve spring compressor (1), marked with E for intake and A for exhaust, on cylinders 2 / 3
- Insert the mounting bolts (2) into the valve cover threads
- Depress the roller rocker arms (X) of cylinder 3 using the spindle nut (3) of tool (1)
