BMW Land Rover Camshaft Locking Tool M47 M57 204D3 as 116321 116322

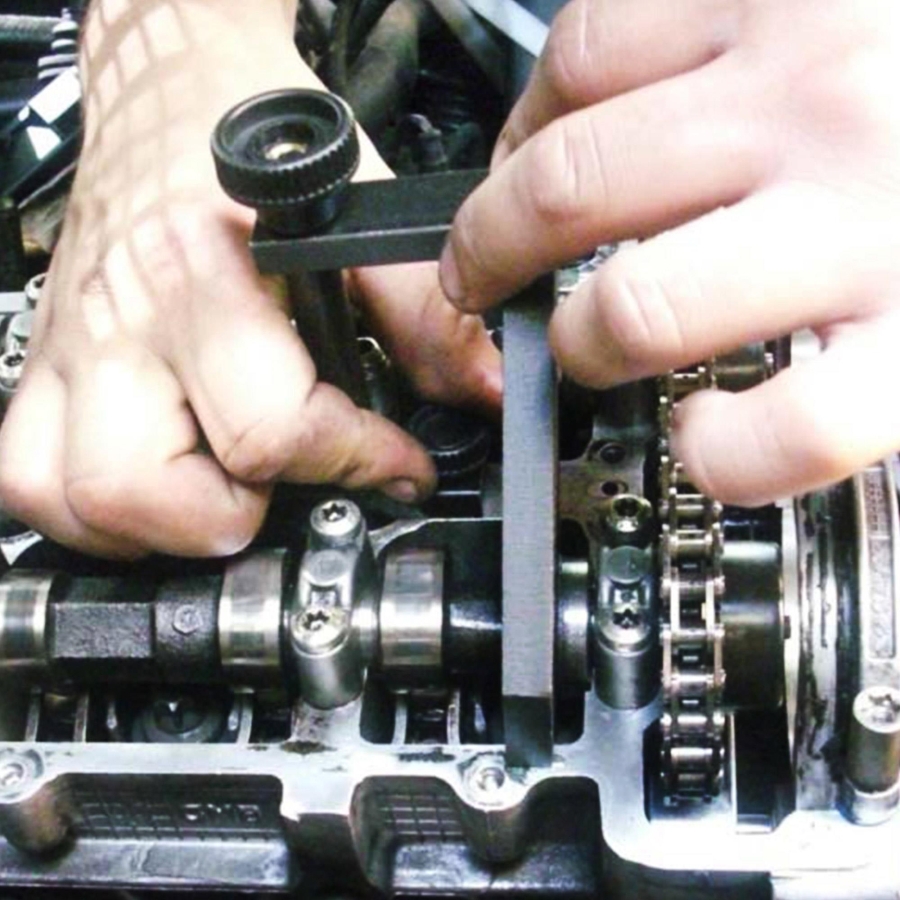

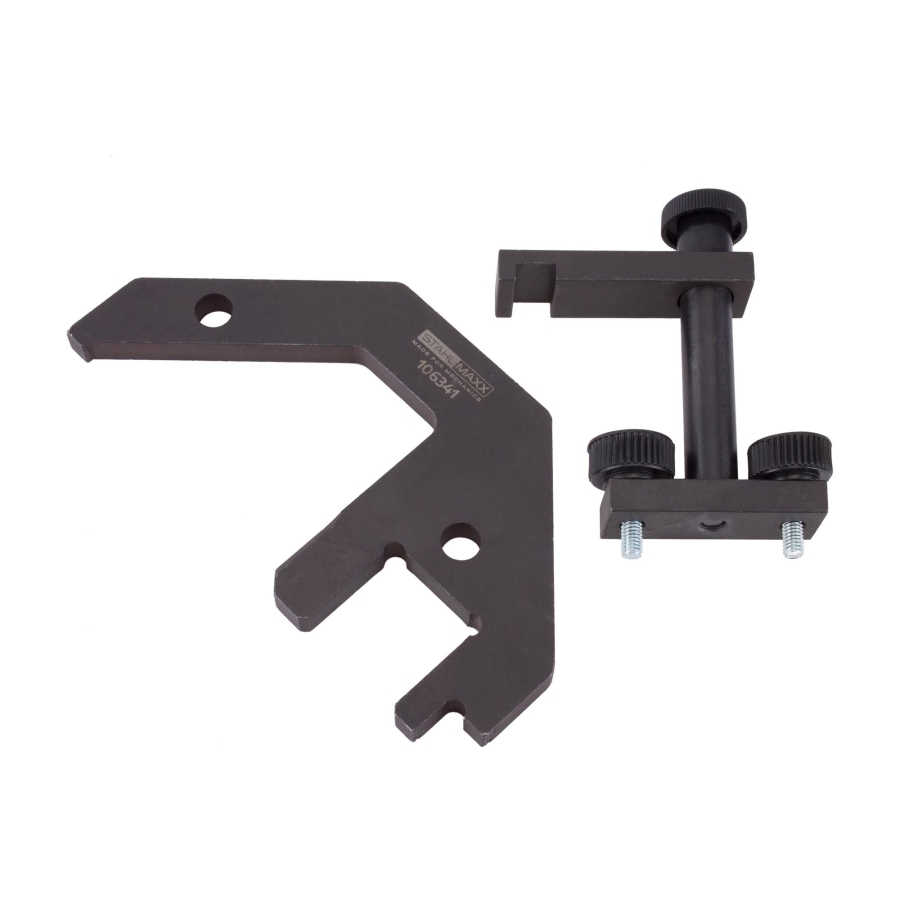

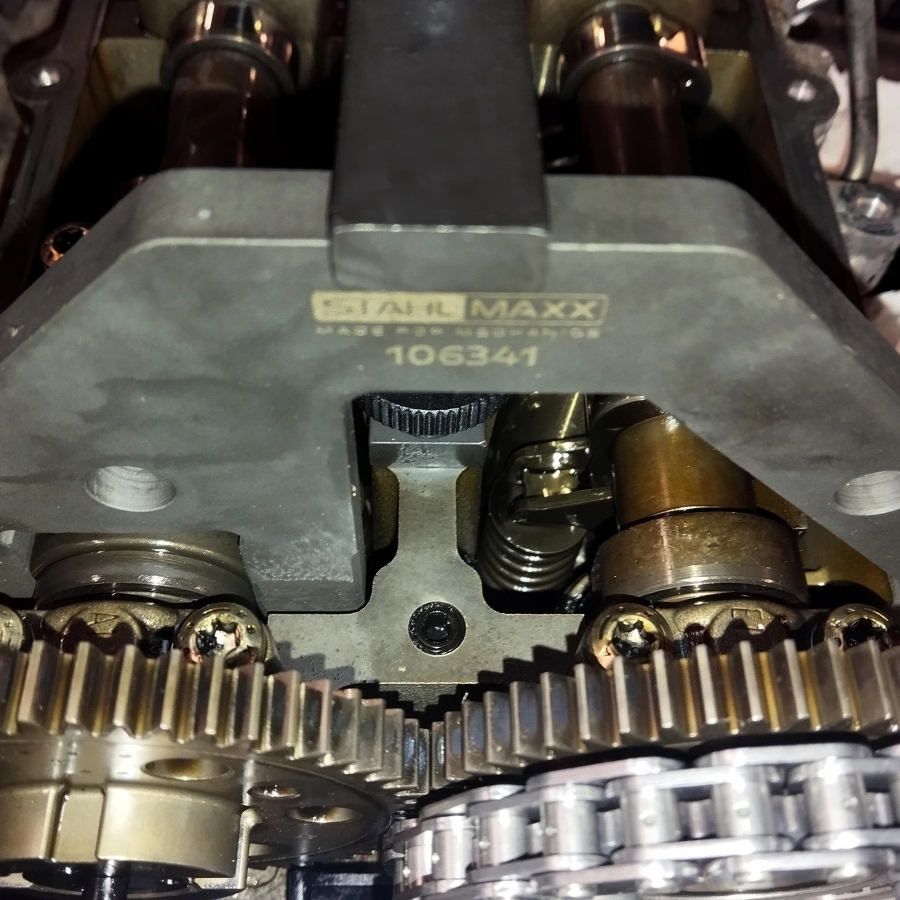

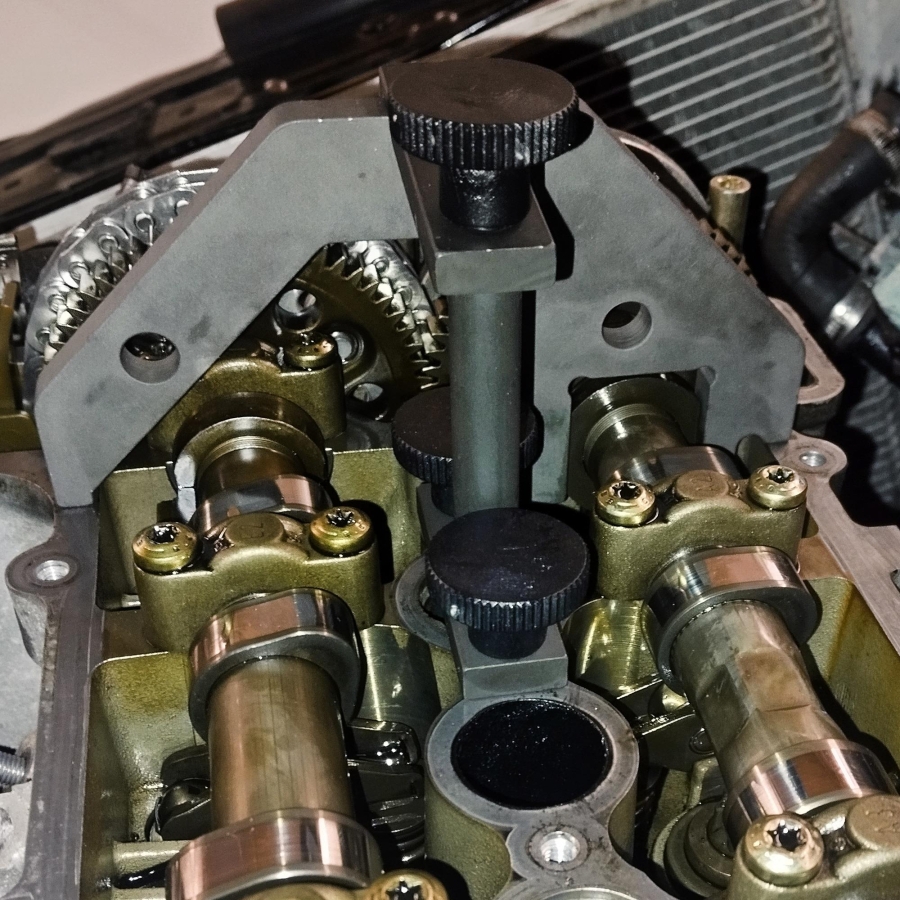

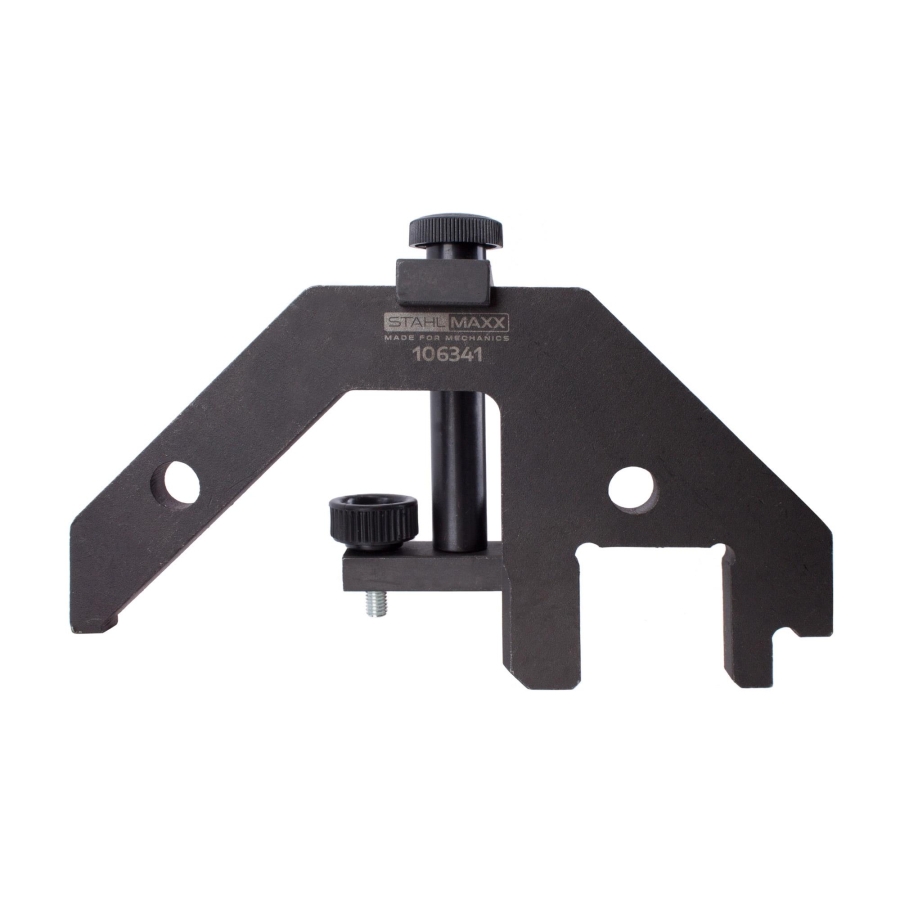

This camshaft locking tool is designed for fixing the camshafts in the correct position during maintenance and repair work on BMW and Land Rover diesel engines. It ensures accurate timing alignment, which is essential for proper engine operation and reliability.

---

Vehicle Compatibility

• BMW: E38, E39, E46, E53
• Land Rover: Freelander 2.0 TD4 (2001–2003)

---

Compatibility – Engine Codes

• Engine families: M47, M57, 204D3
• Detailed engine codes: M47D20 (204D1), M47D20 (204D4), M47N204D4, M57D25 (256D1), M57D25 (256D2), M57D30 (306D1), M57D30 (306D2), M57D30 (306D3), M57D30 (306D4), M57D30 (306D5), M57N256D4, N47D20A, N47D20C, N57D30A

---

OEM Reference

• Used as: BMW 116321, 116322
• Used as: Land Rover LRT-12-173, LRT-12-174

---

Technical Information

• Designed for precise camshaft locking
• Ensures correct timing alignment
• Supports safe and accurate engine servicing



Original tool numbers are for identification purposes only. This is not an original OEM tool.
