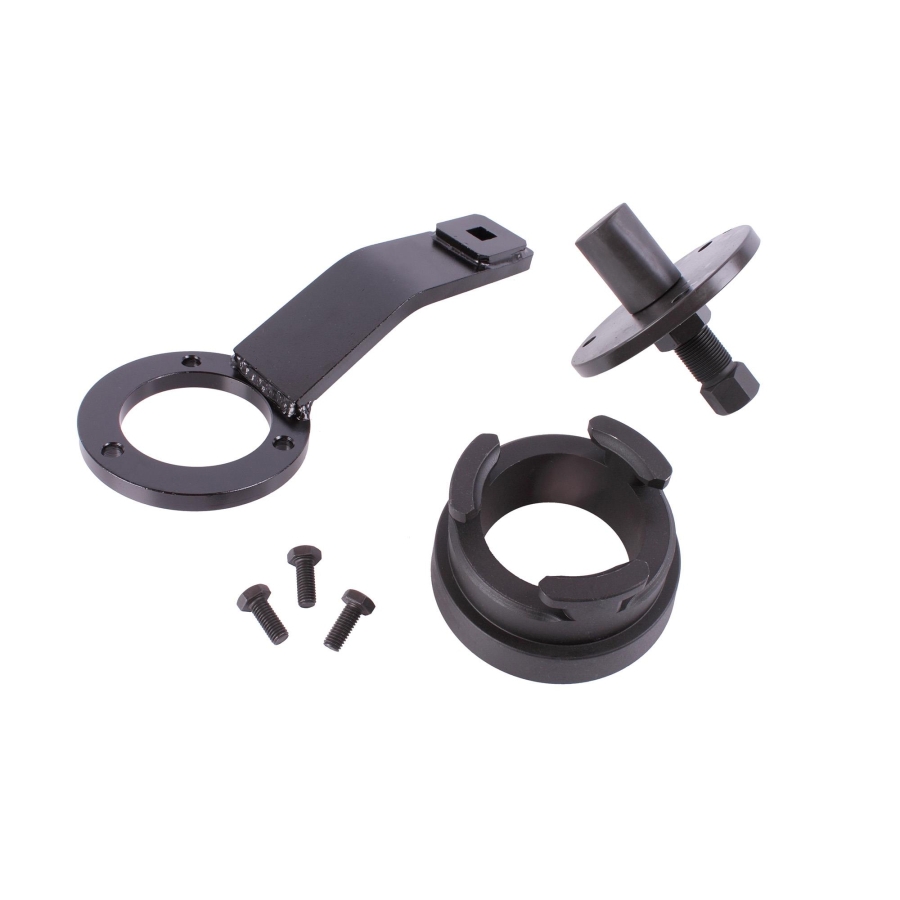

Crankshaft Pulley Holding & Counterhold Tool Set – BMW M52TU, M54, M56

This specialized tool set is designed for holding and counterholding the crankshaft pulley (harmonic balancer) during service operations. It allows safe loosening and tightening of the central pulley bolt without transferring stress to internal engine components.

The tool is also suitable for assisting in the removal and installation of the crankshaft pulley, ensuring controlled and damage-free operation.

---

Functionality

The included components provide secure engagement with the harmonic balancer, preventing rotation while torque is applied to the central bolt. This is essential for professional engine work where controlled force application is required.

The tool can be used with standard 1/2" (12.5 mm) drive tools such as ratchets, breaker bars, or sliding T-handles, making it versatile for workshop environments.

---

Engine Compatibility

Suitable for BMW engines:
M52TU, M54, M56

---

Motor Codes

M52 (286S1), M52B20 (206S3), M52B20 (206S4)
M52B25 (256S3), M52B25 (256S4), M52B25TU
M52B28, M52B28 (286S), M52B28 (286S1), M52B28 (286S2), M52B28 (286S7T), M52B28 (286ST5)
M54B22 (226S1), M54B25 (256S5), M54B30 (306S3)
M56B25 (256S6)
M54256S5, M54306S3

---

OEM Reference (for comparison)

as BMW 118190 – counterhold tool (part 1)
as BMW 118200 – counterhold tool (part 2)
as BMW 118210 – puller tool

---

Important Technical Note

This tool is intended for professional use when working on crankshaft pulleys. Always ensure correct positioning before applying torque to avoid component damage.



OEM numbers are for reference only and do not imply original manufacturer supply.

USAGE (COUNTER-HOLDING TOOL)
Attach the upper section of the counter-holding tool (3) to the base unit (1) using the three supplied bolts (4).

Insert the holding/pulling claws (Z) on the base unit (1) through the slots (A) in the pulley, then rotate them to lock behind the ribs (B) of the pulley.

---

USAGE (PULLER)
Attach the upper section of the puller (2) to the base unit (1) using the three supplied bolts (4).

Insert the holding/pulling claws (Z) on the base unit (1) through the slots (A) in the pulley, then rotate them to lock behind the ribs (B) of the pulley.

---

PULLEY
A – Pulley slot
B – Pulley rib

ALPINA B10 (E39) (12.1996 - 05.2004) 3.3 (280 HP, 206 kW)

ALPINA B10 Touring (E39) (01.1997 - 05.2004) 3.3 (280 HP, 206 kW)

ALPINA B3 (E46) (03.1999 - 01.2006) 3.3 (280 HP, 206 kW)

ALPINA B3 (E46) (03.1999 - 01.2006) 3.3 all-wheel drive (280 hp, 206 kW)

ALPINA B3 (E46) (03.1999 - 01.2006) 3.4 S (305 HP, 224 kW)

ALPINA B3 Cabriolet (E46) (10.2000 - 12.2005) 3.3 (280 HP, 206 kW)

ALPINA B3 Cabriolet (E46) (10.2000 - 12.2005) 3.4 S (305 HP, 224 kW)

ALPINA B3 Coupe (E46) (03.1999 - 01.2006) 3.3 (280 HP, 206 kW)

ALPINA B3 Coupe (E46) (03.1999 - 01.2006) 3.4 S (305 HP, 224 kW)

ALPINA B3 Touring (E46) (03.1999 - 01.2006) 3.3 (280 HP, 206 kW)

ALPINA B3 Touring (E46) (03.1999 - 01.2006) 3.3 all-wheel drive (280 hp, 206 kW)

ALPINA B3 Touring (E46) (03.1999 - 01.2006) 3.4 S (305 HP, 224 kW)

BMW 3 (E36) (09.1990 - 11.1998) 323 i (170 hp, 125 kW)

BMW 3 (E36) (09.1990 - 11.1998) 328 i (193 hp, 142 kW)

BMW 3 (E46) (12.1997 - 05.2005) 320 i (150 hp, 110 kW)

BMW 3 (E46) (12.1997 - 05.2005) 320 i (163 hp, 120 kW)

BMW 3 (E46) (12.1997 - 05.2005) 320 i (170 hp, 125 kW)

BMW 3 (E46) (12.1997 - 05.2005) 323 i (163 hp, 120 kW)

BMW 3 (E46) (12.1997 - 05.2005) 323 i (170 hp, 125 kW)

BMW 3 (E46) (12.1997 - 05.2005) 325 i (179 hp, 132 kW)

BMW 3 (E46) (12.1997 - 05.2005) 325 i (186 HP, 137 kW)

BMW 3 (E46) (12.1997 - 05.2005) 325 i (192 hp, 141 kW)

BMW 3 (E46) (12.1997 - 05.2005) 325 xi (186 hp, 137 kW)

BMW 3 (E46) (12.1997 - 05.2005) 325 xi (192 hp, 141 kW)

BMW 3 (E46) (12.1997 - 05.2005) 328 i (193 hp, 142 kW)

BMW 3 (E46) (12.1997 - 05.2005) 328 i (196 hp, 144 kW)

BMW 3 (E46) (12.1997 - 05.2005) 330 i (228 hp, 168 kW)

BMW 3 (E46) (12.1997 - 05.2005) 330 i (231 hp, 170 kW)

BMW 3 (E46) (12.1997 - 05.2005) 330 xi (228 hp, 168 kW)

BMW 3 (E46) (12.1997 - 05.2005) 330 xi (231 hp, 170 kW)

BMW 3 Cabriolet (E36) (03.1993 - 11.1999) 323 i (170 hp, 125 kW)

BMW 3 Cabriolet (E36) (03.1993 - 11.1999) 328 i (193 hp, 142 kW)

BMW 3 Cabriolet (E46) (04.2000 - 12.2007) 320 Ci (163 HP, 120 kW)

BMW 3 Cabriolet (E46) (04.2000 - 12.2007) 320 Ci (170 HP, 125 kW)

BMW 3 Cabriolet (E46) (04.2000 - 12.2007) 323 Ci (163 HP, 120 kW)

BMW 3 Cabriolet (E46) (04.2000 - 12.2007) 323 Ci (170 HP, 125 kW)

BMW 3 Cabriolet (E46) (04.2000 - 12.2007) 325 Ci (186 hp, 137 kW)

BMW 3 Cabriolet (E46) (04.2000 - 12.2007) 325 Ci (192 HP, 141 kW)

BMW 3 Cabriolet (E46) (04.2000 - 12.2007) 330 Ci (228 HP, 168 kW)

BMW 3 Cabriolet (E46) (04.2000 - 12.2007) 330 Ci (231 HP, 170 kW)

BMW 3 Compact (E36) (01.1994 - 08.2000) 323 ti (163 HP, 120 kW)

BMW 3 Compact (E36) (01.1994 - 08.2000) 323 ti (170 HP, 125 kW)

BMW 3 Compact (E46) (03.2001 - 02.2005) 325 ti (192 HP, 141 kW)

BMW 3 Coupe (E36) (10.1991 - 04.1999) 323 i (170 hp, 125 kW)

BMW 3 Coupe (E36) (10.1991 - 04.1999) 328 i (193 hp, 142 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 320 Ci (150 HP, 110 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 320 Ci (163 HP, 120 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 320 Ci (170 HP, 125 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 323 Ci (163 HP, 120 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 323 Ci (170 HP, 125 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 323 i (173 hp, 127 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 325 Ci (186 HP, 137 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 325 Ci (192 HP, 141 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 325 i (179 hp, 132 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 328 Ci (193 HP, 142 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 330 Ci (228 HP, 168 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 330 Ci (231 HP, 170 kW)

BMW 3 Coupe (E46) (12.1998 - 07.2006) 330 xi (231 HP, 170 kW)

BMW 3 Touring (E36) (01.1995 - 05.1999) 320 i (150 hp, 110 kW)

BMW 3 Touring (E36) (01.1995 - 05.1999) 323 i (170 hp, 125 kW)

BMW 3 Touring (E36) (01.1995 - 05.1999) 328 i (193 hp, 142 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 320 i (150 hp, 110 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 320 i (163 hp, 120 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 320 i (170 hp, 125 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 323 i (170 hp, 125 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 325 i (179 hp, 132 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 325 i (186 hp, 137 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 325 i (192 HP, 141 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 325 xi (186 hp, 137 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 325 xi (192 HP, 141 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 328 i (193 hp, 142 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 330 i (231 hp, 170 kW)

BMW 3 Touring (E46) (06.1999 - 07.2005) 330 xi (231 hp, 170 kW)

BMW 5 (E39) (09.1995 - 06.2003) 520 i (136 hp, 100 kW)

BMW 5 (E39) (09.1995 - 06.2003) 520 i (150 hp, 110 kW)

BMW 5 (E39) (09.1995 - 06.2003) 520 i (163 hp, 120 kW)

BMW 5 (E39) (09.1995 - 06.2003) 520 i (170 hp, 125 kW)

BMW 5 (E39) (09.1995 - 06.2003) 523 i (170 hp, 125 kW)

BMW 5 (E39) (09.1995 - 06.2003) 525 i (186 hp, 137 kW)

BMW 5 (E39) (09.1995 - 06.2003) 525 i (192 hp, 141 kW)

BMW 5 (E39) (09.1995 - 06.2003) 528 i (193 HP, 142 kW)

BMW 5 (E39) (09.1995 - 06.2003) 530 i (228 hp, 168 kW)

BMW 5 (E39) (09.1995 - 06.2003) 530 i (231 hp, 170 kW)

BMW 5 (E60) (12.2001 - 03.2010) 520 i (170 hp, 125 kW)

BMW 5 (E60) (12.2001 - 03.2010) 525 i (186 hp, 137 kW)

BMW 5 (E60) (12.2001 - 03.2010) 525 i (192 HP, 141 kW)

BMW 5 (E60) (12.2001 - 03.2010) 530 i (228 hp, 168 kW)

BMW 5 (E60) (12.2001 - 03.2010) 530 i (231 hp, 170 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 520 i (136 HP, 100 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 520 i (150 hp, 110 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 520 i (163 hp, 120 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 520 i (170 hp, 125 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 523 i (163 hp, 120 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 523 i (170 hp, 125 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 525 i (186 hp, 137 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 525 i (192 HP, 141 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 528 i (193 hp, 142 kW)

BMW 5 Touring (E39) (11.1996 - 06.2004) 530 i (231 hp, 170 kW)

BMW 5 Touring (E61) (03.2004 - 12.2010) 525 i (192 HP, 141 kW)

BMW 7 (E38) (03.1994 - 11.2001) 728 i, iL (193 hp, 142 kW)

BMW 7 (E38) (03.1994 - 11.2001) 728i X (193 hp, 142 kW)

BMW 7 (E65, E66, E67) (07.2001 - 12.2009) 730 i, Li (231 HP, 170 kW)

BMW X3 (E83) (09.2003 - 12.2011) 2.5 i (186 hp, 137 kW)

BMW X3 (E83) (09.2003 - 12.2011) 2.5 i (192 hp, 141 kW)

BMW X3 (E83) (09.2003 - 12.2011) 3.0 i (228 hp, 168 kW)

BMW X3 (E83) (09.2003 - 12.2011) 3.0 i xDrive (231 hp, 170 kW)

BMW X5 (E53) (01.2000 - 12.2006) 3.0 i (222 HP, 163 kW)

BMW X5 (E53) (01.2000 - 12.2006) 3.0 i (228 hp, 168 kW)

BMW X5 (E53) (01.2000 - 12.2006) 3.0 i (231 hp, 170 kW)

BMW Z3 Coupe (E36) (04.1997 - 06.2003) 2.8 i (193 hp, 142 kW)

BMW Z3 Coupe (E36) (04.1997 - 06.2003) 3.0 i (228 hp, 168 kW)

BMW Z3 Coupe (E36) (04.1997 - 06.2003) 3.0 i (231 hp, 170 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 2.0 i (150 hp, 110 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 2.2 i (163 hp, 120 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 2.2 i (170 hp, 125 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 2.5 (170 hp, 125 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 2.5 i (192 hp, 141 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 2.8 i (193 hp, 142 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 2.8 i (194 hp, 143 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 3.0 i (228 hp, 168 kW)

BMW Z3 Roadster (E36) (10.1995 - 01.2003) 3.0 i (231 hp, 170 kW)

BMW Z4 Coupe (E86) (03.2006 - 01.2009) 2.5 i (192 hp, 141 kW)

BMW Z4 Roadster (E85) (09.2002 - 02.2009) 2.2 i (170 hp, 125 kW)

BMW Z4 Roadster (E85) (09.2002 - 02.2009) 2.5 i (186 hp, 137 kW)

BMW Z4 Roadster (E85) (09.2002 - 02.2009) 2.5 i (192 hp, 141 kW)

BMW Z4 Roadster (E85) (09.2002 - 02.2009) 3.0 i (228 hp, 168 kW)

BMW Z4 Roadster (E85) (09.2002 - 02.2009) 3.0 i (231 hp, 170 kW)

LAND ROVER DEFENDER Pick Up (L316) (04.1998 - 05.2016) 2.8 4x4 (190 HP, 140 kW)

LAND ROVER DEFENDER Station Wagon (L316) (05.1990 - 02.2016) 2.8 4x4 (190 HP, 140 kW)

WIESMANN MF3 Roadster (01.1996 - 08.2003) 2.8 (193 HP, 142 kW)

WIESMANN MF3 Roadster (01.1996 - 08.2003) 3.0 (231 HP, 170 kW)
