BMW M5 S62B50 Engine Timing Tool Kit

Price: €395.00 772.55лв.

Code:

118440
Weight:

0.647 Kgs

Overview:
✔ Professional engine timing tool kit for BMW S62 engines
✔ Designed for precise camshaft and VANOS timing adjustment
✔ Compatible with BMW M5 (E39) and Z8 (E52)
✔ Covers engine code S62B50 (508S1)

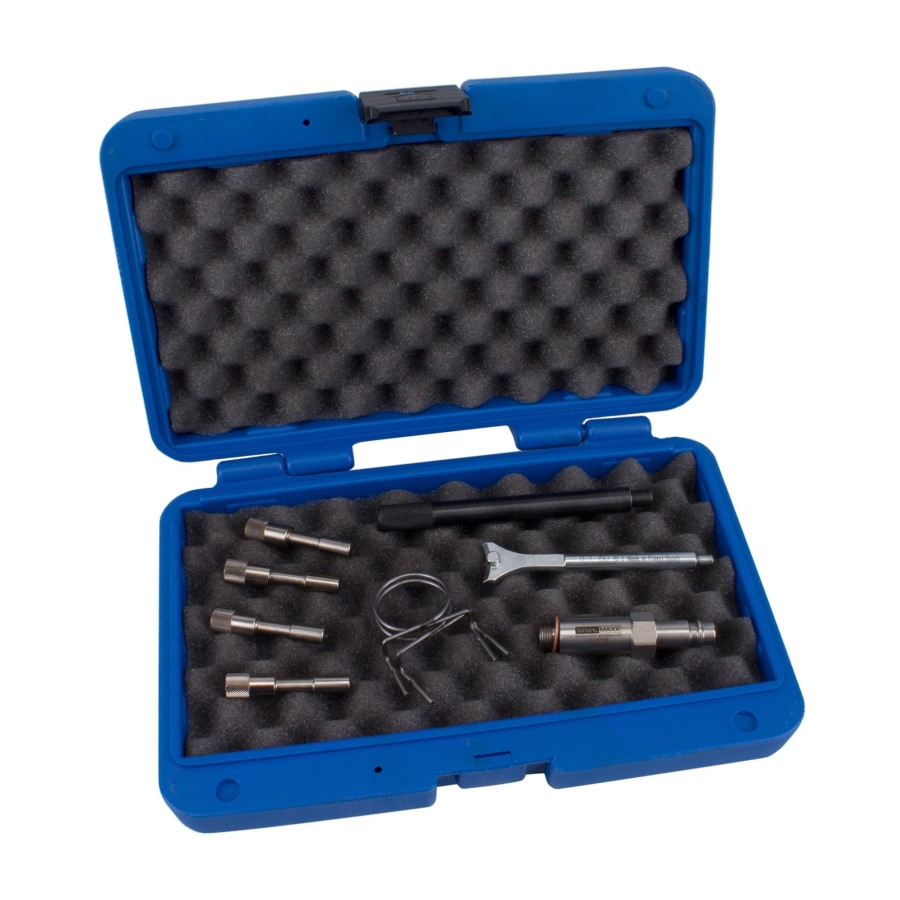

✔ Includes locking, tensioning, and adjustment tools
✔ Suitable for professional workshop use

Send to friend

Rate this product

This engine timing tool kit is specifically developed for precise adjustment and locking of the camshaft timing on BMW S62 engines. It is suitable for use on high-performance V8 engines installed in BMW M5 (E39) and BMW Z8 (E52) models.

Compatible engine code:
S62B50 (508S1)

Functionality

The kit enables accurate positioning and locking of camshafts, secure tensioning of the timing chain, and proper adjustment of the VANOS system. It ensures correct engine timing during maintenance or repair procedures, reducing the risk of misalignment and engine damage.

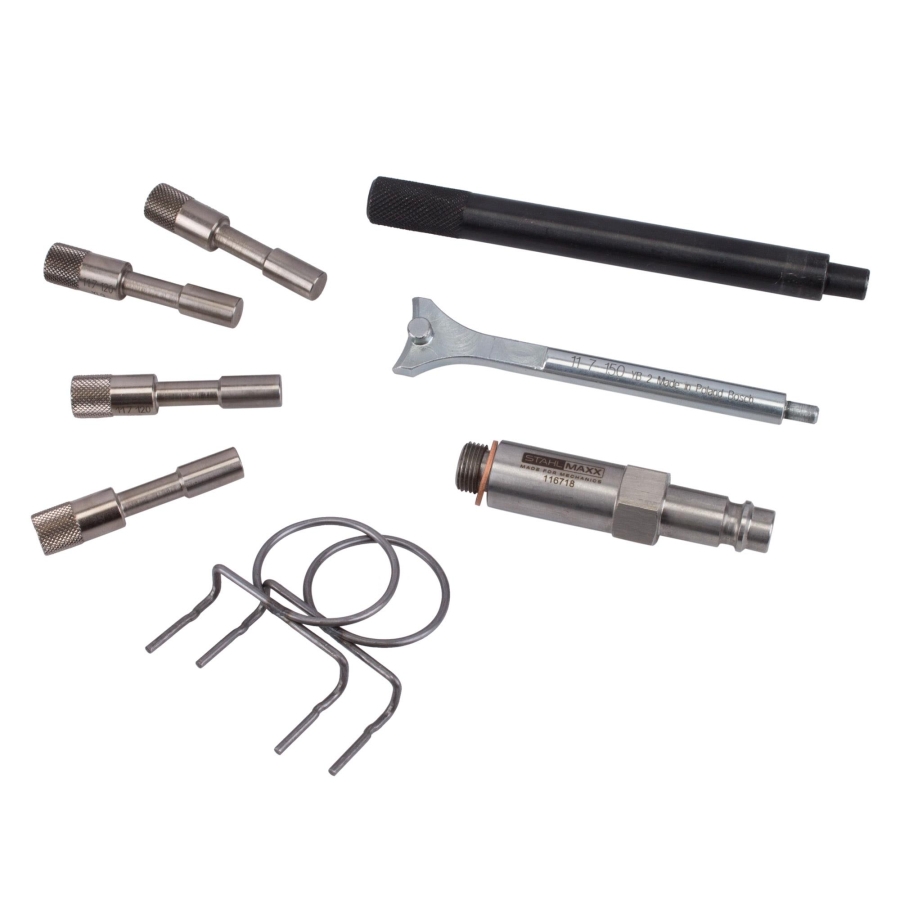

✔ 4 x Camshaft locking pins as 83300493386 / 117120
✔ 2 x Chain tensioner locking tools as 83300493428 / 117140
✔ 1 x Hook wrench for VANOS gear adjustment as 83300493432 / 117150
✔ 1 x Flywheel locking tool for BMW as 83300490861 / 112300 16027
✔ 1 x Compressed air adapter for VANOS adjustment unit as 83300493430 / 117130 (Art. No. 116718)

Additional Information

As an alternative to the insertion tool as 83300493434 / 117200, a combination wrench with a 10 mm hex socket inserted into the ring can be used as a torque extension. The torque must be recalculated based on the total extended length (center of square drive to handle vs. center of wrench to handle).

Original numbers are for comparison purposes only. This is not an OEM tool.

BMW 5 (E39) (09.1995 - 06.2003) M5 (400 hp, 294 kW)

BMW Z8 Roadster (E52) (01.2000 - 12.2003) 4.9 (400 HP, 294 kW)
