BMW / Mini Engine Timing Tool Kit – B36, B38, B46, B48, B58

Specialized tool kit for setting and checking camshaft and crankshaft timing on BMW and Mini engines.

Compatible engine series:
BMW / Mini: B36, B38, B46, B48, B58

---

Functionality

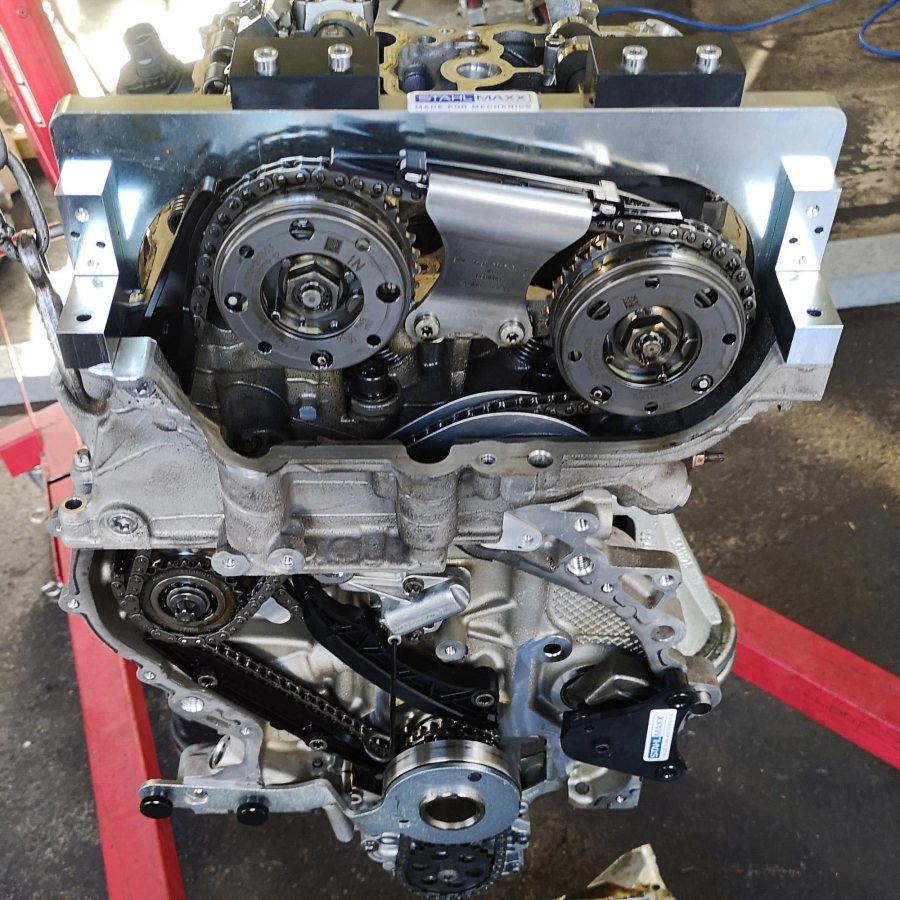

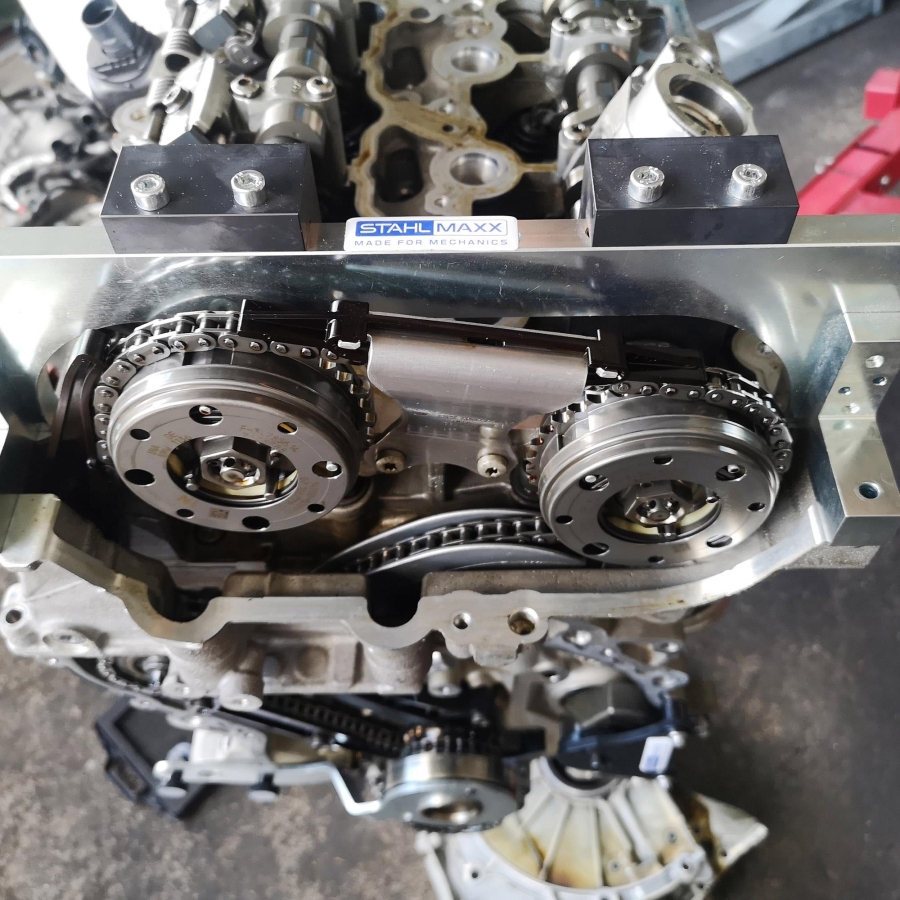

This kit enables precise positioning of camshafts and crankshaft during timing service and engine repair.

It supports full timing procedures including:

• Camshaft alignment
• Crankshaft locking
• Timing chain pre-tensioning
• Engine rotation and positioning

---

Important Notes

• Camshaft markings must face upward (risk of incorrect positioning)
• Timing chain is located at the rear of the engine

Crankshaft Locking Pin Insertion Depth

• Manual transmission: max. 56 mm insertion depth
• Automatic transmission: max. 66 mm insertion depth
  → Marking the pin is recommended to avoid incorrect positioning

---

Injector Handling Requirements

• Injector removal is required for timing procedure
• Maximum torque load: 6 Nm (exceeding may damage injector)
• Injector seals must always be replaced during installation
• Use dedicated tool 106398 for seal replacement

---

Function-Specific Tool Usage

The included tools support various operations:

• Camshaft adjustment and locking
• Crankshaft positioning and locking
• Chain pre-tensioning
• Actuator release for camshaft adjustment system
• Engine rotation via crankshaft

---

OEM Reference Compatibility

Used as replacement for OEM tools:
116480, 118580, 119340, 2288380, 2358122, 2360895, 2365488

---

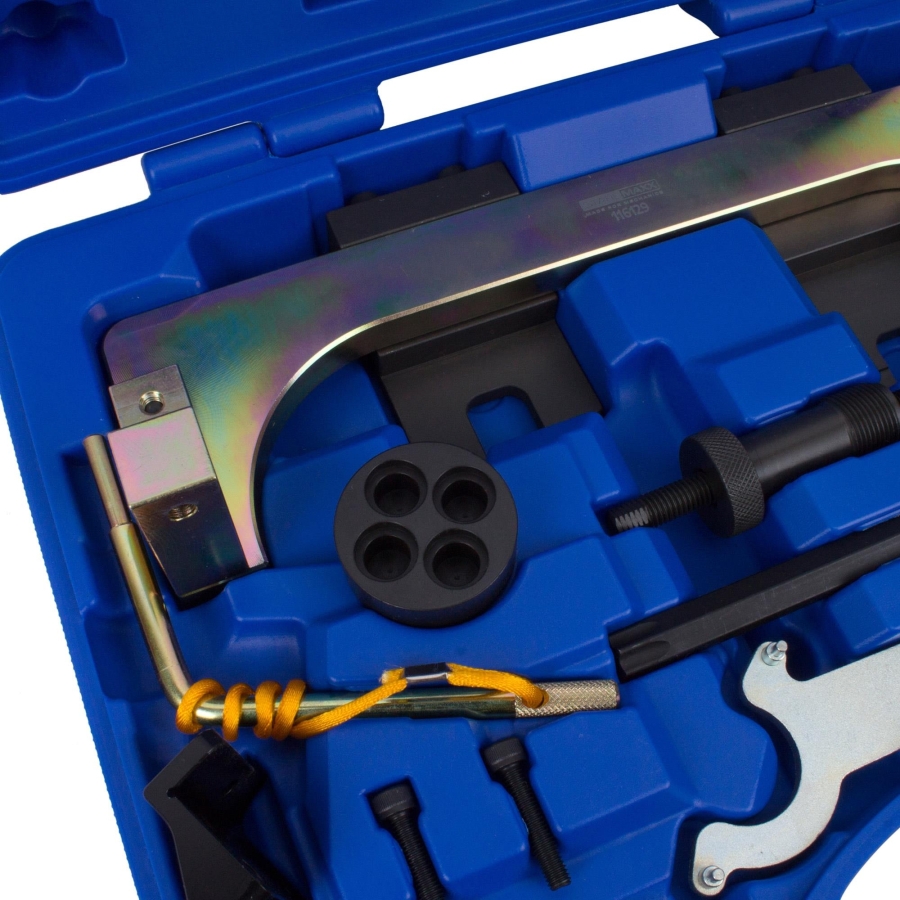

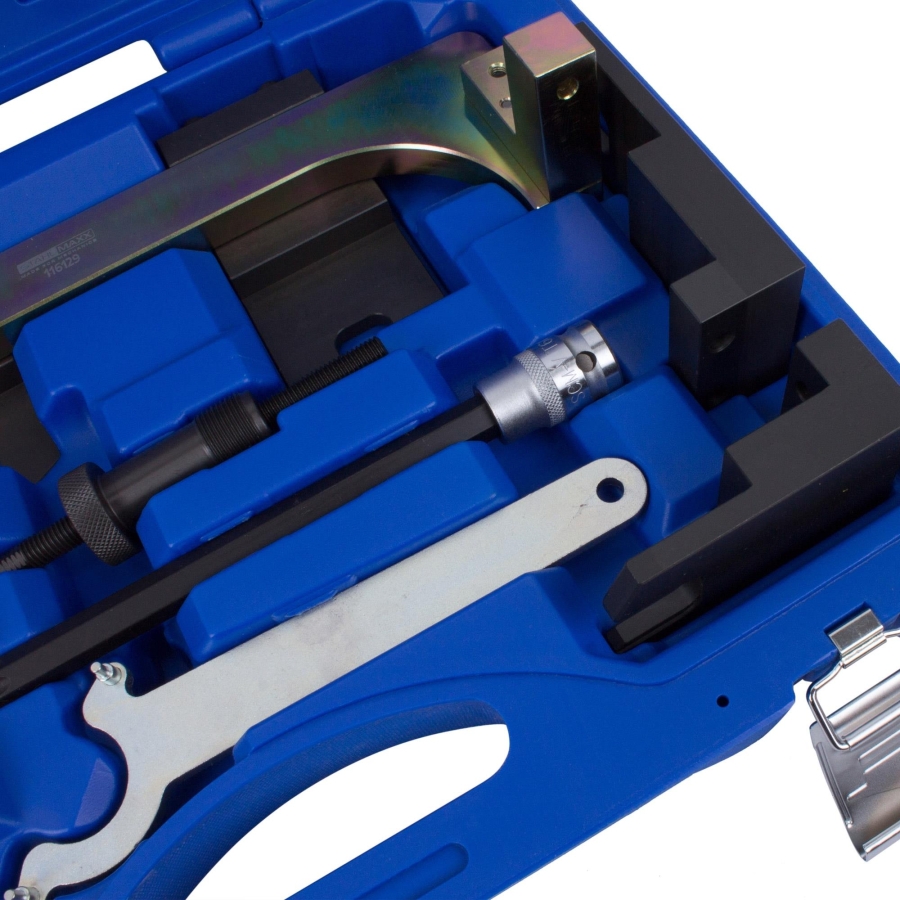

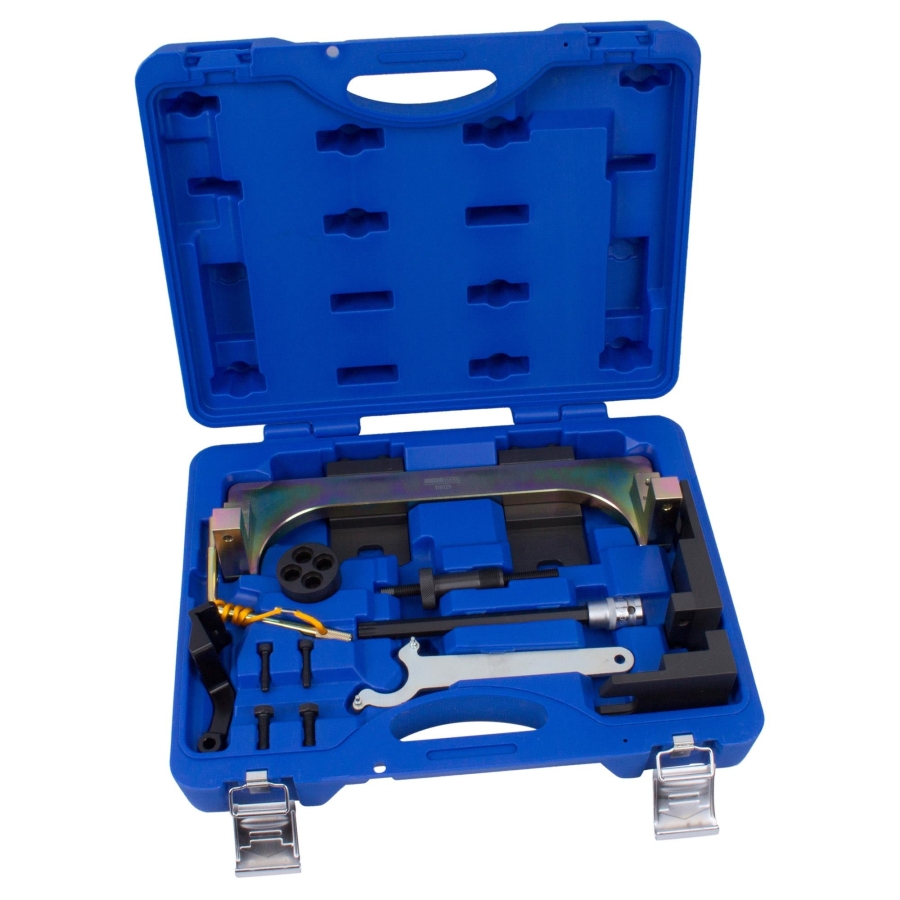

Scope of Delivery

• 106567A Camshaft alignment tool (use as 2358122)
• 106568 Crankshaft locking pin (use as 2288380)
• 115729 Adapter plate for flywheel locking pin automatic (use as 2365488)
• 102499A Cylinder head bolt socket T60TX long (use as 118580)
• 118790A Timing chain pre-tensioning tool (use as 119340)
• KT10066 Crankshaft turning tool (use as 116480)
• 116333A Camshaft actuator release tool (use as 2360895)

---

Recommended Additional Tools (Not Included)

For Timing Adjustment

• 115728A Crankshaft holding tool (use as 2420824)
• 106650 Torque screwdriver 0.4–2 Nm (use as 009460)
• 100999 Flexible extension

---

For Injector Service

• 116540 Injector removal & installation tool (use as 2358417, 2358022)
• 116541 Injector seal tool (use as 130280)

---

For Balance Shaft & Oil Pump Adjustment

• 121350 Balance shaft tool (use as 2288942, 2358646, 2288943)
• 121085 Balance shaft removal tool (use as 2361286, 2458114)
• 106414 Balance shaft alignment tool (use as 2288054, 118750)

---

For Camshaft & Intermediate Lever Service

• 116364 Valvetronic spring compressor (use as 2359088, 2359089)



OEM numbers are for reference purposes only and do not imply original manufacturer tooling.

BMW 1 (F20) (07.2011 - 06.2019) 116 i (109 hp, 80 kW)

BMW 1 (F20) (07.2011 - 06.2019) 118 i (136 hp, 100 kW)

BMW 1 (F20) (07.2011 - 06.2019) 120 i (184 hp, 135 kW)

BMW 1 (F20) (07.2011 - 06.2019) M 140 i (340 hp, 250 kW)

BMW 1 (F20) (07.2011 - 06.2019) M 140 i xDrive (340 hp, 250 kW)

BMW 1 (F21) (12.2011 - 12.2019) 116 i (109 HP, 80 kW)

BMW 1 (F21) (12.2011 - 12.2019) 118 i (136 hp, 100 kW)

BMW 1 (F21) (12.2011 - 12.2019) M 140 i (340 hp, 250 kW)

BMW 1 (F21) (12.2011 - 12.2019) M 140 i xDrive (340 hp, 250 kW)

BMW 1 (F52) (01.2017 - ) 118 i (136 hp, 100 kW)

BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 216 i (102 hp, 75 kW)

BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 216 i (109 hp, 80 kW)

BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 218 ​​i (136 hp, 100 kW)

BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 218 ​​i (140 hp, 103 kW)

BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 225 xe plug-in hybrid (136 hp, 100 kW)

BMW 2 Active Tourer (F45) (11.2013 - 02.2018) 225 xe Plug-in hybrid (224 hp, 165 kW)

BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 218 ​​i (136 hp, 100 kW)

BMW 2 Cabriolet (F23) (03.2014 - 07.2016) 220 i (136 hp, 100 kW)

BMW 2 Cabriolet (F23) (03.2014 - 07.2016) M 240 i (340 hp, 250 kW)

BMW 2 Cabriolet (F23) (03.2014 - 07.2016) M 240 i xDrive (340 HP, 250 kW)

BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 218 ​​i (136 HP, 100 kW)

BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) 220 i (136 HP, 100 kW)

BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) M 240 i (340 HP, 250 kW)

BMW 2 Coupe (F22, F87) (10.2012 - 06.2018) M 240 i xDrive (340 hp, 250 kW)

BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 216 i (102 hp, 75 kW)

BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 216 i (109 hp, 80 kW)

BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 218 ​​i (136 hp, 100 kW)

BMW 2 Gran Tourer (F46) (07.2014 - 02.2018) 218 ​​i (140 hp, 103 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 318 i (136 HP, 100 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 330 i (252 HP, 185 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 340 i (326 HP, 240 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 340 i (360 hp, 265 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 340 i xDrive (326 HP, 240 kW)

BMW 3 (F30, F80) (04.2011 - 10.2018) 340 i xDrive (360 HP, 265 kW)

BMW 3 (G20, G80) (11.2018 - 02.2020) 330 i (258 hp, 190 kW)

BMW 3 (G20, G80) (11.2018 - 02.2020) 330 i xDrive (258 HP, 190 kW)

BMW 3 (G20, G80) (11.2018 - 02.2020) M 340 i xDrive (374 HP, 275 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 340 i (326 hp, 240 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 340 i (360 hp, 265 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 340 i xDrive (326 HP, 240 kW)

BMW 3 Gran Turismo (F34) (11.2012 - 02.2018) 340 i xDrive (360 hp, 265 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 318 i (136 HP, 100 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 340 i (326 HP, 240 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 340 i (360 hp, 265 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 340 i xDrive (326 HP, 240 kW)

BMW 3 Touring (F31) (07.2012 - 06.2019) 340 i xDrive (360 hp, 265 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 440 i (326 HP, 240 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 440 i (360 HP, 265 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 440 i xDrive (326 HP, 240 kW)

BMW 4 Cabriolet (F33, F83) (10.2013 - 12.2018) 440 i xDrive (360 HP, 265 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 418 i (136 HP, 100 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 440 i (325 HP, 239 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 440 i (326 HP, 240 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 440 i (360 hp, 265 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 440 i xDrive (325 HP, 239 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 440 i xDrive (326 HP, 240 kW)

BMW 4 Coupe (F32, F82) (07.2013 - 06.2019) 440 i xDrive (360 HP, 265 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 418 i (136 hp, 100 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 440 i (360 hp, 265 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 440 i xDrive (326 HP, 240 kW)

BMW 4 Gran Coupe (F36) (03.2014 - 02.2018) 440 i xDrive (360 HP, 265 kW)

BMW 5 (G30, F90) (09.2016 - 06.2021) 530 e plug-in hybrid xDrive (184 hp, 135 kW)

BMW 5 (G30, F90) (09.2016 - 06.2021) 530 e plug-in hybrid xDrive (252 hp, 185 kW)

BMW 5 (G30, F90) (09.2016 - 06.2021) 530 i (252 HP, 185 kW)

BMW 5 (G30, F90) (09.2016 - 06.2021) 530 i xDrive (252 HP, 185 kW)

BMW 5 (G30, F90) (09.2016 - 06.2021) 540 i (340 hp, 250 kW)

BMW 5 (G30, F90) (09.2016 - 06.2021) 540 i (360 HP, 265 kW)

BMW 5 (G30, F90) (09.2016 - 06.2021) 540 i xDrive (340 HP, 250 kW)

BMW 5 (G30, F90) (09.2016 - 06.2021) 540 i xDrive (360 HP, 265 kW)

BMW 5 Touring (G31) (03.2017 - 06.2020) 530 i (252 HP, 185 kW)

BMW 5 Touring (G31) (03.2017 - 06.2020) 540 i xDrive (340 HP, 250 kW)

BMW 5 Touring (G31) (03.2017 - 06.2020) 540 i xDrive (360 hp, 265 kW)

BMW 6 Gran Turismo (G32) (06.2017 - 06.2021) 640 i (340 hp, 250 kW)

BMW 6 Gran Turismo (G32) (06.2017 - 06.2021) 640 i (360 hp, 265 kW)

BMW 6 Gran Turismo (G32) (06.2017 - 06.2021) 640 i xDrive (340 HP, 250 kW)

BMW 6 Gran Turismo (G32) (06.2017 - 06.2021) 640 i xDrive (360 HP, 265 kW)

BMW 7 (G11, G12) (07.2015 - 06.2020) 740Li xDrive (326 hp, 240 kW)

BMW 7 Series (G11, G12) (07.2015 - 06.2020) 740Li xDrive (340 hp, 250 kW)

BMW 7 Series (G11, G12) (07.2015 - 06.2020) 740i, Li (326 hp, 240 kW)

BMW 7 Series (G11, G12) (07.2015 - 06.2020) 740i, Li (340 hp, 250 kW)

BMW 7 Series (G11, G12) (07.2015 - 06.2020) 745Le Plug-in Hybrid xDrive (286 hp, 210 kW)

BMW 7 Series (G11, G12) (07.2015 - 06.2020) 745 Le Plug-in Hybrid xDrive (394 hp, 290 kW)

BMW 7 (G11, G12) (07.2015 - 06.2020) 745 e, Le Plug-in Hybrid (286 hp, 210 kW)

BMW 7 (G11, G12) (07.2015 - 06.2020) 745 e, Le Plug-in Hybrid (394 hp, 290 kW)

BMW 8 Convertible (G14, F91) (11.2018 - 10.2020) 840i (340 hp, 250 kW)

BMW 8 Convertible (G14, F91) (11.2018 - 10.2020) 840 i xDrive (340 HP, 250 kW)

BMW 8 Coupe (G15, F92) (07.2018 - 10.2020) 840 i (340 HP, 250 kW)

BMW 8 Coupe (G15, F92) (07.2018 - 10.2020) 840 i xDrive (340 HP, 250 kW)

BMW X1 (F48) (11.2014 - 02.2018) sDrive 18 i (136 hp, 100 kW)

BMW X1 (F48) (11.2014 - 02.2018) sDrive 18 i (140 hp, 103 kW)

BMW X1 (F48) (11.2014 - 02.2018) sDrive 28 i (231 HP, 170 kW)

BMW X1 (F48) (11.2014 - 02.2018) xDrive 25 i (231 hp, 170 kW)

BMW X2 (F39) (11.2017 - 10.2020) sDrive 18 i (136 HP, 100 kW)

BMW X2 (F39) (11.2017 - 10.2020) sDrive 18 i (140 hp, 103 kW)

BMW X2 (F39) (11.2017 - 10.2020) sDrive 28 i (231 HP, 170 kW)

BMW X2 (F39) (11.2017 - 10.2020) xDrive 28 i (231 hp, 170 kW)

BMW X3 (G01, F97) (08.2017 - 06.2020) sDrive 30 i (248 HP, 185 kW)

BMW X3 (G01, F97) (08.2017 - 06.2020) xDrive 30 i (252 HP, 185 kW)

BMW X3 (G01, F97) (08.2017 - 06.2020) xDrive M40 i (354 HP, 260 kW)

BMW X3 (G01, F97) (08.2017 - 06.2020) xDrive M40 i (360 HP, 265 kW)

BMW X4 (G02, F98) (04.2018 - 06.2020) M40 i xDrive (354 HP, 260 kW)

BMW X4 (G02, F98) (04.2018 - 06.2020) M40 i xDrive (360 HP, 265 kW)

BMW X4 (G02, F98) (04.2018 - 06.2020) xDrive 30 i (252 HP, 185 kW)

BMW X5 (G05, F95) (08.2018 - 07.2020) xDrive 40 i (340 HP, 250 kW)

BMW X5 (G05, F95) (08.2018 - 07.2020) xDrive 45 e plug-in hybrid (286 hp, 210 kW)

BMW X7 (G07) (03.2019 - 08.2020) xDrive 40 i (340 hp, 250 kW)

BMW Z4 Roadster (G29) (11.2018 - ) M40 i (340 hp, 250 kW)

BMW Z4 Roadster (G29) (11.2018 - ) sDrive 20 i (163 hp, 120 kW)

BMW Z4 Roadster (G29) (11.2018 - ) sDrive 20 i (197 hp, 145 kW)

BMW Z4 Roadster (G29) (11.2018 - ) sDrive 30 i (258 hp, 190 kW)

BMW i8 (I12) (03.2014 - 06.2020) hybrid (231 hp, 170 kW)

BMW i8 (I12) (03.2014 - 06.2020) hybrid (362 HP, 266 kW)

BMW i8 (I12) (03.2014 - 06.2020) hybrid (374 hp, 275 kW)

BMW i8 Roadster (I15) (03.2018 - 06.2020) hybrid (231 HP, 170 kW)

BMW i8 Roadster (I15) (03.2018 - 06.2020) hybrid (374 HP, 275 kW)

MINI MINI (F55) (09.2013 - 10.2017) Cooper (136 HP, 100 kW)

MINI MINI (F55) (09.2013 - 10.2017) Cooper S (192 HP, 141 kW)

MINI MINI (F55) (09.2013 - 10.2017) Cooper S JCW (211 HP, 155 kW)

MINI MINI (F55) (09.2013 - 10.2017) One (102 HP, 75 kW)

MINI MINI (F55) (09.2013 - 10.2017) One First (75 HP, 55 kW)

MINI MINI (F56) (12.2013 - 10.2017) Cooper (136 HP, 100 kW)

MINI MINI (F56) (12.2013 - 10.2017) Cooper S (192 HP, 141 kW)

MINI MINI (F56) (12.2013 - 10.2017) Cooper S JCW (211 HP, 155 kW)

MINI MINI (F56) (12.2013 - 10.2017) One (102 HP, 75 kW)

MINI MINI (F56) (12.2013 - 10.2017) One First (75 HP, 55 kW)

MINI MINI CLUBMAN (F54) (11.2014 - 06.2019) Cooper (136 HP, 100 kW)

MINI MINI CLUBMAN (F54) (11.2014 - 06.2019) Cooper ALL4 (136 HP, 100 kW)

MINI MINI CLUBMAN (F54) (11.2014 - 06.2019) Cooper S (192 HP, 141 kW)

MINI MINI CLUBMAN (F54) (11.2014 - 06.2019) Cooper S JCW (211 HP, 155 kW)

MINI MINI CLUBMAN (F54) (11.2014 - 06.2019) One (102 hp, 75 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper (136 HP, 100 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper ALL4 (136 HP, 100 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper S (163 HP, 120 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper S (192 HP, 141 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper S ALL4 (163 HP, 120 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper S ALL4 (192 HP, 141 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper SE ALL4 (136 HP, 100 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) Cooper SE ALL4 (224 HP, 165 kW)

MINI MINI COUNTRYMAN (F60) (10.2016 - 06.2019) One (102 HP, 75 kW)

MINI MINI Cabriolet (F57) (11.2014 - 10.2017) Cooper (136 HP, 100 kW)

MINI MINI Convertible (F57) (11.2014 - 10.2017) Cooper S (163 HP, 120 kW)

MINI MINI Cabriolet (F57) (11.2014 - 10.2017) Cooper S (192 HP, 141 kW)

MINI MINI Cabriolet (F57) (11.2014 - 10.2017) Cooper S JCW (211 HP, 155 kW)

MINI MINI Cabriolet (F57) (11.2014 - 10.2017) One (102 HP, 75 kW)
