BMW Engine Timing Tool Kit N43B16 N43B20 1.6L 2.0L Chain Drive

This professional engine timing tool kit is designed for BMW petrol engines N43B16 and N43B20 with 1.6L and 2.0L displacement. It is suitable for precise timing adjustment, balance shaft alignment, and engine repair procedures involving timing chain systems.

The set is engineered for both professional workshops and advanced users requiring full control over engine timing operations.

Functionality

The kit includes all necessary special tools for:

• Camshaft timing adjustment
• Balance shaft locking and alignment
• Flywheel locking
• Loosening of crankshaft central bolt (automatic transmission applications)

It ensures precise synchronization of engine components during service procedures.

The foam insert includes a dedicated cut-out for a pre-tension torque wrench (0.6 Nm, Art. No. 106650), commonly used in BMW workshops (may already be available separately).

Important Note

Before performing timing adjustments, the locking mechanism of the intake and exhaust camshaft adjusters must be checked.

If necessary, the adjusters must be rotated to engage the locking mechanism.
If locking is not possible, correct timing adjustment cannot be achieved and the adjuster units must be replaced.

Compatibility

Engine Codes:
N43B16A, N43B16AA, N43B20AA, N43B20AY, N43B20KO, N43B20UO

BMW 1 Series (E81/E82/E87/E88)
2006–2012

BMW 3 Series (E90/E91/E92/E93)
2006–2012

BMW 5 Series (E60/E61)
2007–2010

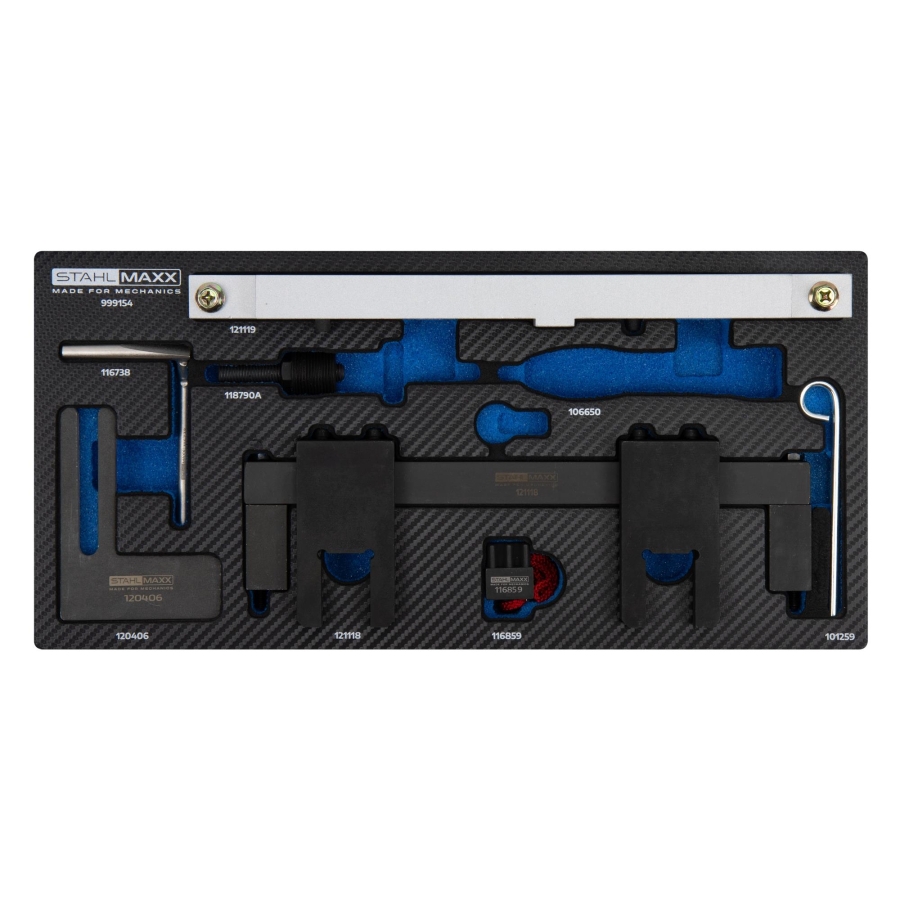

Package Contents

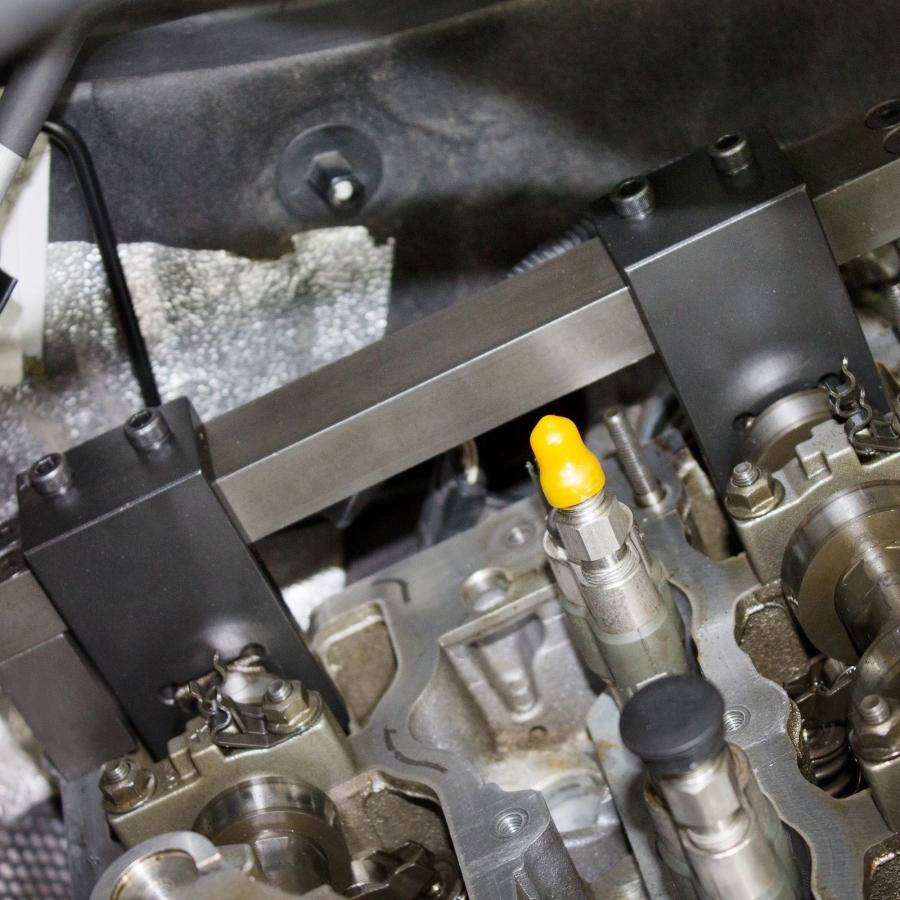

✔ Camshaft locking tool – 121118 (use as 118690, includes 118691, 118692, 118693)

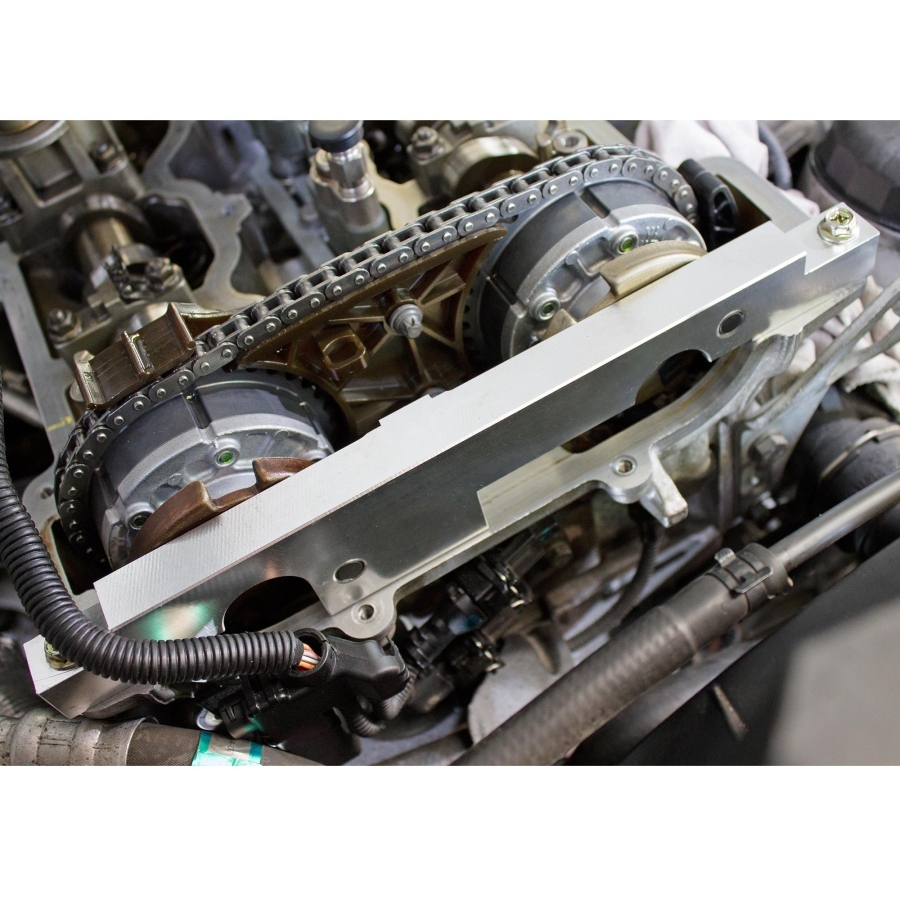

✔ Camshaft sensor wheel locking tool – 121119 (use as 118710, includes 118711, 118712)

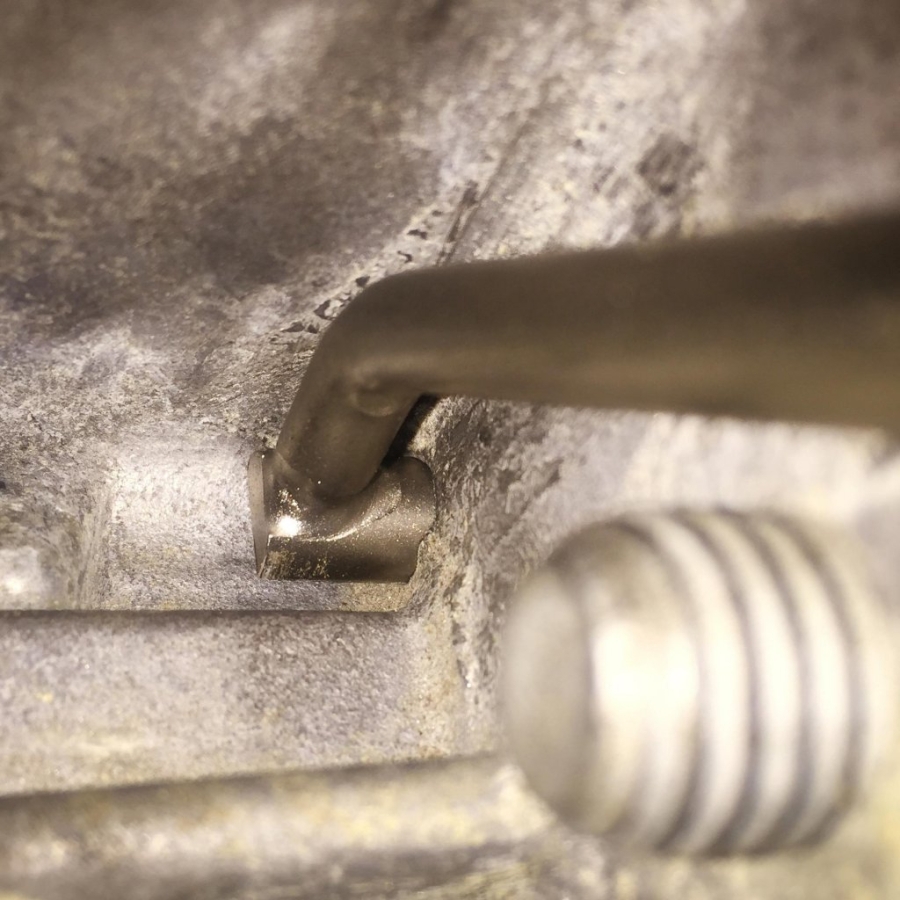

✔ Flywheel locking pin – 116738 (use as 119190, 115120)

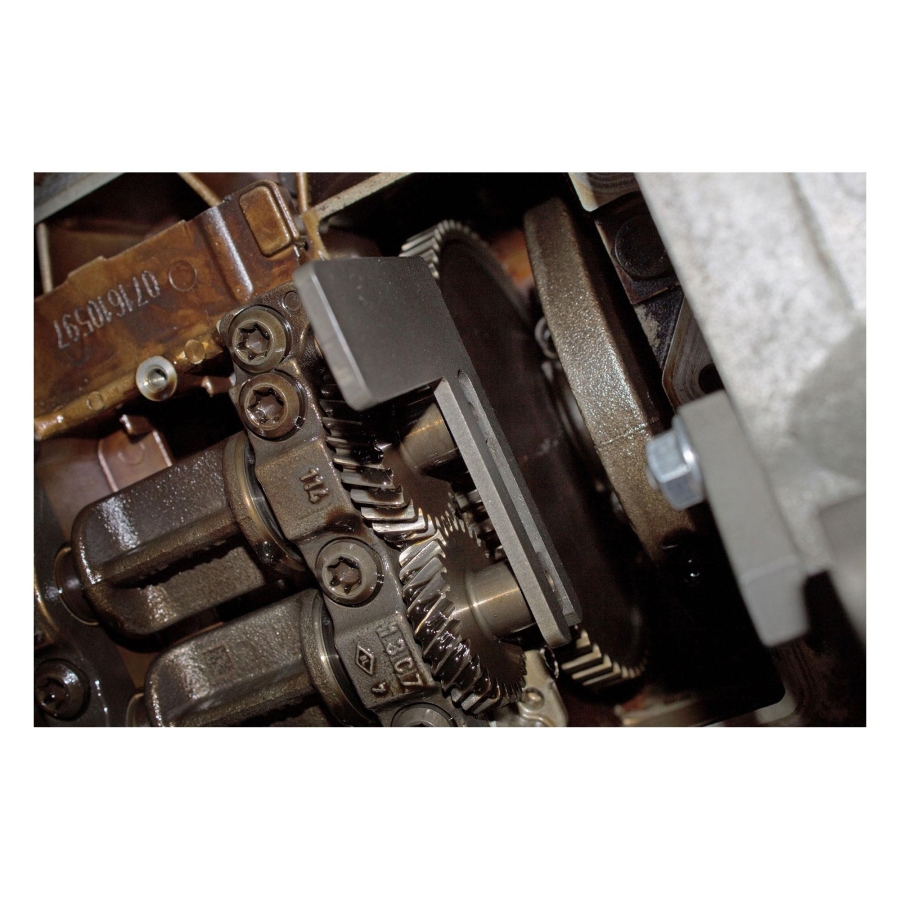

✔ Balance shaft locking tool (version 3) – 120406 (use as 118700)

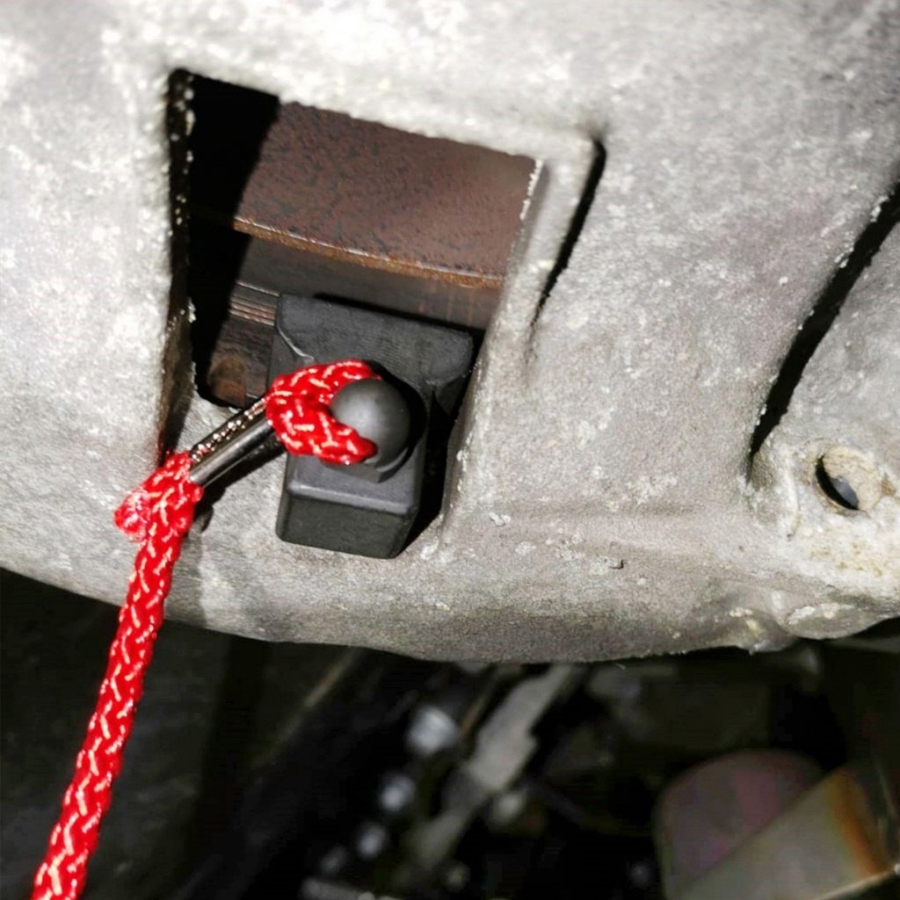

✔ Flywheel holding tool (automatic transmission) – 116859 (use as 118660)
✔ Timing chain pre-tensioning tool – 118790A (use as 119340)

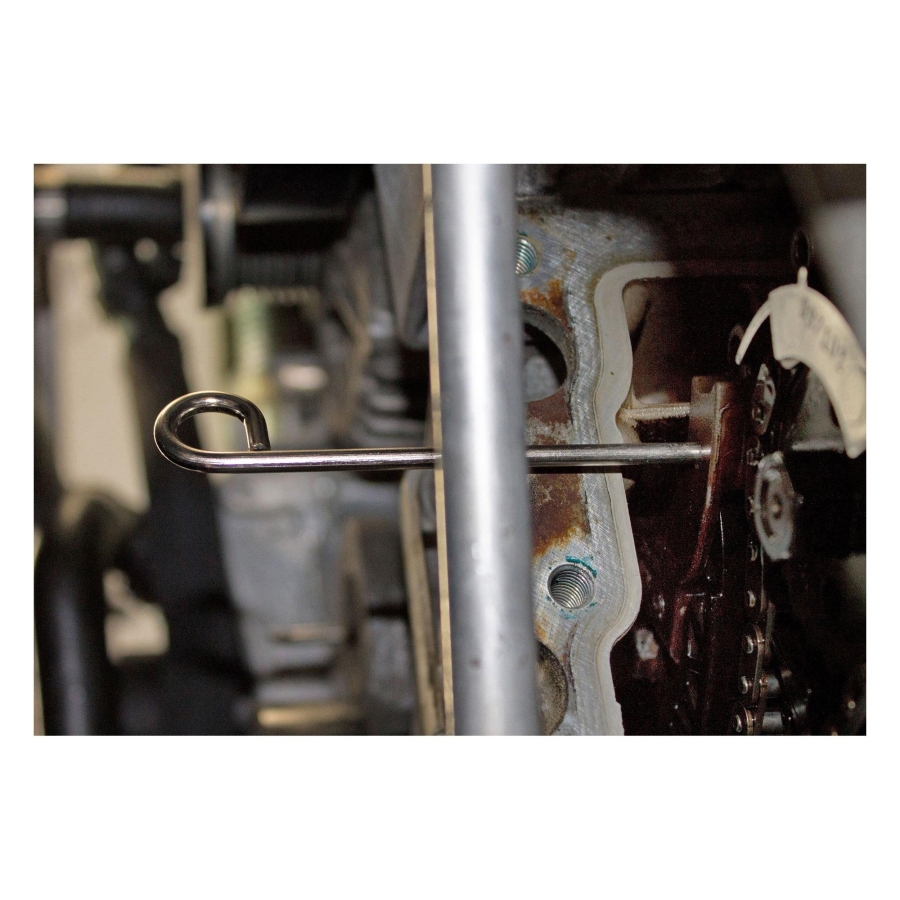

✔ Locking pins for chain tensioner – 101259 (use as 113340)

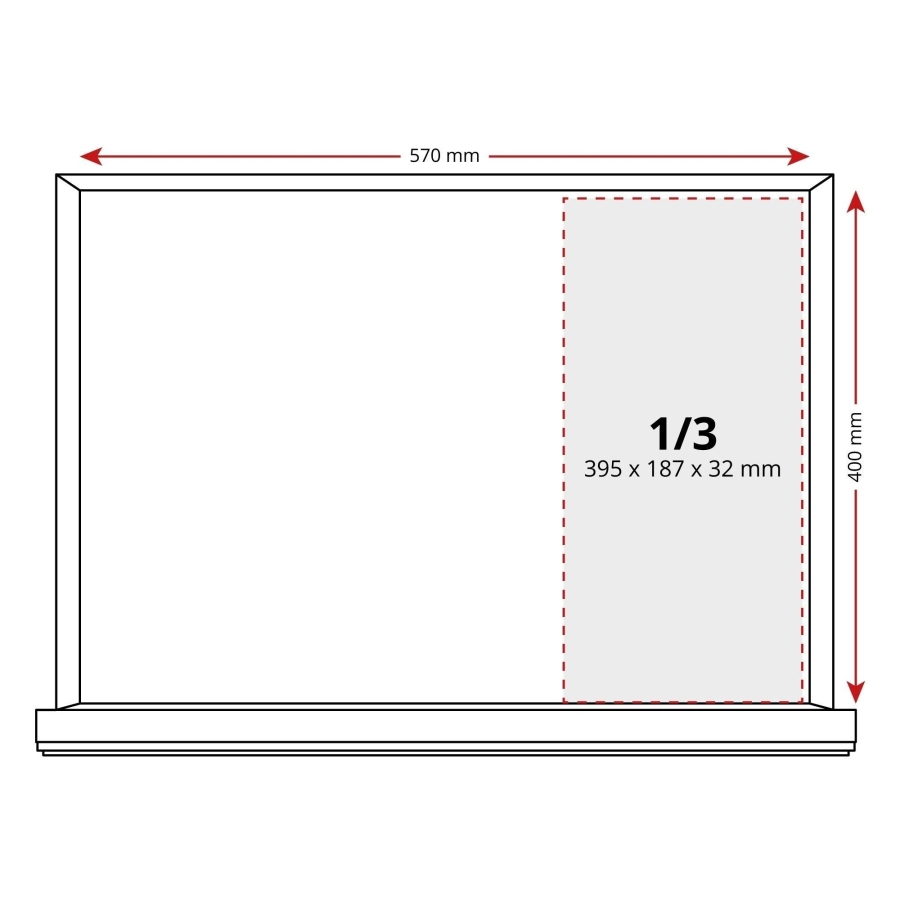

✔ Foam insert 1/3 – 999154S [395 x 187 x 32 mm]

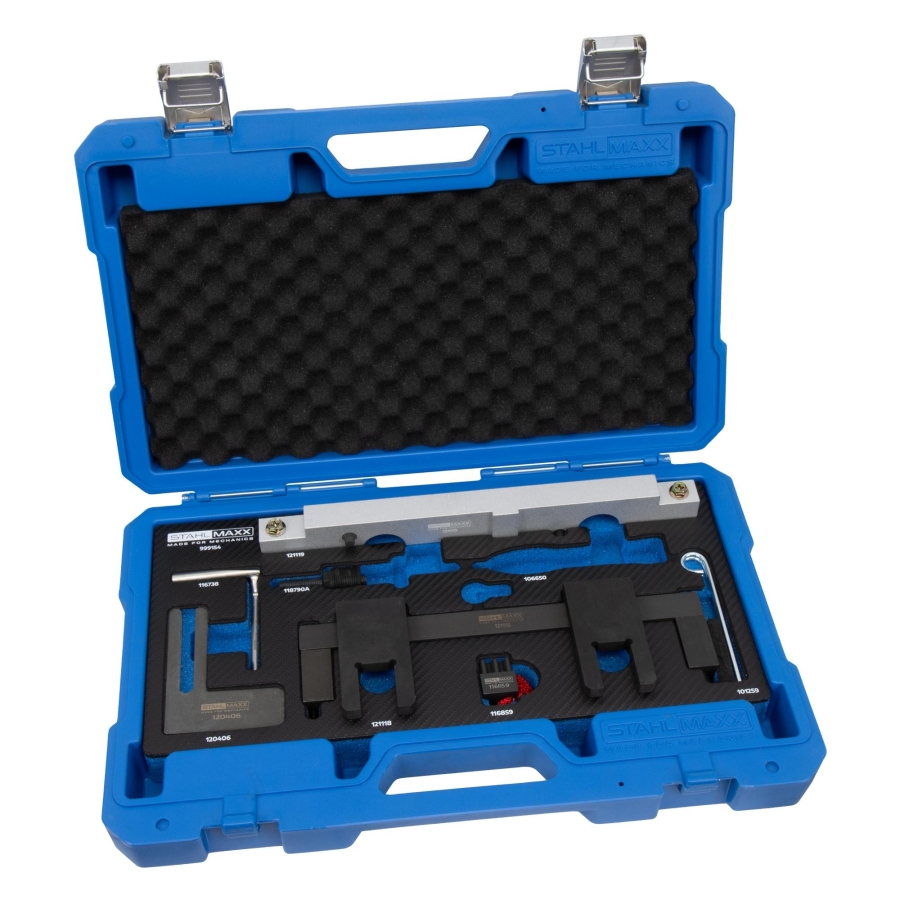

✔ Storage case 1/3 – 115269

Key Features

✔ High-quality professional-grade tool set
✔ Precision-manufactured components
✔ Complete solution for timing adjustment procedures
✔ Includes application data sheet and reference table
✔ Supplied in foam insert and durable workshop case

Procedure (Reference: BMW E90 318i N43B20A)

• Remove air filter housing with mass airflow sensor
• Remove cylinder head cover
• Remove auxiliary drive belt (generator)
• Remove vibration damper
• Fix engine in installation position
• Lower front axle carrier
• Remove oil pan
• Remove both solenoid valves

Repair Note

After loosening the crankshaft central bolt, the timing chain sprocket and oil pump sprocket are no longer force-locked to the crankshaft.

The balance shafts will rotate and must be re-adjusted during reassembly.

Torque Specifications

• Crankshaft pulley / damper central bolt: 300 Nm
• Crankshaft pulley bolts: 35 Nm
• Camshaft sprocket: 20 Nm + 180°
• Chain tensioner: 65 Nm
• Oil pan bolts: 30 Nm
• Cylinder head cover: M8: 15 Nm / M6: 10 Nm
• Guide rail bolts: upper 14 Nm / lower 20 Nm
• Upper guide rail: 8 Nm
• Guide rail bolt plugs: upper 25 Nm / lower 32 Nm

OEM numbers are provided for reference purposes only. This product is not an original tool.

BMW 1 (E81) (09.2006 - 09.2012) 116i (121 hp, 89 kW)

BMW 1 (E81) (09.2006 - 09.2012) 116i (122 hp, 90 kW)

BMW 1 (E81) (09.2006 - 09.2012) 118i (143 hp, 105 kW)

BMW 1 (E81) (09.2006 - 09.2012) 120i (170 hp, 125 kW)

BMW 1 (E87) (06.2004 - 01.2013) 116i (121 hp, 89 kW)

BMW 1 (E87) (06.2004 - 01.2013) 116 i (122 HP, 90 kW)

BMW 1 (E87) (06.2004 - 01.2013) 118 i (170 hp, 125 kW)

BMW 1 (E87) (06.2004 - 01.2013) 120 i (170 hp, 125 kW)

BMW 1 Cabriolet (E88) (12.2007 - 12.2013) 118 i (143 hp, 105 kW)

BMW 1 Cabriolet (E88) (12.2007 - 12.2013) 120 i (163 hp, 120 kW)

BMW 1 Cabriolet (E88) (12.2007 - 12.2013) 120 i (170 HP, 125 kW)

BMW 1 Coupe (E82) (09.2007 - 10.2013) 120 i (170 hp, 125 kW)

BMW 3 (E90) (12.2004 - 02.2012) 316 i (122 HP, 90 kW)

BMW 3 (E90) (12.2004 - 02.2012) 318 i (143 hp, 105 kW)

BMW 3 (E90) (12.2004 - 02.2012) 320 i (163 hp, 120 kW)

BMW 3 (E90) (12.2004 - 02.2012) 320 i (170 hp, 125 kW)

BMW 3 convertible (E93) (05.2006 - 12.2013) 318 i (143 hp, 105 kW)

BMW 3 Cabriolet (E93) (05.2006 - 12.2013) 320 i (152 hp, 112 kW)

BMW 3 Cabriolet (E93) (05.2006 - 12.2013) 320 i (163 hp, 120 kW)

BMW 3 Cabriolet (E93) (05.2006 - 12.2013) 320 i (170 hp, 125 kW)

BMW 3 Coupe (E92) (03.2006 - 12.2013) 316 i (122 HP, 90 kW)

BMW 3 Coupe (E92) (03.2006 - 12.2013) 318 i (143 hp, 105 kW)

BMW 3 Coupe (E92) (03.2006 - 12.2013) 320 i (152 hp, 112 kW)

BMW 3 Coupe (E92) (03.2006 - 12.2013) 320 i (163 hp, 120 kW)

BMW 3 Coupe (E92) (03.2006 - 12.2013) 320 i (170 hp, 125 kW)

BMW 3 Touring (E91) (12.2004 - 12.2012) 316 i (122 HP, 90 kW)

BMW 3 Touring (E91) (12.2004 - 12.2012) 318 i (143 HP, 105 kW)

BMW 3 Touring (E91) (12.2004 - 12.2012) 320 i (156 HP, 115 kW)

BMW 3 Touring (E91) (12.2004 - 12.2012) 320 i (163 HP, 120 kW)

BMW 3 Touring (E91) (12.2004 - 12.2012) 320 i (170 hp, 125 kW)

BMW 5 (E60) (12.2001 - 03.2010) 520 i (163 hp, 120 kW)

BMW 5 (E60) (12.2001 - 03.2010) 520 i (170 HP, 125 kW)

BMW 5 Touring (E61) (03.2004 - 12.2010) 520 i (163 hp, 120 kW)

BMW 5 Touring (E61) (03.2004 - 12.2010) 520 i (170 hp, 125 kW)
