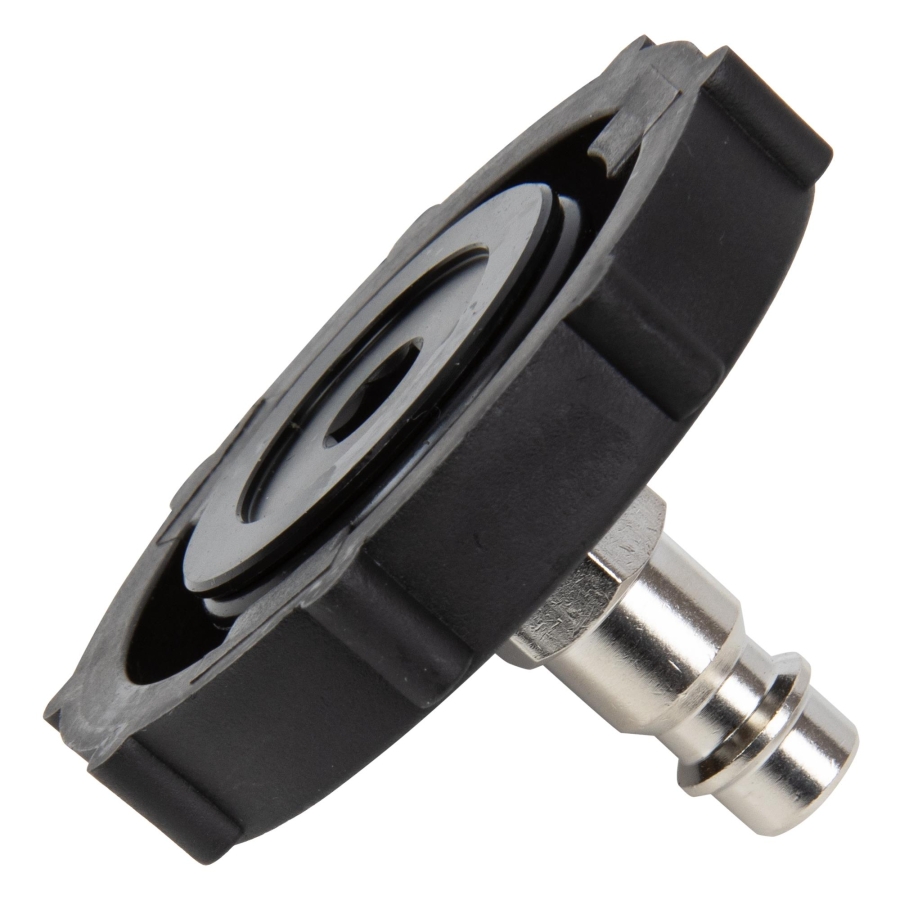

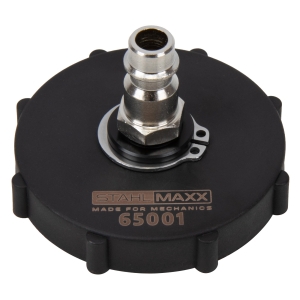

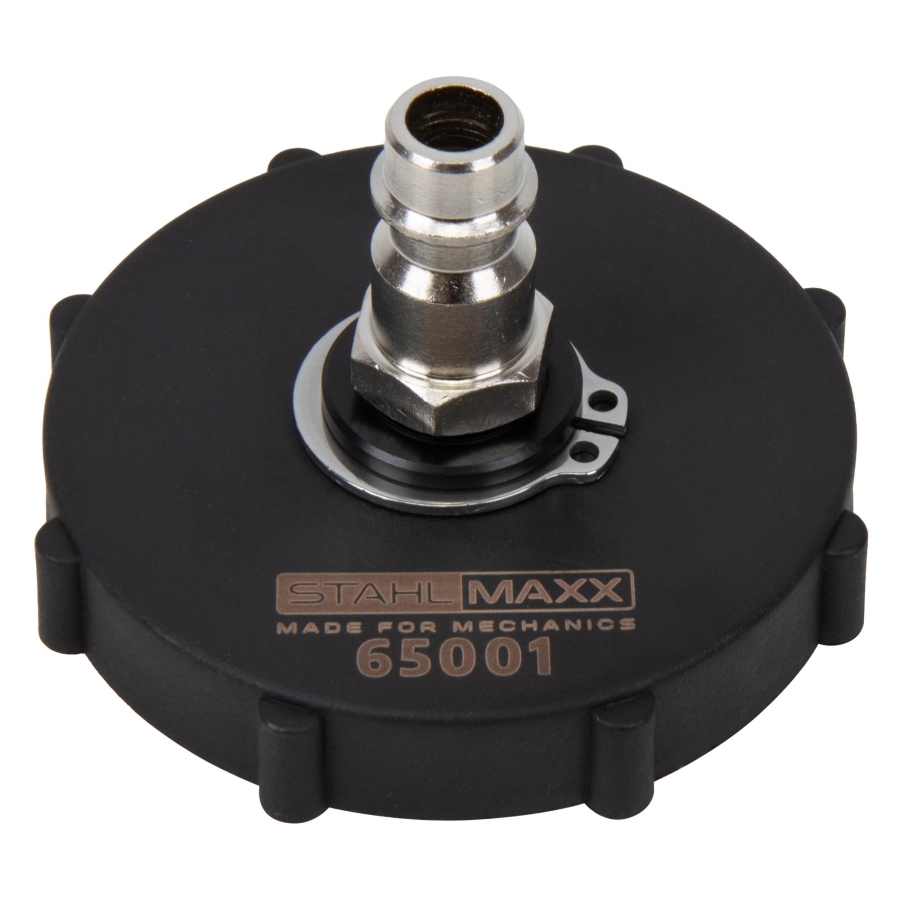

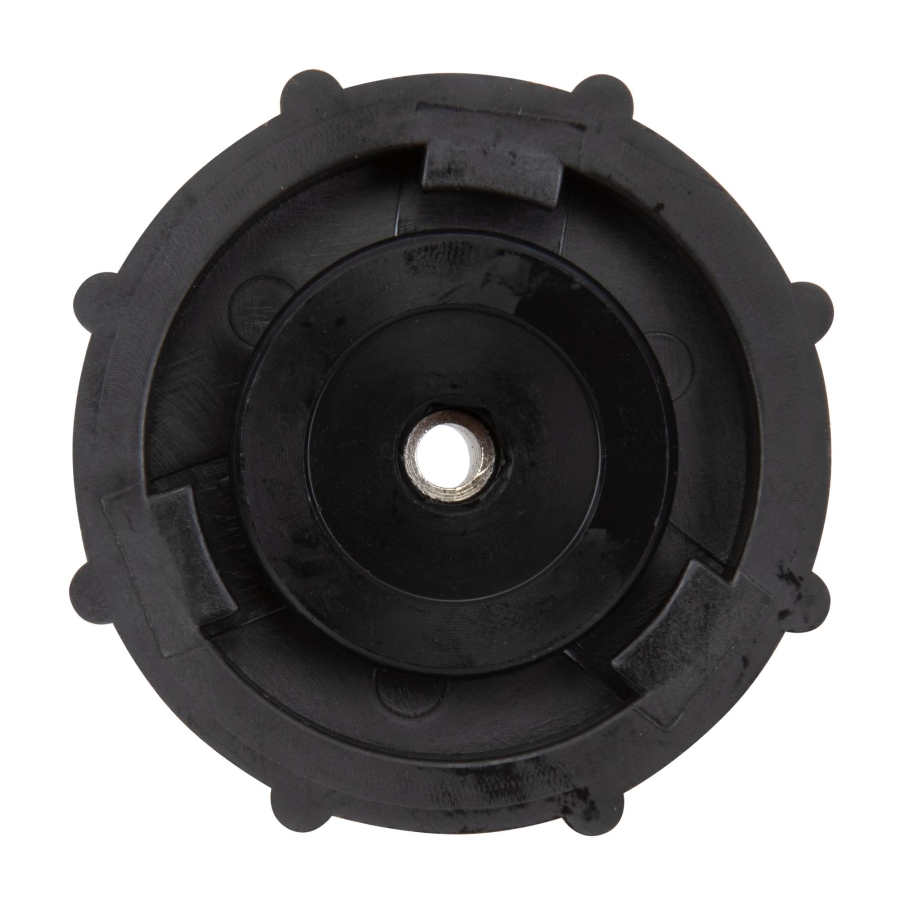

Brake Bleeder Adapter 3-Lug Bayonet Ø 36 mm for Mazda, Chevrolet, Cadillac, Daewoo & SsangYong

This brake bleeder adapter with 3-lug bayonet locking system is designed for professional brake fluid replacement and brake system bleeding.

It provides a secure and leak-free connection to the brake fluid reservoir, making it an essential tool after opening the brake system, such as when replacing or repairing brake calipers, brake hoses, brake lines, ABS units or the master brake cylinder.

The adapter is manufactured from high-quality plastic and is equipped with a Euro compressed air connection for use with brake bleeding devices.

3-Lug Bayonet Locking System

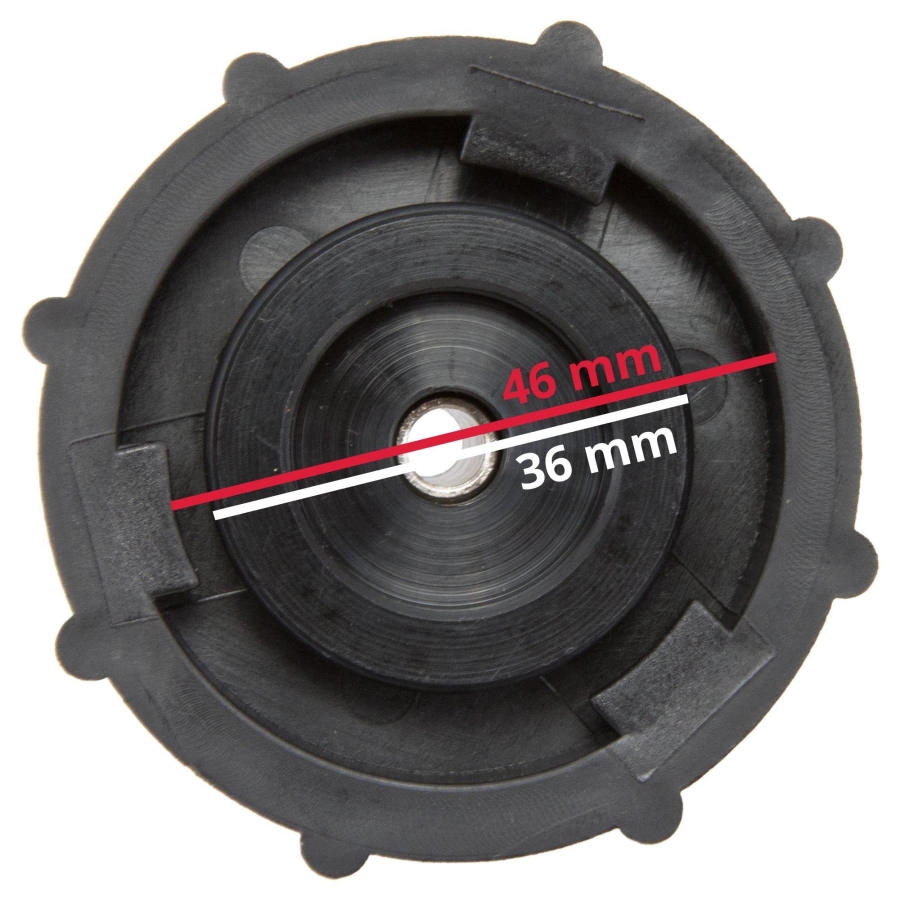

The adapter is suitable exclusively for brake fluid reservoirs equipped with a bayonet closure and an internal neck diameter of Ø 36 mm.

• 3-lug bayonet locking mechanism
• Sealing diameter: Ø 36 mm
• Secure and leak-free sealing
• Quick installation and removal

Important:

Please compare the internal diameter of the reservoir neck and the distance between the locking tabs before purchasing.

Due to differences in the internal shape of the reservoir neck, some reservoirs may not seal correctly even if the bayonet locking mechanism and sealing diameter are compatible.

Material and Connection

The adapter is manufactured from durable plastic and is equipped with a standard Euro compressed air connection.

• High-quality plastic construction
• Euro compressed air connection
• Durable and lightweight
• Suitable for workshop use

Special Notes for Ford and Opel

The adapter fits the bayonet locking system of the following vehicles, but seals correctly only if the reservoir neck is straight and free from steps or internal edges.

Ford

• B-Max (from 2012)
• Fiesta (from 2009)
• Mustang (EU)

For these models, we recommend using the professional aluminium brake bleeder adapter.

Opel

• Ampera (from 2011)
• Antara (from 2007)
• Astra (from 2016)
• Karl (from 2015)
• Mokka (from 2012)

For these models, we recommend using the professional aluminium brake bleeder adapter.

Vehicle Compatibility

Cadillac

• Northstar (from 1996)
• ATS (from 2013)
• CTS (from 2001)
• Eldorado (from 1996)
• ELR (from 2014)
• Escalade (from 2007)
• Seville (from 1996)
• SRX (from 2003)
• XLR (from 2003)

Chevrolet

• Alero (from 1999)
• Aveo (from 2011)
• Blazer (from 1999)
• Camaro (from 1999)
• Captiva (from 2007)
• Corvette (from 1999)
• HHR (from 2007)
• Hummer H2 / H3 (from 2003)
• Tahoe (from 2003)
• Trail Blazer (from 2001)
• Trans Sport (from 1999)
• Trax (from 2013)
• Volt (from 2011)

Chrysler

• Vision

Daewoo

• Evada (from 2003)
• Nubira (2001–2006)

Mazda

• CX-3 (from 2016)
• CX-5 (from 2012)
• MPV (2001–2005)
• MX-5 (from 2015)
• Premacy (1999–2005)
• RX-8 (from 2003)
• Mazda 2 (from 2007)
• Mazda 3 (from 2014)
• Mazda 6 (from 2002)

SsangYong

• Korando
• Musso

Technical Specifications

• Application: Brake fluid replacement and brake bleeding
• Locking system: 3-lug bayonet
• Sealing diameter: Ø 36 mm
• Reservoir neck diameter: Ø 36 mm
• Material: High-quality plastic
• Connection: Euro compressed air connection
• Compatible as Stierius 61-A
• Compatible as Ate 03.9302-0923.2
• Compatible as Ate 3-0049
• Compatible as Ate 0641702163053

Original numbers are for comparison purposes only. This is not an original manufacturer tool/product.
