Brake Caliper Guide Pin Thread Repair Kit M9 x 1.25

This special tool kit is designed for repairing damaged brake caliper guide pin threads in the wheel bearing housing. The kit includes a tap, drilling guides, stepped drill bit and replacement threaded inserts, allowing professional and reliable thread restoration.

The included M9 x 1.25 tap can also be used separately to restore threads that are only lightly damaged, avoiding more extensive repairs.

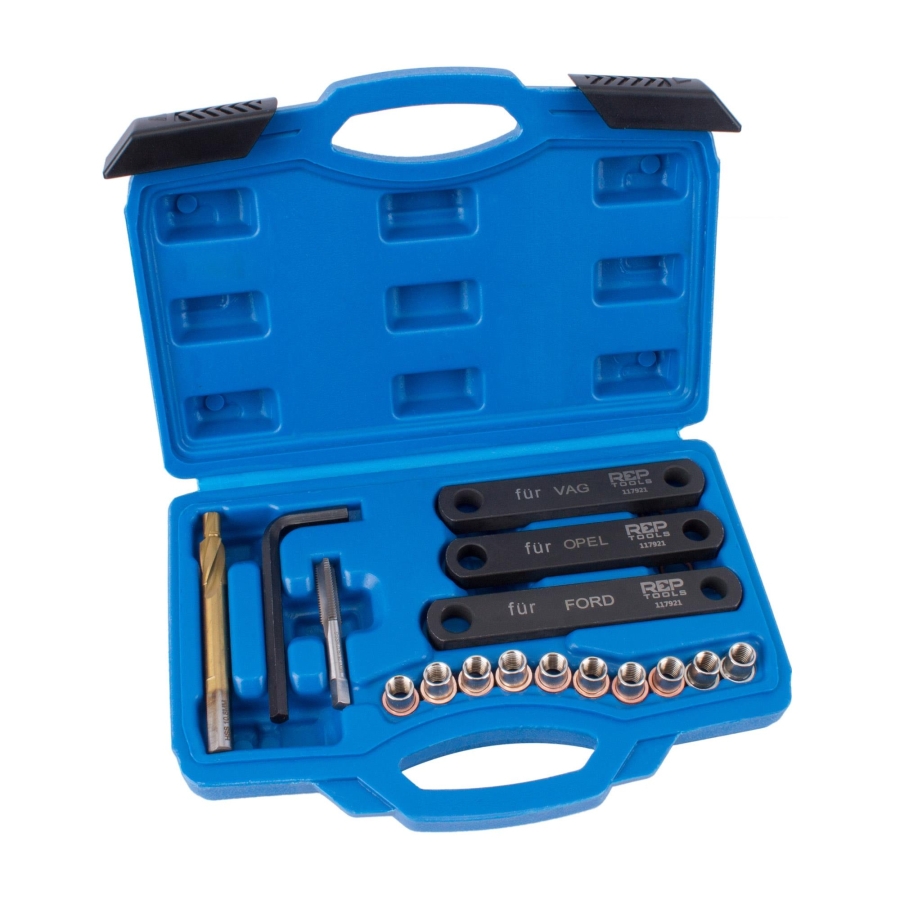

Manufactured in workshop quality, this 16-piece set is designed for regular professional use and is supplied in a practical plastic storage case.

Applications

Suitable for repairing brake caliper guide pin threads on the following vehicles:

• Volkswagen Golf 4
• Volkswagen Golf Variant
• Volkswagen Beetle
• Audi A3
• Audi A4
• Various other VAG vehicles including Seat, Škoda, Audi and Volkswagen
• Opel Astra G
• Ford Focus

Features

• For repairing damaged brake caliper guide pin threads
• Thread size: M9 x 1.25

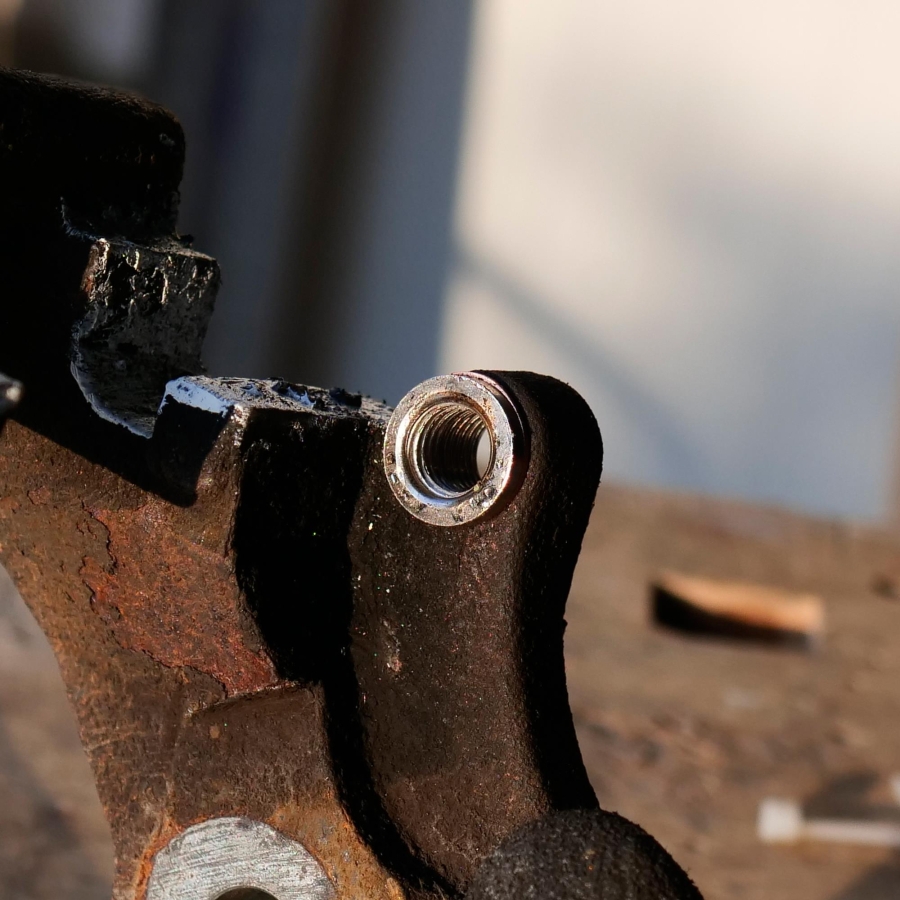

• Repair performed directly in the wheel bearing housing
• Includes M9 x 1.25 tap for re-cutting slightly damaged threads
• Tap and threaded inserts are available separately as spare parts
• Professional-grade construction for daily workshop use
• Supplied in a durable plastic storage case

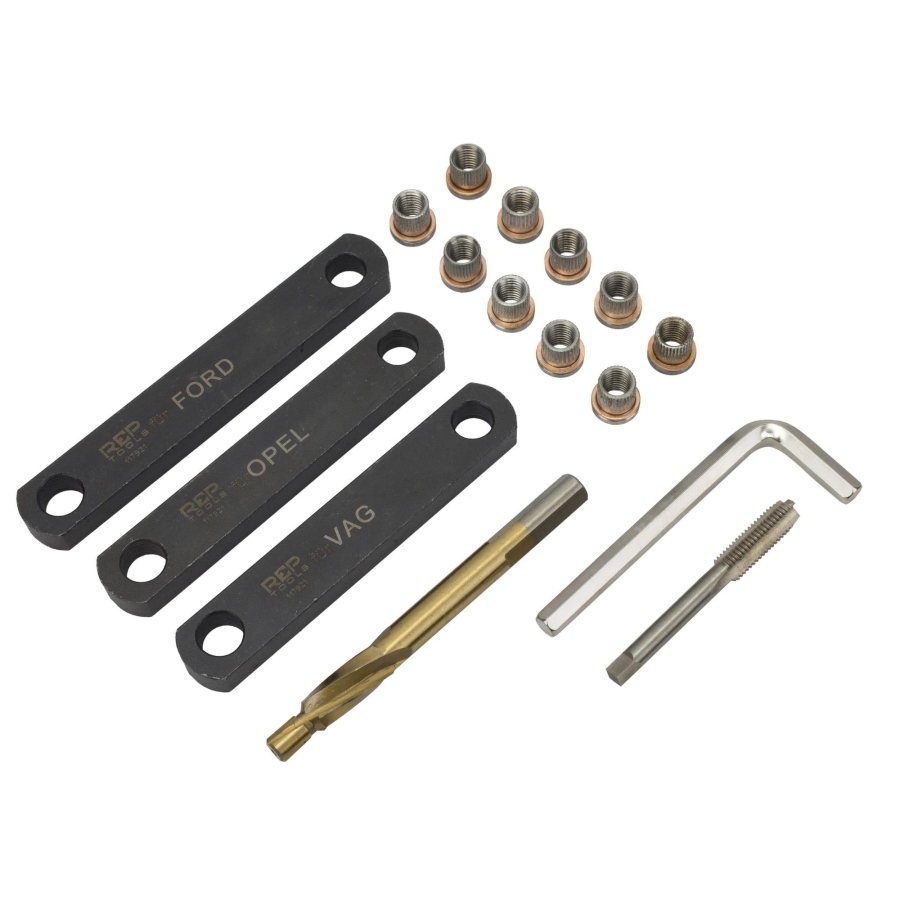

Kit Contents

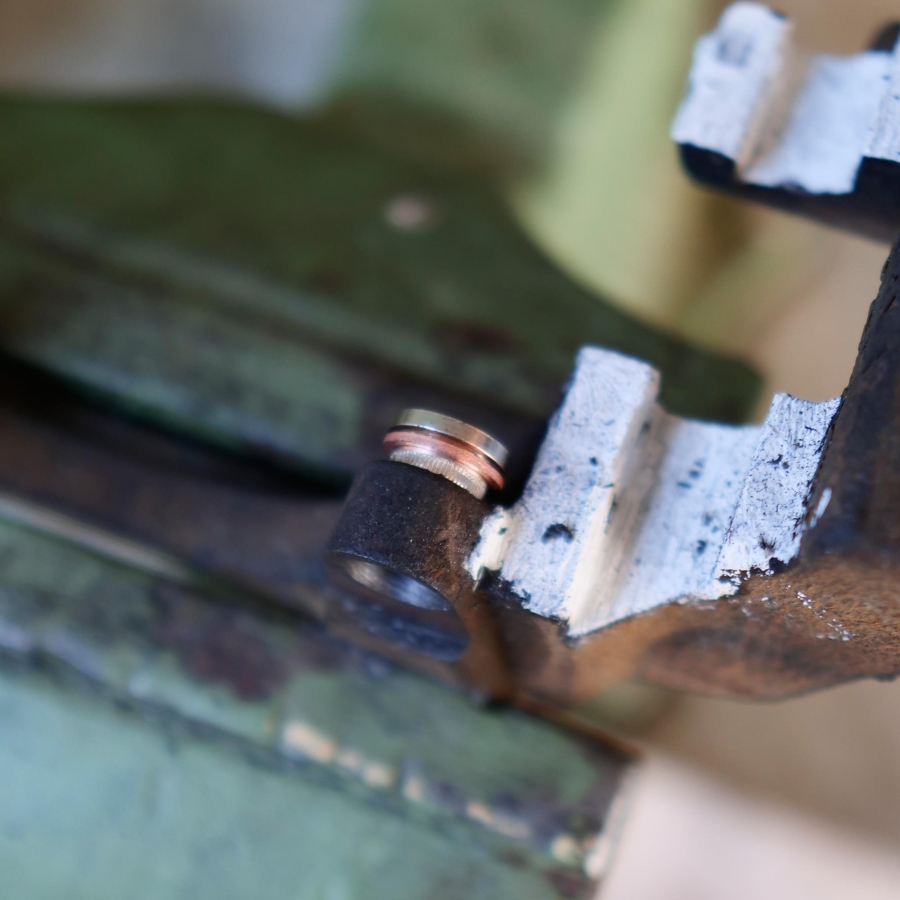

• 10 stainless steel threaded inserts with copper sealing rings

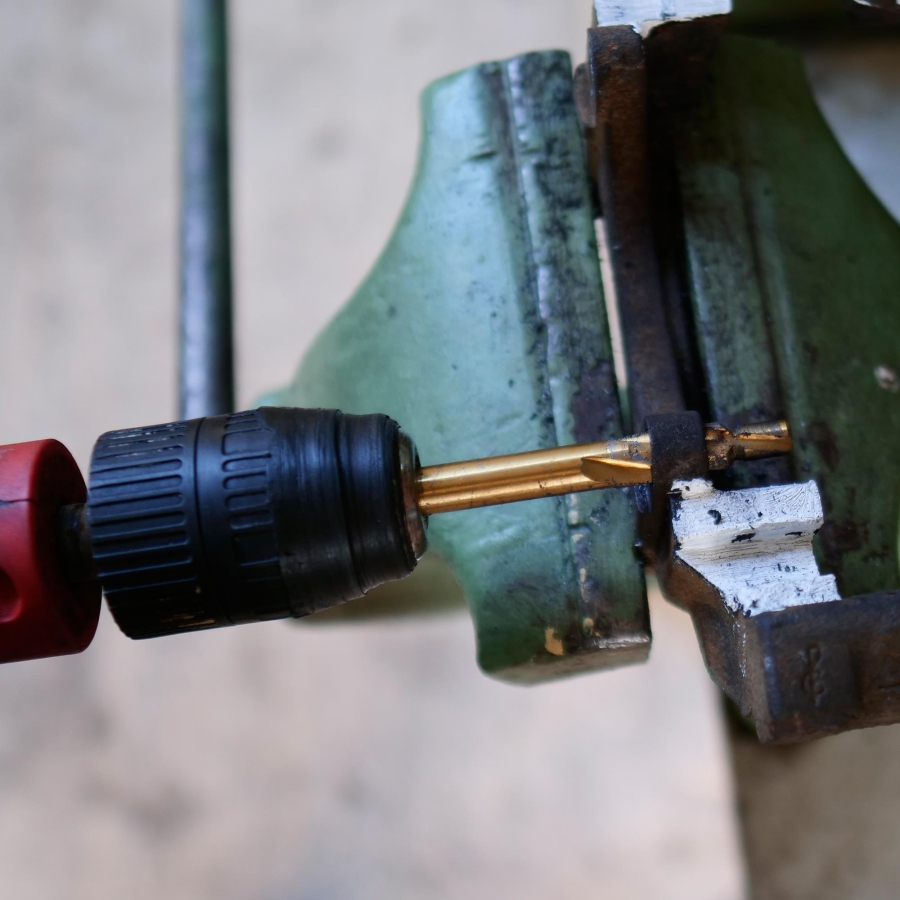

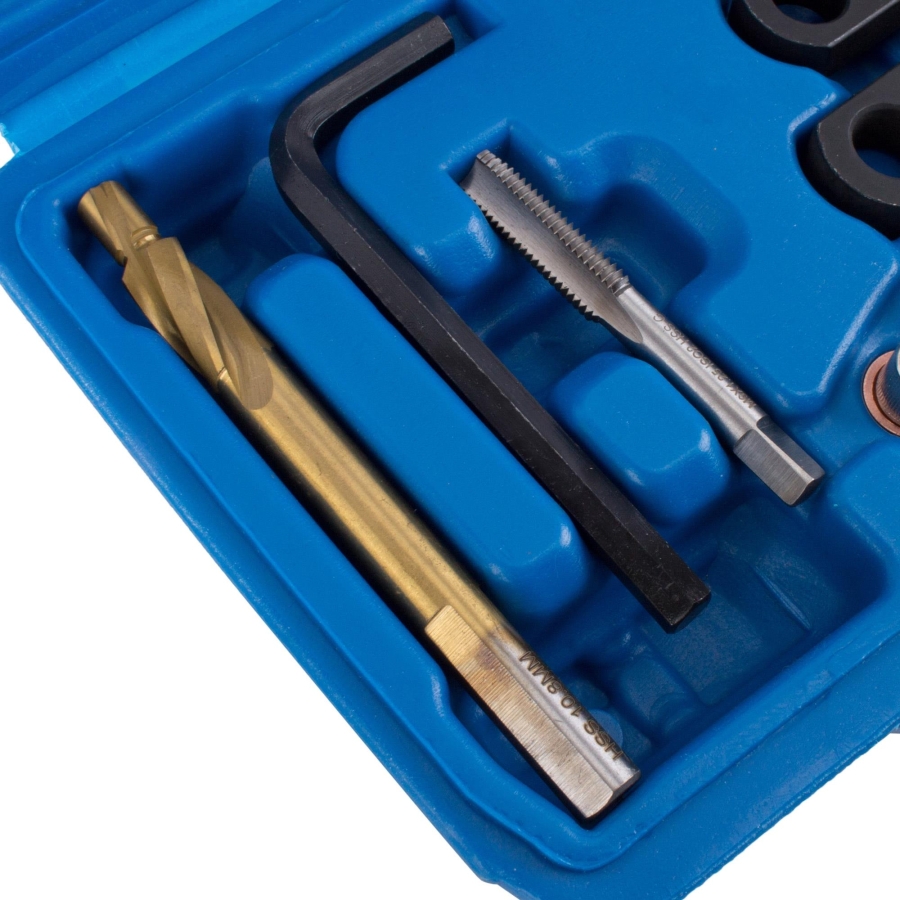

• 1 three-flute stepped drill bit
  • Overall length: 110.5 mm
  • Main diameter: 10.9 mm
  • Front diameter: 8.9 mm to 12 mm

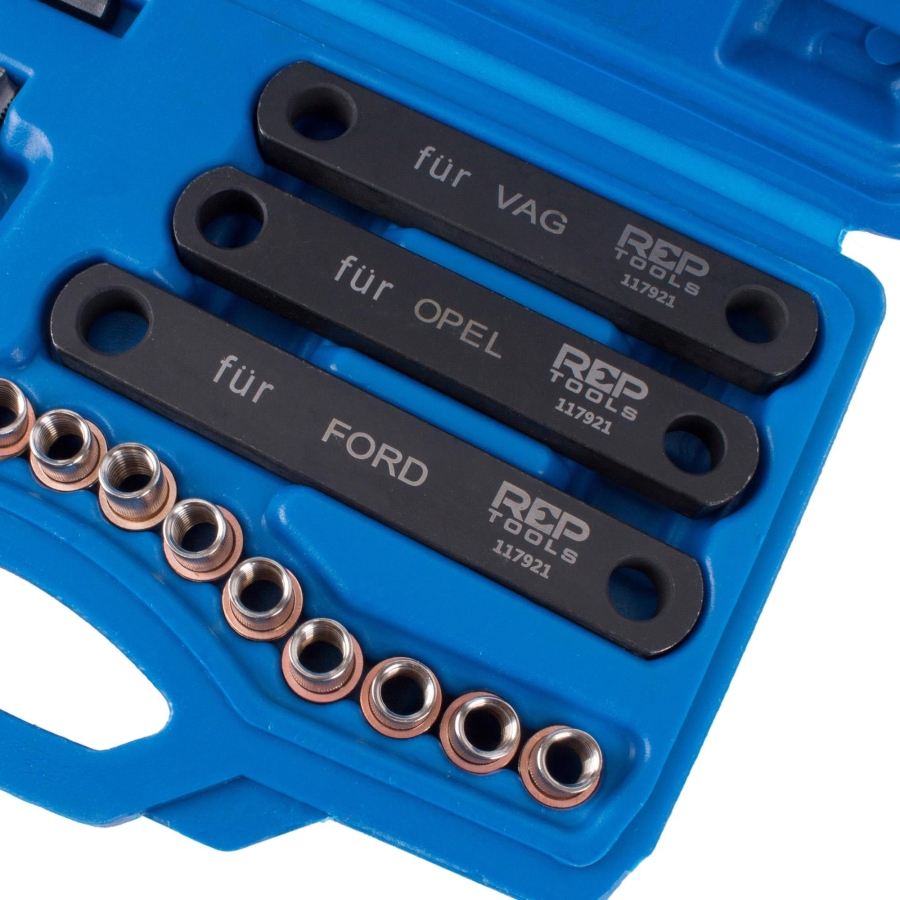

• 3 drilling guides for:
  • VAG
  • Opel
  • Ford
• 1 tap M9 x 1.25 mm
• 1 hex key, 7 mm

Vehicle Compatibility

Compatible with a wide range of vehicles from:

• Volkswagen
• Audi
• SEAT
• Škoda
• Opel
• Ford

Original numbers are for comparison purposes only. This is not an original manufacturer tool/product.
