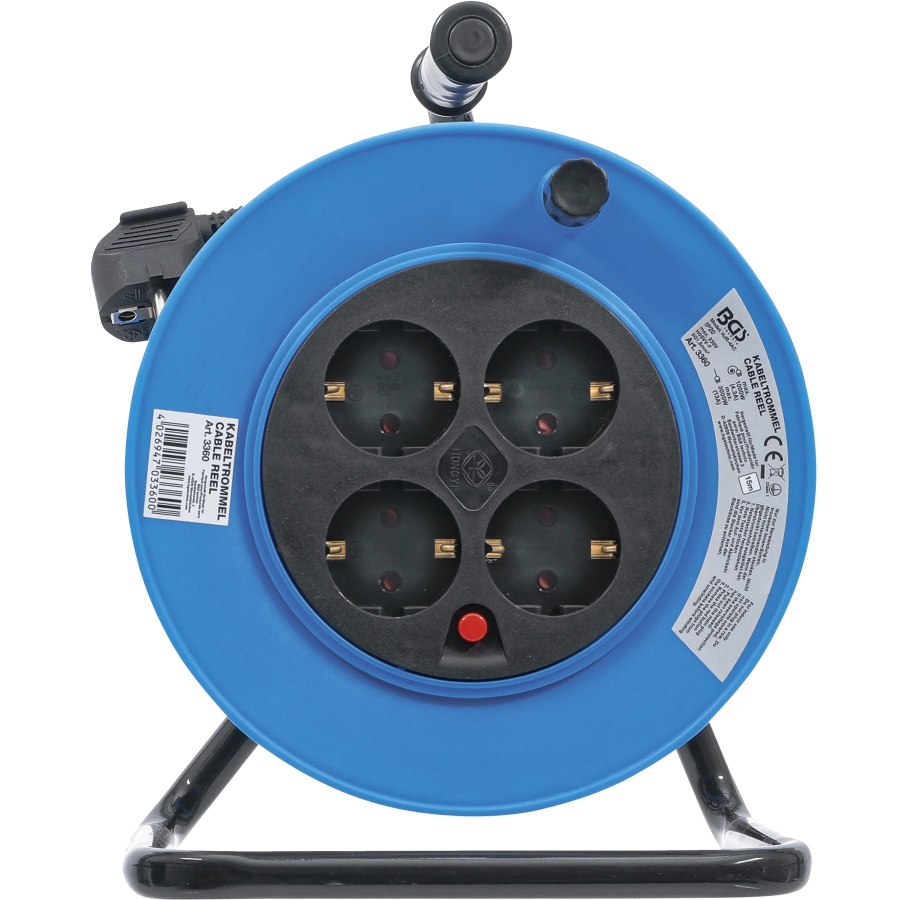

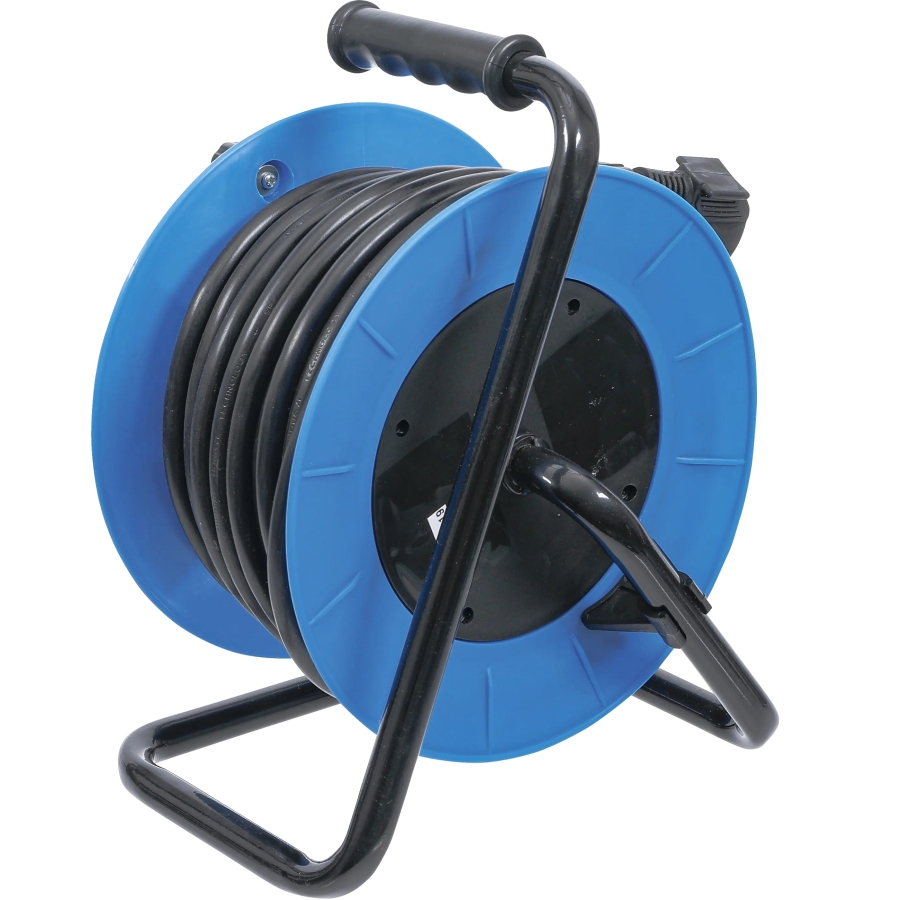

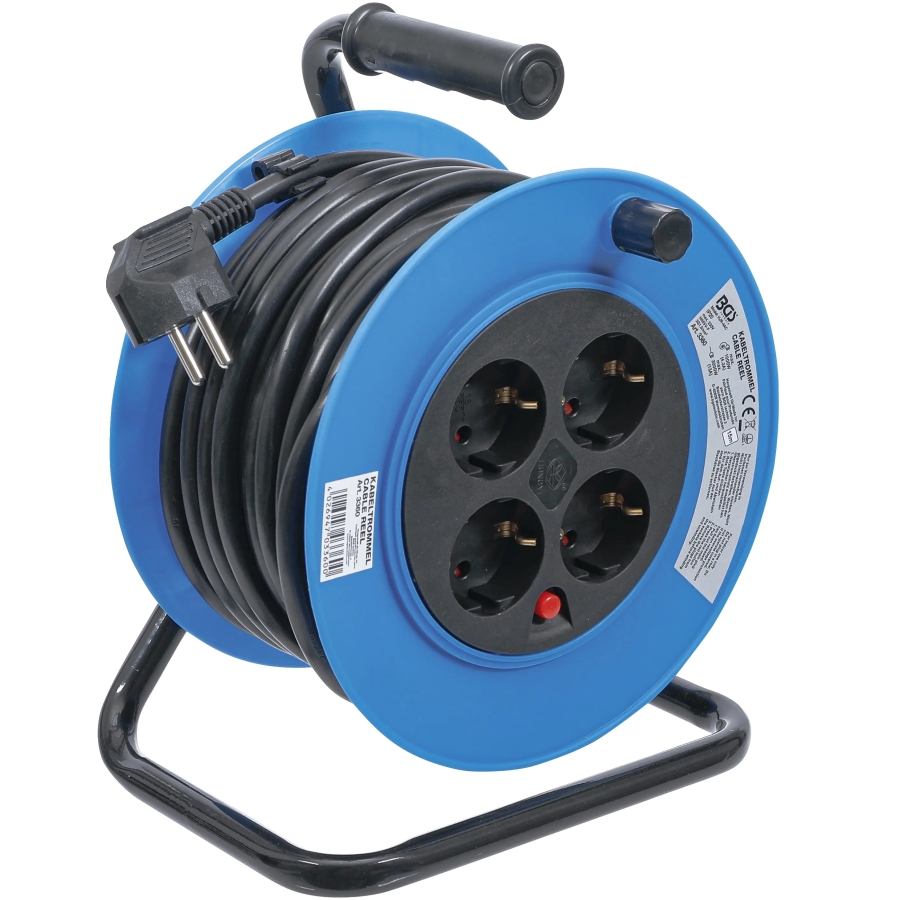

Cable Reel 15 m, 3 × 1.5 mm², 4 Sockets, IP20
-
Code:3360
-
Weight:2.266 Kgs
Overview:
✔ 15 m cable with a conductor configuration of 3 × 1.5 mm²
✔ Four earthed sockets for 230 V electrical appliances
✔ Suitable for use in dry indoor areas
✔ Thermal cut-out trips if the cable temperature becomes too high
✔ Maximum load: 1,000 W when wound, 3,000 W when fully unwound
✔ IP20 protection rating
The cable reel provides an extension supply for 230 V electrical appliances through a 15 m cable and four earthed sockets. It is designed for use in dry indoor areas.
The total connected load must not exceed 1,000 W with the cable wound or 3,000 W with the cable fully unwound.
Sockets and thermal protection
The four sockets have protective earth contacts. An integrated thermal cut-out trips if the cable temperature becomes too high.
The permitted load applies to the combined consumption of all connected appliances.
Technical specifications
- Cable length: 15 m
- Conductor configuration: 3 × 1.5 mm²
- Rated voltage: 230 V
- Maximum current, wound: 4.3 A
- Maximum current, fully unwound: 13 A
- Maximum power, wound: 1,000 W
- Maximum power, fully unwound: 3,000 W
- Sockets: 4 earthed sockets
- Electrical protection class: I
- Ingress protection: IP20
- Overheating protection: Thermal cut-out
- Use: Dry indoor areas
- Length: 210 mm
- Height: 310 mm
- Width: 230 mm
- Net weight: 2.4 kg
