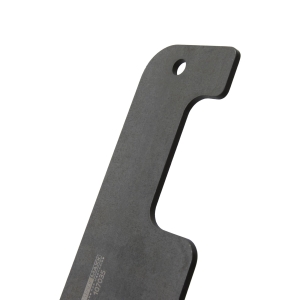

Camshaft Alignment Bars for VAG V6 / VR6 / W8 / W12 – as T10068A
-
Code:107035
-
Weight:0.940 Kgs
Overview:
✔ Camshaft alignment bars set for VAG V6, VR6, W8 and W12 engines
✔ Designed for precise camshaft positioning during timing work
✔ Compatible with VAG engines including R32, 3.2 FSI and 6.0 W12
✔ Also suitable for Porsche Cayenne 3.6L
✔ Covers multiple engine codes across VAG platforms
✔ Used as T10068A, T10068, 303-696, 303696
✔ Supplied as set of 2 alignment bars

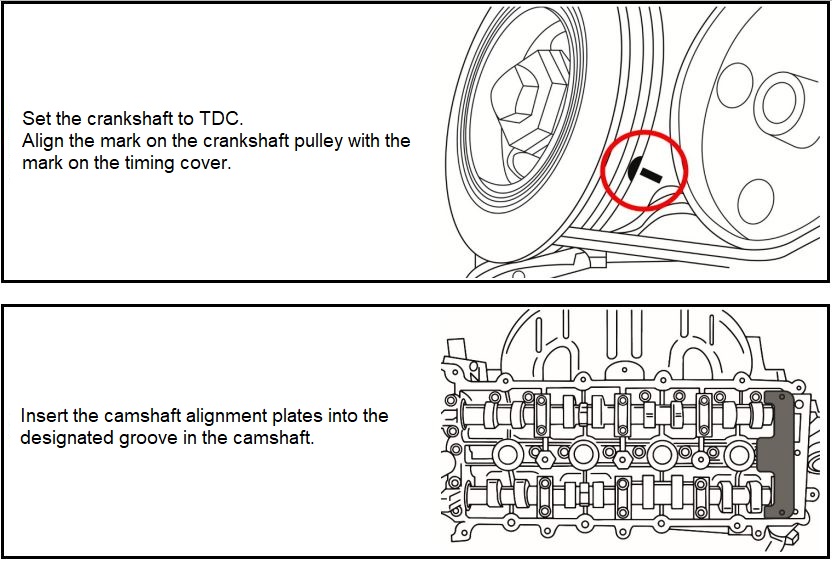

This camshaft alignment tool set is used to accurately position and align camshafts during engine timing procedures. It ensures correct synchronization of valve timing across multi-cylinder engines.
Compatibility
Designed for a wide range of VAG engines including:
- V6 / VR6
- R32
- 3.2L FSI
- W8
- 6.0L W12
Also compatible with:
- Porsche Cayenne 3.6L
Engine Compatibility
Suitable for the following engine codes:
AMV, AUE, AYL, AYT, AZZ
BAA, BDB, BDE, BDL
BFH, BHE, BJS, BKJ, BKK, BKL
BMJ, BML, BMV, BMX
BRJ, BRK, BUB, BWS
CBRA, M55.01
OEM Reference
Used as:
T10068A, T10068, 303-696, 303696
Scope of Delivery

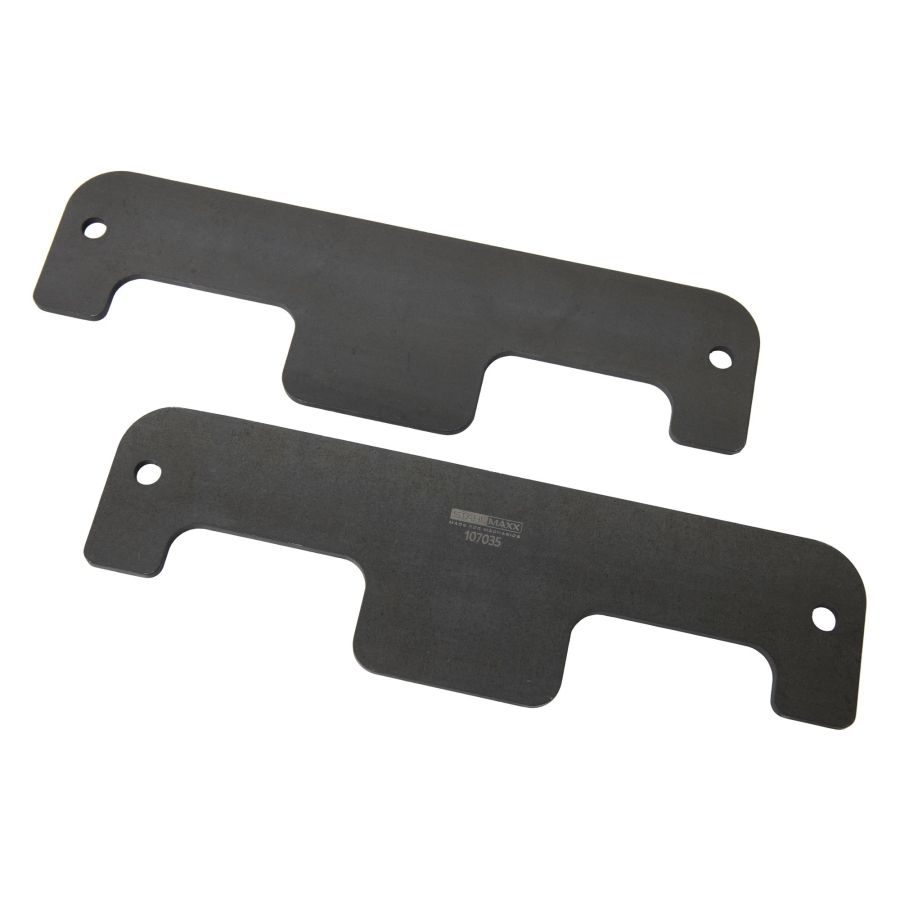

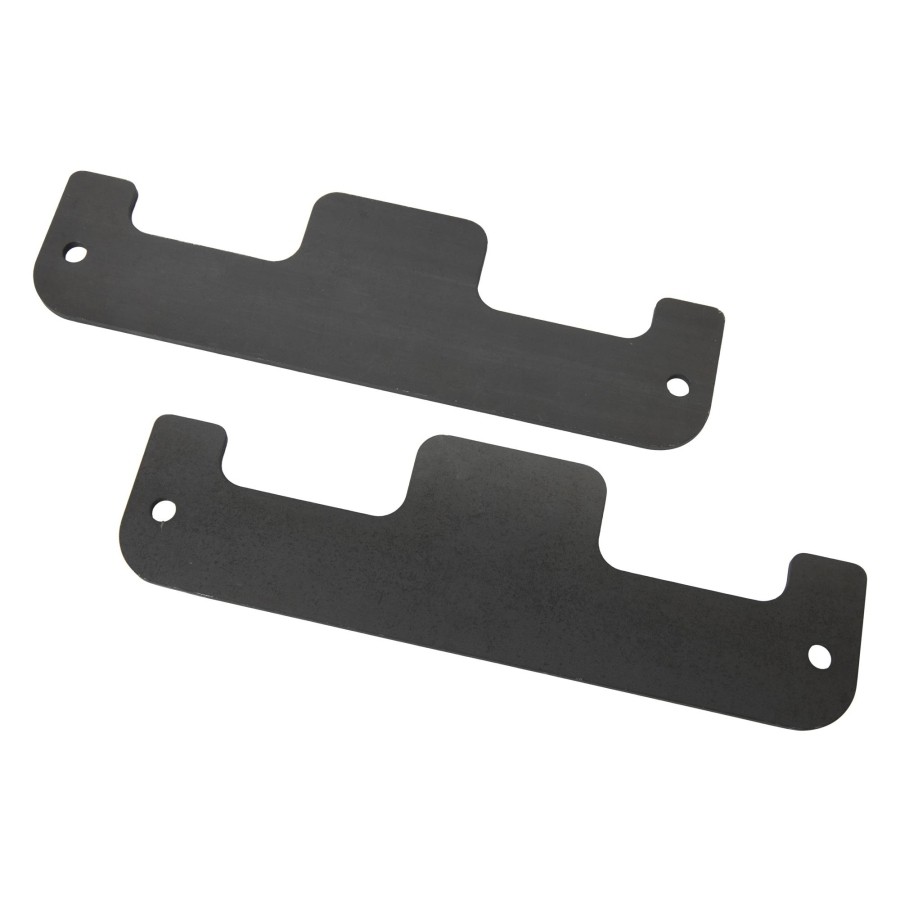

2 x Camshaft alignment bars
OEM numbers are provided for reference purposes only and do not imply original manufacturer tools.
OEM numbers are provided for reference purposes only and do not imply original manufacturer tools.
AUDI A8 (4E2, 4E8) (10.2002 - 12.2010) 6.0 W12 quattro (450 HP, 331 kW)
AUDI TT (8N3) (10.1998 - 12.2006) 3.2 VR6 quattro (250 HP, 184 kW)
AUDI TT Roadster (8N9) (10.1999 - 12.2006) 3.2 VR6 quattro (250 HP, 184 kW)
FORD GALAXY (WGR) (03.1995 - 05.2006) 2.8 V6 (204 HP, 150 kW)
SEAT ALHAMBRA (7V8, 7V9) (04.1996 - 03.2010) 2.8 V6 (204 HP, 150kW)
SEAT ALHAMBRA (7V8, 7V9) (04.1996 - 03.2010) 2.8 V6 4motion (204 HP, 150 kW)
SEAT LEON (1M1) (11.1999 - 06.2006) 2.3 VR5 (170 HP, 125 kW)
SEAT TOLEDO II (1M2) (10.1998 - 05.2006) 2.3 V5 20V (170 HP, 125 kW)
VW BORA (1J2) (10.1998 - 12.2013) 2.3 V5 (170 HP, 125 kW)
VW BORA (1J2) (10.1998 - 12.2013) 2.3 V5 4motion (170 HP, 125 kW)
VW BORA Variant (1J6) (05.1999 - 05.2005) 2.3 V5 (170 HP, 125 kW)
VW BORA Variant (1J6) (05.1999 - 05.2005) 2.3 V5 4motion (170 HP, 125 kW)
VW CC (358) (11.2011 - 12.2016) 3.6 FSI 4motion (300 HP, 220 kW)
VW GOLF IV (1J1) (08.1997 - 12.2007) 2.3 V5 (170 HP, 125 kW)
VW GOLF IV (1J1) (08.1997 - 12.2007) 2.3 V5 4motion (170 HP, 125 kW)
VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 2.3 V5 (170 HP, 125 kW)
VW GOLF IV Variant (1J5) (05.1999 - 06.2006) 2.3 V5 4motion (170 HP, 125 kW)
VW NEW BEETLE (9C1, 1C1) (01.1998 - 11.2010) 2.3 V5 (170 HP, 125 kW)
VW PASSAT B5.5 (3B3) (10.2000 - 12.2005) 4.0 W8 4motion (275 HP, 202 kW)
VW PASSAT B5.5 Variant (3B6) (09.2000 - 08.2005) 4.0 W8 4motion (275 HP, 202 kW)
VW PASSAT B6 (3C2) (03.2005 - 11.2010) 3.6 R36 4motion (300 HP, 220 kW)
VW PASSAT B6 Variant (3C5) (08.2005 - 10.2011) 3.6 R36 4motion (300 HP, 220 kW)
VW PASSAT B7 (362) (08.2010 - 12.2015) 3.6 FSI 4motion (300 HP, 220 kW)
VW PASSAT B7 Box Body/Estate (365) (08.2010 - 12.2014) 3.6 FSi 4motion (299 HP, 220 kW)
VW PASSAT B7 Variant (365) (08.2010 - 12.2015) 3.6 FSI 4motion (300 HP, 220 kW)
VW PASSAT CC B6 (357) (02.2008 - 01.2012) 3.6 FSI 4motion (300 HP, 220 kW)
VW PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) (04.2002 - 03.2016) 6.0 W12 4motion (420 HP, 309 kW)
VW PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9) (04.2002 - 03.2016) 6.0 W12 4motion (450 HP, 331 kW)
VW SHARAN (7M8, 7M9, 7M6) (09.1995 - 03.2010) 2.8 V6 24V (204 HP, 150 kW)
VW SHARAN (7M8, 7M9, 7M6) (09.1995 - 03.2010) 2.8 V6 24V 4motion (204 HP, 150 kW)
