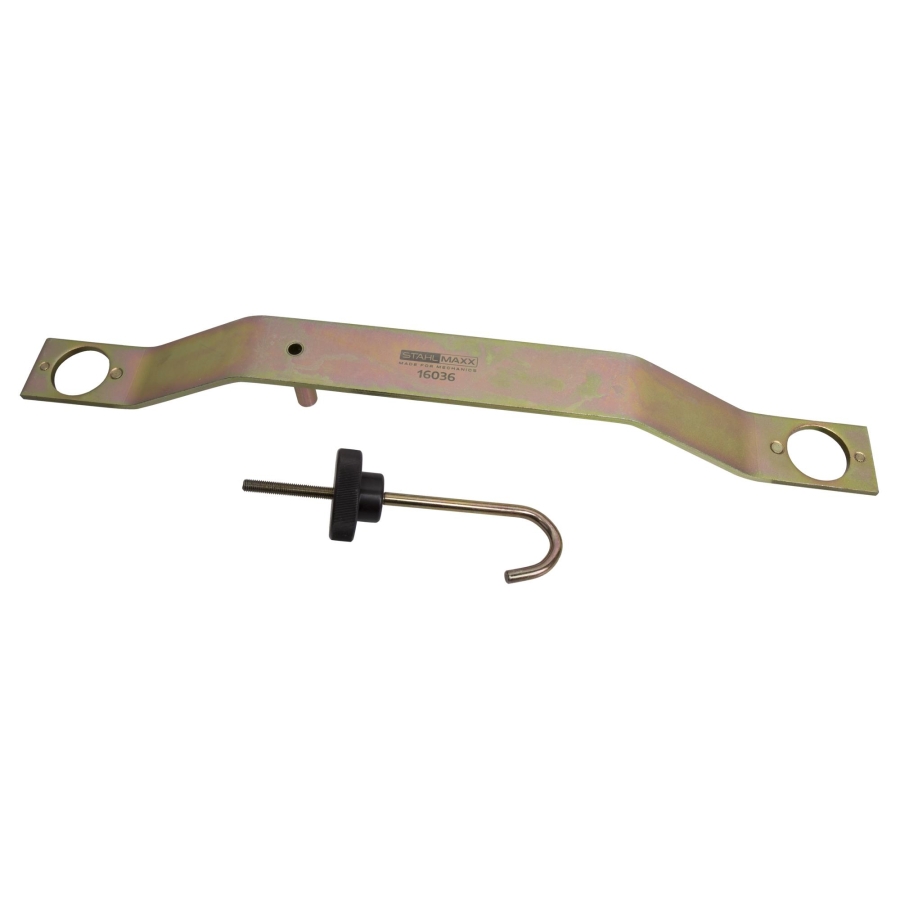

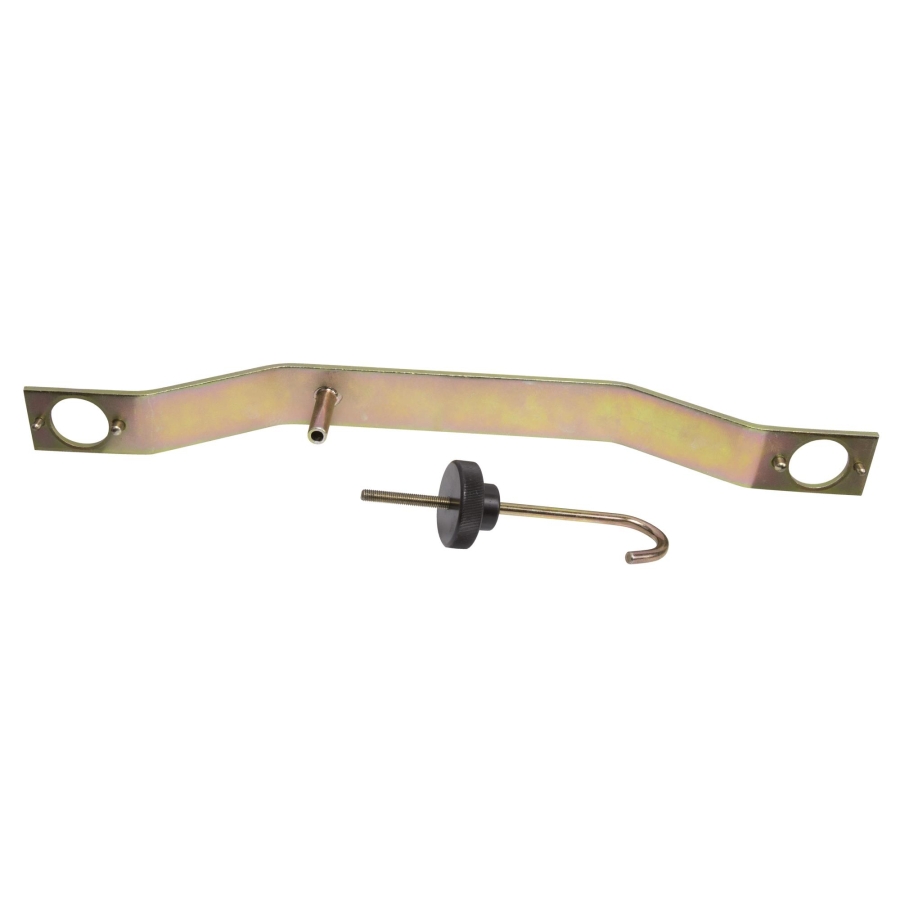

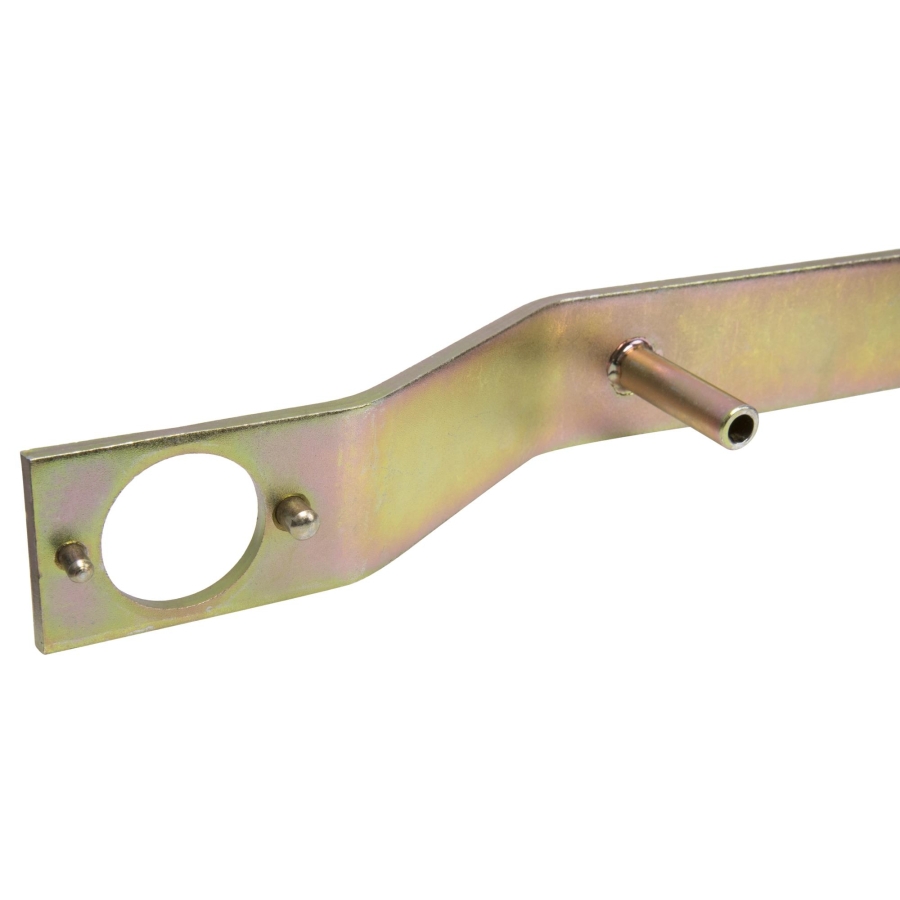

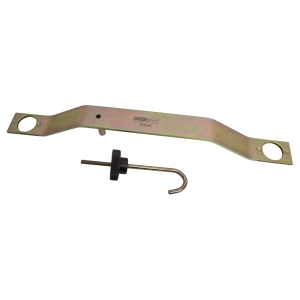

Camshaft Locking Tool for Audi VW V6 as 3243
-
Code:16036
-
Weight:1.920 Kgs
Overview:
✔ Camshaft locking tool for Audi and VW V6 engines
✔ Designed for 2.6L and 2.8L petrol engines
✔ Suitable for engines with 102–128 kW output
✔ Ensures precise camshaft positioning during timing work
✔ High accuracy fit for safe and controlled operation
✔ Used as OEM tool 3243
This camshaft locking tool is designed for securing camshafts on Audi and VW V6 petrol engines during timing adjustment and maintenance procedures. It ensures stable positioning and prevents movement during service work.
Compatibility
Suitable for Audi and VW vehicles equipped with 2.6L and 2.8L V6 petrol engines with power output between 102–128 kW.
Compatible with the following engine codes:
AAH, ABC, AEJ, ACZ
Function

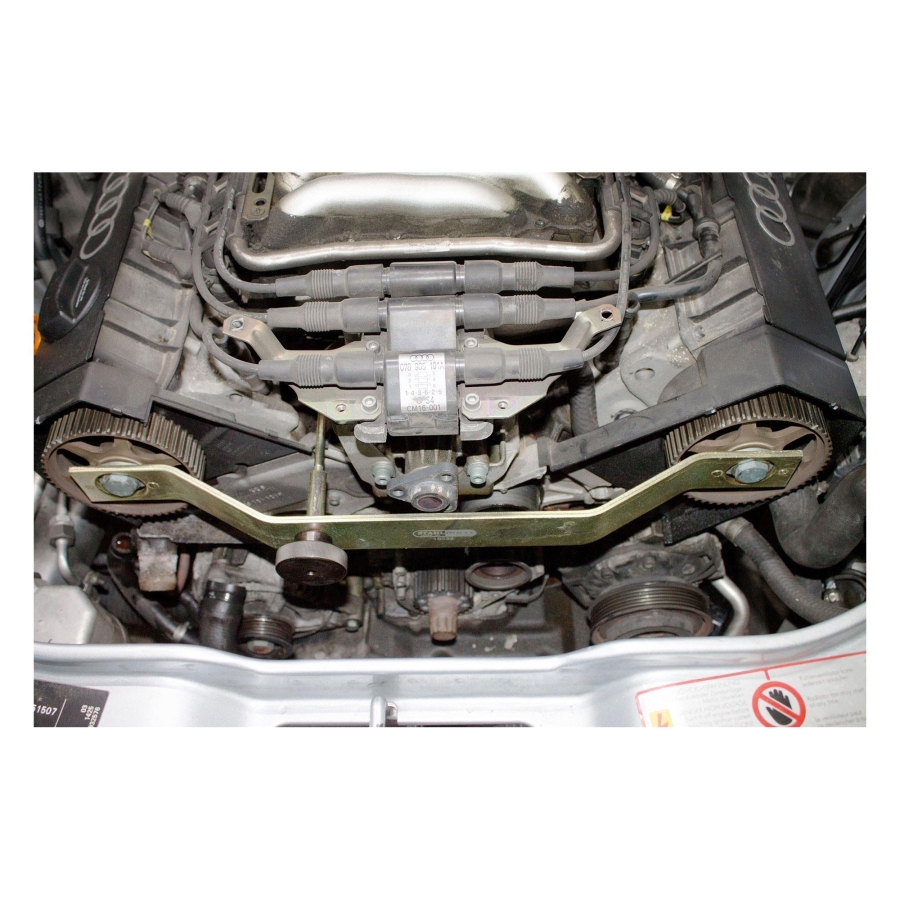

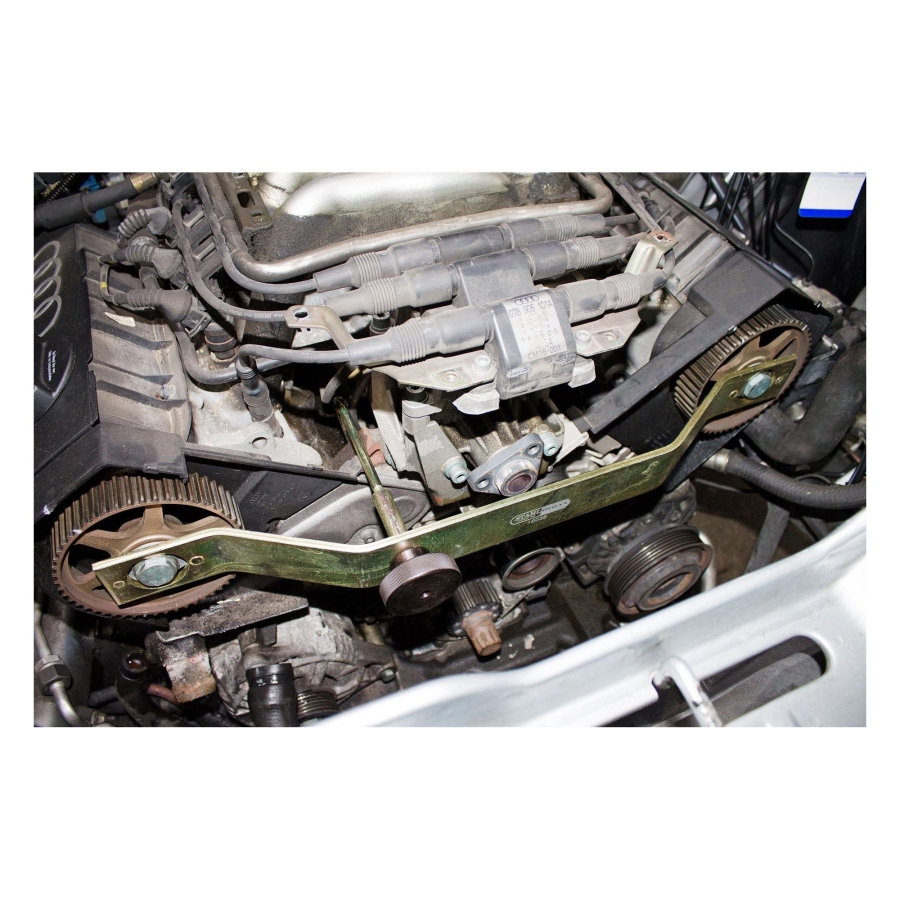

The tool locks the camshafts in the correct position during timing belt or engine repair operations. Its precision fit ensures accurate alignment and reduces the risk of damage to sensitive engine components.
OEM Reference
To be used as OEM tool as:
3243
Additional Note

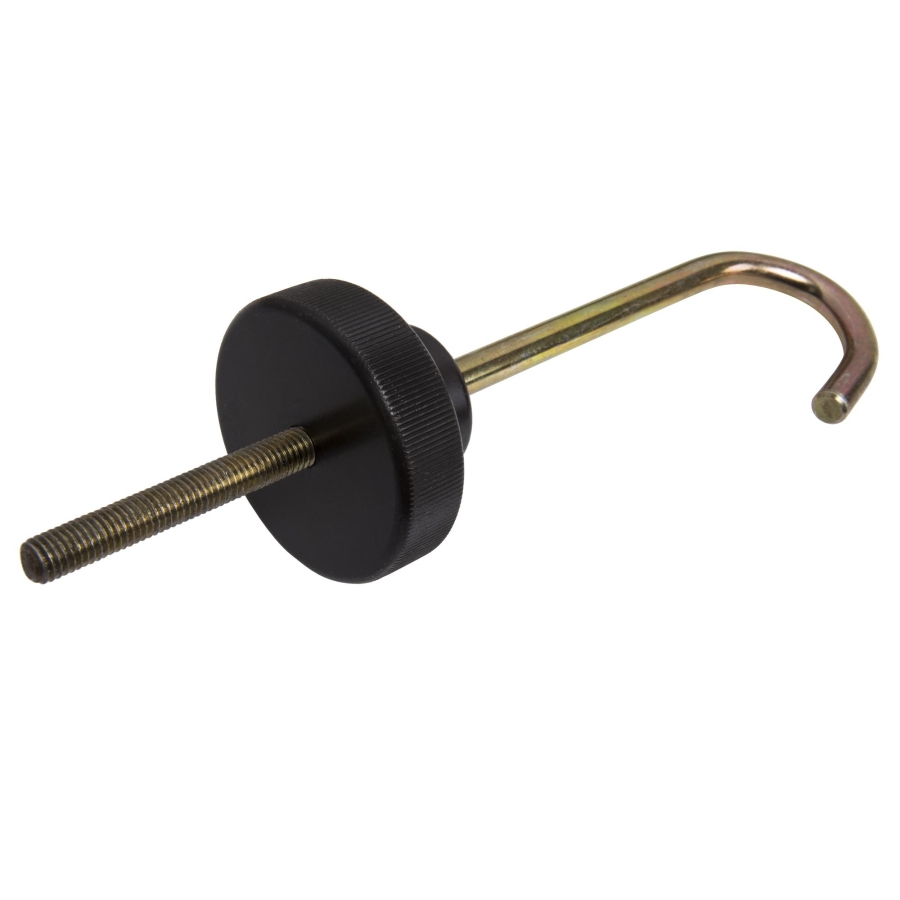

For crankshaft locking, a fixing bolt (art. no. 16023) is required, used as:
3242
OEM numbers are provided for reference purposes only. This tool is not an original manufacturer product.
AUDI 100 C4 Avant (4A5) (12.1990 - 11.1994) 2.6 (139 HP, 102 kW)
AUDI 100 C4 Avant (4A5) (12.1990 - 11.1994) 2.6 (150 HP, 110 kW)
AUDI 100 C4 Avant (4A5) (12.1990 - 11.1994) 2.6 E quattro (139 HP, 102 kW)
AUDI 100 C4 Avant (4A5) (12.1990 - 11.1994) 2.6 quattro (150 HP, 110 kW)
AUDI 100 C4 Avant (4A5) (12.1990 - 11.1994) 2.8 E (174 HP, 128 kW)
AUDI 100 C4 Avant (4A5) (12.1990 - 11.1994) 2.8 E quattro (174 HP, 128 kW)
AUDI 100 C4 Saloon (4A2) (12.1990 - 07.1994) 2.6 (139 HP, 102 kW)
AUDI 100 C4 Saloon (4A2) (12.1990 - 07.1994) 2.6 (150 HP, 110 kW)
AUDI 100 C4 Saloon (4A2) (12.1990 - 07.1994) 2.6 E quattro (139 HP, 102 kW)
AUDI 100 C4 Saloon (4A2) (12.1990 - 07.1994) 2.6 quattro (150 hp, 110 kW)
AUDI 100 C4 Saloon (4A2) (12.1990 - 07.1994) 2.8 E (174 HP, 128 kW)
AUDI 100 C4 Saloon (4A2) (12.1990 - 07.1994) 2.8 E quattro (174 HP, 128 kW)
AUDI 80 B4 Avant (8C5) (09.1991 - 01.1996) 2.6 (150 HP, 110 kW)
AUDI 80 B4 Avant (8C5) (09.1991 - 01.1996) 2.6 quattro (139 hp, 102 kW)
AUDI 80 B4 Avant (8C5) (09.1991 - 01.1996) 2.6 quattro (150 hp, 110 kW)
AUDI 80 B4 Avant (8C5) (09.1991 - 01.1996) 2.8 (174 HP, 128 kW)
AUDI 80 B4 Avant (8C5) (09.1991 - 01.1996) 2.8 quattro (174 HP, 128 kW)
AUDI 80 B4 Saloon (8C2) (09.1991 - 07.1995) 2.6 (150 HP, 110 kW)
AUDI 80 B4 Saloon (8C2) (09.1991 - 07.1995) 2.6 quattro (150 HP, 110 kW)
AUDI 80 B4 Saloon (8C2) (09.1991 - 07.1995) 2.8 (174 HP, 128 kW)
AUDI 80 B4 Saloon (8C2) (09.1991 - 07.1995) 2.8 quattro (174 HP, 128 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.6 (139 HP, 102 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.6 (150 HP, 110 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.6 quattro (150 HP, 110 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.8 (174 HP, 128 kW)
AUDI A4 B5 (8D2) (11.1994 - 12.2001) 2.8 quattro (174 HP, 128 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.6 (139 HP, 102 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.6 (150 HP, 110 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.6 quattro (150 HP, 110 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.8 (174 HP, 128 kW)
AUDI A4 B5 Avant (8D5) (11.1994 - 12.2002) 2.8 quattro (174 HP, 128 kW)
AUDI A6 C4 (4A2) (06.1994 - 10.1997) 2.6 (139 HP, 102 kW)
AUDI A6 C4 (4A2) (06.1994 - 10.1997) 2.6 (150 HP, 110 kW)
AUDI A6 C4 (4A2) (06.1994 - 10.1997) 2.6 quattro (150 HP, 110 kW)
AUDI A6 C4 (4A2) (06.1994 - 10.1997) 2.8 (163 HP, 120 kW)
AUDI A6 C4 (4A2) (06.1994 - 10.1997) 2.8 (174 HP, 128 kW)
AUDI A6 C4 (4A2) (06.1994 - 10.1997) 2.8 quattro (174 HP, 128 kW)
AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 2.6 (139 HP, 102 kW)
AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 2.6 (150 HP, 110 kW)
AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 2.6 quattro (150 HP, 110 kW)
AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 2.8 (163 HP, 120 kW)
AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 2.8 (174 HP, 128 kW)
AUDI A6 C4 Avant (4A5) (06.1994 - 12.1997) 2.8 quattro (174 HP, 128 kW)
AUDI A8 (4D2, 4D8) (03.1994 - 12.2005) 2.8 (163 HP, 120 kW)
AUDI A8 (4D2, 4D8) (03.1994 - 12.2005) 2.8 (174 HP, 128 kW)
AUDI A8 (4D2, 4D8) (03.1994 - 12.2005) 2.8 quattro (163 HP, 120 kW)
AUDI A8 (4D2, 4D8) (03.1994 - 12.2005) 2.8 quattro (174 HP, 128 kW)
AUDI CABRIOLET B4 (8G7) (05.1991 - 08.2000) 2.6 (139 HP, 102 kW)
AUDI CABRIOLET B4 (8G7) (05.1991 - 08.2000) 2.6 (150 HP, 110 kW)
AUDI CABRIOLET B4 (8G7) (05.1991 - 08.2000) 2.8 (174 hp, 128 kW)
AUDI COUPE B3 (89, 8B3) (10.1988 - 12.1996) 2.6 (150 HP, 110 kW)
AUDI COUPE B3 (89, 8B3) (10.1988 - 12.1996) 2.6 quattro (150 HP, 110 kW)
AUDI COUPE B3 (89, 8B3) (10.1988 - 12.1996) 2.8 (174 HP, 128 kW)
AUDI COUPE B3 (89, 8B3) (10.1988 - 12.1996) 2.8 quattro (174 HP, 128 kW)
