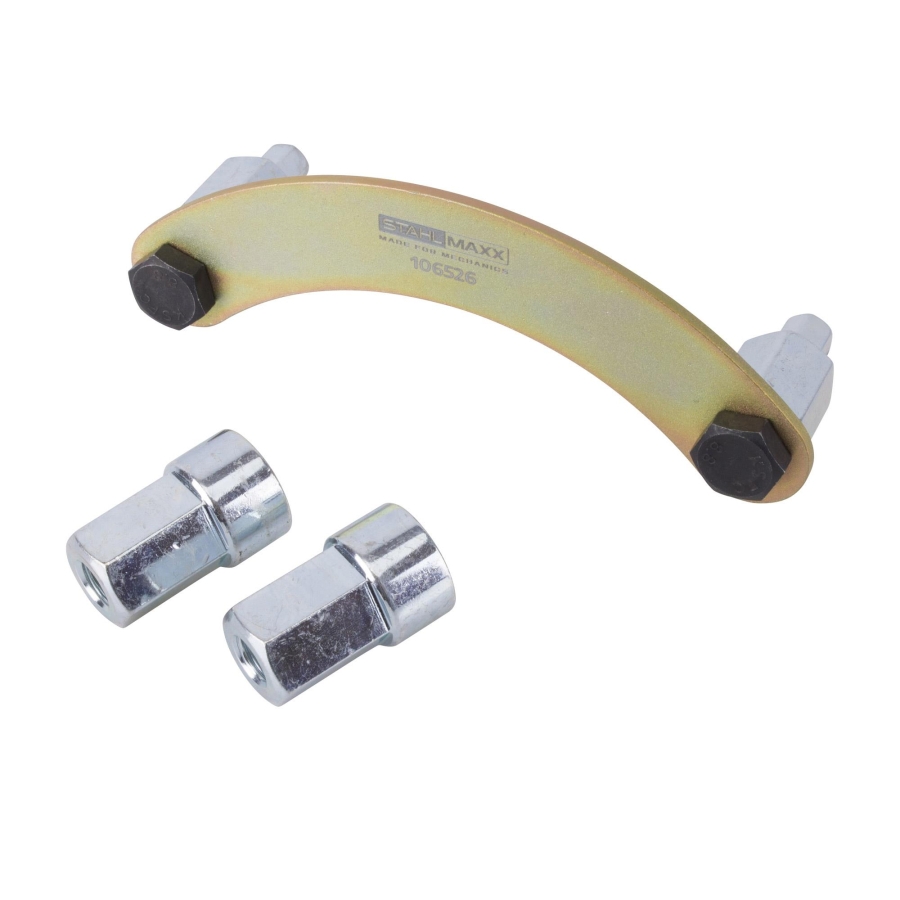

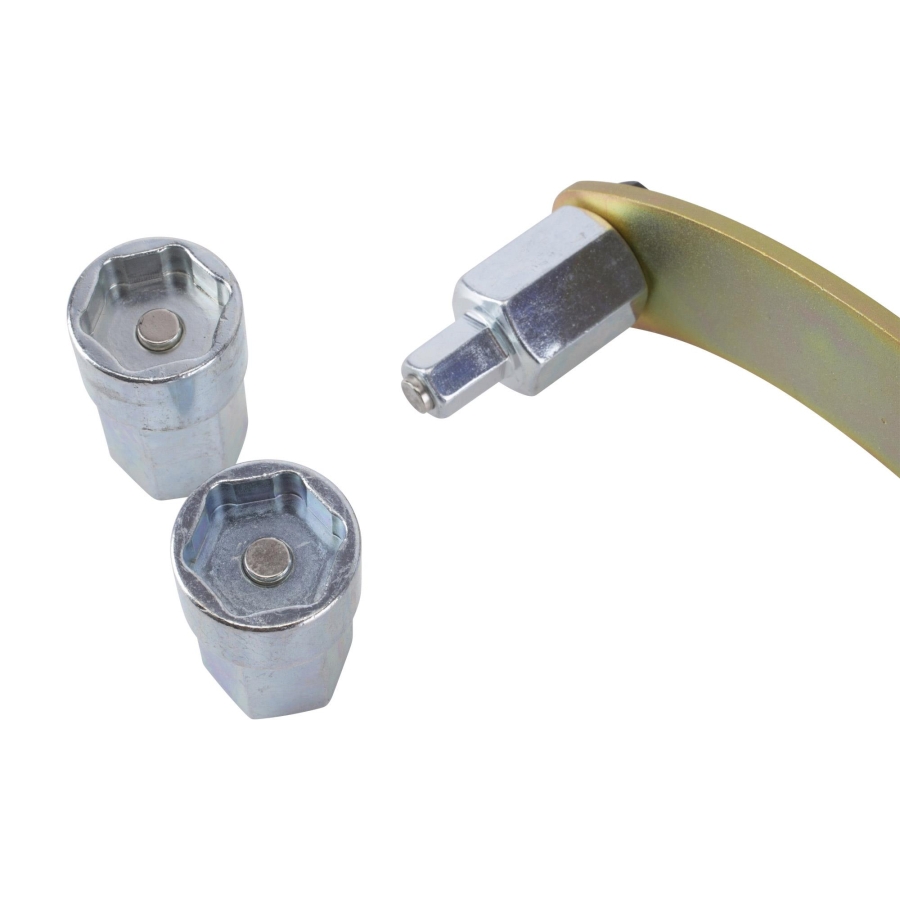

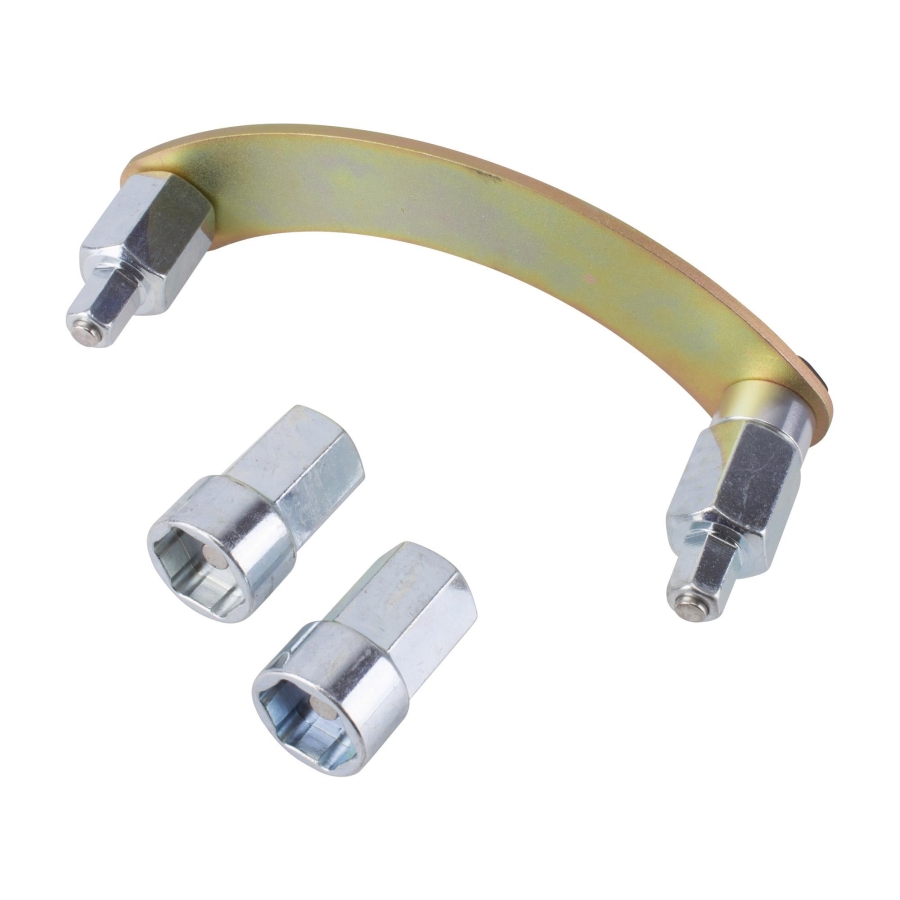

Camshaft Locking Tool for Subaru (as 499207300)

This specialized camshaft locking tool is used to secure the camshafts during engine service.

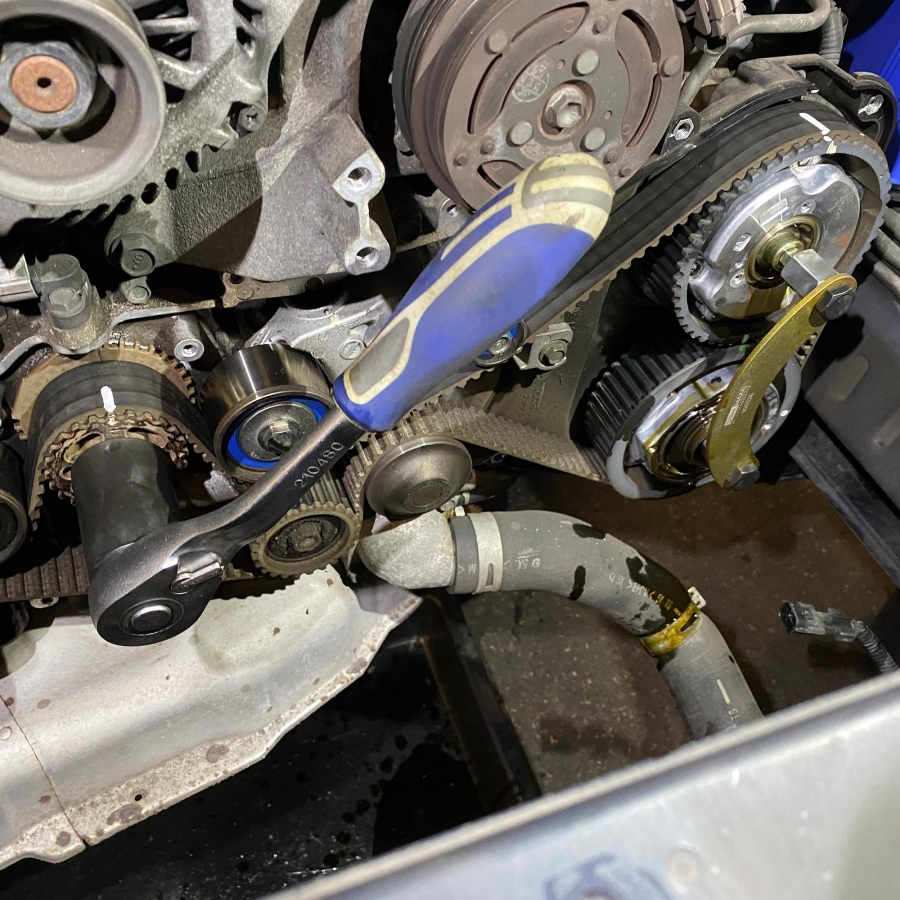

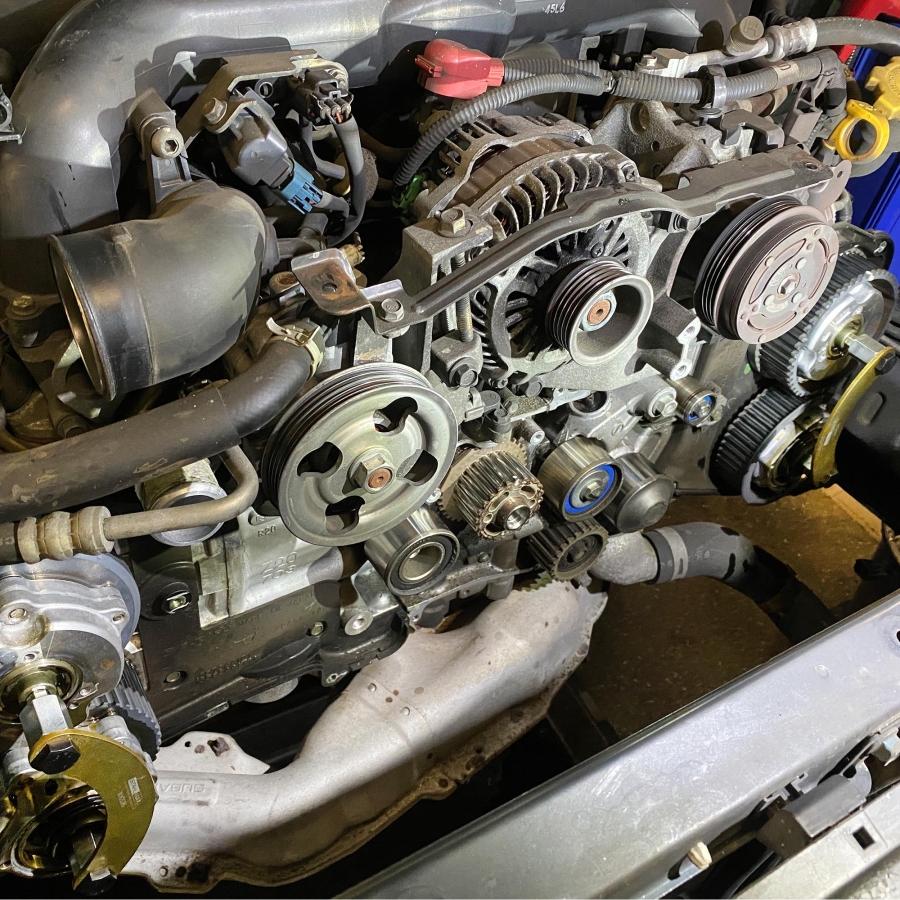

Due to valve spring tension, camshafts can rotate suddenly when the timing belt is removed. This tool prevents uncontrolled movement and ensures safe working conditions during timing belt replacement and engine repair.

---

Important Note

✔ Depending on engine configuration, two camshaft locking tools may be required

---

Engine Compatibility

Compatible with the following engine codes:
EJ20, EJ20G, EJ25DET
EJ204, EJ205, EJ205P, EJ207, EJ208
EJ255, EJ257

---

Vehicle Compatibility

Suitable for Subaru models including:

Impreza / WRX STI 2.0 / 2.5 (from 2000)
Forester SF / SG / SH / XT (2002–2011)
Outback XT (2005–2010)
Legacy BM / BR (from 2005)

Also suitable for 2.5 DOHC Turbo engines (Phase 1 & 2, from 1996)

---

Tool Reference

Used as:
499207300

---

Scope of Delivery

✔ 1 x Camshaft locking tool – as 499207300



Original numbers are for comparison purposes only. This is not an original tool.

SAAB 9-2X Estate (09.2004 - 12.2006) 2.0 AWD (230 HP, 169 kW)

SAAB 9-2X Estate (09.2004 - 12.2006) 2.5 AWD (233 HP, 172 kW)

SUBARU BAJA Pick-up (09.2002 - 12.2006) 2.5 AWD (233 HP, 171 kW)

SUBARU FORESTER (SF_) (03.1997 - 09.2002) 2.0 S Turbo AWD (SF5) (177 HP, 130 kW)

SUBARU FORESTER (SG_) (06.2002 - 12.2012) 2.0 S Turbo AWD (177 HP, 130 kW)

SUBARU FORESTER (SG_) (06.2002 - 12.2012) 2.0 X AWD (158 HP, 116 kW)

SUBARU FORESTER (SG_) (06.2002 - 12.2012) 2.5 AWD (232 HP, 171 kW)

SUBARU FORESTER (SG_) (06.2002 - 12.2012) 2.5 AWD (SG9, S11SG, S12SH) (230 HP, 169 kW)

SUBARU FORESTER (SG_) (06.2002 - 12.2012) 2.5 Prodrive Performance Pack AWD (256 HP, 188 kW)

SUBARU FORESTER (SH_) (12.2007 - 12.2014) 2.0 AWD (158 HP, 116 kW)

SUBARU FORESTER (SH_) (12.2007 - 12.2014) 2.0 BiFuel AWD (150 HP, 110 kW)

SUBARU FORESTER (SH_) (12.2007 - 12.2014) 2.5 AWD (224 HP, 165 kW)

SUBARU FORESTER (SH_) (12.2007 - 12.2014) 2.5 AWD (SH9) (230 HP, 169 kW)

SUBARU FORESTER (SH_) (12.2007 - 12.2014) 2.5 Turbo AWD (SH9) (262 HP, 193 kW)

SUBARU IMPREZA Coupe (GFC) (01.1993 - 12.2000) 2.0 AWD (280 HP, 206 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.0 AWD (160 HP, 118 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.0 R AWD (GH7) (150 HP, 110 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.0 R BiFuel AWD (150 HP, 110 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 AWD (270 HP, 199 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 AWD (310 HP, 228 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 AWD (GHE) (230 HP, 169 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 STI CS400 AWD (400 HP, 294 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 WRX AWD (309 HP, 227 kW)

SUBARU IMPREZA hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 WRX S AWD (255 HP, 188 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 WRX SE AWD (GRE) (265 HP, 195 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 WRX STI 330S AWD (330 HP, 243 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 WRX STI AWD (305 HP, 224 kW)

SUBARU IMPREZA Hatchback (GR, GH, G3) (03.2007 - 05.2014) 2.5 WRX STI AWD (GRF) (301 HP, 221 kW)

SUBARU IMPREZA Station Wagon (09.2007 - 12.2012) 2.5 WRX AWD (233 HP, 171 kW)

SUBARU IMPREZA Station Wagon (09.2007 - 12.2012) 2.5 WRX STI AWD (309 HP, 227 kW)

SUBARU IMPREZA Station Wagon (GF) (08.1992 - 12.2000) 2.0 Turbo GT AWD (GF8) (218 HP, 160 kW)

SUBARU IMPREZA Station Wagon (GG) (10.2000 - 12.2008) 2.0 AWD (250 HP, 184 kW)

SUBARU IMPREZA Station Wagon (GG) (10.2000 - 12.2008) 2.0 Turbo AWD (GGA) (218 HP, 160 kW)

SUBARU IMPREZA Station Wagon (GG) (10.2000 - 12.2008) 2.0 WRX AWD (230 HP, 169 kW)

SUBARU IMPREZA Station Wagon (GG) (10.2000 - 12.2008) 2.0 WRX Turbo AWD (225 HP, 165 kW)

SUBARU IMPREZA Station Wagon (GG) (10.2000 - 12.2008) 2.5 AWD (300 HP, 221 kW)

SUBARU IMPREZA Station Wagon (GG) (10.2000 - 12.2008) 2.5 GB270 AWD (269 HP, 198 kW)

SUBARU IMPREZA Station Wagon (GG) (10.2000 - 12.2008) 2.5 WRX AWD (233 HP, 171 kW)

SUBARU IMPREZA Station Wagon (GG) (10.2000 - 12.2008) 2.5 WRX AWD (GGG) (230 HP, 169 kW)

SUBARU IMPREZA Saloon (GC) (08.1992 - 09.2001) 2.0 AWD (GC8) (280 HP, 206 kW)

SUBARU IMPREZA Saloon (GC) (08.1992 - 09.2001) 2.0 Turbo GT AWD (GC8) (218 HP, 160 kW)

SUBARU IMPREZA Saloon (GC) (08.1992 - 09.2001) 2.0 WRX STi AWD (250 HP, 184 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 AWD (GDB) (280 HP, 206 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 WRX STi AWD (320 HP, 235 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 WRX STi AWD (GDB) (265 HP, 195 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 WRX STi Prodrive Performance Package AWD (305 HP, 224 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 WRX Turbo AWD (225 HP, 165 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 WRX Turbo AWD (GDA) (218 HP, 160 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 i AWD (204 HP, 150 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 i R AWD (GD9) (160 HP, 118 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.0 i WRX AWD (GDA) (228 HP, 168 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.5 AWD (300 HP, 221 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.5 WRX STi AWD (GDF) (280 HP, 206 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.5 i WRX AWD (GDG) (230 HP, 169 kW)

SUBARU IMPREZA Saloon (GD) (09.1999 - 06.2009) 2.5 i WRX STI AWD (265 HP, 195 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.0 i AWD (150 HP, 110 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.5 AWD (230 HP, 169 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.5 AWD (270 HP, 199 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.5 AWD (272 HP, 200 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.5 AWD (310 HP, 228 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.5 AWD (320 HP, 235 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.5 WRX SE AWD (265 HP, 195 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.5 WRX STI AWD (301 HP, 221 kW)

SUBARU IMPREZA Saloon (GE, GV) (01.2007 - 11.2016) 2.5 WRX STI AWD (305 HP, 224 kW)

SUBARU LEGACY III (BE) (10.1998 - 08.2003) 2.0 AWD (BE5) (280 HP, 206 kW)

SUBARU LEGACY III Estate (BH) (10.1998 - 08.2003) 2.0 AWD (280 HP, 206 kW)

SUBARU LEGACY IV (BL) (09.2003 - 11.2015) 2.0 R AWD (150 HP, 110 kW)

SUBARU LEGACY IV (BL) (09.2003 - 11.2015) 2.5 AWD (233 HP, 171 kW)

SUBARU LEGACY IV (BL) (09.2003 - 11.2015) 2.5 STI AWD (BL9) (264 HP, 194 kW)

SUBARU LEGACY IV Estate (BP) (09.2003 - 12.2009) 2.0 AWD (160 HP, 118 kW)

SUBARU LEGACY IV Estate (BP) (09.2003 - 12.2009) 2.0 R AWD (150 HP, 110 kW)

SUBARU LEGACY IV Estate (BP) (09.2003 - 12.2009) 2.5 AWD (233 HP, 171 kW)

SUBARU LEGACY V (BM) (05.2009 - 12.2015) 2.0 i AWD (150 HP, 110 kW)

SUBARU LEGACY V (BM) (05.2009 - 12.2015) 2.0 i AWD (160 hp, 118 kW)

SUBARU LEGACY V (BM) (05.2009 - 12.2015) 2.0 i LPG AWD (147 HP, 108 kW)

SUBARU LEGACY V (BM) (05.2009 - 12.2015) 2.5 GT AWD (BM9) (265 HP, 195 kW)

SUBARU LEGACY V (BM) (05.2009 - 12.2015) 2.5 GT AWD (BM9) (286 HP, 210 kW)

SUBARU LEGACY V (BM) (05.2009 - 12.2015) 2.5 Turbo AWD (280 hp, 206 kW)

SUBARU LEGACY V (BM) (05.2009 - 12.2015) 2.5 i AWD (233 HP, 171 kW)

SUBARU LEGACY V Estate (BR) (06.2008 - 12.2014) 2.0 i LPG AWD (147 HP, 108 kW)

SUBARU LEGACY V Estate (BR) (06.2008 - 12.2014) 2.5 GT AWD (286 HP, 210 kW)

SUBARU LEGACY V Estate (BR) (06.2008 - 12.2014) 2.5 GT AWD (BR9) (265 HP, 195 kW)

SUBARU OUTBACK (BL, BP) (09.2003 - 06.2010) 2.5 AWD (233 HP, 171 kW)

SUBARU OUTBACK (BL, BP) (09.2003 - 06.2010) 2.5 AWD (253 HP, 186 kW)

SUBARU WRX Station Wagon (09.2011 - ) 2.5 AWD (233 HP, 171 kW)

SUBARU WRX Station Wagon (09.2011 - ) STi 2.5 AWD (309 HP, 227 kW)

SUBARU WRX Saloon (GJ) (09.2011 - ) 2.5 AWD (233 HP, 171 kW)

SUBARU WRX Saloon (GJ) (09.2011 - ) STi 2.0 AWD (308 HP, 227 kW)

SUBARU WRX Saloon (GJ) (09.2011 - ) STi 2.5 AWD (301 HP, 221 kW)

SUBARU WRX Saloon (GJ) (09.2011 - ) STi 2.5 AWD (309 HP, 227 kW)

SUBARU WRX Saloon (GJ) (09.2011 - ) STi 2.5 AWD (310 HP, 228 kW)
