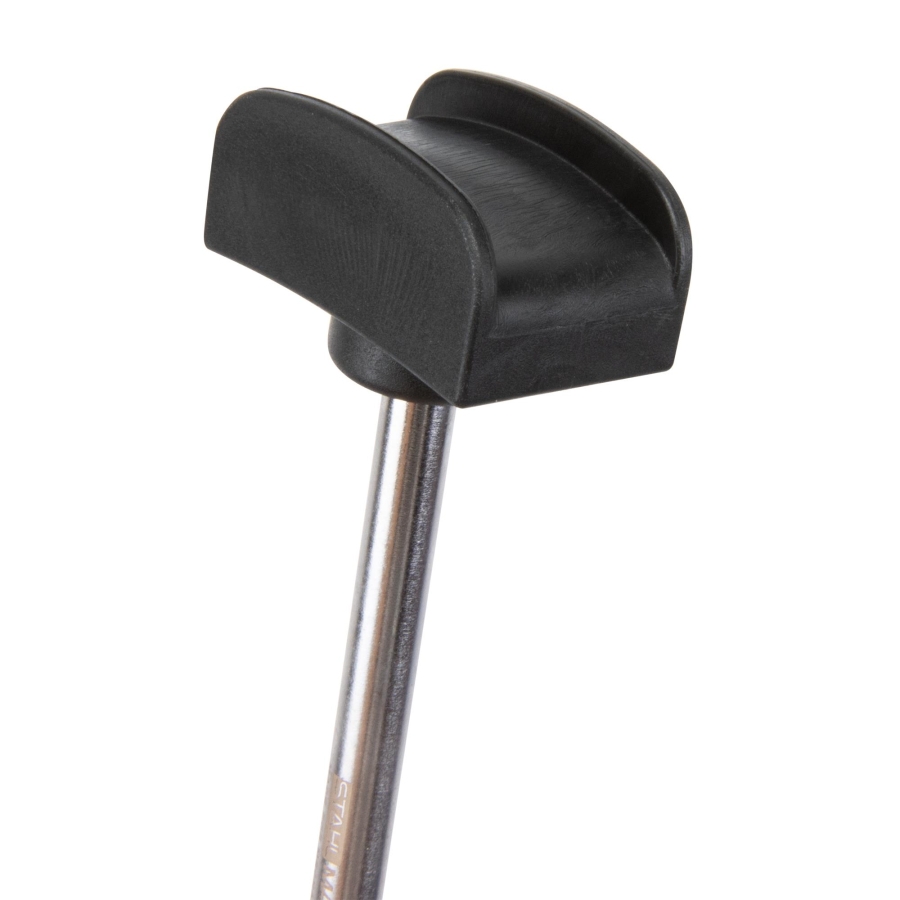

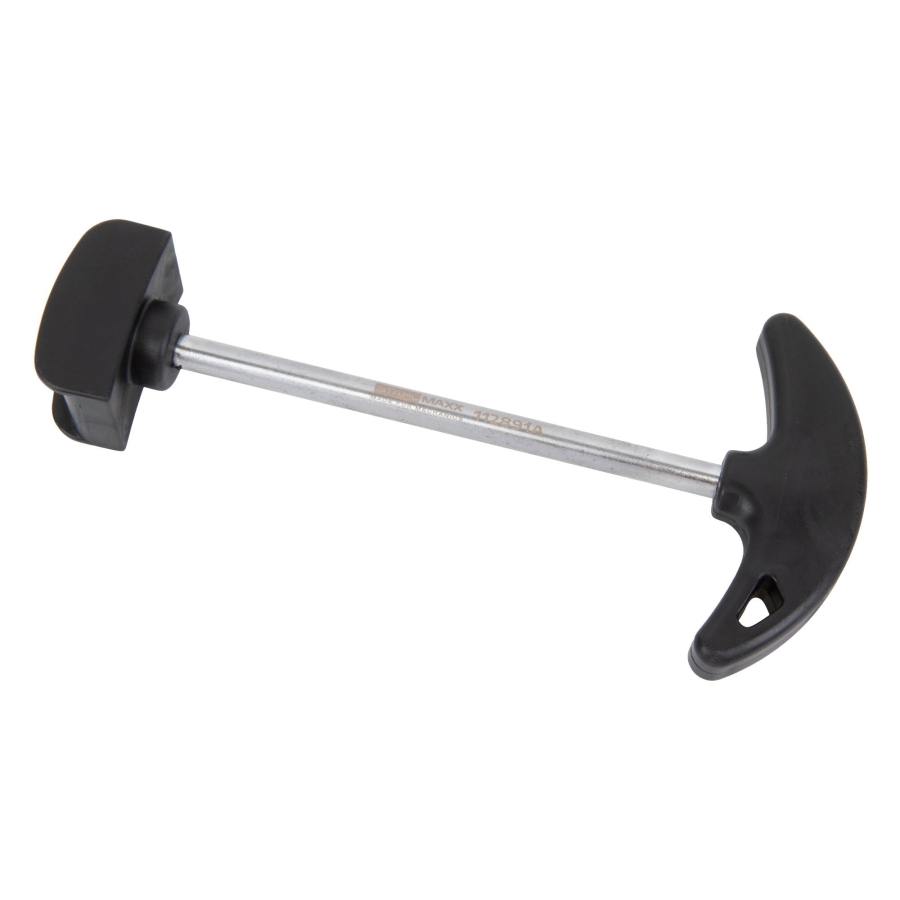

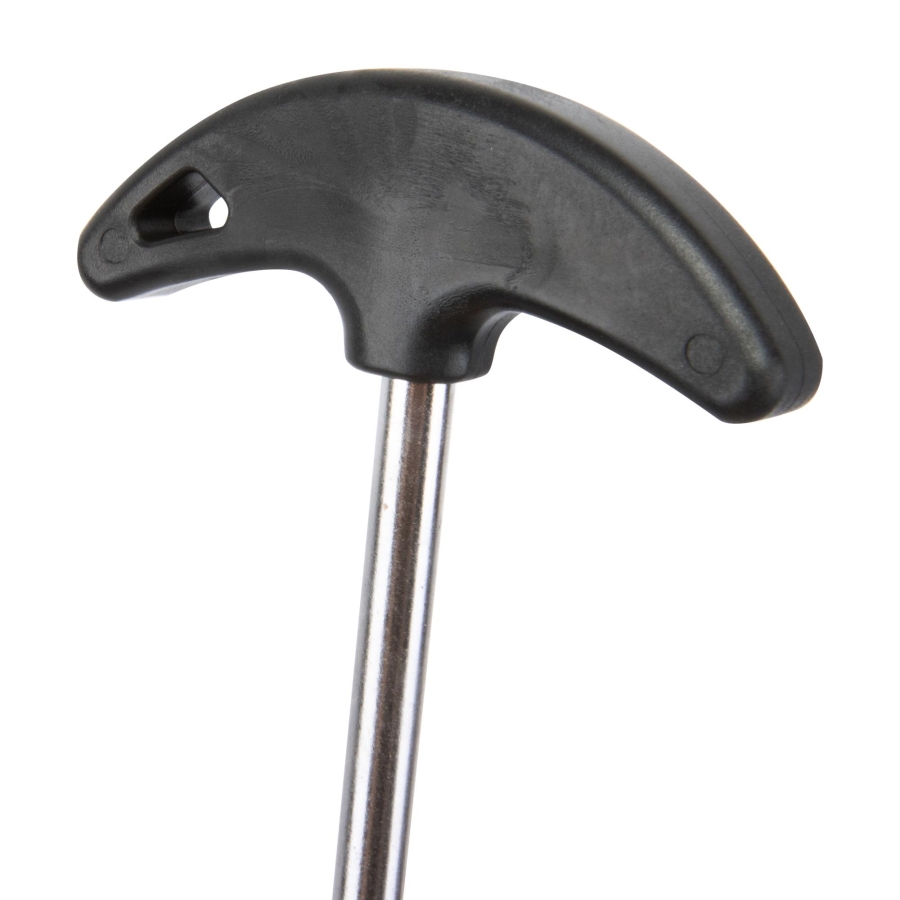

Camshaft Locking Tool for VAG 1.2 & 1.4 TFSI T10487

Specialized tool designed for easy installation and secure locking of the camshaft during timing inspection and adjustment procedures. Ensures accurate positioning when servicing the engine timing system.

---

Compatibility

Suitable for VAG vehicles, including:
Audi A3 (from 2013)
VW Golf (from 2013)

Compatible engine codes:

1.2L TFSI/FSI/TGI:
CJZA, CJZB, CJZC, CJZD, CYVB, CYVD

1.4L TFSI/FSI/TGI:
CHPA, CHPB, CMBA, CNLA, CPVA, CPVB, CPWA, CRJA, CUKA, CUKB, CUKC, CXSA, CXSB, CXUA, CZCA, CZDA

---

Function

Allows precise locking and positioning of the camshaft during timing checks and adjustments. Helps prevent incorrect timing setup and reduces risk of engine damage.

---

OEM Reference

For use as T10487



OEM numbers are for reference purposes only. This product is not an original manufacturer tool.

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI e-tron (150 HP, 110 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI g-tron (110 HP, 81 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (110 HP, 81 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (110 HP, 81 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (110 HP, 81 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (90 HP, 66 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (110 HP, 81 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (86 HP, 63 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TGI (110 HP, 81 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (122 HP, 90 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.2 TSI (110 HP, 81 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.2 TSI (86 HP, 63 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.4 TSI (122 HP, 90 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (105 HP, 77 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (110 HP, 81 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (86 HP, 63 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (122 HP, 90 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (110 HP, 81 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (86 HP, 63 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TGI (110 HP, 81 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (122 HP, 90 kW)

SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.2 TSI (110 HP, 81 kW)

SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.2 TSI (86 HP, 63 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (110 HP, 81 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (90 HP, 66 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.2 TSI (110 HP, 81 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.2 TSI (90 HP, 66 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.2 TSI (110 HP, 81 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.2 TSI (90 HP, 66 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (110 HP, 81 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (86 HP, 63 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI (140 HP, 103 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI (150 HP, 110 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI G-TEC (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (86 HP, 63 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI (140 HP, 103 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI (150 HP, 110 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI G-TEC (110 HP, 81 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (110 HP, 81 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (90 HP, 66 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (110 HP, 81 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (90 HP, 66 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.2 TSI (110 HP, 81 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.2 TSI 16V (105 hp, 77 kW)

VW Beetle Convertible (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI (105 hp, 77 kW)

VW Beetle Convertible (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI 16V (105 hp, 77 kW)

VW Caddy Alltrack MPV (SAB) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW Caddy Alltrack MPV (SAB) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW Caddy Alltrack Panel Van/MPV (SAA) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW CADDY ALLTRACK Panel Van/MPV (SAA) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.2 TSI (110 hp, 81 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.2 TSI (86 hp, 63 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.4 TSI (125 hp, 92 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.2 TSi BlueMotion (86 HP, 63 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.4 TSi BlueMotion (122 HP, 90 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.2 TSI 16V (105 HP, 77 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.4 TSI (125 HP, 92 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (105 HP, 77 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (86 HP, 63 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 GTE Hybrid (150 HP, 110 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TGI CNG (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (122 HP, 90 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (125 HP, 92 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI MultiFuel (122 HP, 90 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.2 TSi BlueMotion (86 HP, 63 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.4 TSi BlueMotion (122 HP, 90 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (105 HP, 77 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (86 HP, 63 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TGI CNG (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (122 HP, 90 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (125 HP, 92 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI MultiFuel (122 HP, 90 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.2 TSI 16V (105 HP, 77 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.4 TSI Hybrid (150 HP, 110 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 GTE Hybrid (156 HP, 115 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 GTE Hybrid (156 HP, 115 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (110 HP, 81 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI 16V (90 HP, 66 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSI (110 HP, 81 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSi (90 HP, 66 kW)

VW SCIROCCO III (137, 138) (05.2008 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW TOURAN (5T1) (05.2015 - 07.2019) 1.2 TSI (110 HP, 81 kW)
