Camshaft Locking Tool for Audi VAG as T40264

This camshaft locking tool is designed for securing camshafts during timing adjustment and engine service procedures. It ensures stable positioning of engine components while working on the timing system.

Compatibility

Suitable for VAG 2.5L and 4.0L TFSI petrol engines with direct injection, including both 4- and 8-cylinder configurations.

Compatible with vehicles such as:
Audi RS3 (from 2017), Audi A6 (from 2011), Audi A8 (from 2010)

Function

The tool is used to lock the camshafts in the correct position during timing setup or repair. This prevents misalignment and ensures precise engine timing.

The included crankshaft locking pin provides additional stability by securing the crankshaft during service operations.

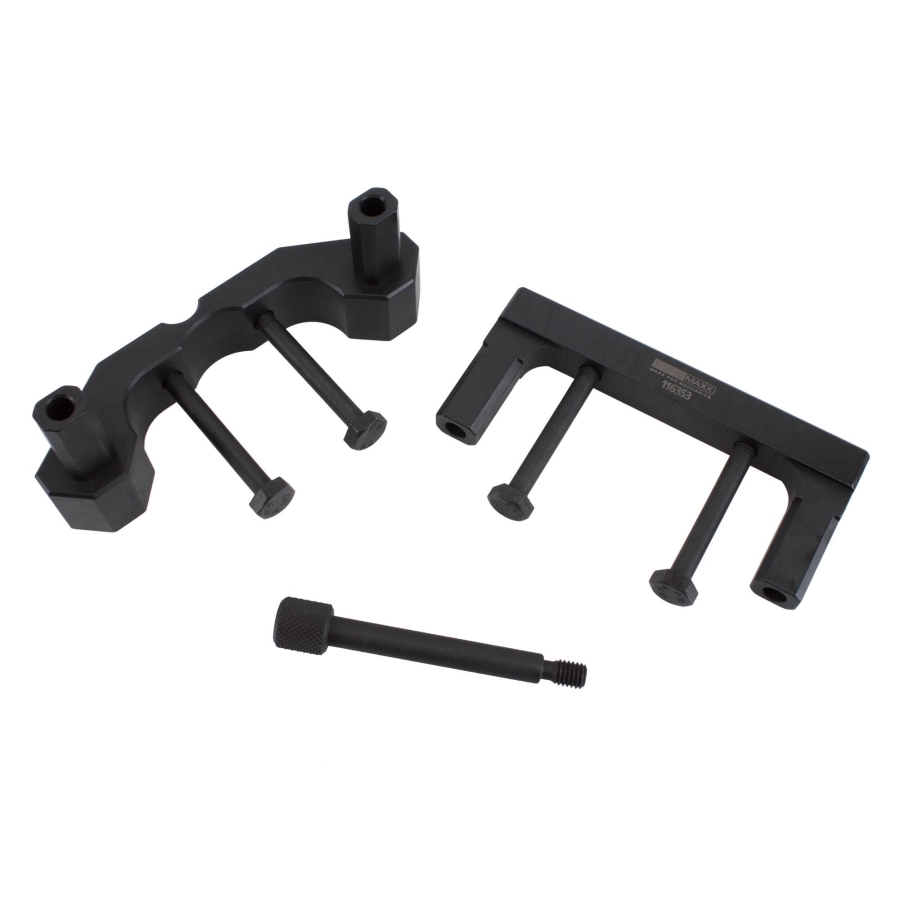

Scope of Delivery

Camshaft locking tool, used as:
T40264, T40264/2A

Crankshaft locking pin, used as:
T40264/3

OEM Reference

To be used as OEM tool as:
T40264, T40264/2A, T40264/3

OEM numbers are provided for reference purposes only. This tool is not an original manufacturer product.

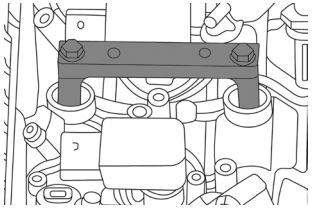

Exhaust camshaft locking tool,
to be used like OEM T40264/1

Turn the crankshaft to TDC.
Remove the sealing plugs in the camshaft carrier.
The threads in the camshafts must be visible through the holes in the camshaft carrier.
Install the camshaft locking tool and tighten the bolts to 12 Nm.

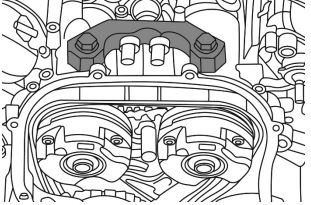

Intake camshaft locking tool,
to be used like OEM T40264/2

Remove the sealing plugs in the camshaft carrier.
The threads in the camshafts must be visible through the holes in the camshaft carrier.
Install the camshaft locking tool and tighten the bolts to 12 Nm.

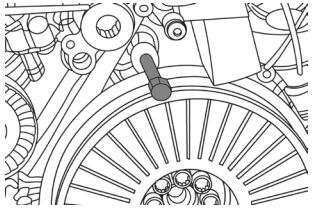

Crankshaft locking tool,
to be used like OEM T40264/3

Insert the crankshaft locking tool into the designated position.

OEM numbers are provided for reference purposes only. This tool is not an original manufacturer product.
