Clutch Centering Tool Set

Price: €79.50 155.49лв.

Code:

1708
Weight:

0.850 Kgs

Overview:
✔ Professional clutch centering tool for accurate clutch disc alignment
✔ Suitable for clutch hub diameters from 15 to 28 mm
✔ Compatible with vehicles with or without pilot bearing
✔ Enables precise alignment of clutch disc during installation
✔ Suitable for most passenger vehicles
✔ Alignment possible directly on clutch pressure plate friction surface
✔ Includes centering sleeves from 12 to 19 mm
✔ Simplifies gearbox installation and clutch assembly work
✔ Suitable for professional workshop use

Send to friend

Rate this product

Professional clutch centering tool set designed for precise alignment of clutch discs during clutch installation and gearbox servicing.

The tool is suitable for clutch disc hub diameters from 15 to 28 mm and can be used on vehicles equipped with or without pilot bearings.

On vehicles without pilot bearing, the clutch disc is centered directly against the friction surface of the clutch pressure plate.

The tool ensures stable and accurate clutch positioning, simplifying transmission installation and reducing the risk of incorrect clutch alignment.

Suitable for most passenger vehicles.

Main Features

Suitable for clutch hub diameters from 15–28 mm
Compatible with vehicles with or without pilot bearing
Precise clutch disc alignment
Stable expansion sleeve locking system
Simplifies gearbox installation
Reduces installation errors and repeated disassembly
Suitable for professional workshop applications

Included Centering Sleeves

Included centering sleeve diameters:

12 mm
14 mm
15 mm
16 mm
17 mm
18 mm
19 mm

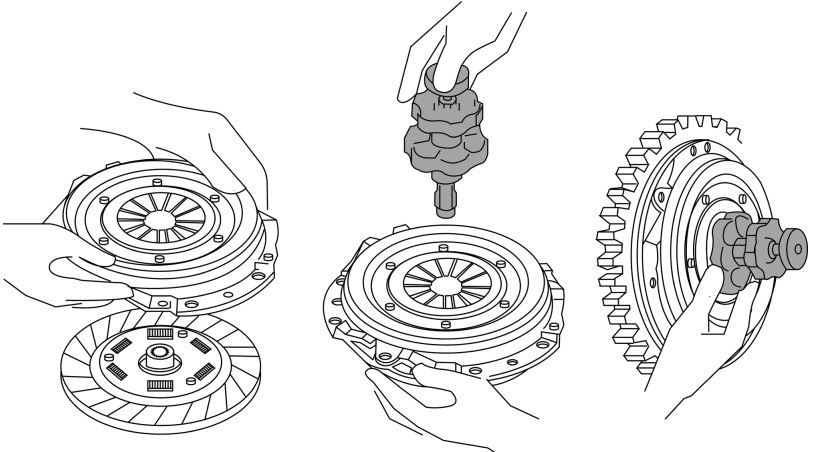

Instructions for Use

Step 1

Install the clamping nut onto the thread of the main tool body.

Step 2

Mount the appropriate expansion sleeve onto the main tool body.

The expansion sleeve should fit as closely as possible inside the clutch disc hub.

Step 3

Position the clutch disc onto the clutch pressure plate and insert the centering tool through the pressure plate until the expansion sleeve is fully seated inside the clutch disc hub.

Step 4

Expand the sleeve using the expansion spindle until it is securely locked inside the clutch disc hub.

Step 5

Align the clutch disc against the friction surface of the pressure plate and secure the clutch disc by tightening the clamping nut against the diaphragm spring.

When centering via pilot bearing, the appropriate centering sleeve must additionally be installed onto the threaded bolt at the end of the centering tool.
