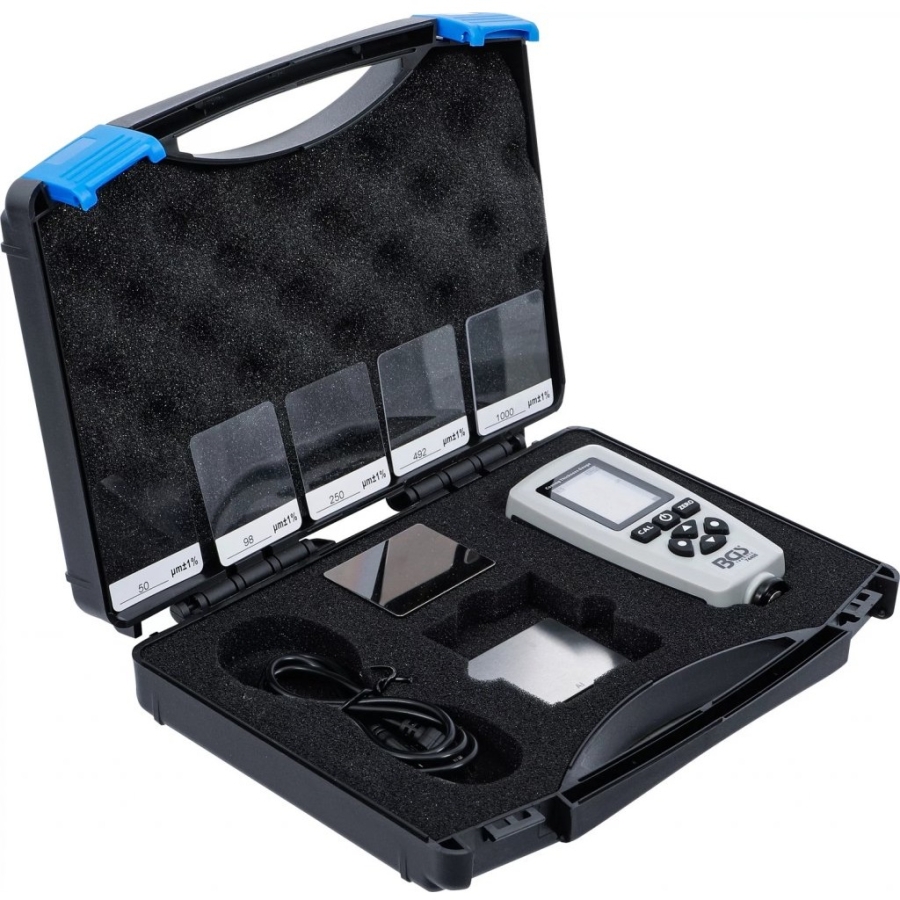

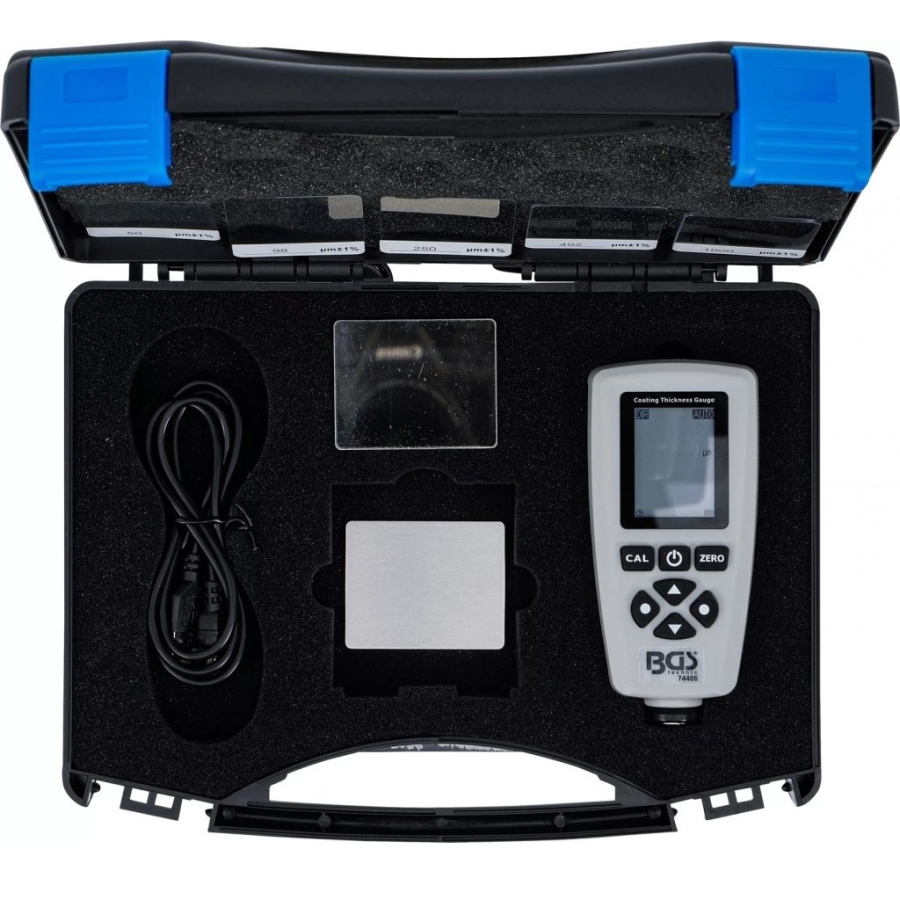

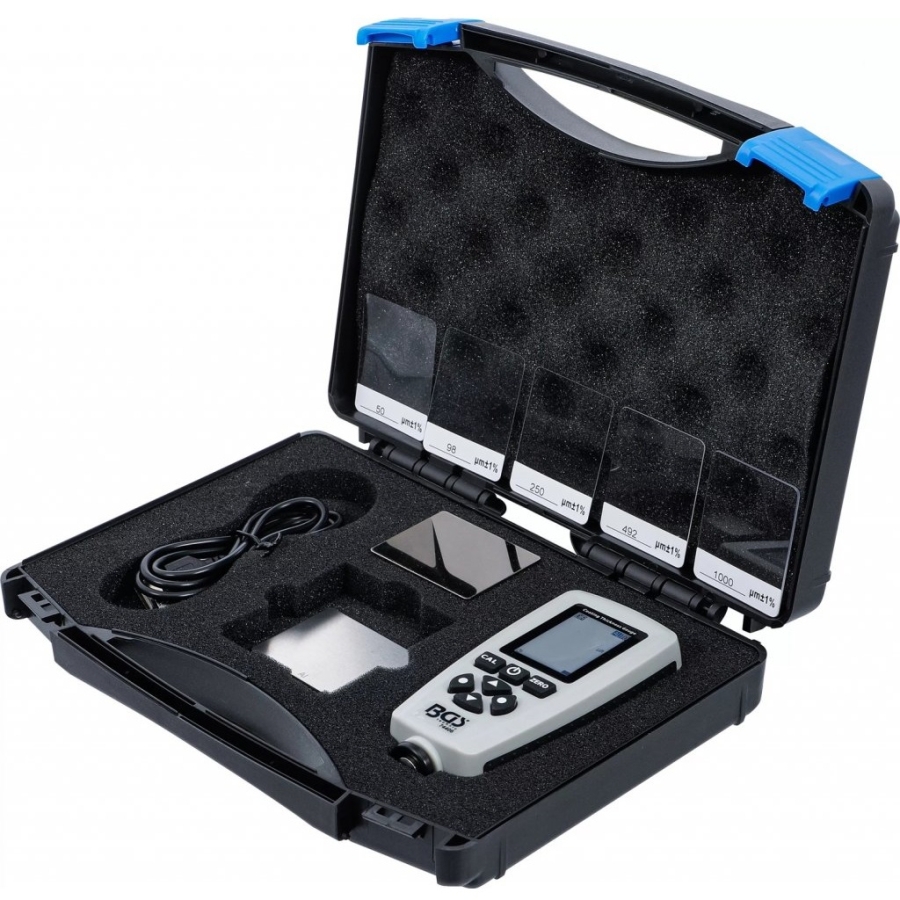

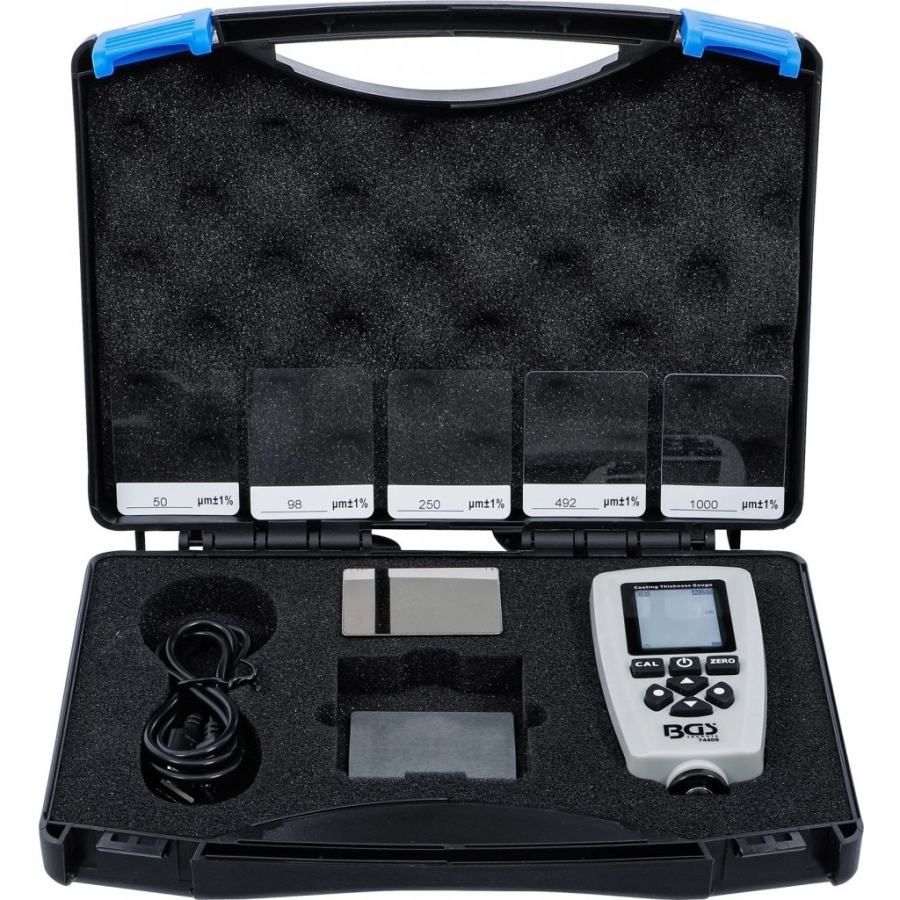

Coating Thickness Gauge for Ferrous and Non-Ferrous Metals

This compact coating thickness gauge is designed for precise non-destructive measurement of coating thickness on ferrous and non-ferrous materials. The device is suitable for measuring non-magnetic coatings such as paint, enamel and chrome on steel and iron surfaces, as well as insulating coatings including paint and anodized layers on non-ferrous metals.

Suitable coating types include:

• Paint
• Lacquer
• Enamel
• Chrome
• Anodized coatings
• Rubber coatings
• Insulating layers

Dual Measurement Technology

The device integrates both magnetic induction (F-probe) and eddy current (N-probe) measuring technologies.

F-Probe (Magnetic induction):

Suitable for:

• Aluminium coatings
• Chrome coatings
• Copper coatings
• Zinc coatings
• Paint
• Lacquer
• Enamel
• Rubber coatings

Applied on:

• Iron
• Steel
• Alloy magnetic steel
• Hardened magnetic steel

Not suitable for:

• Austenitic steel

N-Probe (Eddy current):

Suitable for insulating coatings on:

• Aluminium
• Copper
• Zinc die-cast materials
• Brass
• Austenitic stainless steel
• Ceramic surfaces
• Painted surfaces
• Anodized surfaces

Multiple Measurement and Memory Functions

The gauge provides several measuring and data management functions for workshop and inspection applications.

Measurement modes:

• Single measurement mode
• Continuous measurement mode

Group modes:

• DIR (Direct mode)
  • Values deleted after power-off
• GEN (General mode)
  • Values remain stored after power-off

Memory capacity:

• 80 readings per group

Calibration functions:

• Zero-point calibration
• Multi-point calibration
• Up to 4 calibration points per group

Data functions:

• View stored readings
• Delete individual readings
• Delete group data

Statistical functions:

• Average value
• Minimum value
• Maximum value
• Deviation value

Integrated Alarm and Data Functions

The device includes advanced monitoring and data transfer capabilities.

Features:

• Adjustable upper limit alarm
• Adjustable lower limit alarm
• USB interface for data transfer
• Low battery warning
• Error indication
• Automatic power-off function

Technical Specifications

Display:

• LCD display: 128 × 128 dot matrix

Accuracy:

Magnetic induction:

• ± (2.5% + 1 μm)

Eddy current:

• ± (2% + 0.039 mils)

Resolution:

• 0–99.9 μm: 0.1 μm
• 100–999 μm: 1 μm

• 1000 μm: 0.01 mm

Minimum substrate thickness:

Magnetic induction:

• 0.2 mm

Eddy current:

• 0.05 mm

Minimum measurement area:

• Ø20 mm

Maximum measurement speed:

• 2 readings per second

Power supply:

• 2 × AAA batteries (1.5V)

Operating humidity:

• 20–90%

Measurement units:

• μm
• mm
• mils

Dimensions:

• 110 × 53 × 24 mm
