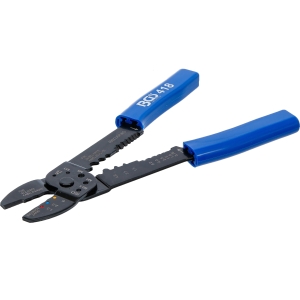

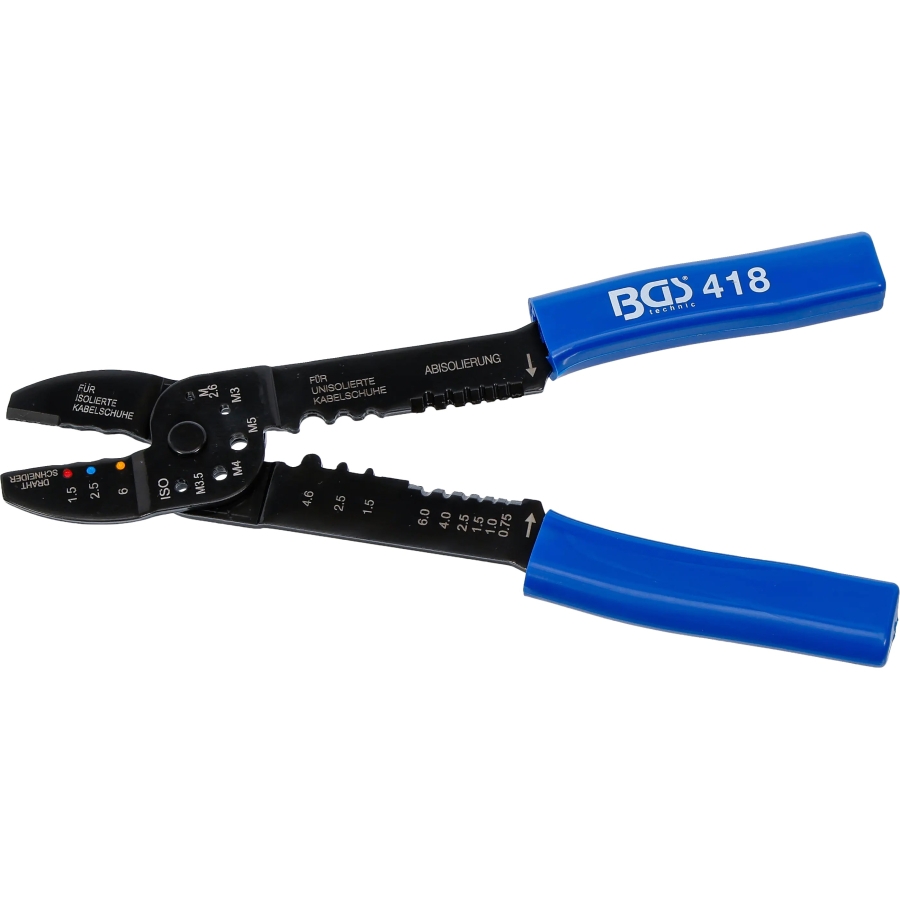

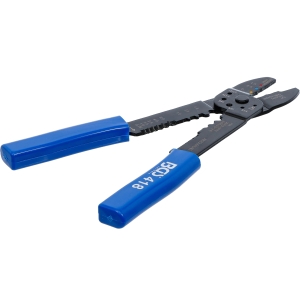

Combination Crimping Pliers, 235 mm

The combination pliers are suitable for crimping both insulated and non-insulated electrical connectors.

For non-insulated terminals:

• 1.5 mm²
• 2.5 mm²
• 4–6 mm²

For insulated terminals:

• 1.5 mm², red
• 2.5 mm², blue
• 6 mm², yellow

Wire Cutting and Stripping

The integrated wire cutter allows electrical wires to be cut directly with the tool.

Wire-stripping sizes:

• 0.75 mm²
• 1.0 mm²
• 1.5 mm²
• 2.5 mm²
• 4.0 mm²
• 6.0 mm²

Screw Cutter

The integrated screw cutter is suitable for the following metric screw sizes:

• M2.6
• M3
• M3.5
• M4
• M5

Soft-Grip Handles

The blue soft-grip handles provide a secure and comfortable grip during use.

Technical Specifications

• Crimping function: Insulated and non-insulated terminals
• Wire-cutting function: Yes
• Wire-stripping range: 0.75–6 mm²
• Screw-cutting sizes: M2.6 / M3 / M3.5 / M4 / M5
• Material thickness: 3 mm
• Handle colour: Blue
• Handle type: Soft grip
• Overall length: 235 mm
