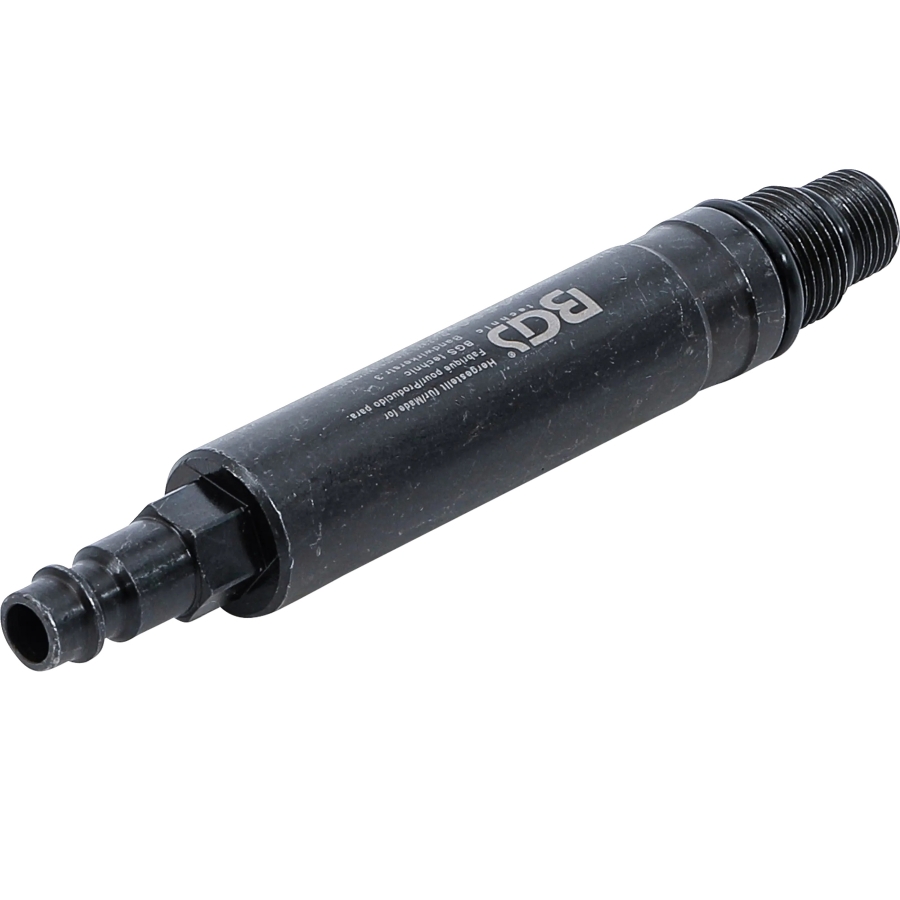

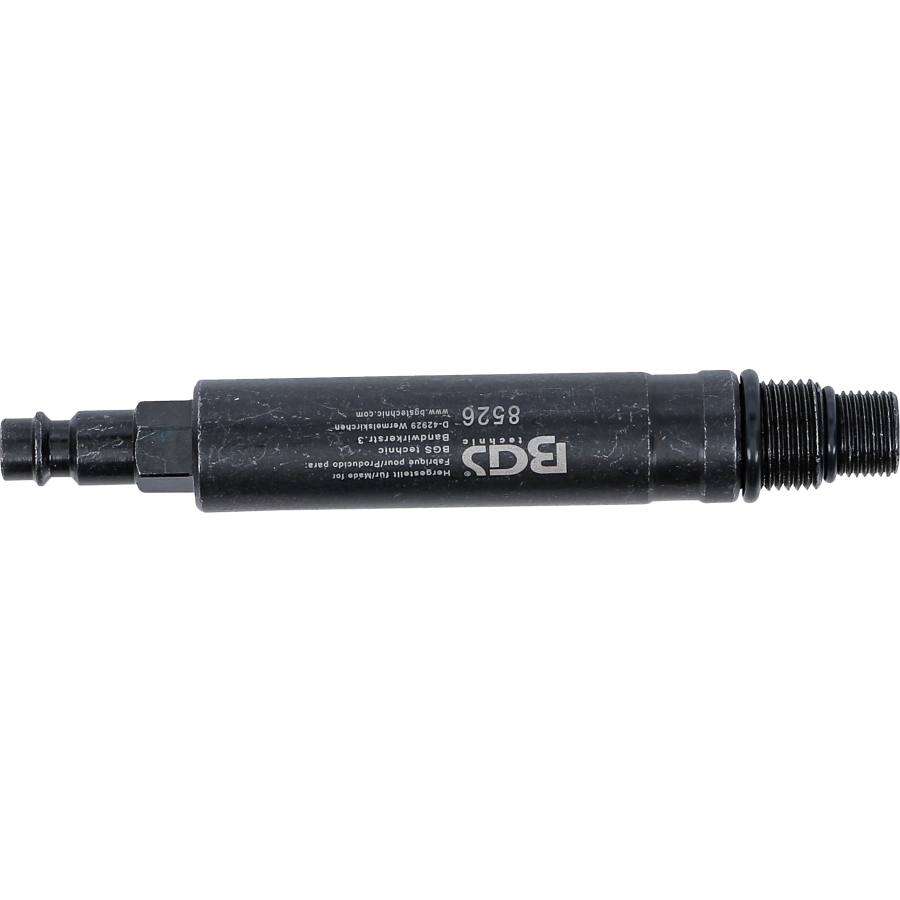

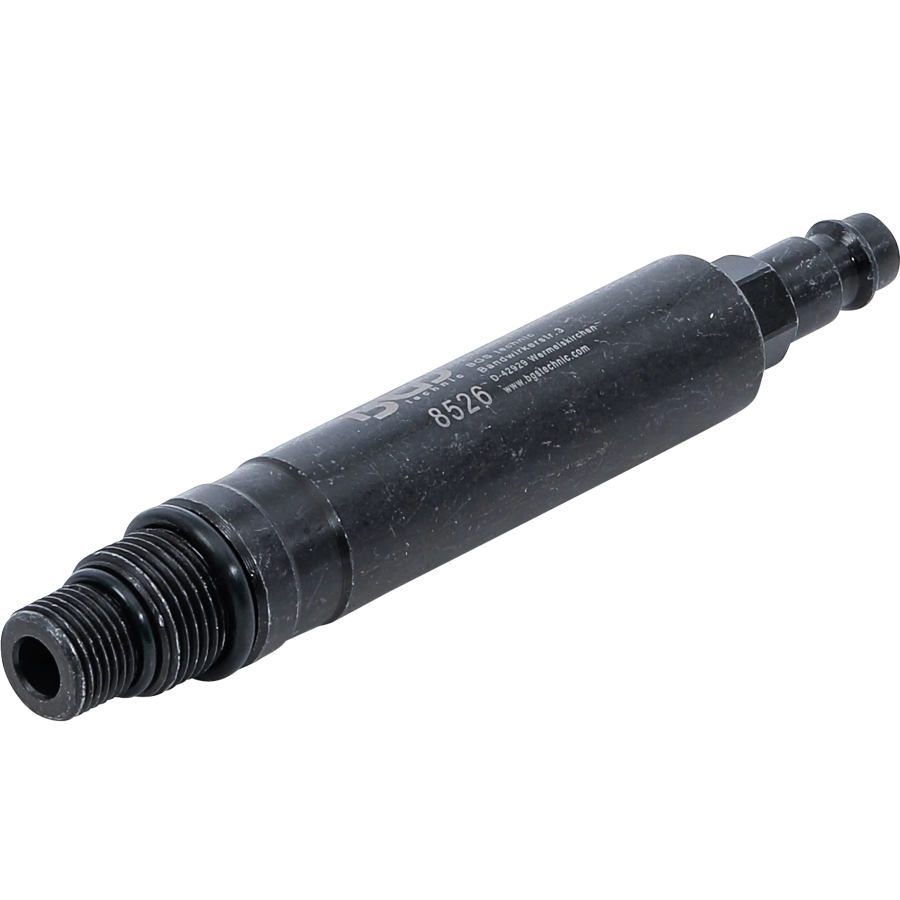

Compressed-Air Cylinder Adapter M14 and M18
-
Code:8526
-
Weight:0.254 Kgs
Overview:
✔ Supplies compressed air directly to the engine cylinder
✔ Supports valve spring removal without removing the cylinder head
✔ Suitable for acoustic leak testing of valves, piston rings and cylinder head gaskets
✔ Fits M14 x 1.25 and M18 x 1.5 spark plug threads
✔ Compatible with suitable valve spring removal tools
The adapter allows an engine cylinder to be pressurised with compressed air through the spark plug opening.
The air pressure holds the valves in their closed position, allowing the valve springs to be removed without dismantling the cylinder head.
Acoustic Leak Testing
The adapter can also be used for acoustic diagnosis of cylinder leakage.
Escaping air can help identify possible leakage at:
- Intake or exhaust valves
- Piston rings
- Cylinder head gasket
- Other sealing points in the combustion chamber
Thread Compatibility
Suitable for the following spark plug threads:
- M14 x 1.25
- M18 x 1.5
Compatible Tools
Can also be used together with Item nos. 1781, 1873, 1777 and 1762.
