Control Arm Lever Tool with Chain

Price: €195.00 381.39лв.

Code:

9414
Weight:

7.164 Kgs

Overview:
✔ Professional control arm lever tool for suspension service work
✔ Designed for safely lowering and holding control arms in position
✔ Suitable for wheel bearing, driveshaft and suspension repairs
✔ Eliminates slipping risks associated with pry bars
✔ Helps prevent damage to ball joints and CV boots
✔ Adjustable chain for universal vehicle applications
✔ Compact low-profile construction for restricted work areas
✔ Non-slip support surface for secure positioning

Send to friend

Rate this product

This professional control arm lever tool is designed for safely lowering and securing suspension control arms during repair and maintenance procedures.

The tool allows the control arm to be comfortably pressed downward and held in position while carrying out work such as wheel bearing replacement, driveshaft removal, suspension strut replacement and other suspension repairs.

Unlike conventional pry bars, this tool significantly reduces the risk of slipping and accidental injury during operation. It also helps prevent unnecessary stress and damage to ball joints and driveshaft CV boots.

The adjustable chain design allows universal use across a wide range of vehicle applications, while the compact low-profile construction makes the tool suitable for confined working areas.

The support surface features a non-slip contact area for improved stability during use.

Technical Specifications

Overall length including hooks: 1030–1300 mm
Clamping height: 65–265 mm
Chain length including hooks: approximately 660 mm
Maximum pulling force: 500 kg

Applications

Suitable for:

Wheel bearing replacement
Driveshaft removal and installation
Suspension strut replacement
Suspension repair work
Control arm positioning and support
Professional workshop applications

INSTALLATION
When the tool is in the released position, the tensioning device is positioned as shown in the illustration on the right.
By turning the tensioning screw clockwise, the chain is tightened and the control arm is pulled downward.

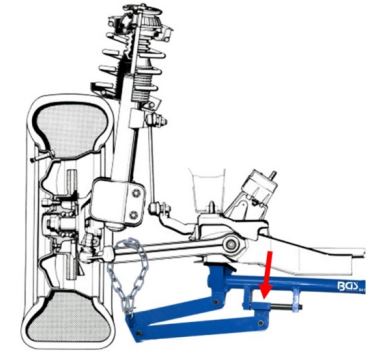

APPLICATION EXAMPLE 1
Separating the ball joint pin from the steering knuckle.
Remove the clamping screw of the ball joint pin (steering knuckle).

Turn the tensioning screw of the control arm lever tool clockwise and pull the control arm downward.
The control arm can remain in this position during the repair work.

APPLICATION EXAMPLE 2
Separating the wheel bearing housing from the suspension strut.
Remove the clamping screw(s) of the suspension strut (steering knuckle).

Turn the tensioning screw of the control arm lever tool clockwise and pull the control arm downward.
The control arm can remain in this position during the repair work.
