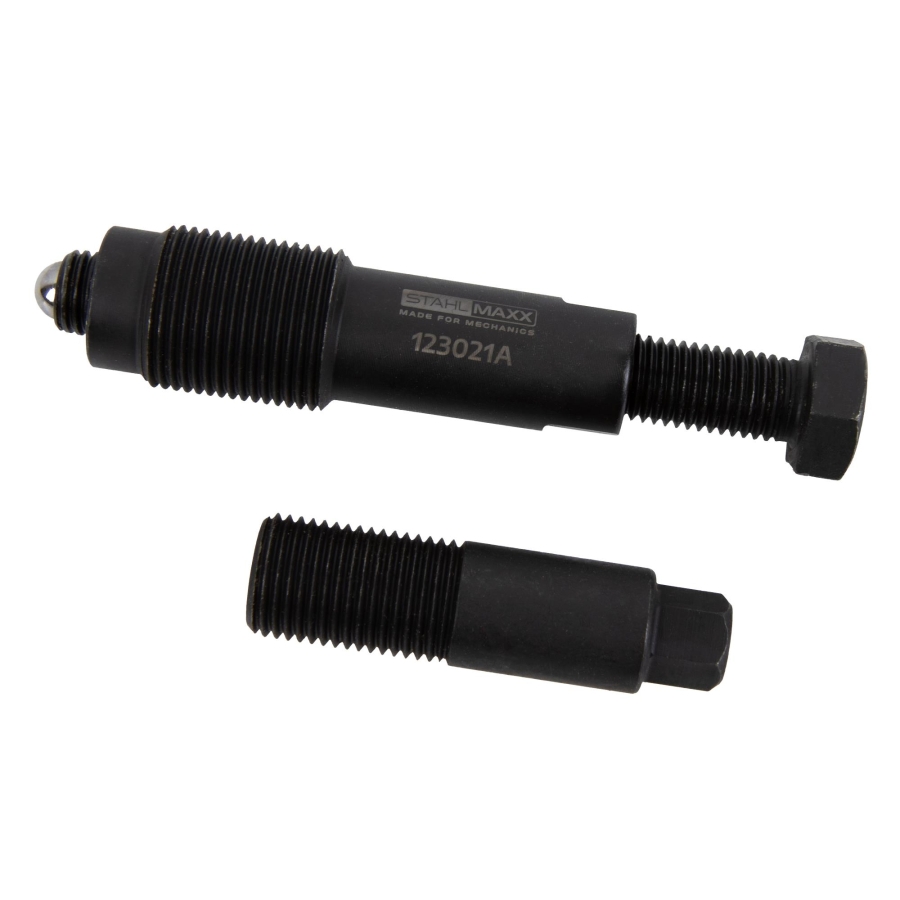

Crankshaft Pulley Puller with Internal Thread for Ford 2.0 EcoBlue TDCi – as 303-1657

This specialized puller is designed for removing crankshaft pulleys with internal thread on Ford 2.0L EcoBlue TDCi engines (from 2019 onwards). It ensures controlled and damage-free removal of the vibration damper, even in cases of corrosion or tight seating.

Application

Required during:

• Timing belt service
• Removal of timing cover
• Engine repair and maintenance
• Vibration damper removal

Design & Operation

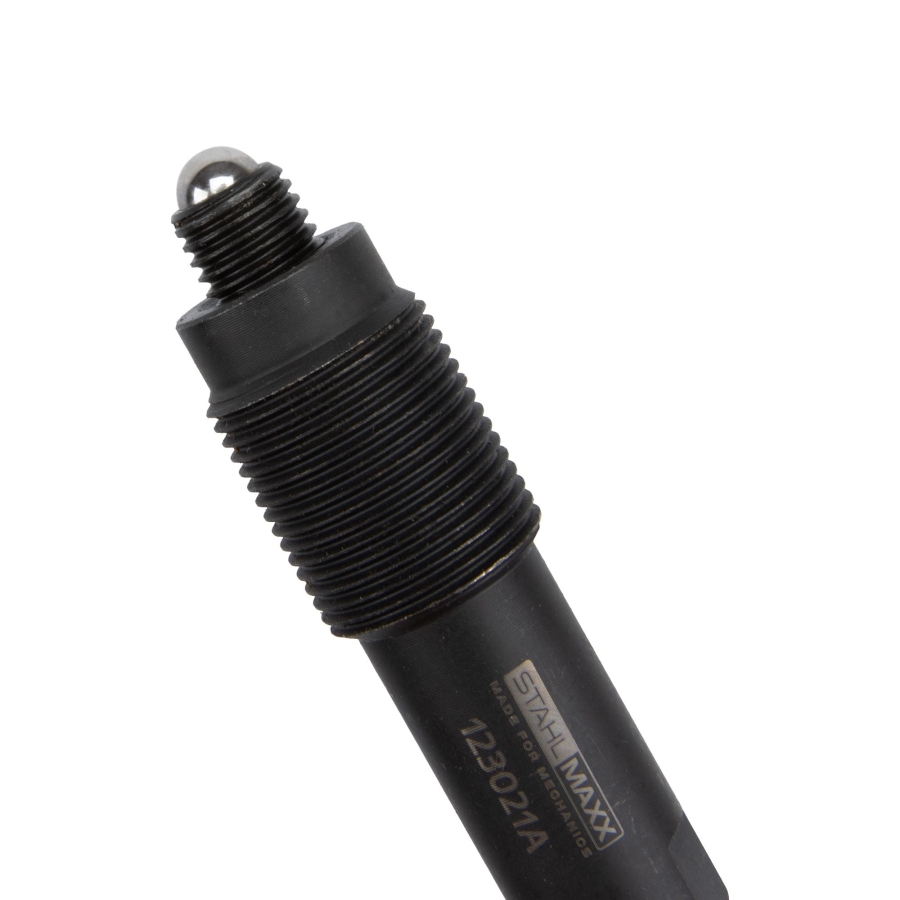

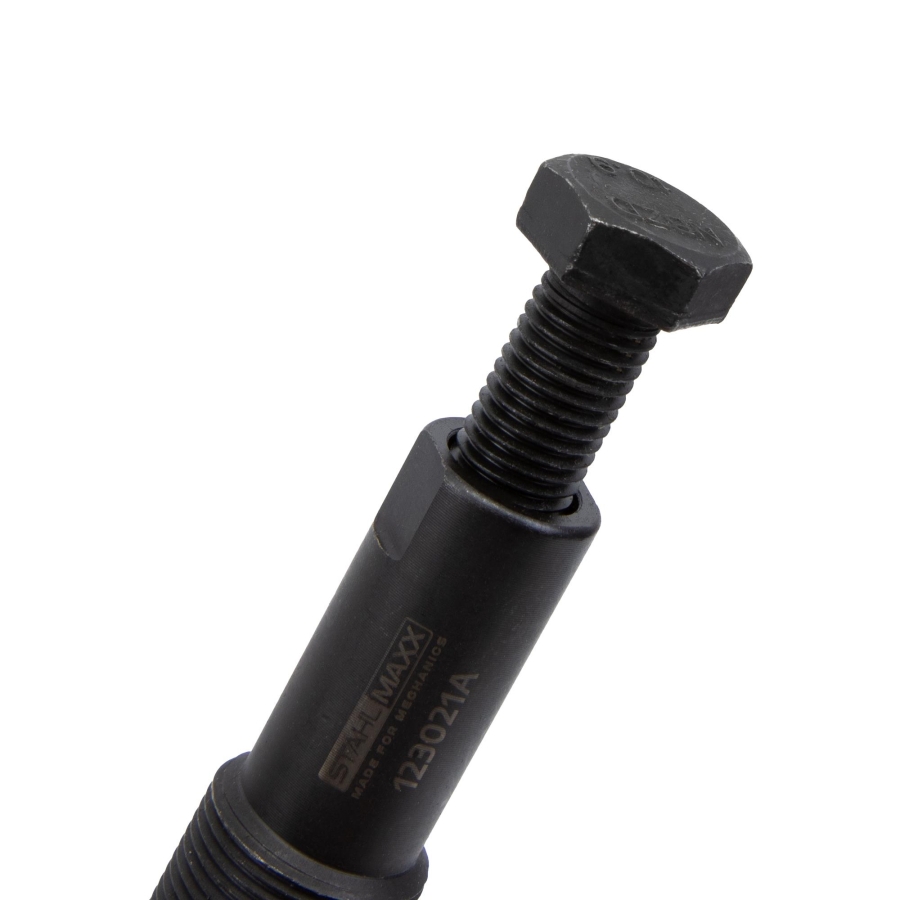

The puller engages directly into the internal thread of the crankshaft pulley. By applying controlled force via the central spindle, the pulley can be removed safely without damaging surrounding components.

Corrosion and moisture can make removal difficult using standard workshop tools—this tool ensures proper extraction according to manufacturer procedures.

Important Notes

• For engines up to model year 2019 with threaded holes, use item.no. 121264 (as Ford 204-158-01)
• Due to high tightening torque, it is mandatory to use flywheel locking tool item.no. 118885 (as Ford 303-1643)
• Use appropriate 3/4" drive tools for correct torque application

Compatibility – Engine Codes

Suitable for (from model year 2019):
BCCA, BCCB, BCCC, BCDA, YLCA, YLCB, YLCC, YLDA, YLDC, YLF6, YLFA, YLFB, YLFS, YLR6, YMCA, YMCB, YMCC, YMDA, YMF6, YMFA, YMFB, YMFS, YMR6, YNCA, YNF6, YNFA, YNFB, YNFS, YNR6, YN2X, T20DD0J

Torque Reference (Example)

Reference: Ford Tourneo Custom 2020, engine code YMFA

Crankshaft pulley tightening sequence:

• Stage 1: 10 Nm
• Stage 2: Loosen 60°
• Stage 3: 20 Nm
• Stage 4: 70 Nm
• Stage 5: 150 Nm
• Stage 6: Loosen 90°
• Stage 7: 100 Nm
• Stage 8: 300 Nm
• Stage 9: 90°

(Always follow manufacturer specifications)

Compatibility – Pulley Reference

Suitable for pulleys as:

• Ford: 221295
• Ford: JB3Q-6B319-BA

Reference Numbers

Used as:

• Ford: 303-1657
• Ford: 3031657
• Ford: 303 1657

The OEM reference numbers are for identification purposes only. This tool is not an original OEM product.
