Universal Crankshaft Pulley and Harmonic Balancer Puller/Installer Set
-
Code:7711
-
Weight:2.748 Kgs
Overview:
✔ Universal set for removing and installing crankshaft pulleys
✔ Suitable for harmonic balancers and conventional pulleys
✔ Hardened, zinc-plated carbon-steel construction
✔ Includes nine metric and imperial thread adapters
✔ Includes 12 mounting bolts in four sizes
✔ To be used as Toyota and Ford special tools
This universal puller and installer set is designed for removing and installing crankshaft pulleys and harmonic balancers.
The set includes a puller plate, a centring bolt, 12 mounting bolts and nine adapters for various metric and imperial thread sizes. The components are manufactured from hardened, zinc-plated carbon steel for high strength and corrosion resistance.

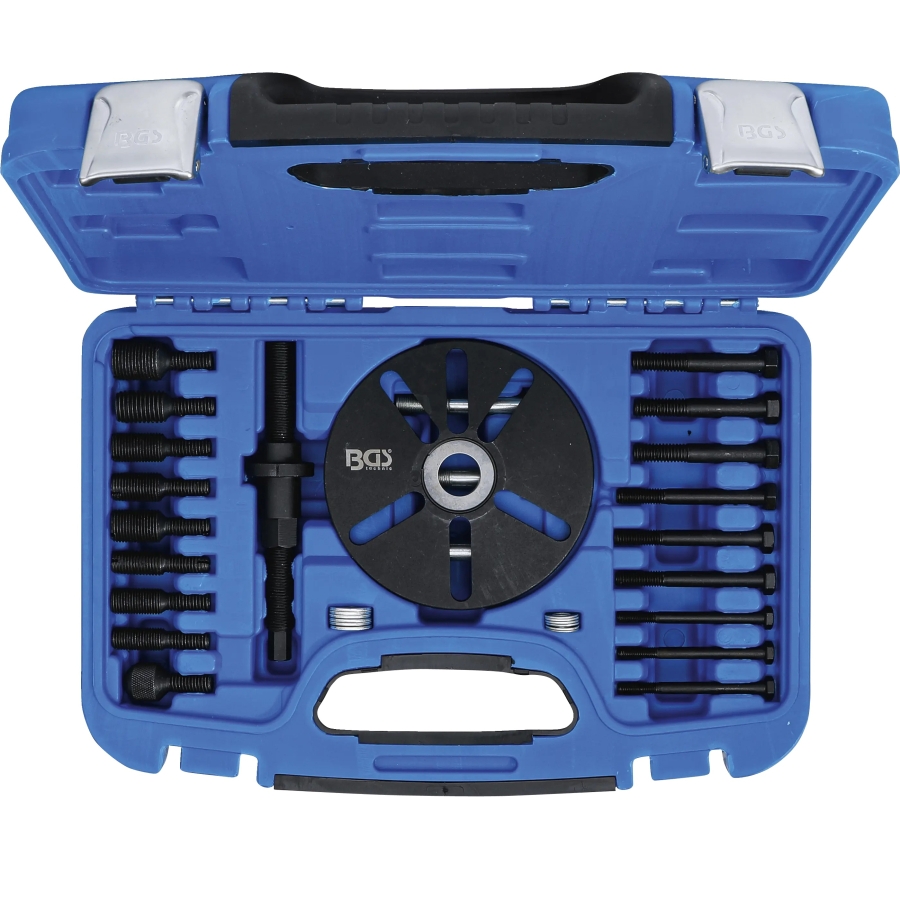

Scope of Delivery
- 1 × Puller plate with 20 mm mounting bore
- 1 × 10 mm centring bolt
- 12 × Mounting bolts, three of each size:
- 3/8" NC16 × 57 mm
- 3/8" NC24 × 57 mm
- M6 × 1.0 × 60 mm
- M8 × 1.25 × 60 mm
- 9 × Thread adapters:
- M12 × 1.5 – 3/8" NC16
- M14 × 1.5 – 3/8" NC16
- M16 × 2.0 – 3/8" NC16
- 1/2" NC20 – 3/8" NC16
- 9/16" NC18 – 3/8" NC16
- 7/16" NC20 – 3/8" NC16
- 3/4" NC16 – 3/8" NC16
- 5/8" NC18 – 3/8" NC16
- 3/8" NC16 – 3/8" NC16
To Be Used As
Toyota: as 09950-50010
Ford: as 303-511, 21-215, 13-019, 211-014, 303-510 and 21-214
The original numbers are provided for identification purposes only. This is not an original tool.
