Crankshaft / Vibration Damper Holding Tool for VAG 2.9L 3.0L 4.0L TFSI, as T40330
-
Code:118751
-
Weight:2.880 Kgs
Overview:
✔ Professional counter-holding tool for crankshaft and vibration damper
✔ Designed for VAG EA825, EA837 and EA839 engine generations
✔ Covers 2.9L, 3.0L and 4.0L TFSI engines
✔ Prevents rotation during high-torque operations
✔ Used as OEM references T40330/1 to T40330/7
✔ Complete set with multiple adapters and mounting components
This special tool is designed for counter-holding the crankshaft and vibration damper during service operations on VAG TFSI engines. It ensures safe and controlled work when loosening or tightening high-torque fasteners.
Important Note
To prevent damage, the crankshaft should not be loosened or tightened using an impact wrench.
Ensure that the friction washer (diamond washer) is correctly installed between the vibration damper and the crankshaft flange. Failure to install this washer may result in severe engine damage.
Compatibility
Suitable for VAG engine generations:
EA825, EA837, EA839
Engine types:
2.9L, 3.0L, 4.0L TFSI
Vehicle & Engine Compatibility
Audi:
RS4 B9, RS5 F5, RS6, A6 C8, A7 C8, A8 D5, Q7, Q8, SQ5 FY
2.9L TFSI Biturbo: DCAB, DECA
3.0L TFSI Turbo: CWGD, CZSE, DLZB, DCBE, DCBD, EALD
4.0L TFSI Turbo: CWWB, DCUE, DHUB, DJPB, DWRB
VW:
Touareg III
2.9L TFSI Biturbo: DCAB, DECA, DRGC, MDC.AB, MDG.PA, MCS.ZA
3.0L TFSI Turbo: CWGD, DLZB, DCBE, MDC.BE, MCX.TA
Porsche / VW:
Touareg
Macan (95B) GTS
Cayenne III
Panamera II
2.9L TFSI Biturbo: MDC.AB, MDG.PA, MCS.ZA
3.0L TFSI Turbo: MDC.BE, MCS.ZA, MCX.TA

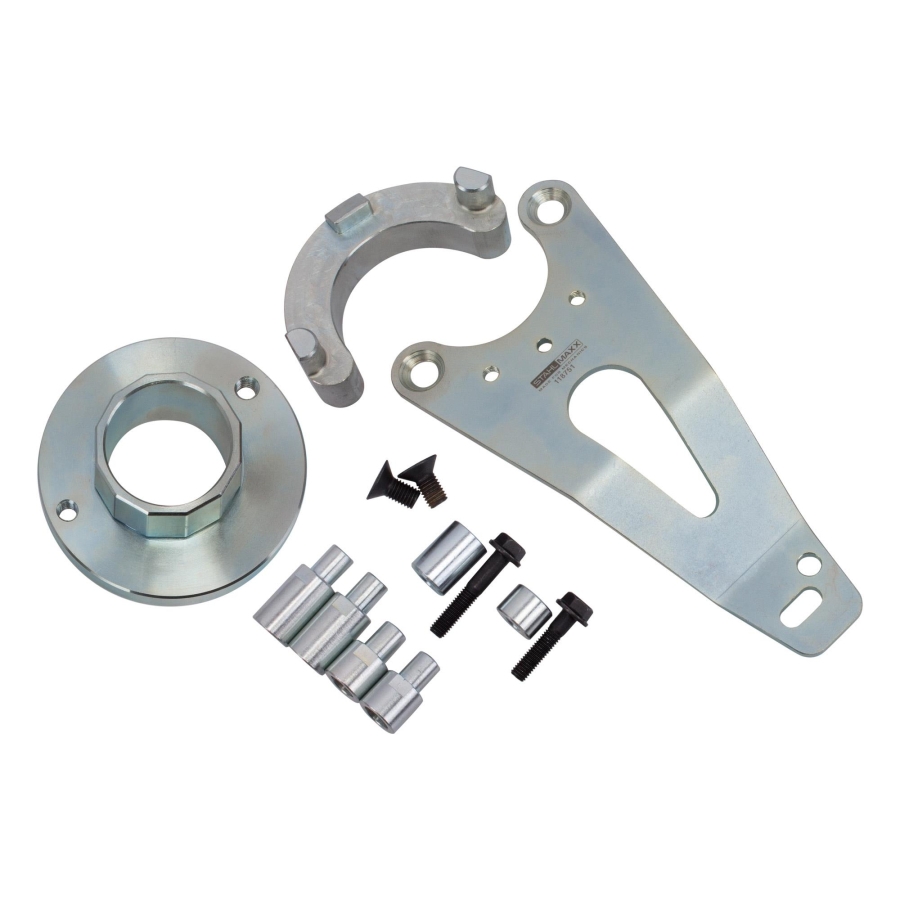

Scope of Delivery
✔ 1 × Base plate, as T40330/1
✔ 2 × Holding bolts (short), as T40330/2
✔ 1 × Spacer with screw (short), as T40330/3

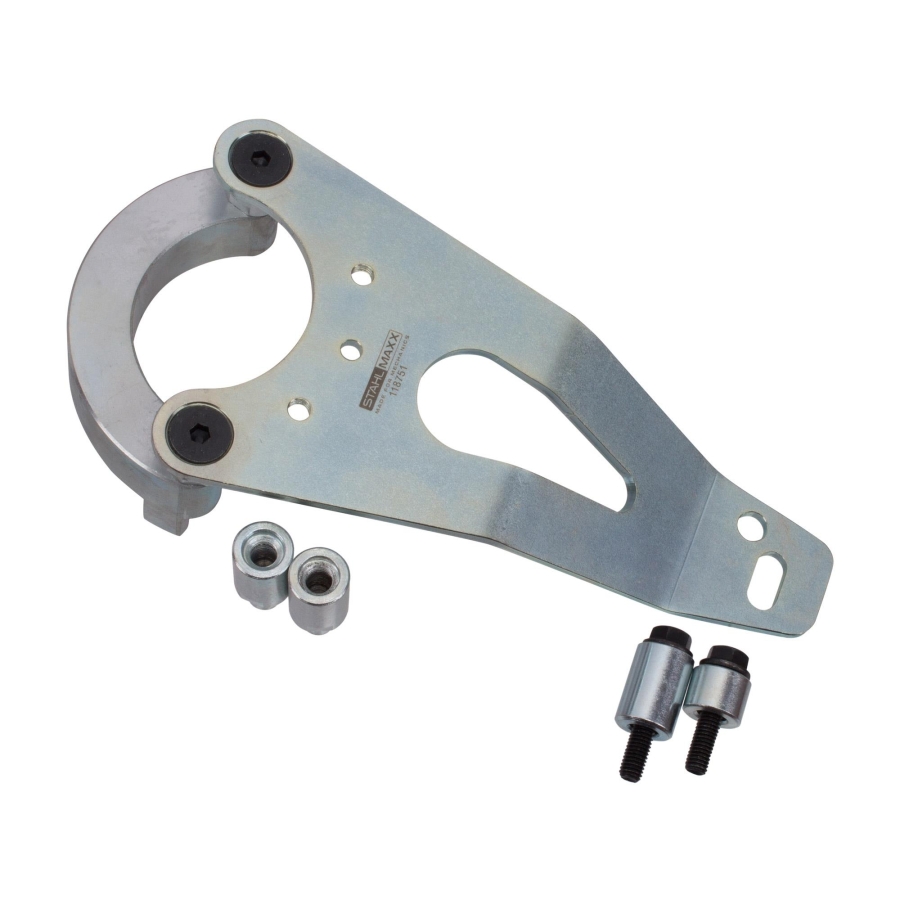

✔ 1 × Retaining ring for 3-bolt mounting, as T40330/4

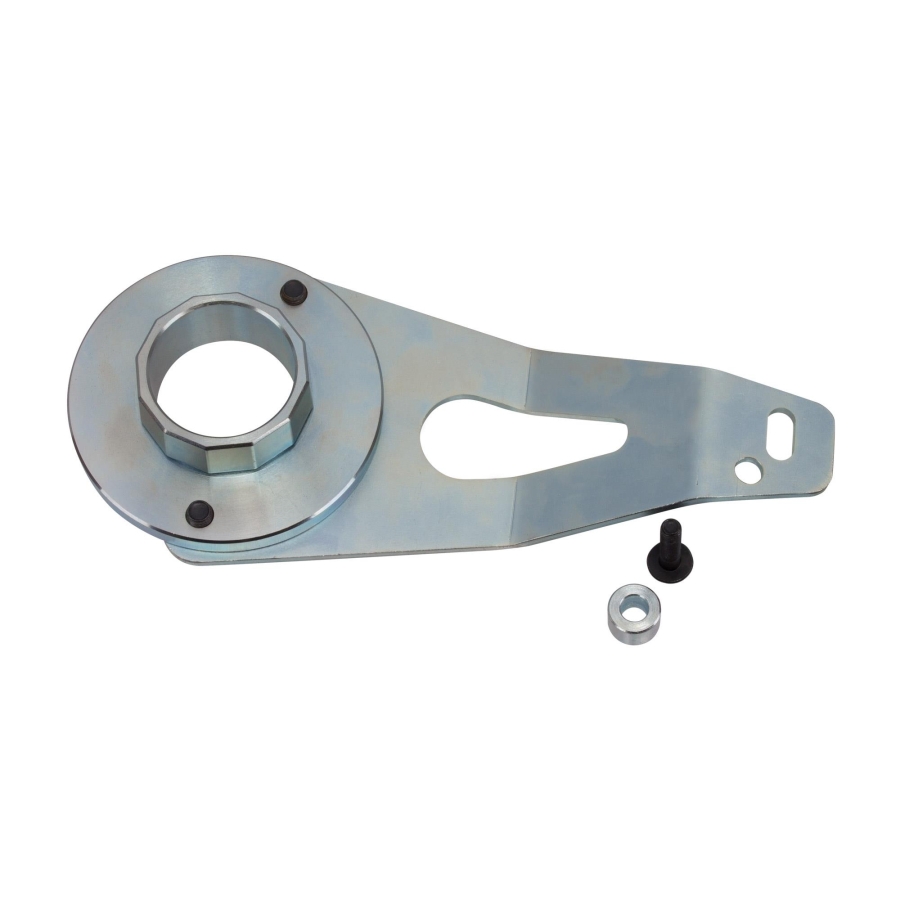

✔ 1 × Internal 12-point counter-holding plate, as T40330/5
✔ 2 × Holding bolts (long), as T40330/6
✔ 1 × Spacer with screw (long), as T40330/7
✔ 2 × Hex socket flat head screws for mounting
OEM Reference
Used as OEM references:
T40330/1
T40330/2
T40330/3
T40330/4
T40330/5
T40330/6
T40330/7
OEM numbers are provided for reference purposes only. This tool is not an original manufacturer part.
AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) S4 quattro (354 HP, 260 kW)
AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) RS4 quattro (450 HP, 331 kW)
AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) S4 quattro (354 HP, 260 kW)
AUDI A5 (F53, F5P) (06.2016 - 02.2020) RS5 quattro (450 HP, 331 kW)
AUDI A5 (F53, F5P) (06.2016 - 02.2020) S5 quattro (354 HP, 260 kW)
AUDI A5 Cabriolet (F57, F5E) (11.2016 - 12.2019) S5 quattro (354 HP, 260 kW)
AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) RS5 quattro (450 HP, 331 kW)
AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) S5 quattro (354 HP, 260 kW)
AUDI A6 C8 Avant (4A5) (05.2018 - ) RS6 Mild Hybrid quattro (600 HP, 441 kW)
AUDI A7 Sportback (4KA) (10.2017 - ) RS7 Mild Hybrid quattro (600 HP, 441 kW)
AUDI A8 (4N2, 4N8) (06.2017 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)
AUDI A8 (4N2, 4N8) (06.2017 - ) 60 TFSI e quattro (340 HP, 250 kW)
AUDI A8 (4N2, 4N8) (06.2017 - ) 60 TFSI e quattro (449 HP, 330 kW)
AUDI A8 (4N2, 4N8) (06.2017 - ) S8 Mild Hybrid quattro (571 HP, 420 kW)
AUDI Q5 (FYB, FYG) (06.2016 - 11.2020) SQ5 TFSI quattro (354 HP, 260 kW)
AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)
AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 55 TFSI quattro (340 HP, 250 kW)
AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 60 TFSI e quattro (340 HP, 250 kW)
AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) 60 TFSI e quattro (455 HP, 335 kW)
AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) SQ7 Mild Hybrid quattro (507 HP, 373 kW)
AUDI Q7 (4MB, 4MG) (01.2015 - 12.2019) SQ7 quattro (507 HP, 373 kW)
AUDI Q8 (4MN) (02.2018 - ) 55 TFSI Mild Hybrid quattro (340 HP, 250 kW)
AUDI Q8 (4MN) (02.2018 - ) 55 TFSI e quattro (340 HP, 250 kW)
AUDI Q8 (4MN) (02.2018 - ) 60 TFSI e quattro (340 HP, 250 kW)
AUDI Q8 (4MN) (02.2018 - ) RS Mild Hybrid quattro (600 HP, 441 kW)
AUDI Q8 (4MN) (02.2018 - ) SQ8 Mild Hybrid quattro (507 HP, 373 kW)
AUDI Q8 (4MN) (02.2018 - ) SQ8 quattro (507 HP, 373 kW)
BENTLEY BENTAYGA (4V1) (10.2015 - ) 3.0 Hybrid (340 HP, 250 kW)
PORSCHE CAYENNE (9YA) (05.2017 - ) 2.9 S AWD (9YABB1) (440 HP, 324 kW)
PORSCHE CAYENNE (9YA) (05.2017 - ) 3.0 AWD (9YAAA1) (340 HP, 250 kW)
PORSCHE CAYENNE (9YA) (05.2017 - ) 3.0 E-Hybrid AWD (462 hp, 340 kW)
PORSCHE CAYENNE (9YA) (05.2017 - ) 3.0 E-Hybrid AWD (9YAAE1) (340 HP, 250 kW)
PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 2.9 S AWD (9YBBB1) (440 HP, 324 kW)
PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 AWD (9YBAA1) (340 HP, 250 kW)
PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 E-Hybrid AWD (340 HP, 250 kW)
PORSCHE CAYENNE Coupe (9YB) (01.2019 - ) 3.0 E-Hybrid AWD (461 HP, 339 kW)
PORSCHE MACAN (95B) (02.2014 - 12.2018) 3.0 S (354 HP, 260 kW)
PORSCHE PANAMERA (971) (05.2016 - ) 2.9 4 (97ABY1, 97BBY1) (330 HP, 243 kW)
PORSCHE PANAMERA (971) (05.2016 - ) 2.9 4 E-Hybrid (97ABE1, 97BBE1) (330 HP, 243 kW)
PORSCHE PANAMERA (971) (05.2016 - ) 2.9 4 E-Hybrid (97ABE1, 97BBE1) (462 HP, 340 kW)
PORSCHE PANAMERA (971) (05.2016 - ) 2.9 4S (97ADB1, 97BDB1) (440 HP, 324 kW)
PORSCHE PANAMERA (971) (05.2016 - ) 3.0 (97AAA1, 97BAA1) (330 HP, 243 kW)
PORSCHE PANAMERA (971) (05.2016 - ) 3.0 4 (97ABA1, 97BBA1) (330 HP, 243 kW)
PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 2.9 4 (97CBY1) (330 HP, 243 kW)
PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 2.9 4 E-Hybrid (97CBE1) (330 HP, 243 kW)
PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 2.9 4 E-Hybrid (97CBE1) (462 HP, 340 kW)
PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 2.9 4S (97CDB1) (440 HP, 324 kW)
PORSCHE PANAMERA Sport Turismo (971) (05.2017 - ) 3.0 4 (97CBA1) (330 HP, 243 kW)
VW TOUAREG (CR7) (11.2017 - ) 3.0 TSI 4motion (340 hp, 250 kW)
