Diesel Injection Pump Alignment Tool Set – Renault M9R Engines (3 pcs), as Mot.2219/3, 2219/4, 2219/5

This professional 3-piece special tool set is designed for precise alignment, positioning, and installation of the high-pressure diesel injection pump on Renault M9R engines.

It allows accurate determination and fixation of the pump’s top dead center (TDC) position, ensuring correct synchronization during service or replacement procedures.

Functions Included in the Set

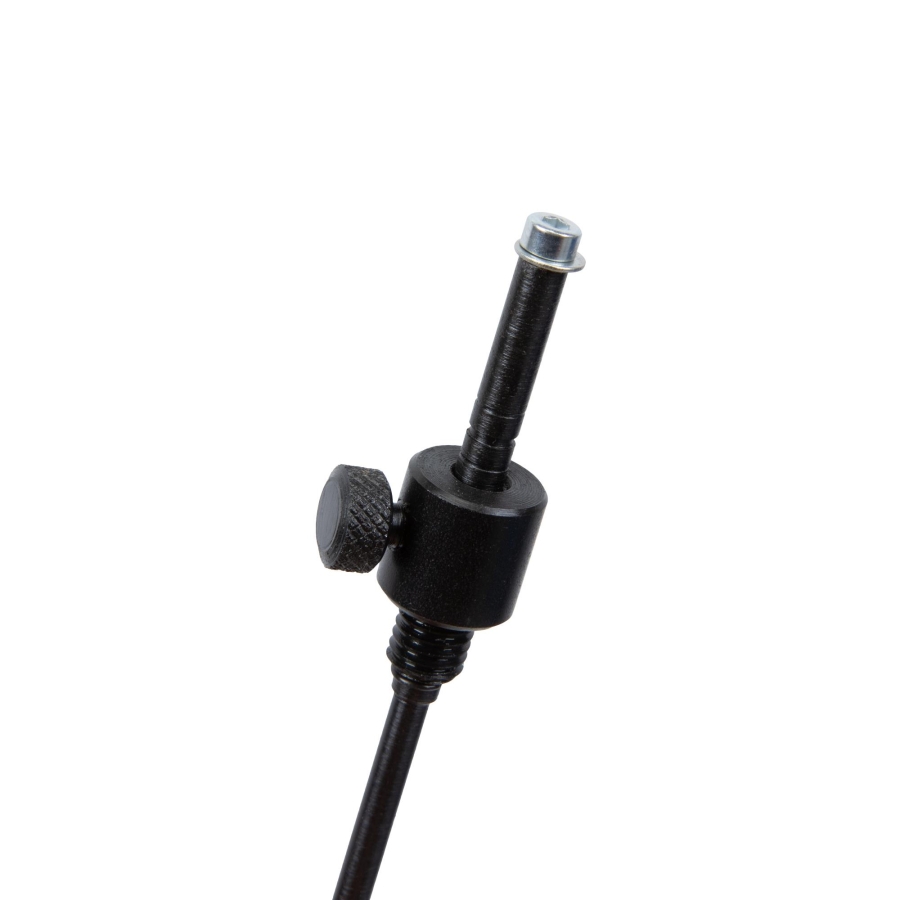

• Measuring pin
  • Used to determine and lock the TDC position of the high-pressure pump

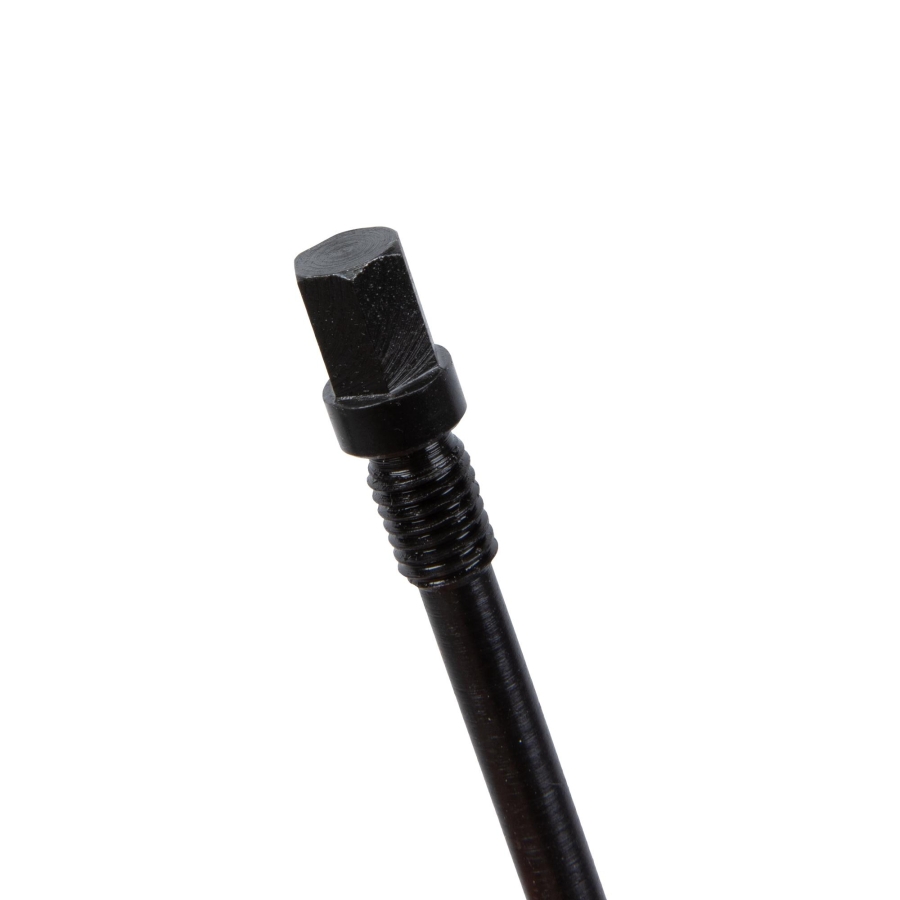

• Setting pin
  • Ensures correct positioning of the pump at TDC during adjustment

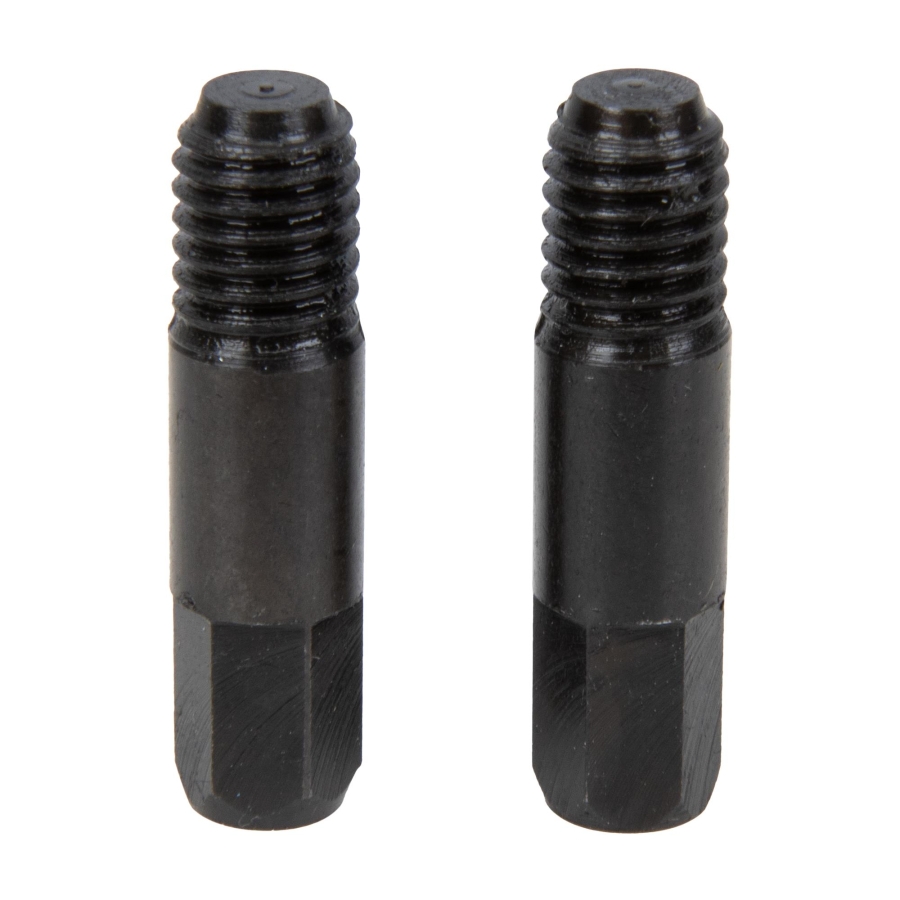

• Guide bolt
  • Enables centered alignment and safe mounting of the injection pump

Vehicle Compatibility

Suitable for the following models:

• Renault
  • Trafic III
  • Koleos*
• Nissan
  • NV300
  • Primastar (from 2020)
• Fiat
  • Talento (EcoJet 120–170 HP)

*Compatibility depends on engine version – verification required

Engine Compatibility

• M9R710
• M9R712
• M9R714

OEM Reference (for tool comparison)

• Renault / Nissan
  • as Mot.2219/3
  • as Mot.2219/4
  • as Mot.2219/5
• Fiat
  • as 2075500090/3
  • as 2075500090/4
  • as 2075500090/5

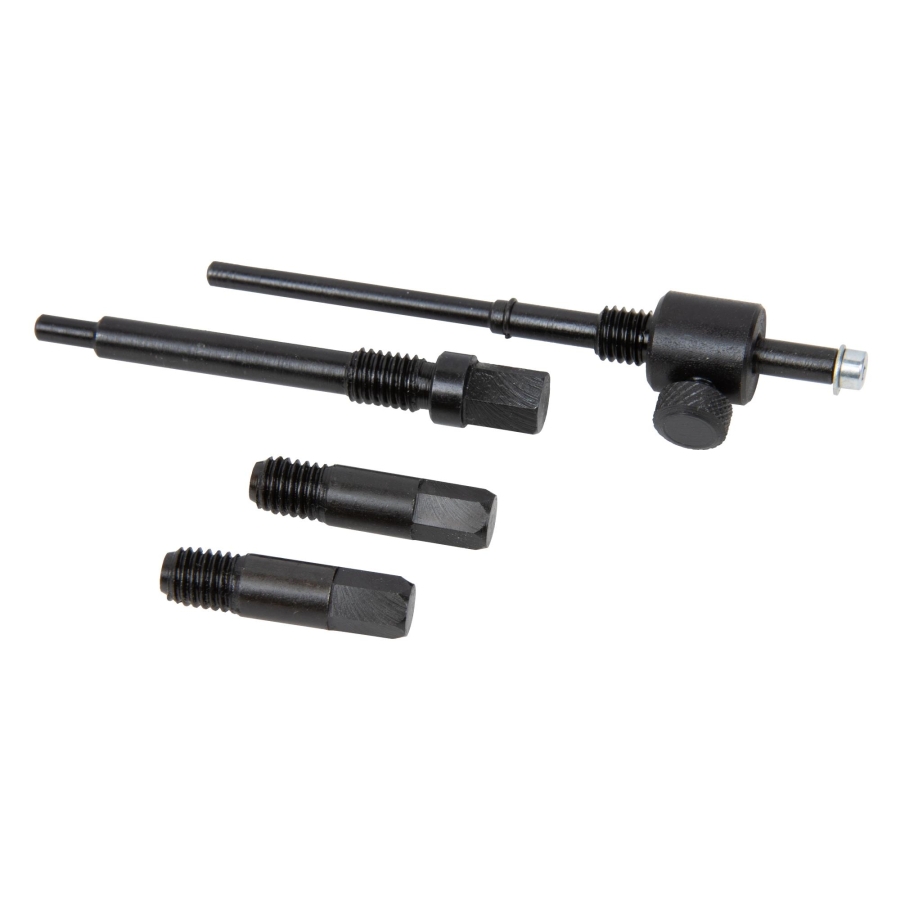

Scope of Delivery

• 1 × Measuring pin for TDC high-pressure pump
  • as Renault/Nissan Mot.2219/3
  • as Fiat 2075500090/3
• 1 × Setting pin for TDC positioning
  • as Renault Mot.2219/4
  • as Fiat 2075500090/4
• 1 × Guide bolt for injection pump installation
  • as Renault Mot.2219/5
  • as Fiat 2075500090/5

Important Technical Note

• For Mercedes engines (OM699), a different pump generation is used
• Pre-positioning procedures may vary depending on model and repair manual
• Always verify usage according to the manufacturer’s service documentation

Recommended Additional Tool (not included)

• Timing chain tool set – item.no. 124961
  • For Renault / Fiat / Nissan 2.0 dCi M9R engines (from 2019)

OEM numbers are for reference only and do not imply original manufacturer supply.
