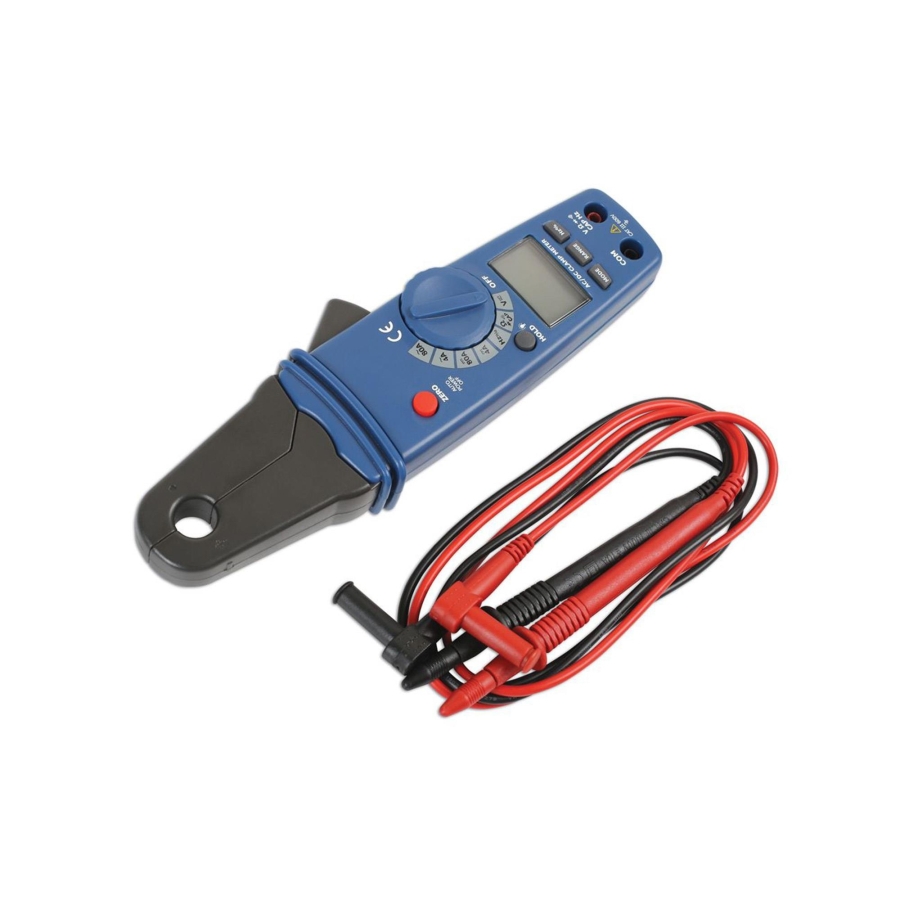

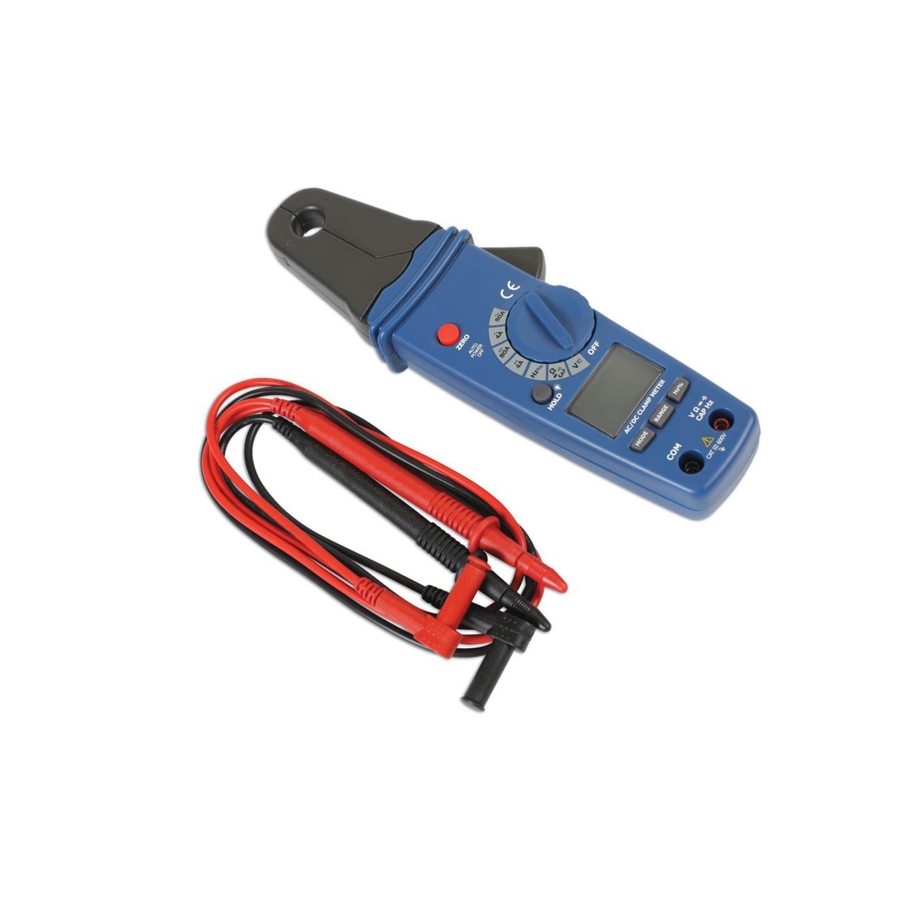

Digital Clamp Meter CAT III 600V
-
Code:117011
-
Weight:0.430 Kgs
Overview:
✔ Professional digital clamp meter with CAT III 600V safety rating
✔ Suitable for installation, maintenance and testing of electrical systems and equipment
✔ Ideal for 6V, 12V and 24V vehicle systems, including hybrid and electric vehicles
✔ Measures AC/DC current up to 80A and AC/DC voltage up to 600V
✔ Supports resistance, capacitance, frequency, duty cycle and diode testing
✔ LCD display with switchable backlight and HOLD function
✔ Automatic power-off function for improved battery life
✔ Includes measuring leads, batteries and carrying case

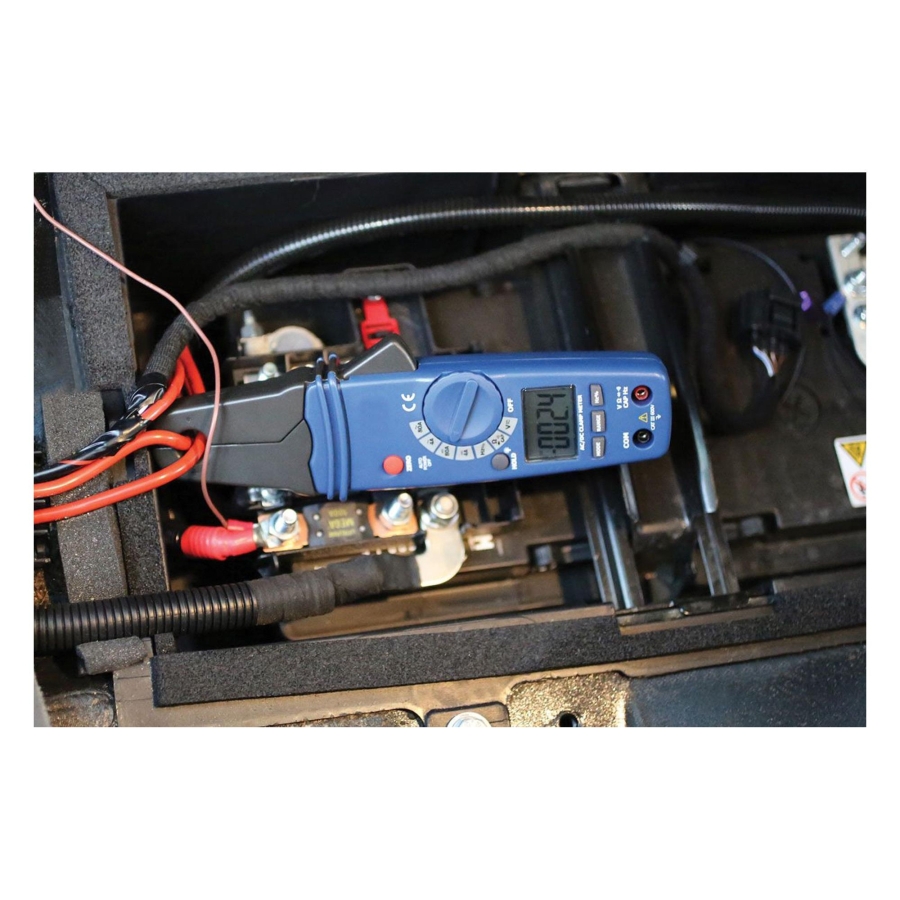

This digital clamp meter is designed for professional installation, maintenance and diagnostic applications on electrical systems and devices. The device is particularly suitable for automotive service applications, including standard vehicles as well as hybrid and electric vehicles.
Suitable vehicle systems:
- 6V systems
- 12V systems
- 24V systems
- Hybrid vehicles
- Electric vehicles
The clamp design allows current measurement without disconnecting wiring or interrupting electrical circuits.
Comprehensive Measurement Functions
The device combines multiple measurement functions in one compact unit.
Measurement functions:
- AC current measurement
- DC current measurement
- AC voltage measurement
- DC voltage measurement
- Resistance measurement
- Capacitance measurement
- Frequency measurement
- Duty cycle measurement
- Diode testing
- Continuity testing
Additional functions:
- HOLD function
- Automatic power-off
- Backlit display
Measurement Specifications
Current:
- AC/DC up to 80 A
- Resolution: 1 mA
Voltage:
- AC/DC up to 600 V
Resistance:
- Up to 40 MΩ
Capacitance:
- Up to 100 μF
Frequency:
- Up to 10.0 MHz
Additional tests:
- Duty cycle
- Diode testing
- Continuity testing
Maximum input for additional functions:
- Up to 250 V AC/DC
LCD Display and Clamp Design
The clamp meter features a 4-digit LCD display with optional backlighting for easier reading in low-light environments.
Display specifications:
- LCD display
- 4-digit display
- Switchable backlight
Clamp specifications:
- Jaw opening: 23 mm
The clamp system allows safe current measurements without direct contact with conductors.
Technical Specifications
Safety category:
- CAT III
- 600 V
Power supply:
- 2 × AAA batteries
Automatic shutdown:
- Approx. 25 minutes
Dimensions:
- 200 × 50 × 35 mm (L×W×H)
Weight:
- Approx. 200 g
Certifications:
- CE certified
- RoHS compliant

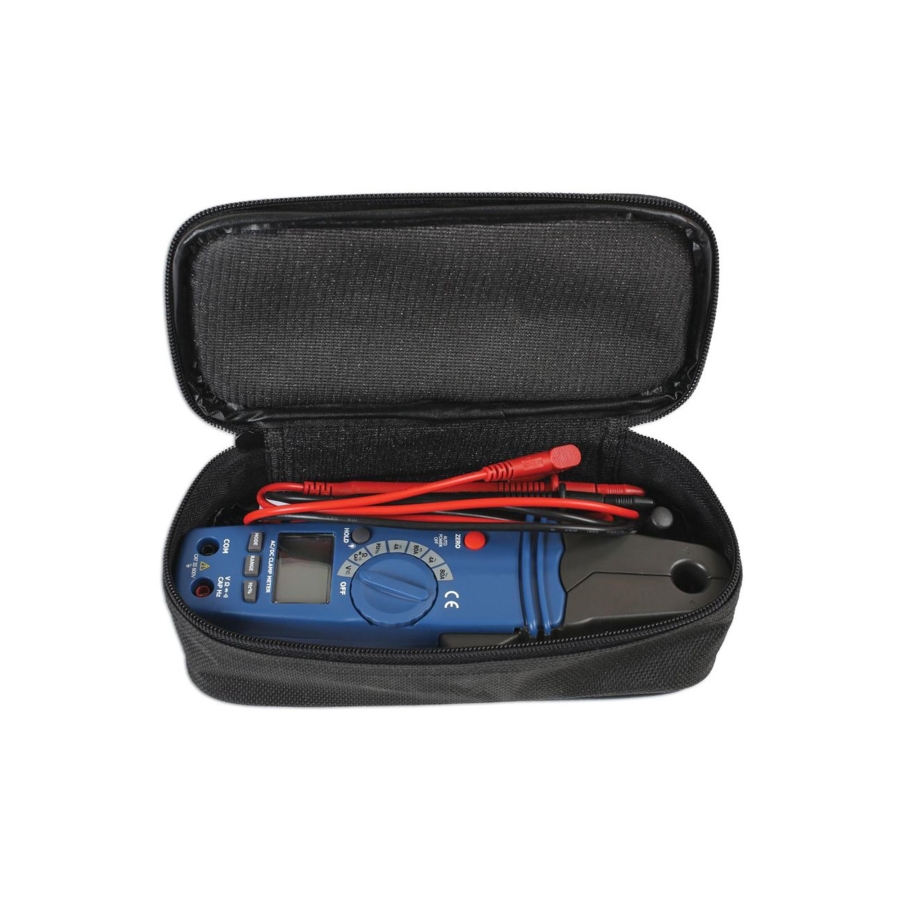

Included Components
Included:
- 1 × Clamp meter
- 1 × Measuring leads with probe tips (red/black)
- 1 × Carrying case
- 2 × Batteries
