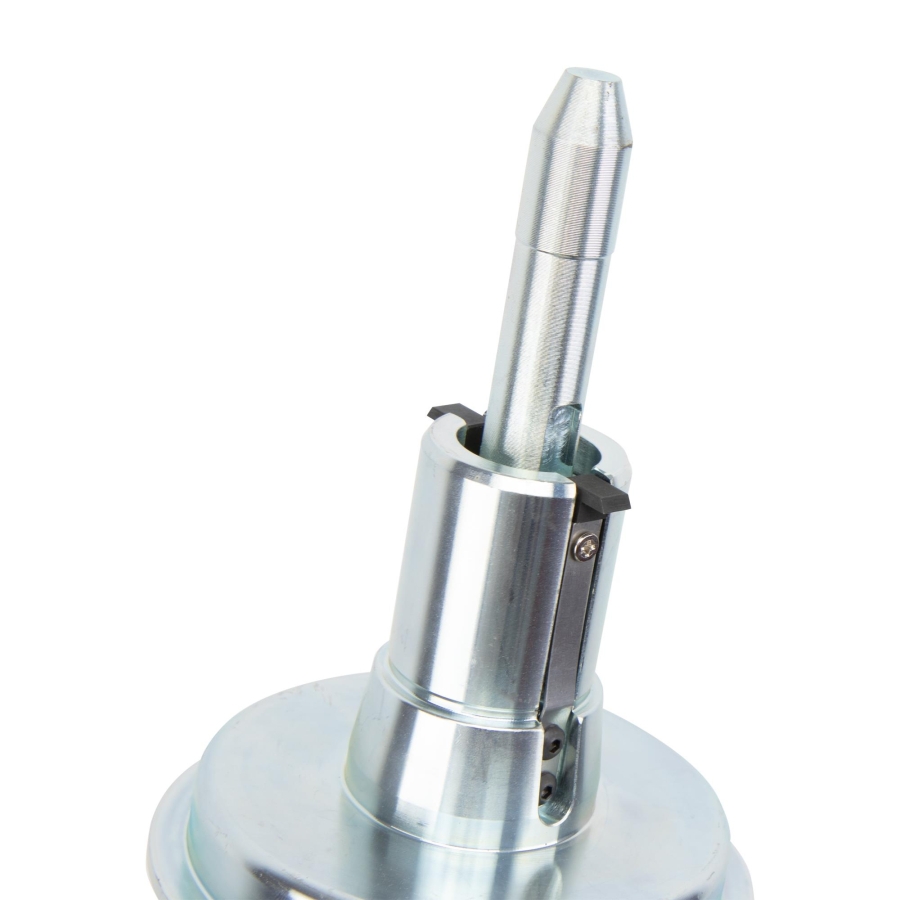

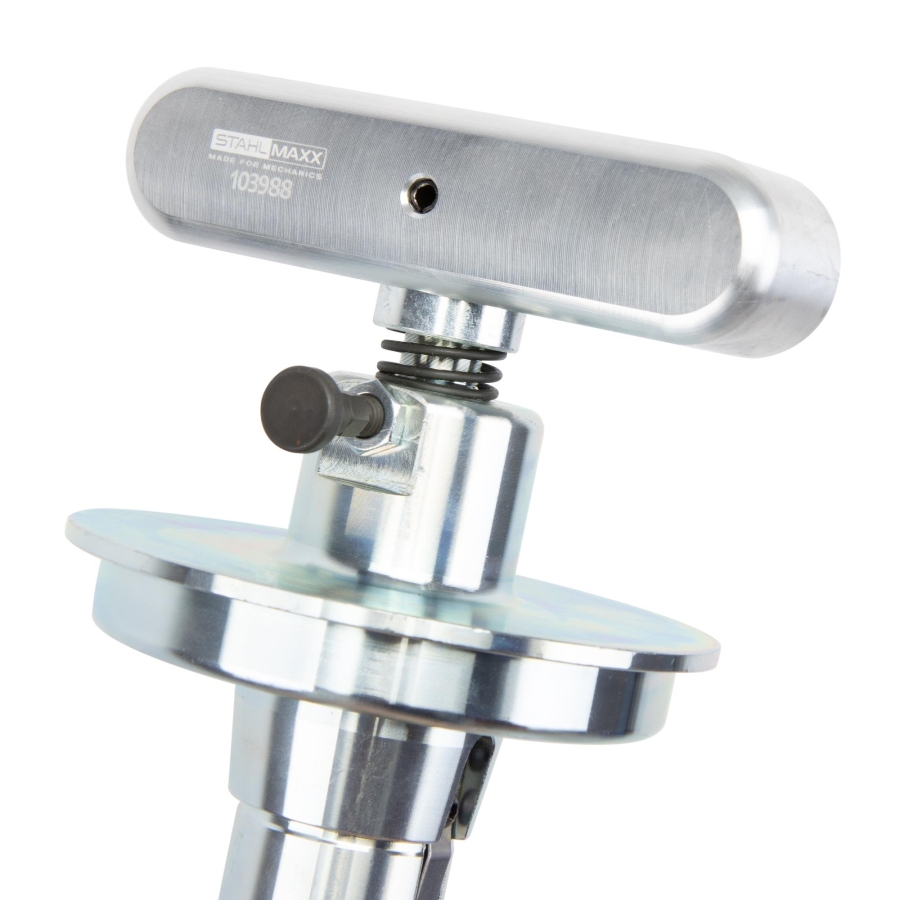

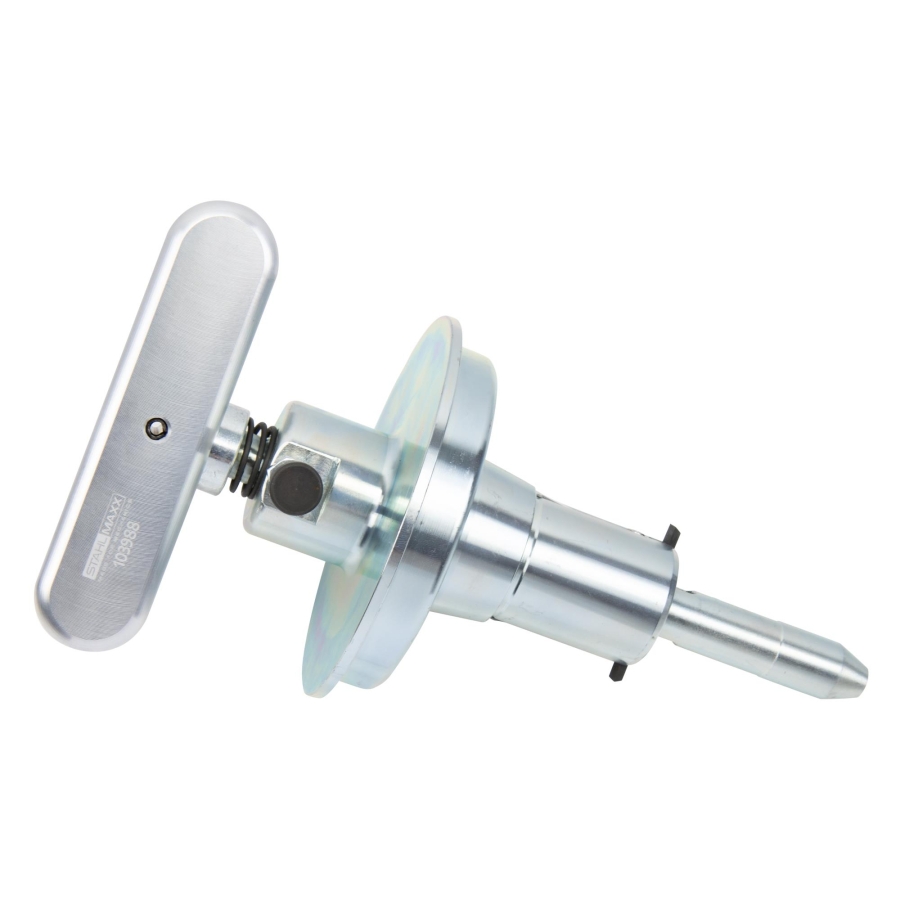

Dual Clutch Alignment Tool for BMW M5 / M6 GS7S47BG SMG, as 212300

Special service tool designed for centering and securing the twin-disc clutch assembly on BMW M5 and M6 vehicles equipped with GS7S47BG SMG transmission and S85 engine. The tool must be used during both removal and installation procedures of the clutch assembly.

Used as BMW 212300 / 83300495136 / 8330 0495136.

Compatible Vehicles

Suitable for:

• BMW E60 M5, 2006–2010
• BMW E63 M6, 2006–2010 with S85 engine

Compatible Transmission

Suitable for BMW transmission:

• GS7S47BG SMG

Application

The tool is inserted into the center of the clutch assembly and locked in position before loosening the clutch bolts. It secures and aligns the twin-disc clutch package during service procedures and helps prevent damage to the dual mass flywheel assembly.

Designed for:

• Dual clutch centering
• Clutch removal procedures
• Clutch installation procedures
• Flywheel and clutch alignment

Important Information

• A disassembled or separated clutch assembly must not be reinstalled
• Clutch release module, guide sleeve, ball stud, and spring clip must be replaced during service
• Existing factory alignment markings must be observed during reinstallation
• Incorrect positioning of the dual mass flywheel clutch package can result in severe damage
• New dual clutch assemblies may include a locking ring which must be removed after installation

Recommended Tightening Torques

Flywheel to Crankshaft

• M12 – 105 Nm

Clutch to Flywheel

• 10 Nm ±2 Nm

Transmission to Engine

Hex Bolts

• M6 – 8 Nm
• M8 – 25 Nm
• M10 – 49 Nm
• M12 – 74 Nm

Torx / T-Profile Bolts

• M6 – 9 Nm
• M8 – 19 Nm
• M10x55 mm – 43 Nm
• M10x42 mm – 42 Nm

Technical Information

• Designed for BMW twin-disc clutch systems
• Supports precise clutch alignment and safe service procedures
• Suitable for professional transmission specialists and workshops

Original numbers are for comparison purposes only. This is not an original OEM tool.
