Electronic Mechanic Stethoscope with 6-Channel Amplifier
-
Code:3531
-
Weight:2.964 Kgs
Overview:
✔ Professional electronic mechanic stethoscope for acoustic diagnostics
✔ Quickly identifies and locates noise sources in vehicle components
✔ Includes 6-channel amplifier with color-coded testing probes
✔ Allows diagnostics at multiple measuring points simultaneously
✔ Suitable for troubleshooting during road testing
✔ Includes 1-channel amplifier for rapid component diagnosis
✔ Padded headphones for improved comfort
✔ Reduces diagnostic and troubleshooting time
This electronic mechanic stethoscope is designed for fast and accurate localization of noise sources in vehicle systems and components. The included six test probes and six-channel amplifier allow simultaneous monitoring of several measuring points, making the device especially useful for complex noise diagnostics.
The system enables fault diagnosis while driving by placing sensors at different vehicle components and selecting each measuring point through the amplifier switch. This makes it easier to identify noises and vibrations from suspension, drivetrain and engine components.
The included single-channel amplifier can also be used with or without the probe tip for quick acoustic testing of components such as alternators and other engine parts.
Applications
Suitable for diagnosing:
- Engine components
- Transmission components
- Suspension systems
- Axle components
- Alternators
- Bearings
- Mechanical noises and vibrations
- Vehicle diagnostic applications
Features
- Fast localization of noise sources
- Multi-point acoustic testing during driving
- 6-channel amplifier with source selection switch
- 1-channel amplifier with volume adjustment
- Color-coded probes for easier identification
- Crocodile clips for quick installation
- Comfortable padded headphones
- Reduces troubleshooting time
Example of Use
Example: Creaking noises from the front right suspension.
Different probes can be attached to individual components:
- Blue probe → Control arm bushing
- Yellow probe → Ball joint
- Green probe → Suspension strut
During a road test, the operator switches between channels and identifies where the sound is strongest. If the strongest noise appears on a specific channel, the corresponding component can be identified as the likely source of the problem.

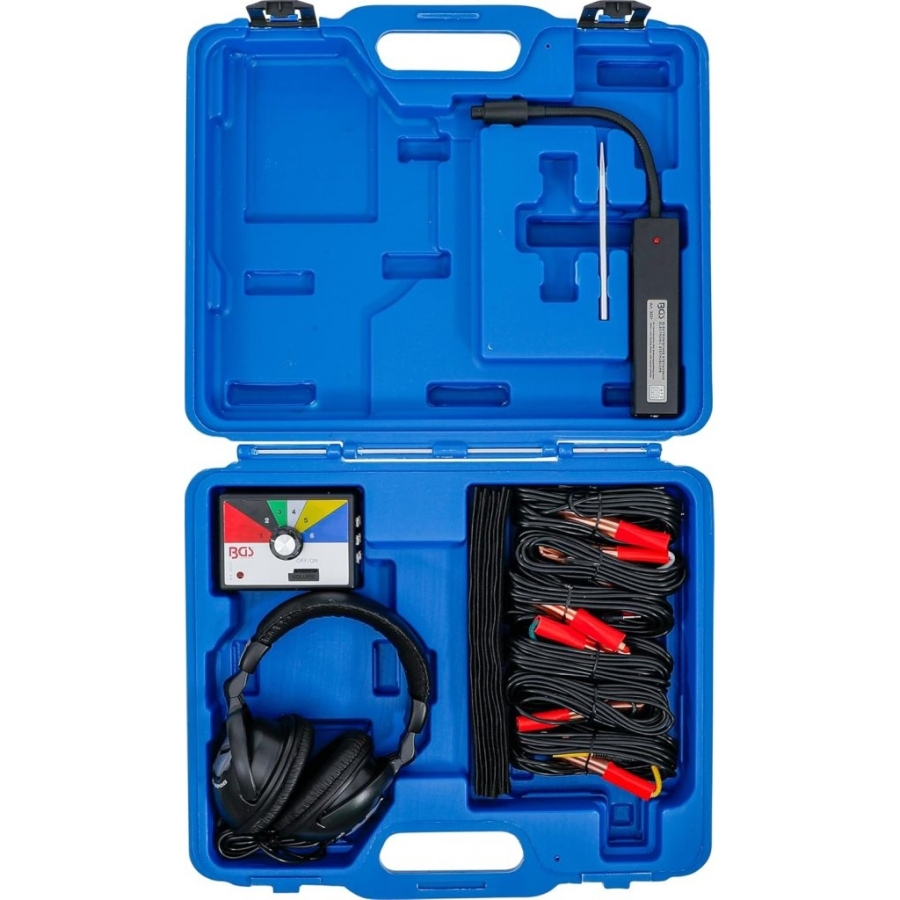

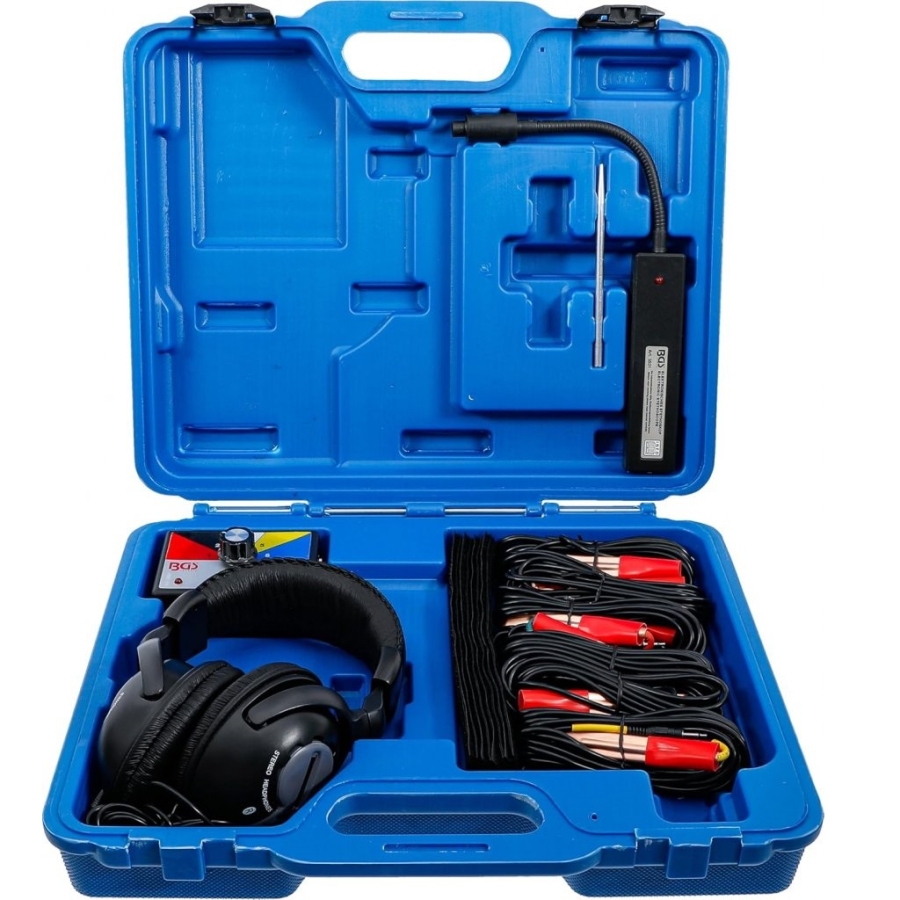

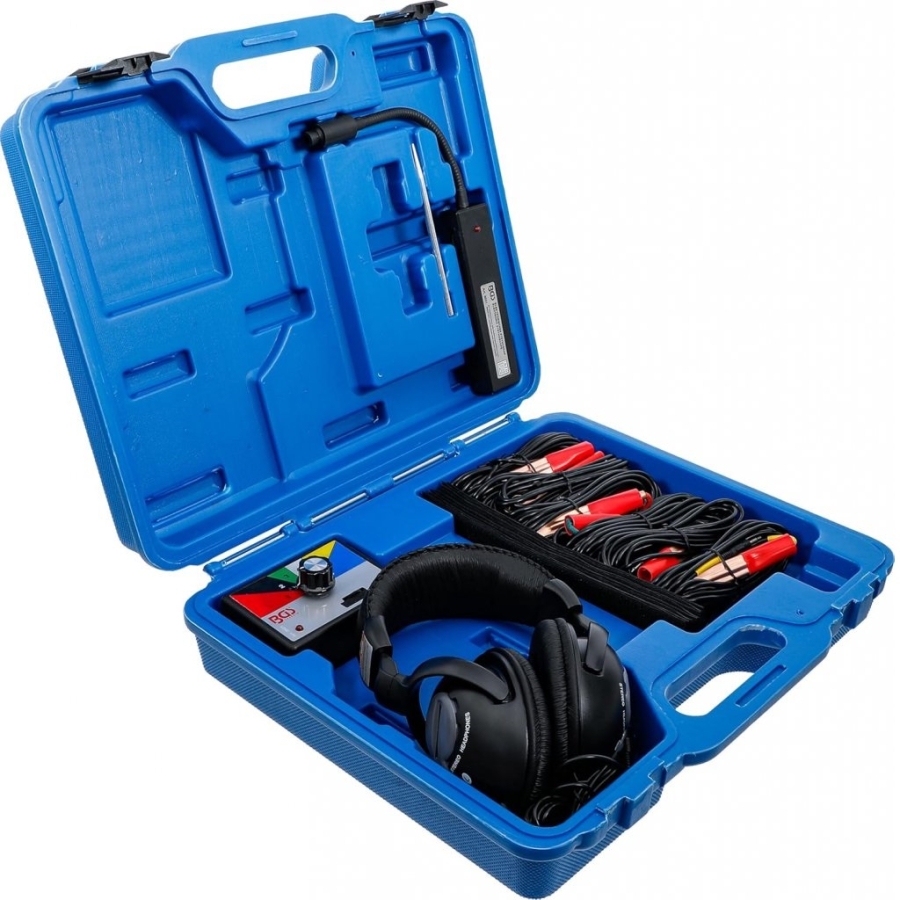

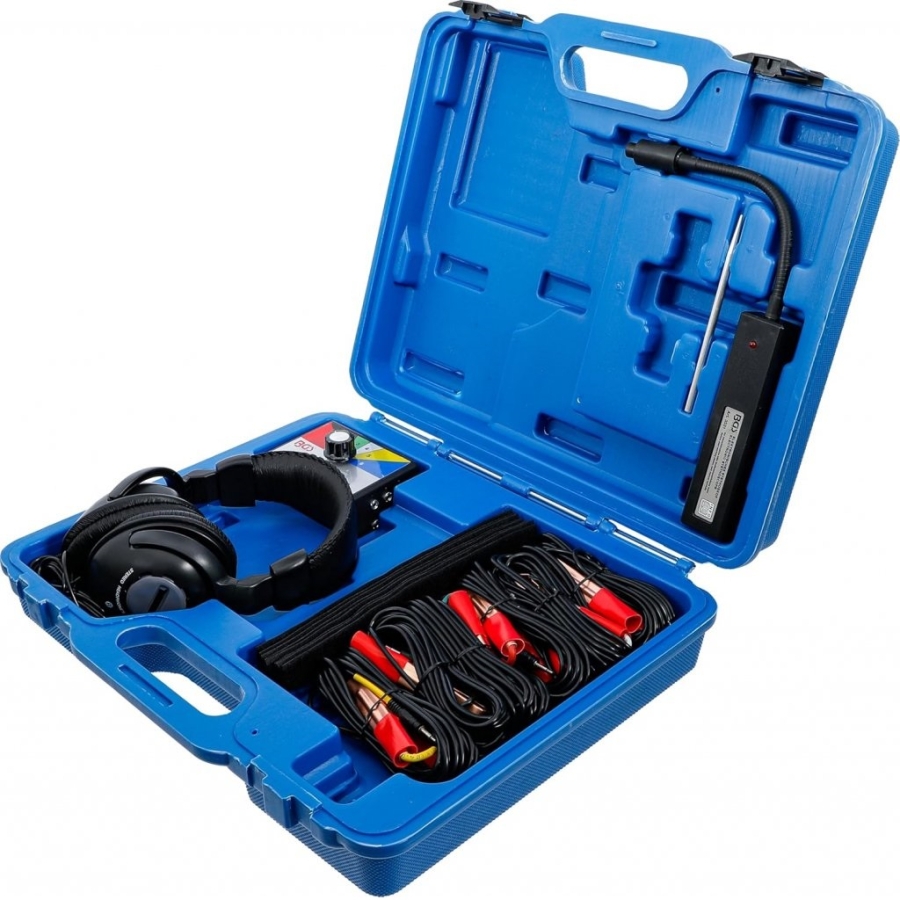

Package Contents
- 6 × Test probes with crocodile clips
- 1 × 6-channel amplifier with channel selection and volume control
- 1 × 1-channel amplifier with volume control
- 1 × Probe tip
- 1 × Padded headphones
- 2 × 9 V batteries
Workshop Benefits
- Simplifies identification of noise sources
- Reduces diagnostic time significantly
- Allows testing during vehicle operation
- Supports precise fault localization
- Professional solution for workshop diagnostics
