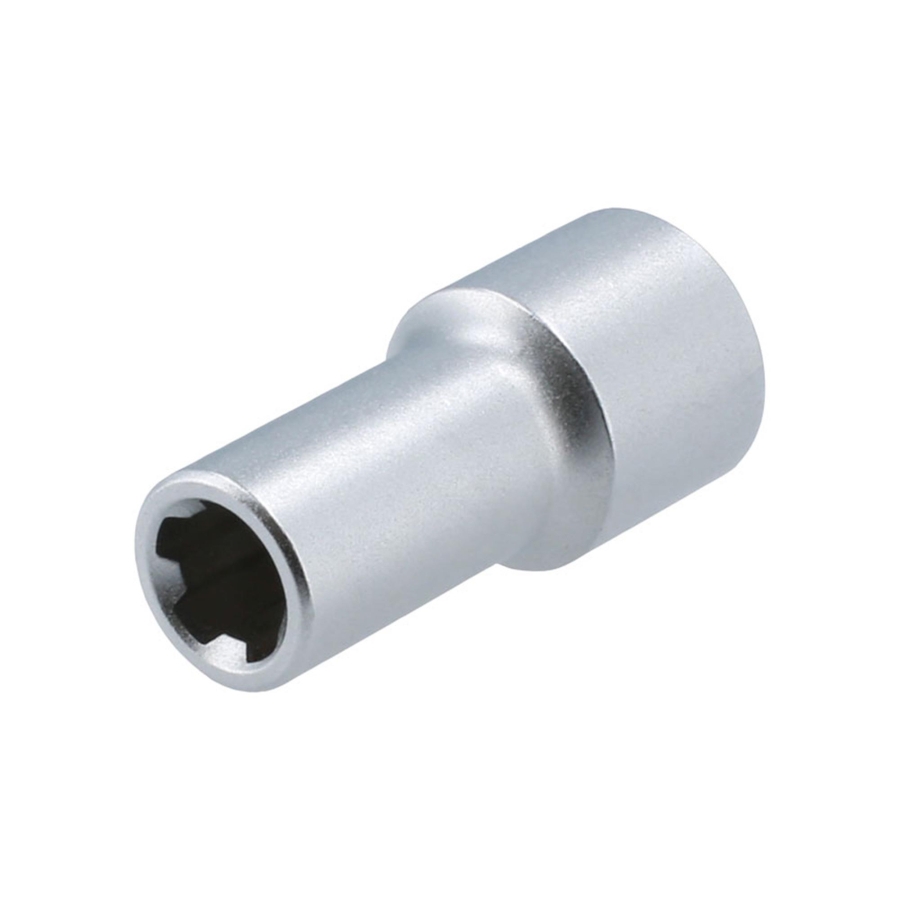

Electronic Parking Brake Reset Socket 5-Star 3/8" for VAG as T10621

Price: €18.95 37.06лв.

Code:

123478
Weight:

0.060 Kgs

Overview:
✔ Special socket for resetting electronic parking brakes on VAG vehicles
✔ Suitable for vehicles from model year 2019 onwards
✔ Designed for brake caliper repairs and electric parking brake actuator replacement
✔ Precision 5-star profile for damage-free operation
✔ Suitable for Audi, Cupra, Seat, Skoda and VW models
✔ 3/8" square drive
✔ Can be used as VAG T10621
✔ Suitable for professional workshop use

Electronic Parking Brake Reset Socket 5-Star 3/8" for VAG as T10621

Send to friend

Rate this product

This special socket is designed for manually resetting the electronic parking brake on VAG vehicles manufactured from 2019 onwards. During brake caliper repairs or when replacing the parking brake actuator motor, the brake mechanism must be reset via the actuator drive shaft.

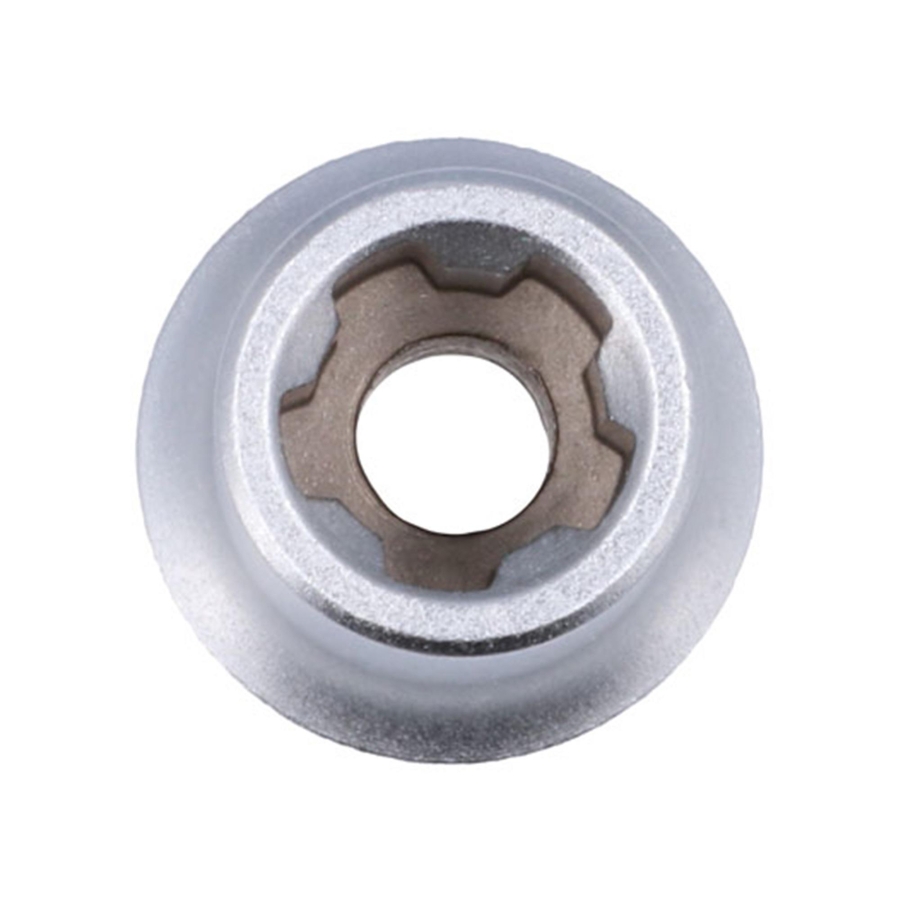

VAG uses a special 5-star profile for this application. This socket is precisely manufactured to engage the profile securely and allow damage-free operation of the parking brake mechanism.

Important Information

We recommend performing the parking brake reset or moving the system into service position using a diagnostic tool whenever possible.

Manual resetting of the electronic parking brake, for example during brake pad replacement, is possible but should only be performed when individual components are defective or when electronic actuation is not available.

Vehicle Compatibility

Suitable for the following vehicles:

Audi

A3 (8Y) from 11/2019

Cupra / Seat

Formentor (KM7) from 07/2020
Leon (KL, KU) from 09/2020

Skoda

Octavia (NX, NN, PV) from 11/2019

Caddy (5, SB) from 09/2020
Golf (8, CD, CG, DA, DB) from 07/2019

Brake Caliper Housing Reference Numbers

Suitable for brake caliper housings with the following reference numbers:

as 5WA 998 281
as 5WA 998 281A

Technical Specifications

Tool type: Electronic parking brake reset socket
Profile type: 5-star
Drive size: 3/8"
Application: Electronic parking brake reset
Can be used as: VAG T10621
Suitable for professional workshop use

Original numbers are for comparison purposes only. This is not an original manufacturer tool/product.

AUDI A3 Sedan (8YS) (04.2020 - ) 30 TDI (116 HP, 85 kW) AUDI A3 Sedan (8YS) (04.2020 - ) 30 TFSI (110 HP, 81 kW) AUDI A3 Sedan (8YS) (04.2020 - ) 30 TFSI Mild Hybrid (110 HP, 81 kW) AUDI A3 Sedan (8YS) (04.2020 - ) 35 TDI (150 HP, 110 kW) AUDI A3 Sedan (8YS) (04.2020 - ) 35 TFSI (150 HP, 110 kW) AUDI A3 Sedan (8YS) (04.2020 - ) 35 TFSI Mild Hybrid (150 HP, 110 kW) AUDI A3 Sedan (8YS) (04.2020 - ) 40 TDI quattro (200 HP, 147 kW) AUDI A3 Sedan (8YS) (04.2020 - ) S3 quattro (310 HP, 228 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 30 TDI (116 HP, 85 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 30 TFSI (110 HP, 81 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 30 TFSI Mild Hybrid (110 HP, 81 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 30 g-tron (131 HP, 96 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 35 TDI (150 HP, 110 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 35 TFSI (150 HP, 110 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 35 TFSI Mild Hybrid (150 HP, 110 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 40 TDI quattro (200 HP, 147 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 40 TFSIe (150 HP, 110 kW) AUDI A3 Sportback (8YA) (11.2019 - ) S3 quattro (310 HP, 228 kW) SEAT LEON (KL1) (11.2019 - ) 1.0 TSI (110 HP, 81 kW) SEAT LEON (KL1) (11.2019 - ) 1.0 TSI (90 HP, 66 kW) SEAT LEON (KL1) (11.2019 - ) 1.4 TSI e-Hybrid (150 HP, 110 kW) SEAT LEON (KL1) (11.2019 - ) 1.4 TSI e-Hybrid (204 HP, 150 kW) SEAT LEON (KL1) (11.2019 - ) 1.5 TGI CNG (131 HP, 96 kW) SEAT LEON (KL1) (11.2019 - ) 1.5 TSI (131 HP, 96 kW) SEAT LEON (KL1) (11.2019 - ) 1.5 TSI (150 HP, 110 kW) SEAT LEON (KL1) (11.2019 - ) 1.5 eTSI (150 HP, 110 kW) SEAT LEON (KL1) (11.2019 - ) 2.0 TDI (116 HP, 85 kW) SEAT LEON (KL1) (11.2019 - ) 2.0 TDI (150 HP, 110 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.0 TSI (110 HP, 81 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.0 TSI (90 HP, 66 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.4 TSI e-Hybrid (150 HP, 110kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.4 TSI e-Hybrid (204 HP, 150 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.5 TSI (131 HP, 96 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.5 TSI (150 HP, 110 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.5 eTSI (150 HP, 110 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 2.0 TDI (150 HP, 110 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.0 TSI (110 HP, 81 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.0 TSI e-TEC (110 HP, 81 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.4 TSI Hybrid (150 HP, 110 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.4 TSI IV RS (150 HP, 110 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.4 TSI IV RS (245 HP, 180 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.5 TSI (150 HP, 110 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.5 TSI G-TEC (131 HP, 96 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.6 SRE (110 HP, 81 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 2.0 TDI (116 HP, 85 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 2.0 TDI (143 HP, 105 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 2.0 TDI (150 HP, 110 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 2.0 TDI (200 HP, 147 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 2.0 TDI 4x4 (200 HP, 147 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 2.0 TFSI (190 HP, 140 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 2.0 TSI RS (245 HP, 180 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.0 TSI (110 HP, 81 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.0 TSI e-TEC (110 HP, 81 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.4 TSI Hybrid (150 HP, 110 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.4 TSI IV RS (150 HP, 110 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.4 TSI IV RS (245 HP, 180 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.5 TSI (150 HP, 110 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.5 TSI G-TEC (131 HP, 96 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.6 SRE (110 HP, 81 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 2.0 TDI (116 HP, 85 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 2.0 TDI (143 HP, 105 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 2.0 TDI (150 HP, 110 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 2.0 TDI (200 HP, 147 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 2.0 TDI 4x4 (200 HP, 147 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 2.0 TFSI (190 HP, 140 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 2.0 TSI RS (245 hp, 180 kW) VW Caddy V MPV (SBB, SBJ) (09.2020 - ) TDi BMT (102 hp, 75 kW) VW Caddy V MPV (SBB, SBJ) (09.2020 - ) TDi BMT (122 hp, 90 kW) VW Caddy V MPV (SBB, SBJ) (09.2020 - ) TDi BMT (75 hp, 55 kW) VW Caddy V MPV (SBB, SBJ) (09.2020 - ) TSi EVO (114 hp, 84 kW) VW Caddy V Panel Van/MPV (SBA, SBH) (09.2020 - ) TDi BMT (102 hp, 75 kW) VW CADDY V Panel Van/MPV (SBA, SBH) (09.2020 - ) TDI BMT (122 hp, 90 kW) VW CADDY V Panel Van/MPV (SBA, SBH) (09.2020 - ) TDI BMT (75 hp, 55 kW) VW CADDY V Panel Van/MPV (SBA, SBH) (09.2020 - ) TSI EVO (114 hp, 84 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.0 TSI (110 hp, 81 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.0 TSI (90 hp, 66 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.0 eTSI (110 HP, 81 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.4 GTE Plug-in Hybrid (150 HP, 110 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.5 TGI (131 HP, 96 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.5 TSI (131 HP, 96 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.5 TSI (150 HP, 110 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.5 eTSI (150 HP, 110 kW) VW GOLF VIII (CD1) (07.2019 - ) 2.0 GTI (245 HP, 180 kW) VW GOLF VIII (CD1) (07.2019 - ) 2.0 GTI Clubsport (300 HP, 221 kW) VW GOLF VIII (CD1) (07.2019 - ) 2.0 TDI (116 HP, 85 kW) VW GOLF VIII (CD1) (07.2019 - ) 2.0 TDI (150 HP, 110 kW) VW GOLF VIII (CD1) (07.2019 - ) 2.0 TDI 4motion (200 HP, 147 kW) VW GOLF VIII (CD1) (07.2019 - ) 2.0 TSI R 4motion (320 HP, 235 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.0 TSI (110 HP, 81 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.0 TSI (90 HP, 66 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.0 eTSI (110 HP, 81 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.5 TSI (131 HP, 96 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.5 TSI (150 HP, 110 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.5 eTSI (131 HP, 96 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.5 eTSI (150 HP, 110kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 2.0 GTI (245 HP, 180 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 2.0 TDI (116 HP, 85 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 2.0 TDI (150 HP, 110 kW)
