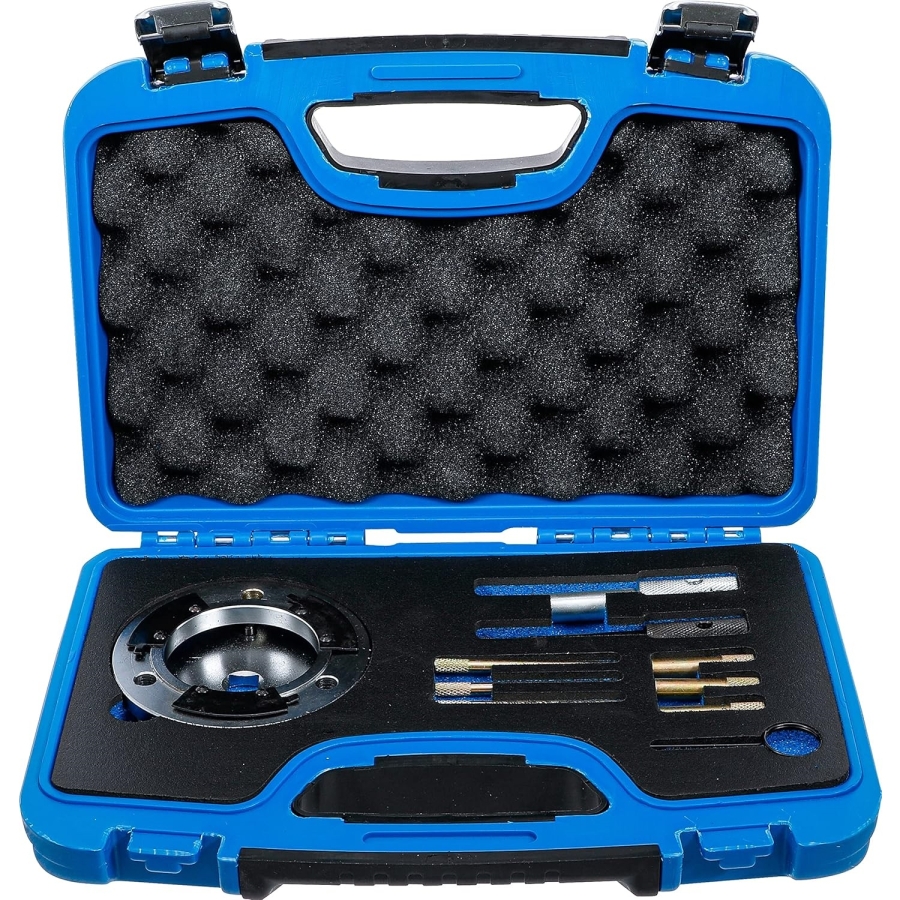

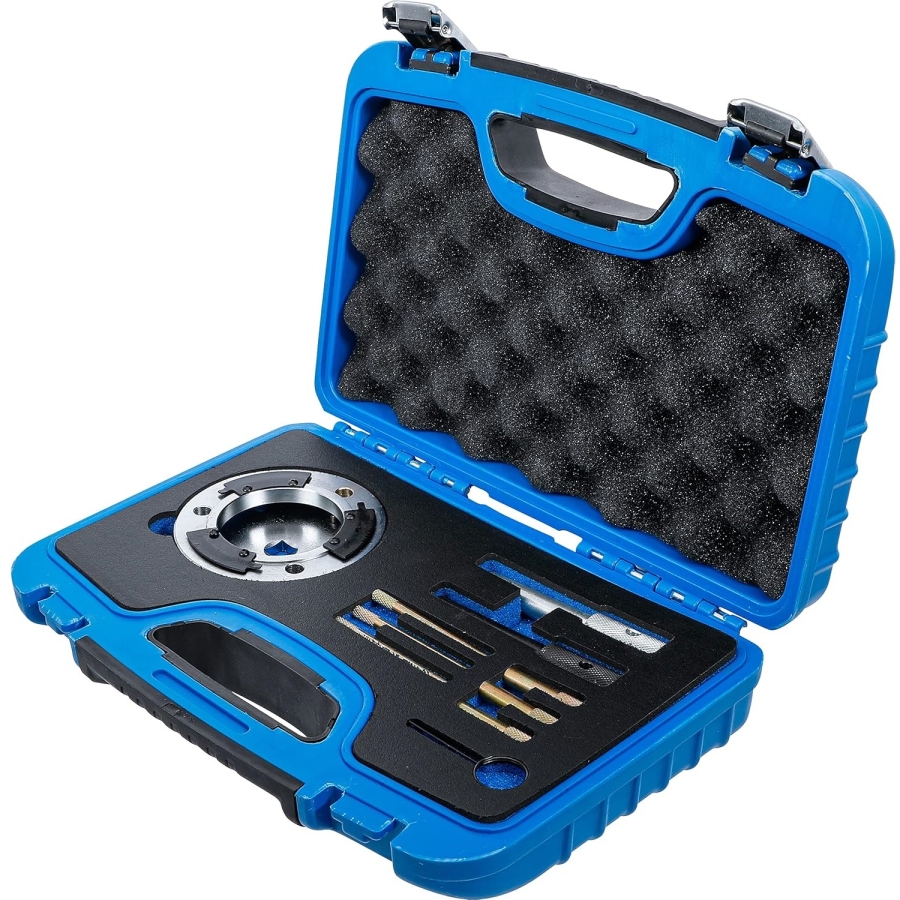

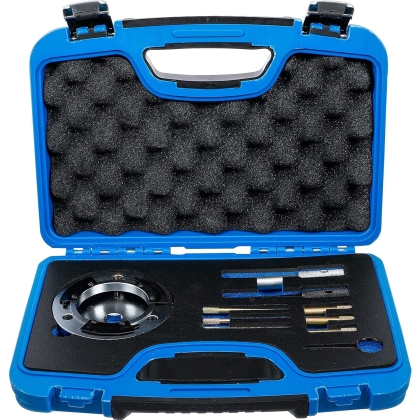

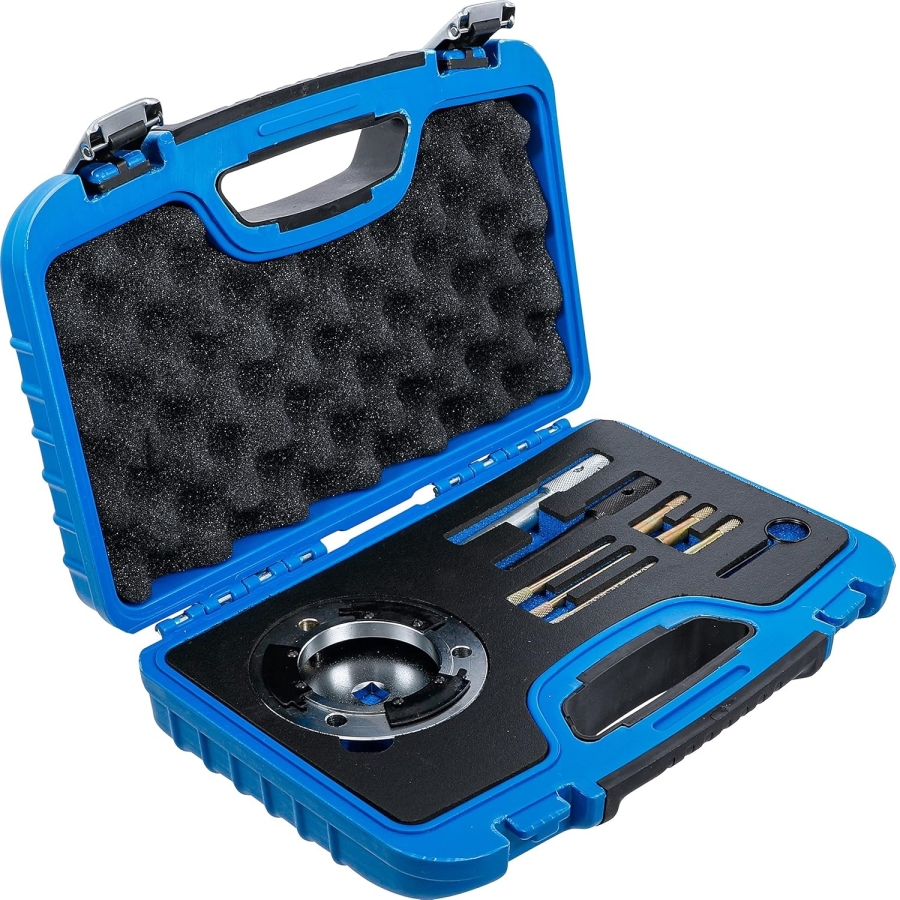

Engine Timing Tool Kit for Ford 2.0 & 2.4 TDCi / TDDi
-
Code:8317
-
Weight:2.618 Kgs
Overview:
✔ Engine timing tool kit for Ford 2.0 and 2.4 TDCi / TDDi engines
✔ Suitable for 16V diesel engines with chain drive
✔ Designed for timing adjustment and engine repair work
✔ Enables locking of camshaft, injection pump and crankshaft
✔ Required for timing chain replacement and pump service
✔ Covers multiple Ford engine codes
✔ Suitable for professional workshop use
This engine timing tool kit is designed for setting and adjusting engine timing on Ford 2.0L and 2.4L 16V TDDi and TDCi diesel engines.
It is used for locking and positioning the camshaft, injection pump and crankshaft during service operations such as timing chain replacement, engine repair and fuel pump work.
Compatibility
Suitable for Ford vehicles equipped with 2.0 and 2.4 TDCi / TDDi engines, including:
- Mondeo (2001–2004)
- Transit (2001–2004)
Engine Codes
Compatible with:
FMBA, FMBB, D5BA, ABFA, D3FA, F3FA, D2FA, D4FA, F4FA
Functionality
The kit enables:
- Accurate locking of camshaft, crankshaft and injection pump
- Precise positioning during timing adjustment
- Safe timing chain replacement procedures
- Reliable execution of engine repair operations

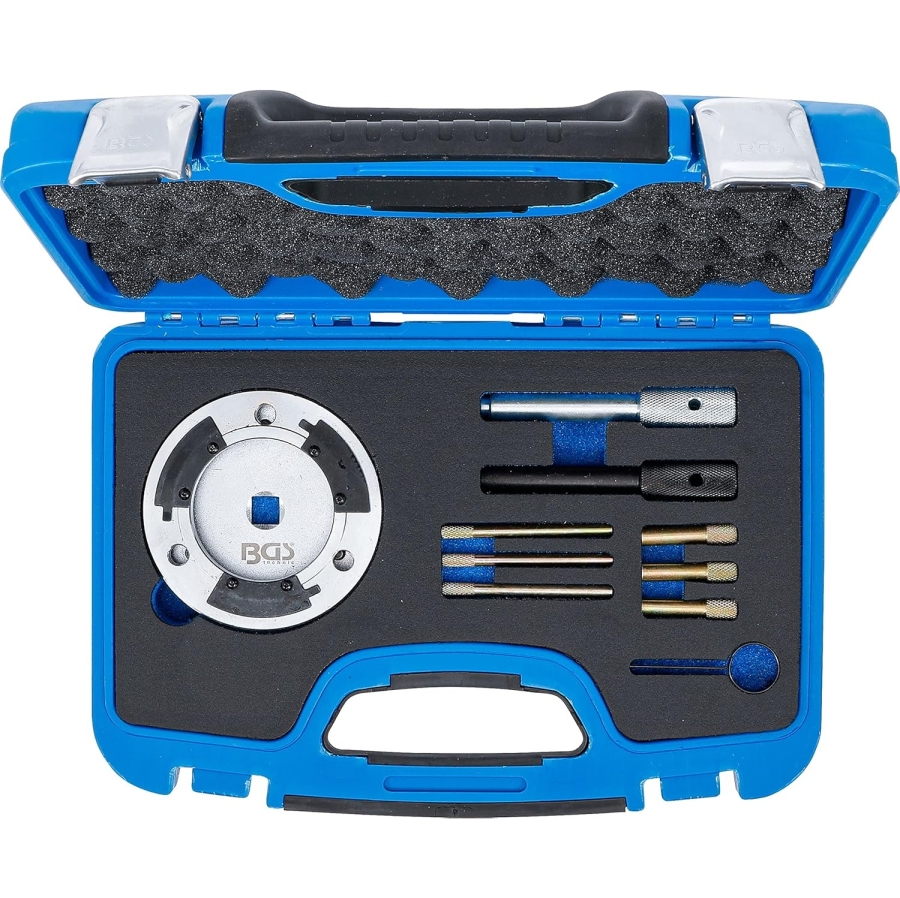

Contents
- Crankshaft locking pin (as OEM 303-698, 21-251)
- Crankshaft locking pin (as OEM 303-675, 21-234)
- Camshaft / injection pump locking pin, 6 mm
- Injection pump sprocket locking plate (as OEM 303-681, 21-240)
- Injection pump sprocket locking bolt (as OEM 303-681, 21-240)
- Tensioner locking pin
OEM Reference
Designed for use as:
303-675, 21-234, 303-681, 21-240, 303-698, 21-251
Original numbers are used for comparison purposes only, this is not an original tool!
