Engine Timing Tool Set for Jaguar / Land Rover 1.5L PT153 / AJ203P3 Petrol Engines

This specialized timing tool set is designed for Jaguar and Land Rover 1.5L 3-cylinder petrol engines with engine codes PT153 and AJ203P3.

These engines are primarily used in hybrid vehicles and require precise timing alignment during timing chain repair and engine service.

Engine Design Characteristics

The engine features a complex dual timing chain system.

• Timing chain located at the rear of the engine
• Gearbox removal required for timing chain service
• Two timing chains connected via an intermediate gear
• Camshaft and camshaft adjuster positions set using dedicated tools
• Remaining sprockets aligned via colored chain links to timing marks

Important Notes

• In some cases, no thread is present for the camshaft locking tool
• If required, an M6x1 thread must be created using a tap (available as additional tool)

Application Guidelines

• All timing chain sprockets except camshaft and crankshaft should be replaced
• Camshaft adjuster valves must be loosened before removal
• Upper secondary chain tensioner must be removed prior to service
• Ensure correct seating of camshaft adjusters on locating pins
• Six colored chain links must align with six marked positions on sprockets and primary chain guide

Technical Torque Specifications

(Reference: Land Rover Evoque L551 1.5L PT153 engine)

• Upper chain tensioner: 55 Nm
• VCT camshaft control valves: 25 Nm + 56°
• Intermediate gear (both chains): 35 Nm
• Intermediate gear (primary chain): 35 Nm
• Crankshaft pulley bolts: 37 Nm + 90°
• Tension rails and side guide (upper secondary chain): 25 Nm
• Tension rails (lower primary chain): 25 Nm
• All other guide rails: 12 Nm
• Front crankshaft seal: 30 Nm

Compatibility

Engine Codes:

• PT153
• AJ203P3

OEM Reference Numbers

• JLR-303-1630
• JLR-303-1654
• JLR-303-1655
• JLR-303-1656
• JLR-303-1669
• JLR-303-1686

Key Features

• High-quality professional tool set
• Precision-machined components
• Enables repair according to manufacturer specifications
• Designed based on OEM tooling
• Accurate fitment

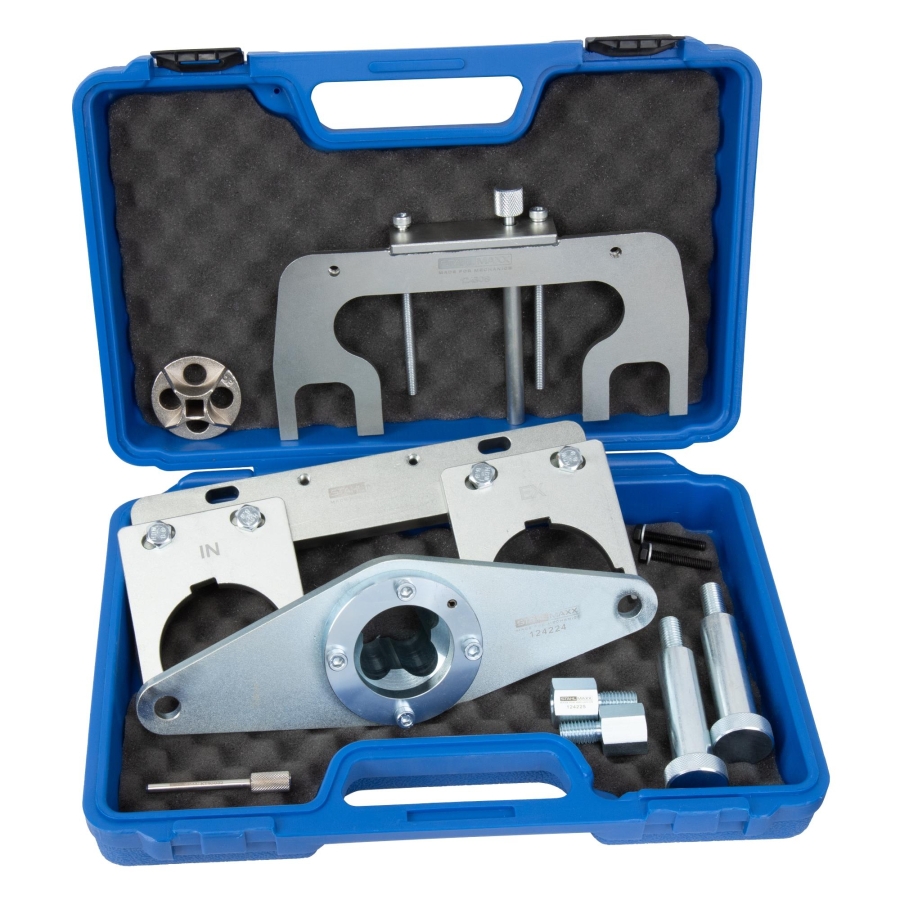

Included Tools

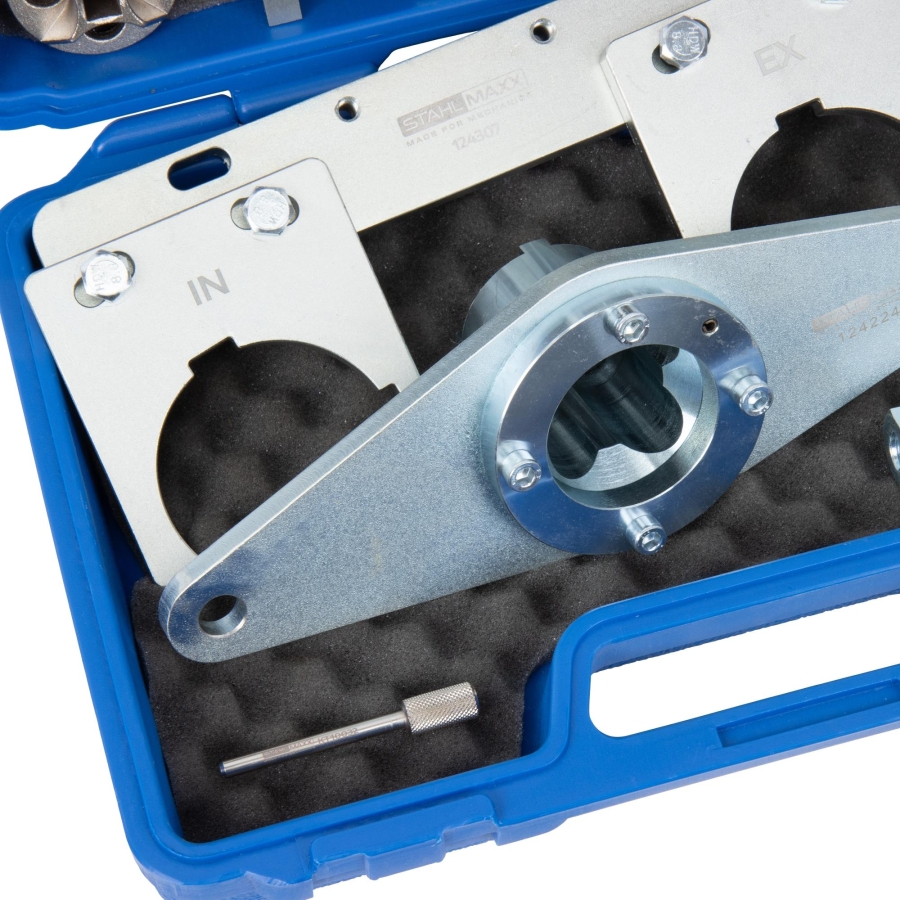

• 1 x item no. 124224 Crankshaft pulley holding tool, to be used as JLR 303-1630

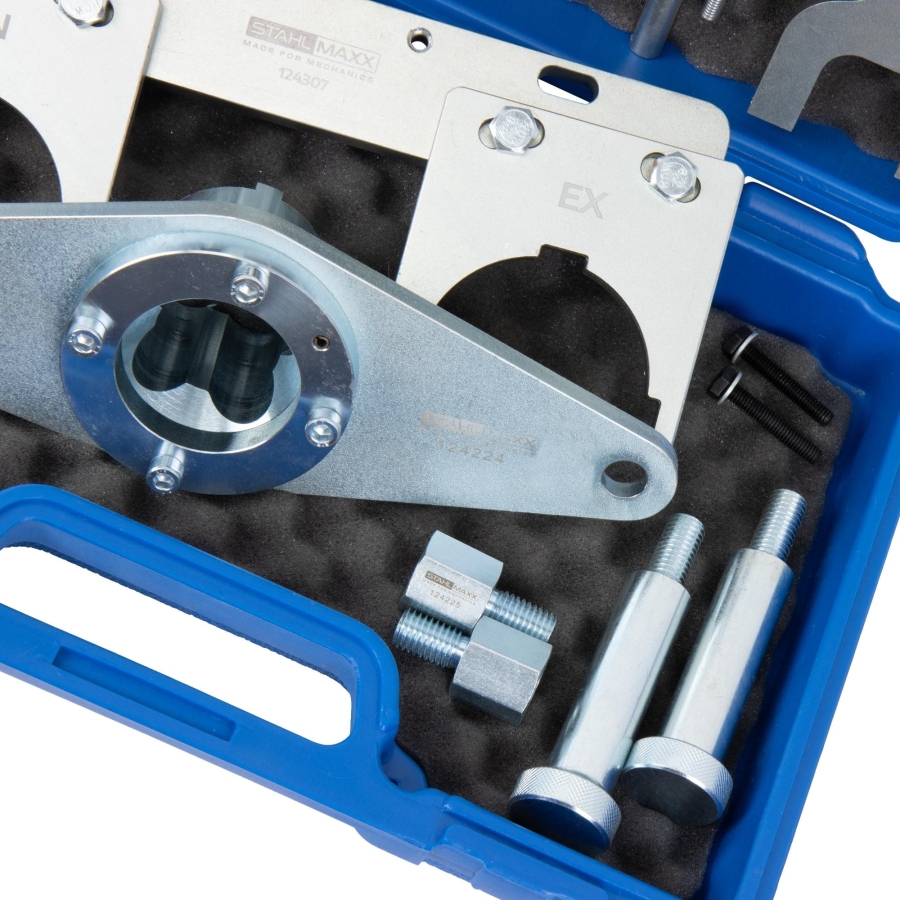

• 1 x item no. 124307 Camshaft sensor wheel alignment tool, to be used as JLR-303-1654

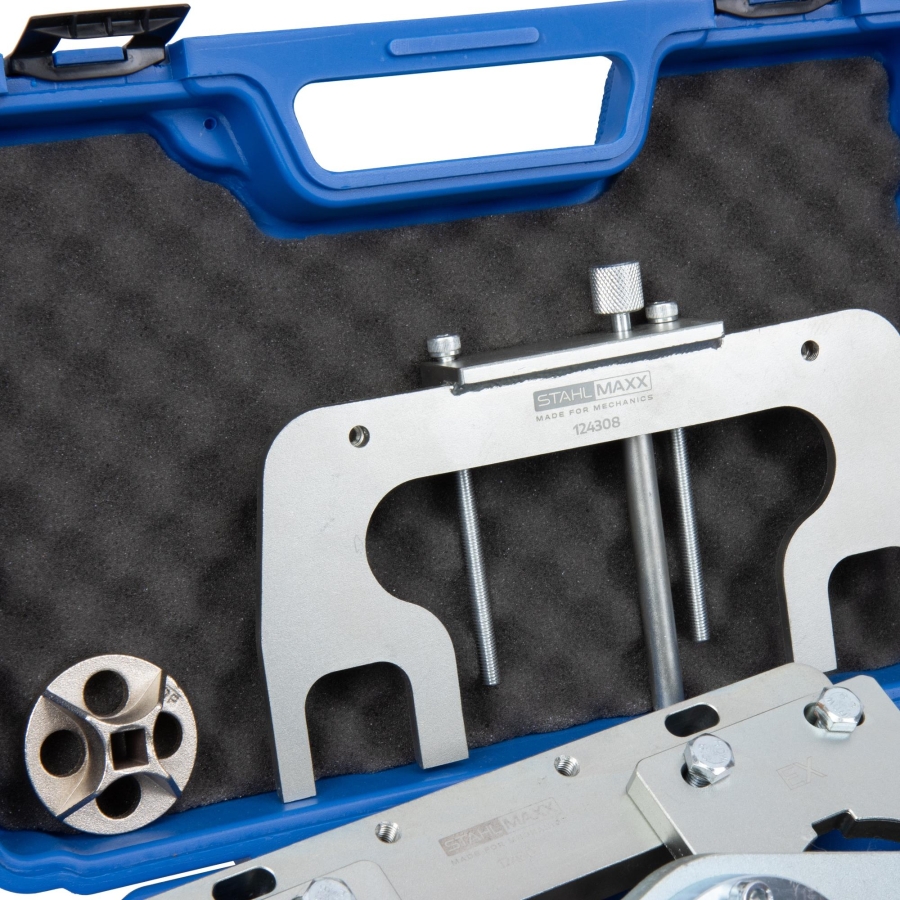

• 1 x item no. 124308 Camshaft setting tool, to be used as JLR-303-1655
• 1 x item no. 124309 Crankshaft turning tool, to be used as JLR-303-1656
• 1 x item no. KT10032 Locking pin for auxiliary belt tensioner, to be used as JLR-303-1669
• 1 x item no. 124225 Adapter bolt for crankshaft pulley holding tool, to be used as JLR 303-1686
• 1 x item no. 51003 Storage case

Original numbers are provided for comparison purposes only. This is not an original tool.

JAGUAR E-PACE (X540) (09.2017 - ) 1.5 P160 MHEV (160 HP, 118 kW)

JAGUAR E-PACE (X540) (09.2017 - ) 1.5 P300e Plug-in Hybrid AWD (200 HP, 147 kW)

JAGUAR E-PACE (X540) (09.2017 - ) 1.5 P300e Plug-in Hybrid AWD (309 HP, 227 kW)

LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 1.5 P300e Hybrid 4x4 (200 HP, 147 kW)

LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 1.5 P300e Hybrid 4x4 (309 hp, 227 kW)

LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 1.5 P160 MHEV (160 HP, 118 kW)

LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 1.5 P300e Hybrid 4x4 (200 hp, 147 kW)

LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 1.5 P300e Hybrid 4x4 (309 HP, 227 kW)
