Engine Timing Tool Set for Jaguar / Land Rover Ingenium I4 2.0 Petrol PT204 / AJ200 (from 2017)

Price: €259.00 506.56лв.

Code:

124226
Weight:

1.188 Kgs

Overview:
✔ Timing tool set for Ingenium I4 2.0 petrol engines (from 2017)
✔ Suitable for engine codes AJ200, AJ200P, 204PT, AJ20P4, PT204
✔ Designed for dual timing chain systems with intermediate gear
✔ Supports CVVL and VVT camshaft adjustment procedures
✔ Includes tools for camshaft locking and crankshaft holding
✔ Professional solution for engine overhaul and timing service

Engine Timing Tool Set for Jaguar / Land Rover Ingenium I4 2.0 Petrol PT204 / AJ200 (from 2017)

Send to friend

Rate this product

This timing tool set is developed for Jaguar and Land Rover Ingenium I4 2.0 petrol engines with engine codes AJ200 and PT204, used from 2017 onward.

It is предназначен for engine overhaul, repair, and precise timing adjustment of modern petrol engines equipped with advanced valve control systems.

Engine Design Characteristics

These engines feature advanced valve train technology and a dual timing chain system.

Variable, continuous valve lift system (CVVL)
Additional variable camshaft timing (VVT)
Two timing chains driven via an intermediate gear
Timing chain located at the rear of the engine

The timing chains are installed using special tools and aligned via colored chain links to engine timing marks (notches and arrows) at top dead center (TDC).

Important Service Notes

If the CVVL module is removed and reused, all 8 tappets must be reset to their initial position before reinstallation
Tappets must not protrude during installation
Camshaft adjuster control valves may only be reused up to three times
Reused bolts must be marked (e.g. center punch marking on bolt heads)

Technical Torque Specifications

(Reference: Jaguar F-Pace (X761), engine code AJ200 / PT204)

Camshaft adjuster control valve: 25 Nm + 60°
Intermediate gear bolt: 35 Nm
Chain guide upper center: 11 Nm
Chain guide upper left: 25 Nm
Upper tension rail: 11 Nm
Upper chain tensioner: 55 Nm (compress before installation, release after tightening)
Chain guide lower left: 25 Nm
Lower tension rail: 11 Nm
Lower chain tensioner: 11 Nm
Drive plate (flywheel): 30 Nm + 120°
Crankshaft pulley: 4 bolts 37 Nm + 90°

Compatibility

Engine Codes:

AJ200
AJ200P
204PT
AJ20P4
PT204

Jaguar Models:

E-Pace
F-Pace
F-Type
XE
XF

Land Rover Models:

Discovery
Discovery Sport
Range Rover Evoque
Range Rover Sport
Range Rover Velar

OEM Reference Numbers

JLR-3031630
JLR-3031635
JLR-3031636

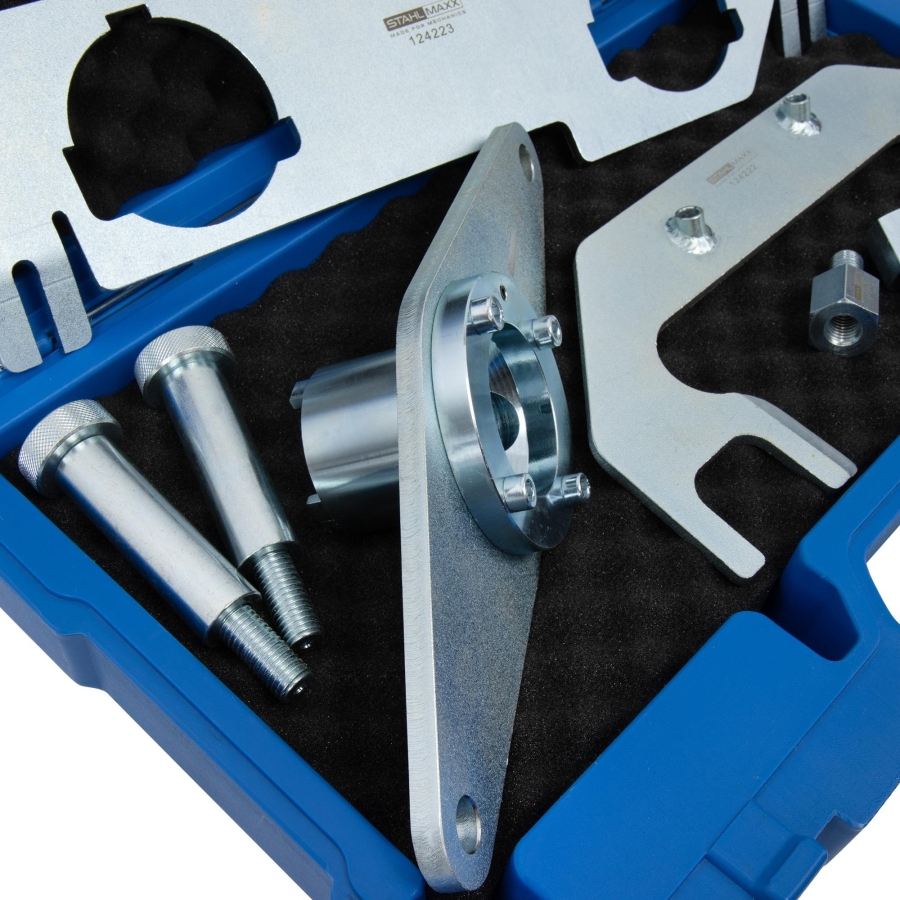

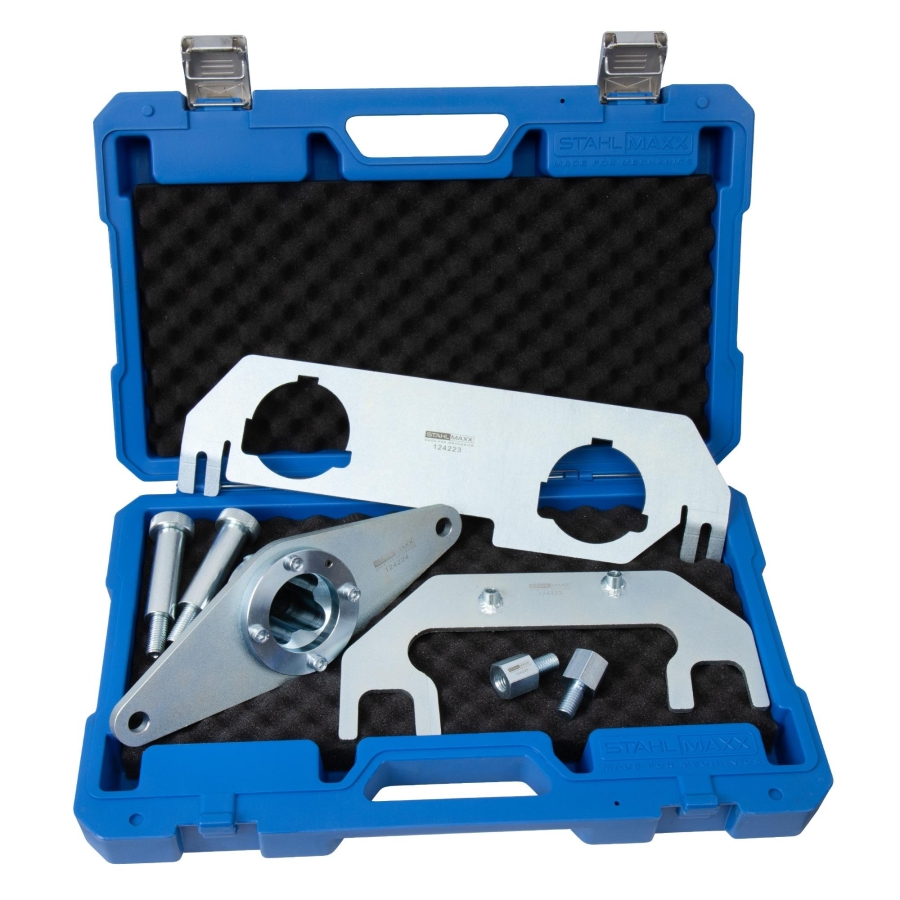

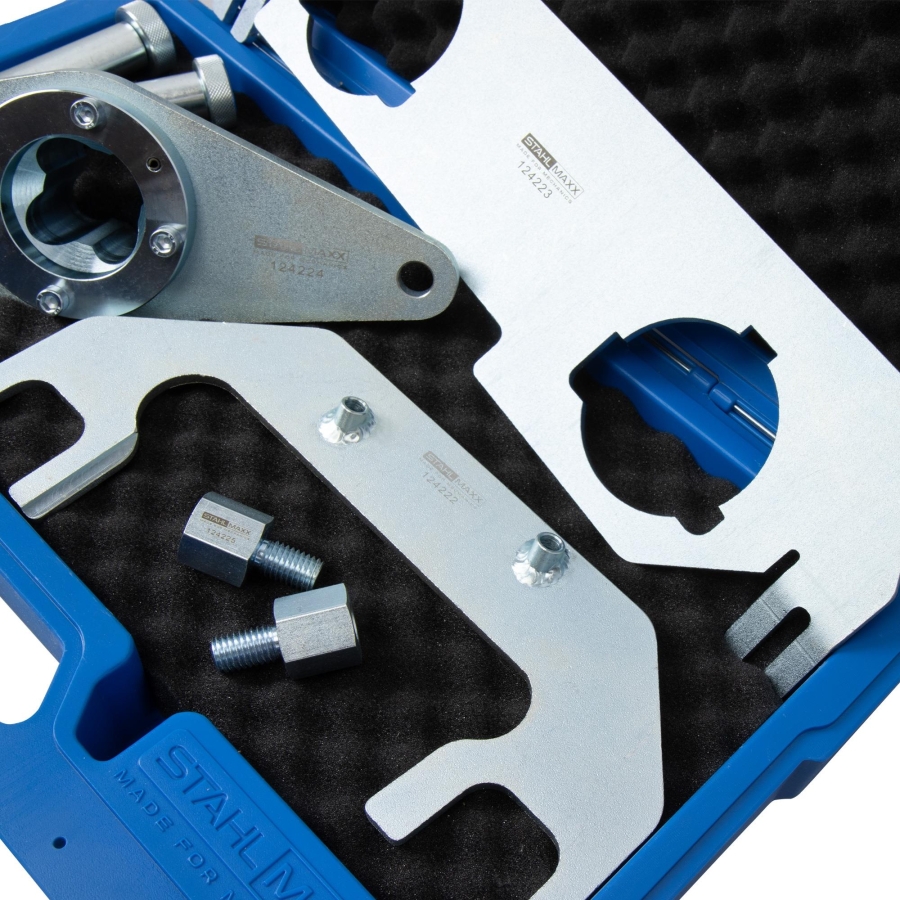

Included Tools

1 x item no. 124222 Camshaft locking tool, to be used as JLR 303-1635
1 x item no. 124223 Camshaft adjuster locking tool, to be used as JLR 303-1636
1 x item no. 124224 Crankshaft pulley holding tool, to be used as JLR 303-1630
1 x item no. 124225 Adapter bolt for crankshaft holding tool, to be used as JLR 303-1686
1 x item no. 115269 Storage case (1/3 size)

Original numbers are provided for comparison purposes only. This is not an original tool.

JAGUAR E-PACE (X540) (09.2017 - ) 2.0 AWD (200 HP, 147 kW) JAGUAR E-PACE (X540) (09.2017 - ) 2.0 AWD (249 HP, 183 kW) JAGUAR E-PACE (X540) (09.2017 - ) 2.0 AWD (300 HP, 221 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 P400e Plug-in Hybrid (300 HP, 221 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 P400e Plug-in Hybrid (404 HP, 297 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 Ti4 (250 HP, 184 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 Ti4 AWD (250 HP, 184 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 Ti4 AWD (300 HP, 221 kW) JAGUAR F-TYPE Cabriolet (X152) (10.2012 - ) 2.0 Ti4 (300 HP, 221 kW) JAGUAR F-TYPE Coupe (X152) (09.2013 - 12.2015) 2.0 Ti4 (300 HP, 221 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 (200 HP, 147 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 (250 HP, 184 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 (300 HP, 221 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 AWD (250 HP, 184 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 AWD (300 HP, 221 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 (200 HP, 147 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 (250 HP, 184 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 (300 HP, 221 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 AWD (250 HP, 184 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 AWD (300 HP, 221 kW) JAGUAR XF SPORTBRAKE (X260) (07.2017 - ) 2.0 (200 HP, 147 kW) JAGUAR XF SPORTBRAKE (X260) (07.2017 - ) 2.0 (250 HP, 184 kW) JAGUAR XF SPORTBRAKE (X260) (07.2017 - ) 2.0 AWD (300 HP, 221 kW) LAND ROVER DEFENDER Station Wagon (L663) (09.2019 - ) 2.0 P300 Si4 4x4 (300 HP, 221 kW) LAND ROVER DEFENDER Station Wagon (L663) (09.2019 - ) 2.0 P400e Hybrid 4x4 (300 HP, 221 kW) LAND ROVER DEFENDER Station Wagon (L663) (09.2019 - ) 2.0 P400e Hybrid 4x4 (404 HP, 297 kW) LAND ROVER DEFENDER Van (L663) (02.2020 - ) 2.0 P300 Si4 4x4 (300 HP, 221 kW) LAND ROVER DEFENDER Van (L663) (02.2020 - ) 2.0 P400e Hybrid 4x4 (300 hp, 221 kW) LAND ROVER DEFENDER Van (L663) (02.2020 - ) 2.0 P400e Hybrid 4x4 (404 HP, 297 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 4x4 (290 hp, 213 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 P200 4x4 (200 HP, 147 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 P200 FLEX MHEV 4x4 (200 HP, 147 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 P200 MHEV 4x4 (200 HP, 147 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 P250 4x4 (249 HP, 183 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 P250 MHEV 4x4 (250 HP, 184 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 P290 MHEV 4x4 (290 HP, 213 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 Si4 FLEX 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY SPORT VAN (L550) (12.2014 - ) Si4 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY SPORT VAN (L550) (12.2014 - ) Si4 4x4 (290 HP, 213 kW) LAND ROVER DISCOVERY V (L462) (09.2016 - ) 2.0 Si4 4x4 (300 HP, 221 kW) LAND ROVER DISCOVERY V VAN (L462) (09.2016 - 12.2018) 2.0 Si4 4x4 (300 HP, 221 kW) COUNTRY ROVER RANGE ROVER EVOQUE (L538) (09.2011 - 12.2019) 2.0 4x4 (241 HP, 177 kW) LAND ROVER RANGE ROVER EVOQUE (L538) (09.2011 - 12.2019) 2.0 4x4 (290 hp, 213 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 P200 4x4 (200 HP, 147 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 P200 FLEX MHEV 4x4 (200 HP, 147 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 P200 MHEV 4x4 (200 hp, 147 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 P250 4x4 (250 HP, 184 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 P250 MHEV 4x4 (249 HP, 183 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 P300 4x4 (300 HP, 221 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 P300 MHEV 4x4 (300 HP, 221 kW) LAND ROVER RANGE ROVER EVOQUE Cabriolet (L538) (11.2015 - 12.2019) 2.0 4x4 (241 HP, 177 kW) LAND ROVER RANGE ROVER IV (L405) (08.2012 - ) 2.0 P400e Hybrid 4x4 (300 HP, 221 kW) LAND ROVER RANGE ROVER IV (L405) (08.2012 - ) 2.0 P400e Hybrid 4x4 (404 HP, 297 kW) LAND ROVER RANGE ROVER SPORT (L494) (04.2013 - 12.2019) 2.0 P400e PHEV 4x4 (300 HP, 221 kW) LAND ROVER RANGE ROVER SPORT (L494) (04.2013 - 12.2019) 2.0 P400e PHEV 4x4 (404 HP, 297 kW) LAND ROVER RANGE ROVER SPORT (L494) (04.2013 - 12.2019) 2.0 Si4 4x4 (300 HP, 221 kW) LAND ROVER RANGE ROVER VELAR (L560) (03.2017 - ) 2.0 P250 Si4 4x4 (250 HP, 184 kW) LAND ROVER RANGE ROVER VELAR (L560) (03.2017 - ) 2.0 P300 Si4 4x4 (300 HP, 221 kW) LAND ROVER RANGE ROVER VELAR (L560) (03.2017 - ) 2.0 P400 Hybrid 4x4 (300 HP, 221 kW) LAND ROVER RANGE ROVER VELAR (L560) (03.2017 - ) 2.0 P400 Hybrid 4x4 (404 HP, 297 kW)
