Engine Timing & Fuel Pump Locking Tool Set for Jaguar / Land Rover 200D / 204D (from 2015)

Price: €595.00 1163.72лв.

Code:

118849
Weight:

6.150 Kgs

Overview:
✔ Professional timing tool set for JLR Ingenium diesel engines
✔ Suitable for engine codes AJ-200D, 204DT, AJ20D4, 204DTA, 204DTD and more
✔ Enables precise camshaft timing and VVT adjustment
✔ Allows fuel high-pressure pump removal without timing reset
✔ Includes crankshaft, camshaft, and pump locking tools
✔ Designed for workshop-level engine repair and timing chain service

Engine Timing & Fuel Pump Locking Tool Set for Jaguar / Land Rover 200D / 204D (from 2015)

Send to friend

Rate this product

This professional timing and locking tool set is designed for servicing 200D / 204D Gen.II Ingenium diesel engines used in Jaguar and Land Rover vehicles from 2015 onward.

It is suitable for timing chain replacement, engine repair work, and servicing or replacing the high-pressure fuel pump.

Functionality

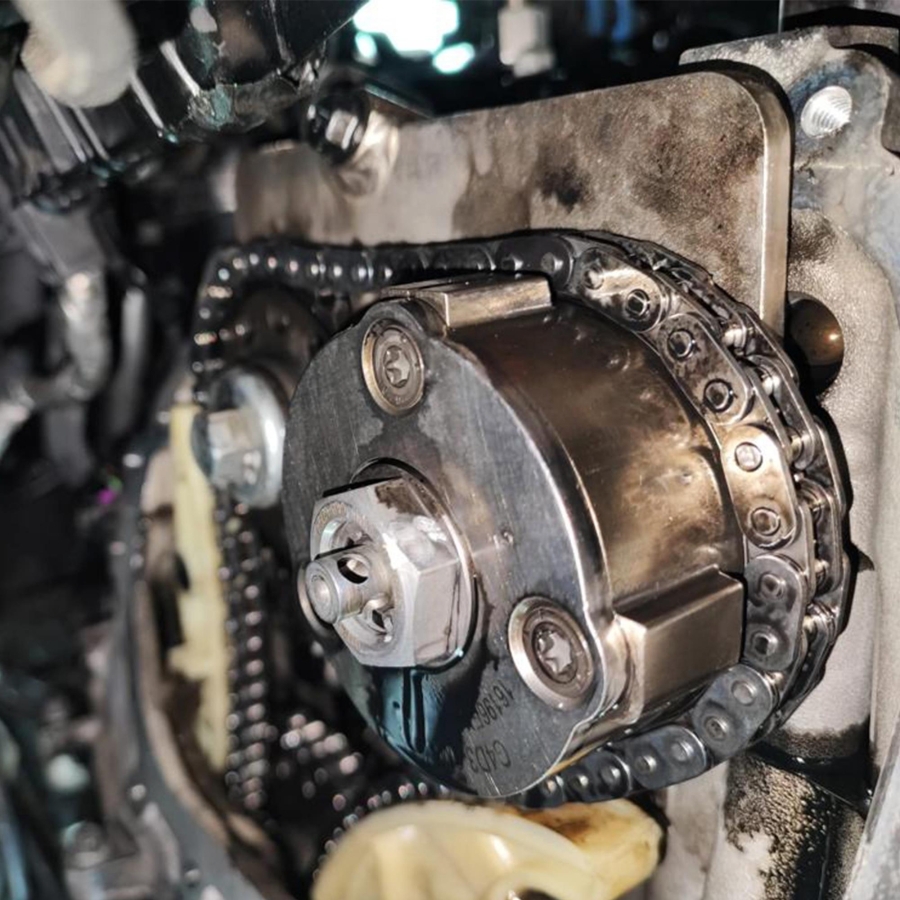

The tool set ensures accurate adjustment of engine timing, including correct positioning of variable camshaft adjusters (VVT system).

It also allows removal or replacement of the high-pressure fuel pump without requiring full timing readjustment. The pump sprocket is locked in position while the chain is held securely, maintaining correct timing alignment.

Compatibility

Engine Codes:

AJ-200D
204DT
AJ200D
AJ20
AJ20D4
AJ200
204DTA
204DTD

Jaguar Models (from 2015):

E-Pace
F-Pace
XE
XF

Land Rover Models (from 2015):

Defender
Discovery Sport
Range Rover Evoque
Range Rover Velar

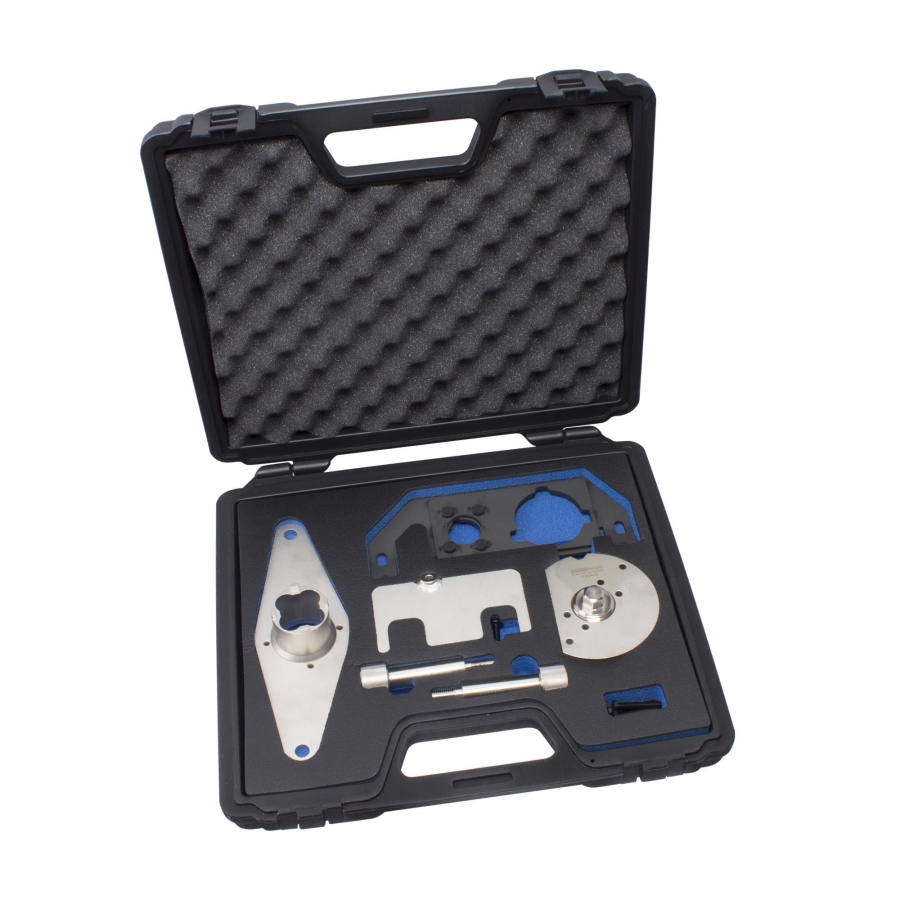

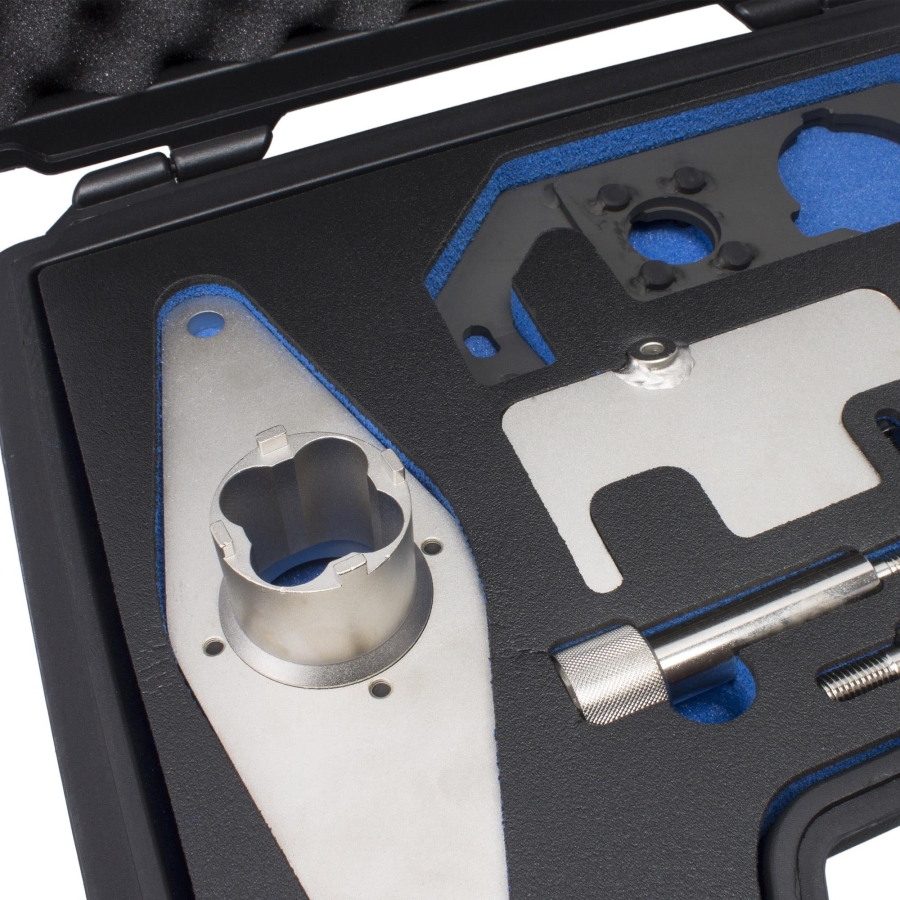

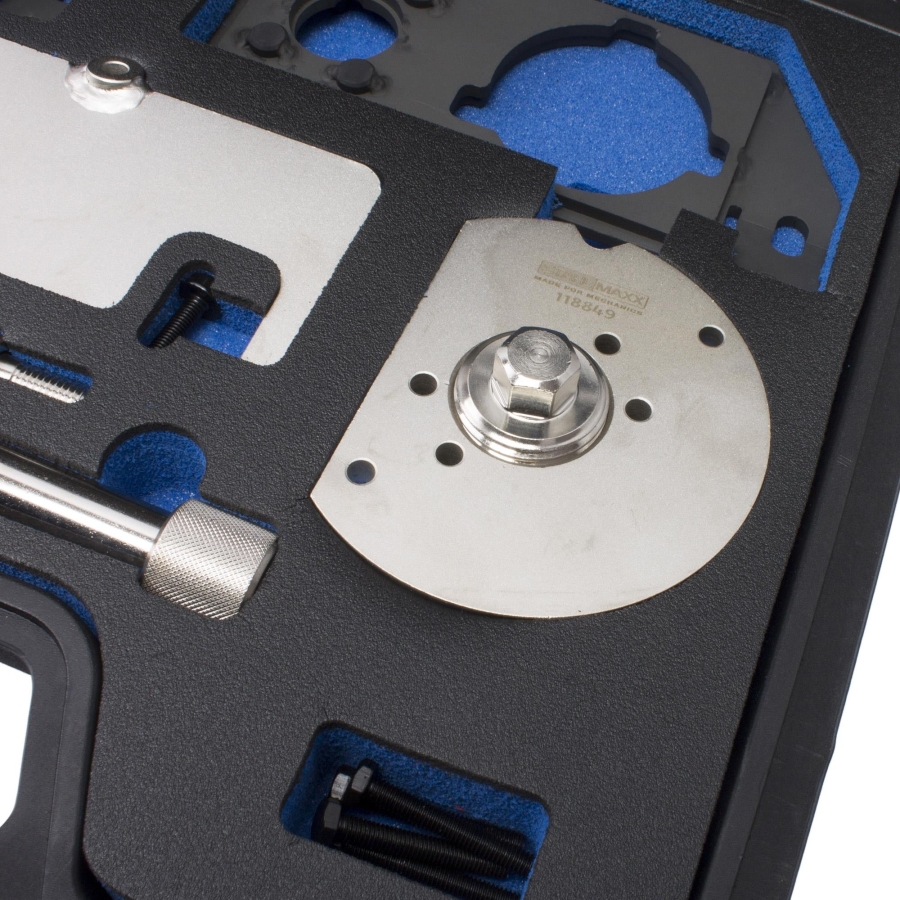

Included Tools

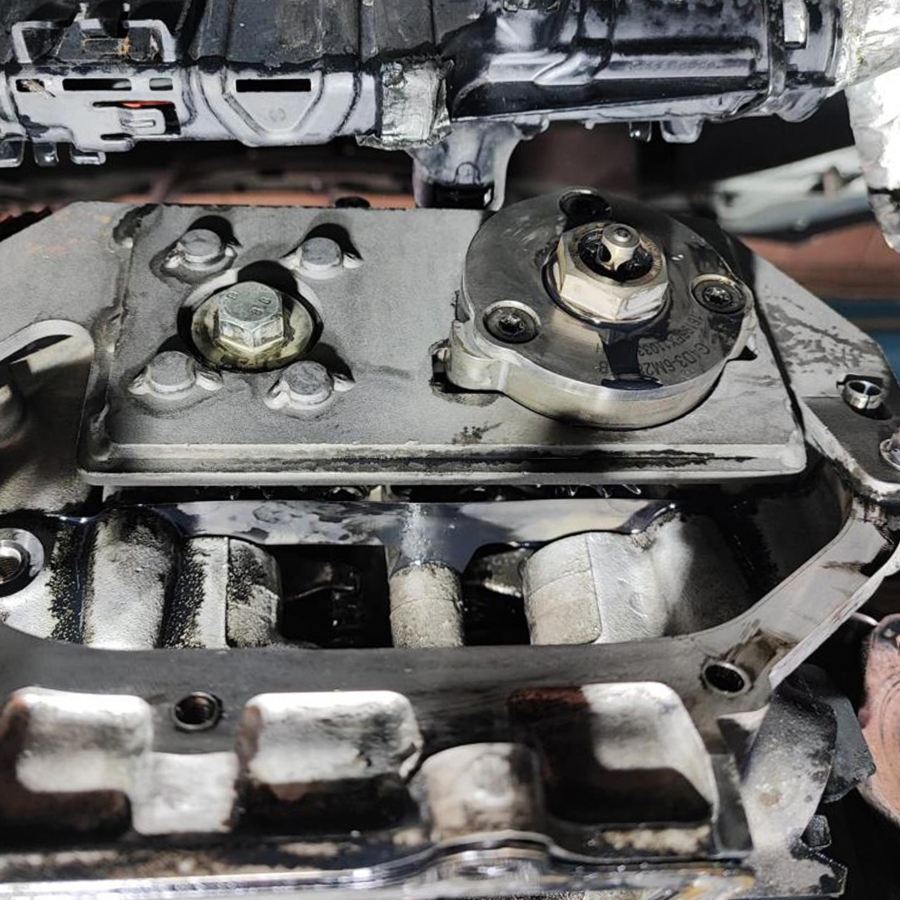

Camshaft locking tool (incl. fixing screw), to be used as JLR-303-1625

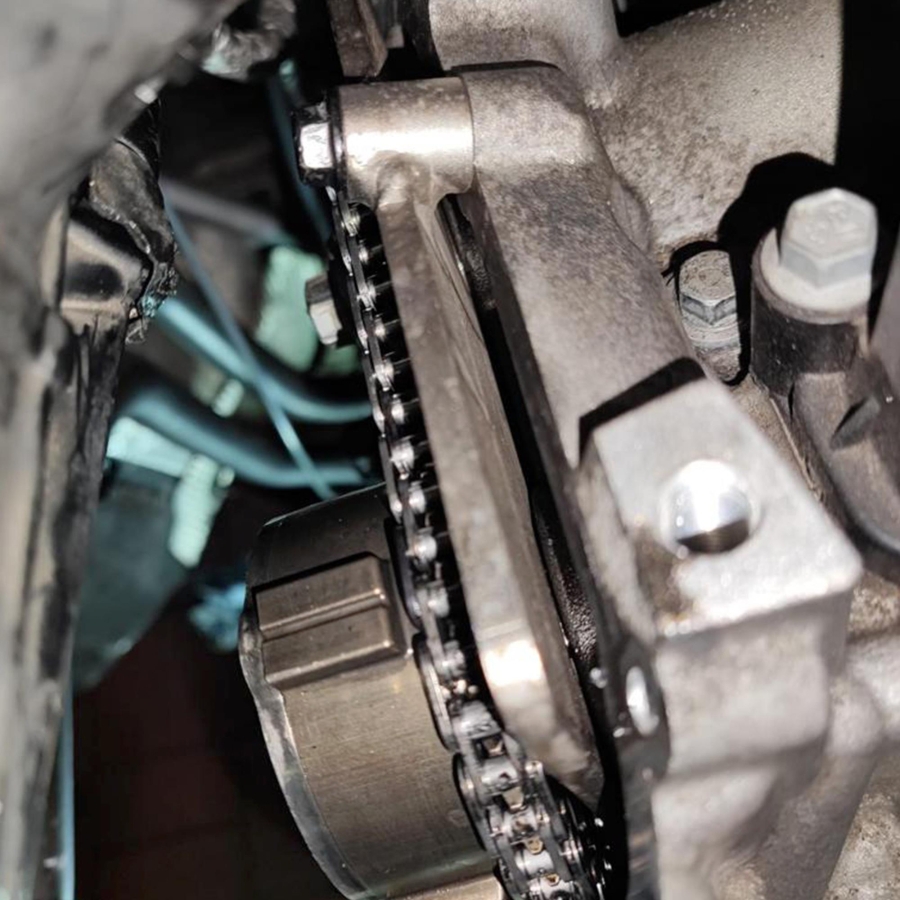

Camshaft setting / holding tool, to be used as JLR-303-1631

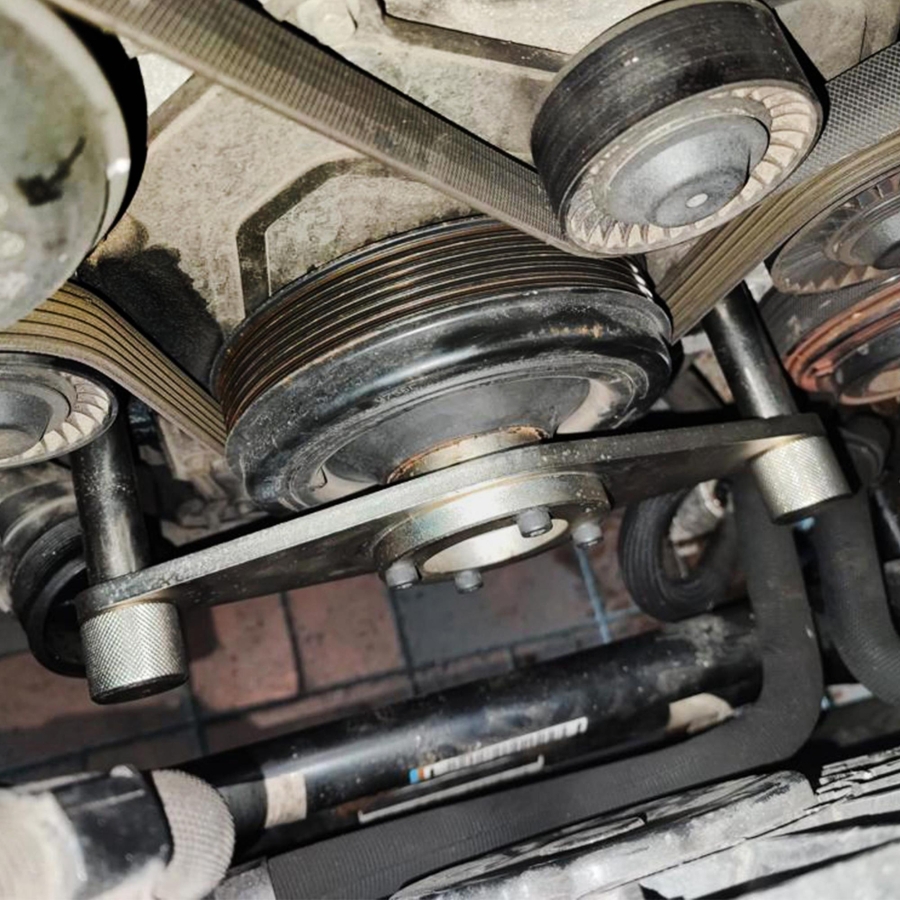

Crankshaft pulley locking tool (incl. fixing screws), to be used as JLR-303-1630
Diesel injection pump locking & removal tool (incl. fixing screws), to be used as JLR-303-1627

Original numbers are for comparison purposes only. This is not an original tool.

JAGUAR E-PACE (X540) (09.2017 - ) 2.0 D (150 HP, 110 kW) JAGUAR E-PACE (X540) (09.2017 - ) 2.0 D AWD (150 HP, 110 kW) JAGUAR E-PACE (X540) (09.2017 - ) 2.0 D AWD (179 HP, 132 kW) JAGUAR E-PACE (X540) (09.2017 - ) 2.0 D AWD (241 HP, 177 kW) JAGUAR E-PACE (X540) (09.2017 - ) 2.0 D165 (163 HP, 120 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 SD4 AWD (241 hp, 177 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 TD4 (163 HP, 120 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 TD4 (180 HP, 132 kW) JAGUAR F-PACE (X761) (09.2015 - ) 2.0 TD4 AWD (180 HP, 132 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 D (163 HP, 120 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 D (180 HP, 132 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 D AWD (180 HP, 132 kW) JAGUAR XE (X760) (03.2015 - ) 2.0 D AWD (241 HP, 177 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 D (163 HP, 120 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 D (180 HP, 132 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 D (241 HP, 177 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 D AWD (180 HP, 132 kW) JAGUAR XF (X260) (05.2015 - ) 2.0 D AWD (241 HP, 177 kW) JAGUAR XF SPORTBRAKE (X260) (07.2017 - ) 2.0 D (163 HP, 120 kW) JAGUAR XF SPORTBRAKE (X260) (07.2017 - ) 2.0 D (180 HP, 132 kW) JAGUAR XF SPORTBRAKE (X260) (07.2017 - ) 2.0 D AWD (180 HP, 132 kW) JAGUAR XF SPORTBRAKE (X260) (07.2017 - ) 2.0 D AWD (241 HP, 177 kW) LAND ROVER DEFENDER Station Wagon (L663) (09.2019 - ) 2.0 D200 SD4 4x4 (200 hp, 147 kW) LAND ROVER DEFENDER Station Wagon (L663) (09.2019 - ) 2.0 D240 SD4 4x4 (241 HP, 177 kW) LAND ROVER DEFENDER Van (L663) (02.2020 - ) 2.0 D200 SD4 4x4 (200 HP, 147 kW) LAND ROVER DEFENDER Van (L663) (02.2020 - ) 2.0 D240 SD4 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 D (150 HP, 110 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 D 4x4 (150 hp, 110 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 D 4x4 (180 HP, 132 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 D 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 D150 MHEV 4x4 (150 HP, 110 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 D165 (163 HP, 120 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 D180 MHEV 4x4 (179 hp, 132 kW) LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 2.0 D240 MHEV 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY SPORT VAN (L550) (12.2014 - ) SD4 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY SPORT VAN (L550) (12.2014 - ) TD4 4x4 (150 HP, 110 kW) LAND ROVER DISCOVERY SPORT VAN (L550) (12.2014 - ) TD4 4x4 (179 HP, 132 kW) LAND ROVER DISCOVERY SPORT VAN (L550) (12.2014 - ) eD4 E-Capability (150 HP, 110 kW) LAND ROVER DISCOVERY V (L462) (09.2016 - ) 2.0 Sd4 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY V (L462) (09.2016 - ) 2.0 Td4 4x4 (180 HP, 132 kW) LAND ROVER DISCOVERY V VAN (L462) (09.2016 - 12.2018) 2.0 Sd4 4x4 (241 HP, 177 kW) LAND ROVER DISCOVERY V VAN (L462) (09.2016 - 12.2018) 2.0 Td4 4x4 (179 HP, 132 kW) LAND ROVER RANGE ROVER EVOQUE (L538) (09.2011 - 12.2019) 2.0 D (150 HP, 110 kW) LAND ROVER RANGE ROVER EVOQUE (L538) (09.2011 - 12.2019) 2.0 D 4x4 (150 HP, 110 kW) LAND ROVER RANGE ROVER EVOQUE (L538) (09.2011 - 12.2019) 2.0 D 4x4 (180 HP, 132 kW) LAND ROVER RANGE ROVER EVOQUE (L538) (09.2011 - 12.2019) 2.0 D 4x4 (241 HP, 177 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D150 (150 HP, 110kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D150 4x4 (150 HP, 110 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D150 MHEV 4x4 (150 HP, 110 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D165 (163 HP, 120 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D165 4x4 (163 HP, 120 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D180 4x4 (180 hp, 132 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D180 MHEV 4x4 (180 HP, 132 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D200 4x4 (204 HP, 150 kW) LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 2.0 D240 MHEV 4x4 (241 HP, 177 kW) LAND ROVER RANGE ROVER EVOQUE Cabriolet (L538) (11.2015 - 12.2019) 2.0 D 4x4 (150 HP, 110 kW) LAND ROVER RANGE ROVER EVOQUE Cabriolet (L538) (11.2015 - 12.2019) 2.0 D 4x4 (180 HP, 132 kW) LAND ROVER RANGE ROVER EVOQUE Cabriolet (L538) (11.2015 - 12.2019) 2.0 D 4x4 (241 HP, 177 kW) LAND ROVER RANGE ROVER SPORT (L494) (04.2013 - 12.2019) 2.0 SD4 4x4 (241 HP, 177 kW) LAND ROVER RANGE ROVER VELAR (L560) (03.2017 - ) 2.0 D180 TD4 4x4 (180 HP, 132 kW) LAND ROVER RANGE ROVER VELAR (L560) (03.2017 - ) 2.0 D240 SD4 4x4 (241 HP, 177 kW)
