Engine Timing Tool Kit for Land Rover Range Rover 4.4D / 448DT (2011–2019)
-
Code:117781
-
Weight:7.650 Kgs
Overview:
✔ Professional timing tool set for Land Rover 4.4D / 448DT diesel engines
✔ Suitable for Range Rover and Range Rover Sport (2011–2019)
✔ Designed for timing chain service and injection pump alignment
✔ Ensures precise camshaft and crankshaft positioning
✔ Includes tools for updated crankshaft locking systems
✔ Ideal for engine repair and professional workshop use
This specialized timing tool kit is designed for setting and locking the engine timing on Land Rover 4.4D / 448DT diesel engines. It is suitable for timing chain service, engine repair, and fuel injection pump replacement, ensuring accurate synchronization of all timing components.
Vehicle Compatibility
- Range Rover L322 (2011–)
- Range Rover L405 (2013–2019)
- Range Rover Sport L494 (2014–2019)
Important Notes
- Range Rover Sport up to 2013:
• TDC position is determined via the crankshaft pulley - Range Rover Sport from 2013:
• Timing is set using a crankshaft locking pin positioned against the crankshaft web - In both cases:
• The adjustment hole on the pulley is positioned at the 9 o’clock position
Crankshaft Locking Update (from 2014)
- Updated crankshaft locking system requires:
• Locking pin used as 303-1238 / 303-1620 (included in the set)
Camshaft Positioning Note
- Camshafts feature a square profile with one rounded side
- Correct alignment position:
• Rounded side must face downward - For rotation of the camshaft:
• Camshaft turning pin used as OEM 303-1239 (included)
Functions
- Locks camshafts in correct timing position
- Secures crankshaft during timing procedures
- Enables correct alignment of fuel injection pump
- Assists in timing chain replacement and engine service

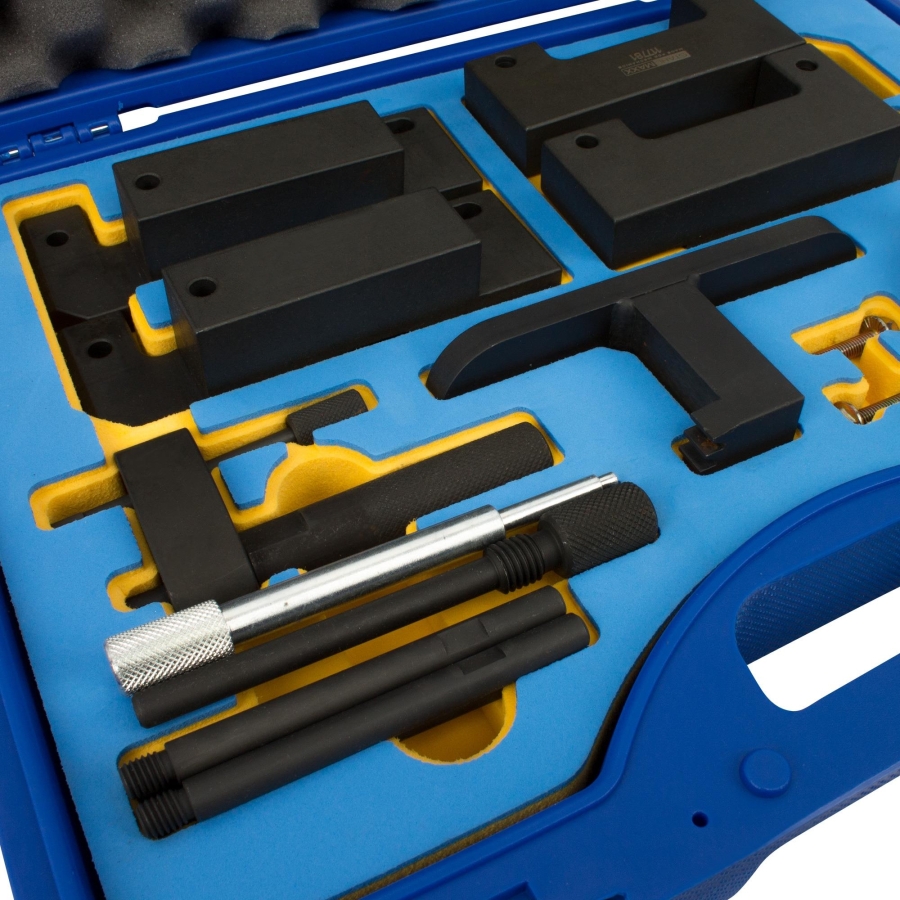

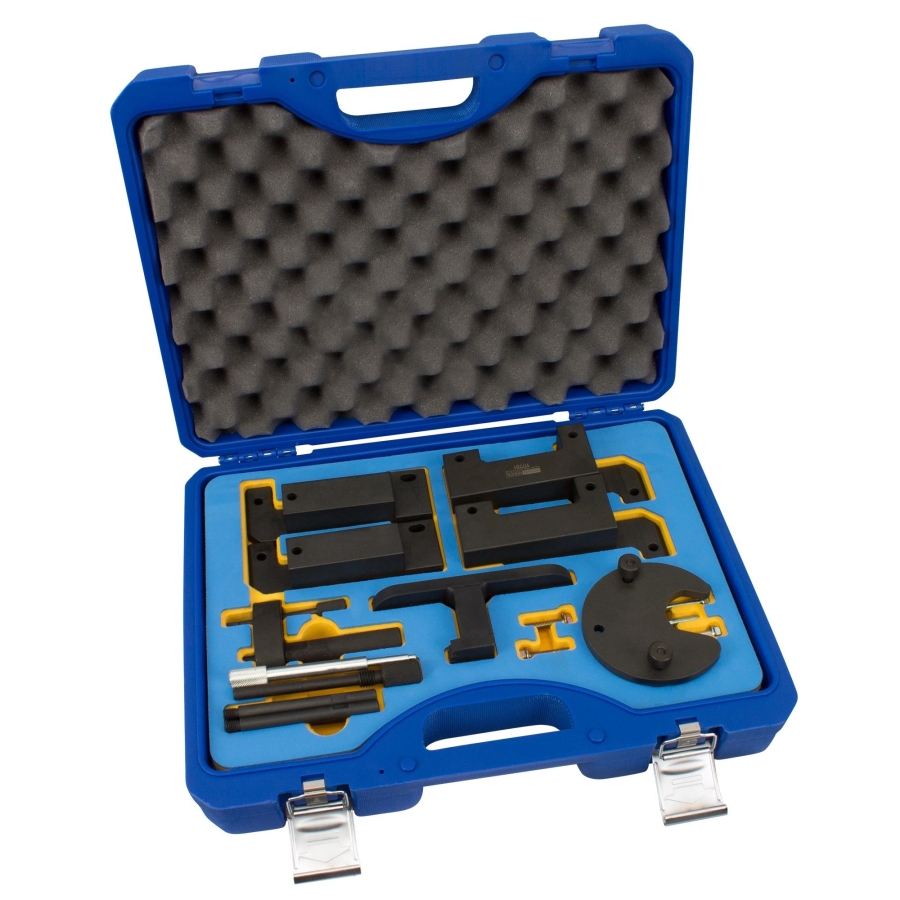

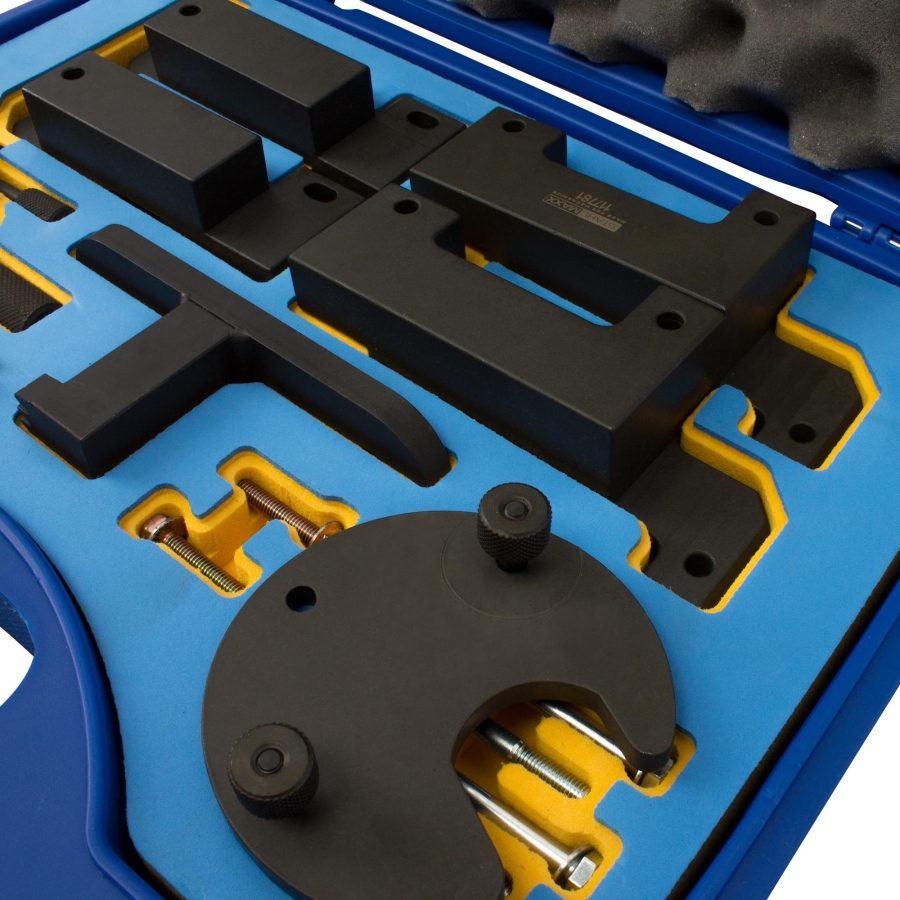

Included Tools

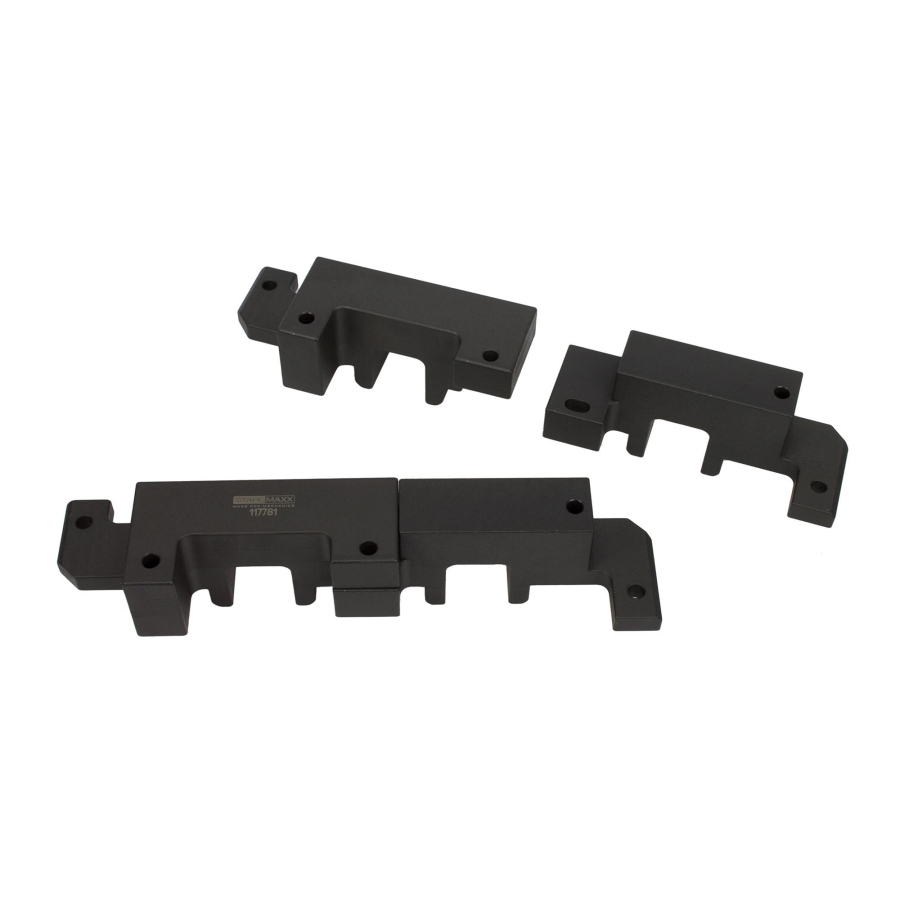

- Camshaft alignment tool – used as JLR-303-1568A

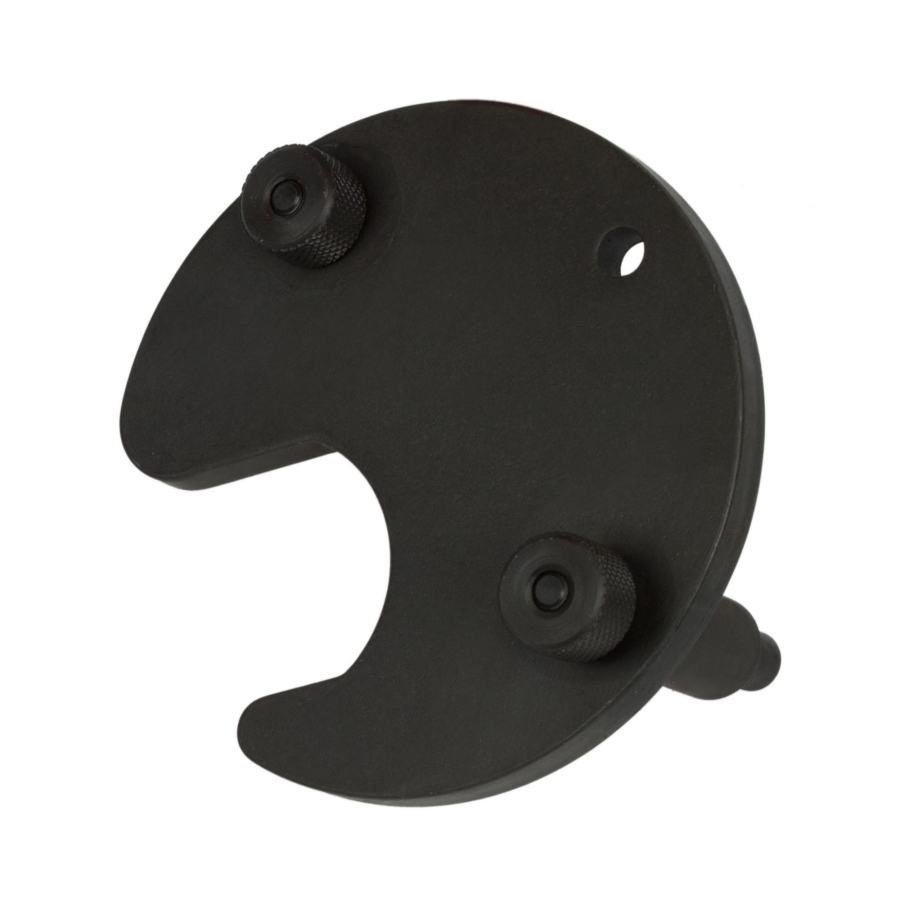

- Camshaft sprocket locking tool (fuel pump opening) – used as JLR-310-247

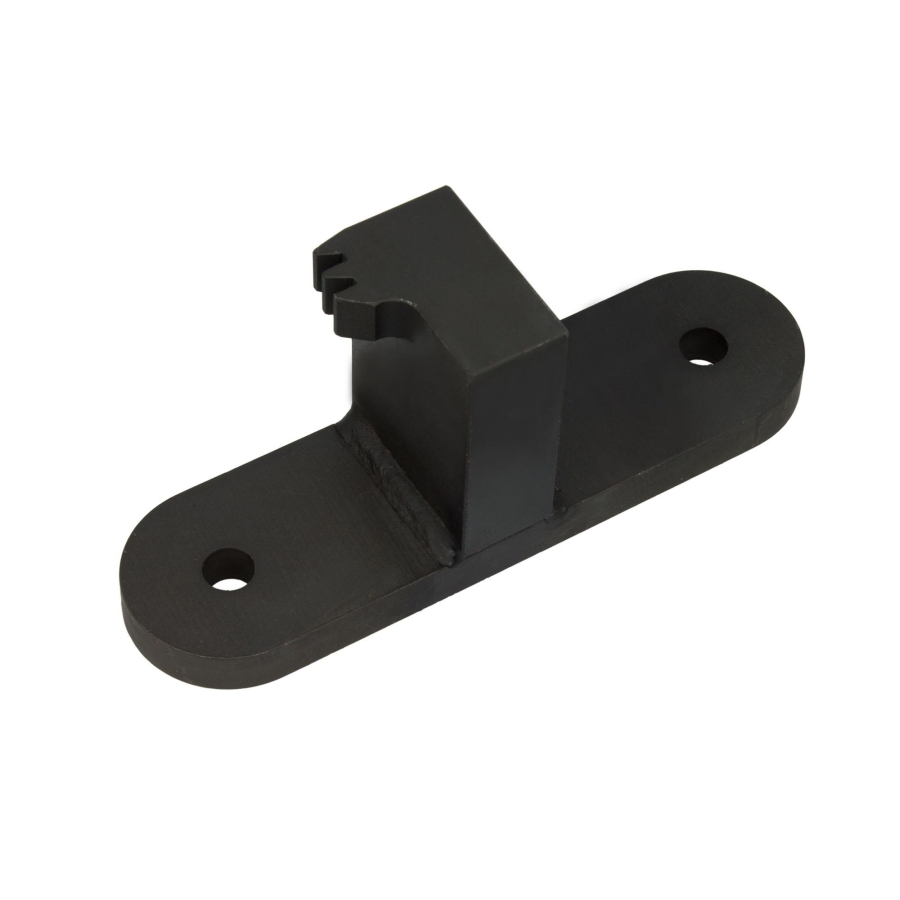

- Crankshaft setting tool – used as JLR-303-1571
- Alignment pins for fuel injection pump installation – used as JLR-310-248
- Fuel pump locking tool – used as JLR-310-246

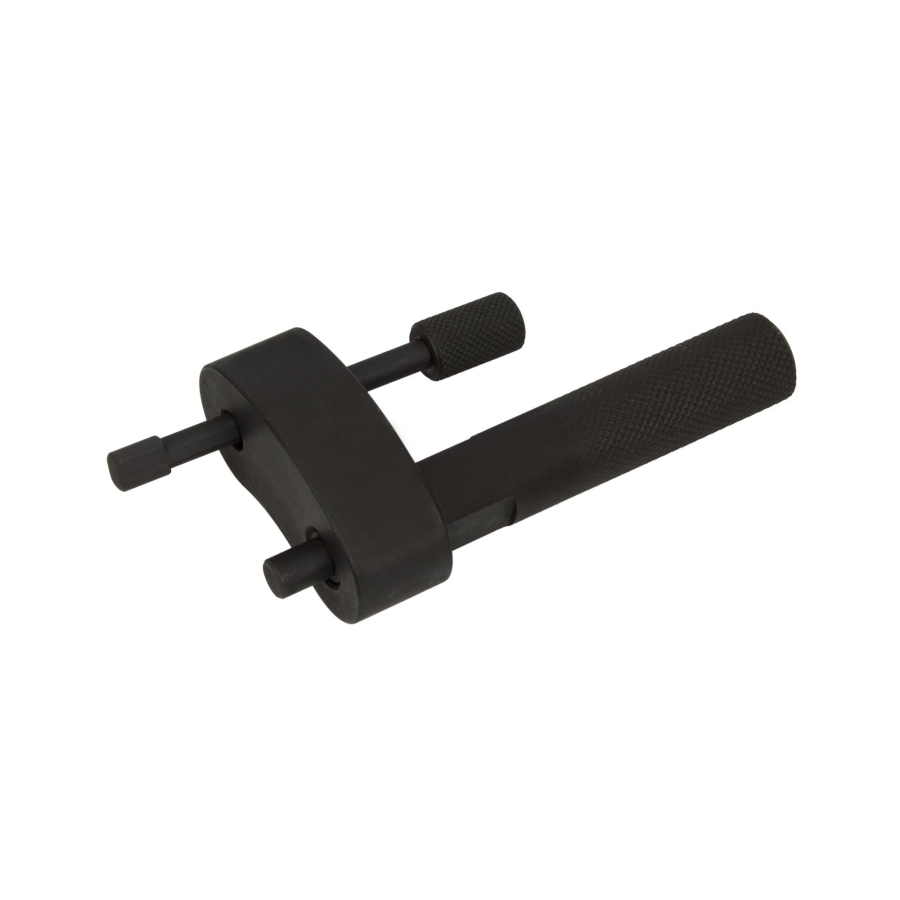

- Camshaft turning pin – used as JLR-303-1239
- Crankshaft locking pin – used as JLR-303-1238 / 303-1620
OEM numbers are provided for reference only. This product is not an original manufacturer tool.
LAND ROVER RANGE ROVER III (L322) (03.2002 - 12.2012) 4.4 D 4x4 (313 HP, 230 kW)
LAND ROVER RANGE ROVER IV (L405) (08.2012 - ) 4.4 SDV8 4x4 (313 HP, 230 kW)
LAND ROVER RANGE ROVER IV (L405) (08.2012 - ) 4.4 SDV8 4x4 (340 HP, 250 kW)
LAND ROVER RANGE ROVER IV (L405) (08.2012 - ) 4.4 SDV8 4x4 (344 HP, 253 kW)
LAND ROVER RANGE ROVER SPORT (L494) (04.2013 - 12.2019) 4.4 SDV8 4x4 (340 hp, 250 kW)
