Engine Timing Tool Set for Mini / Citroën / Peugeot 1.6 HDi Diesel

This engine timing tool set is specifically designed for precise adjustment and locking of engine timing during timing belt replacement and maintenance procedures.

It ensures accurate synchronization of the crankshaft, camshaft, and injection system, preventing engine damage and ensuring correct engine performance.

---

Vehicle Compatibility

Compatible with the following models:

Mini:

• Clubman R55
• Cooper R56 (80 kW / 109 HP)

Citroën:

• Berlingo
• C2 / C3 / C4 / C5
• 1.6 HDi (80 kW / 109 HP)

Peugeot:

• 206 / 207 / 307 / 308
• 1007 / 3008 / 5008
• 1.6 HDi (80 kW / 109 HP)

---

Engine Compatibility

Suitable for the following engine codes:

• 9HD (DV6C)
• 9HF (DV6DTED)
• 9HJ (DV6DTEDM)
• 9HP (DV6DTED)
• 9HS (DV6TED4BU)
• 9HV
• 9HV (DV6ATED4 / DV6TED4 / DV6TED4B / DV6TED4BU)
• 9HX (DV6ATED4 / DV6AUTED4)
• 9HY (DV6TED4)
• 9HZ (DV6TED4 / DV6TED4 variants)
• W16D16 (9HZ)
• W16D16UO

---

Function

The tool set allows:

• Locking of crankshaft and camshaft in correct timing position
• Securing the flywheel during service operations
• Accurate alignment during timing belt replacement
• Prevention of engine misalignment and damage

---

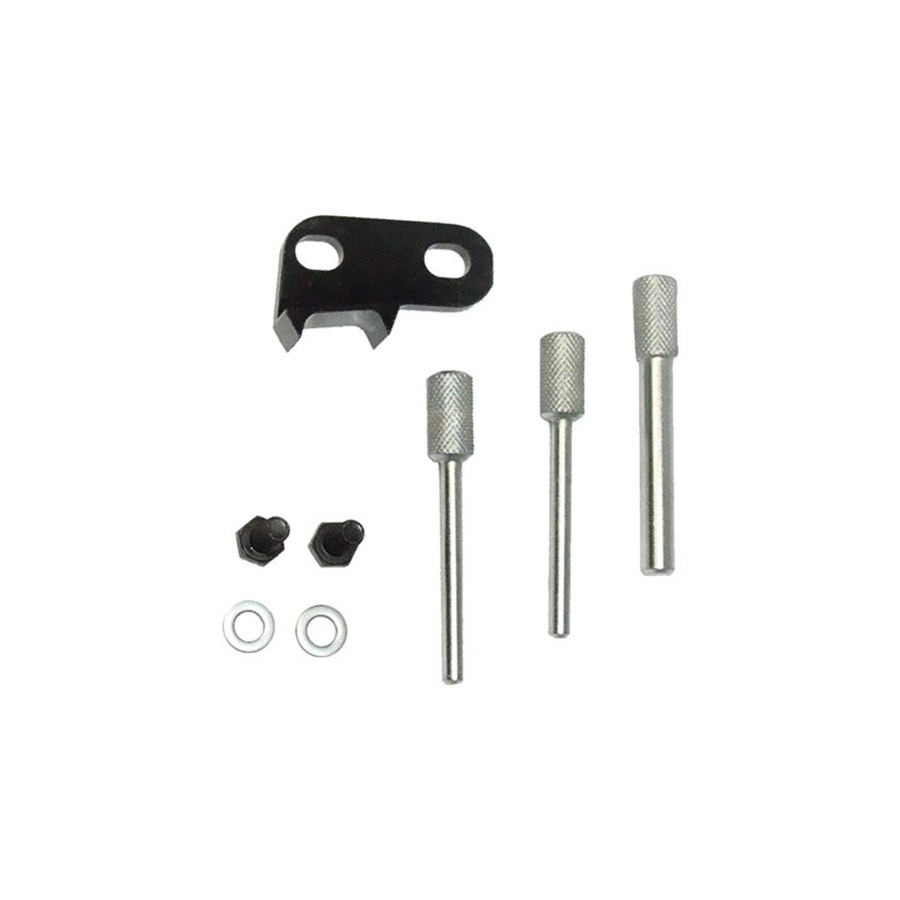

Contents

• 2 × Timing locking tools for crankshaft, camshaft, and injection pump
  0194-A, 119790
• 1 × Locking pin for crankshaft / camshaft (7.8 mm)
  0194-B, 110300
• 1 × Flywheel locking tool
  119850, 119851, 119852



OEM numbers are for reference purposes only. This is not an original tool.
