Engine Timing Tool Set for Mercedes-Benz & Chrysler Petrol and Diesel Engines
-
Code:9326
-
Weight:0.850 Kgs
Overview:
✔ Professional engine timing tool set for Mercedes-Benz and Chrysler
✔ Suitable for a wide range of petrol and diesel engines
✔ Covers engine codes 102, 111, 104, 119, 120 and multiple diesel variants
✔ Includes flywheel locking tools and camshaft locking pins
✔ Designed for timing adjustment and engine service operations
✔ Compatible with various Mercedes passenger and commercial models
✔ Suitable for workshop and professional use
This engine timing tool set is designed for servicing, locking, and adjusting engine timing on a wide range of Mercedes-Benz and Chrysler petrol and diesel engines.
It is suitable for both passenger cars and light commercial vehicles, enabling accurate timing work during maintenance and repair.
Functionality
The tool set ensures precise positioning and locking of engine components during timing procedures:
- Allows secure locking of flywheel during service operations
- Enables accurate camshaft positioning and timing adjustment
- Supports maintenance, repair, and engine rebuild tasks
- Designed for both petrol and diesel engine applications
Compatibility
- Suitable for Mercedes-Benz and Chrysler models:
- 190
- C-Class
- CLK
- E-Class
- S-Class
- SL
- SLK
- G-Class
- M-Class
- Vito
- Sprinter
- Viano
- PT Cruiser
- Grand Cherokee
- Petrol engines:
- 1.8 / 2.0 / 2.2 / 2.3 / 2.5
- 2.8 / 3.0 / 3.2 / 3.3
- 4.2 / 5.0 / 6.0
- Engine codes:
- M102
- M111
- M104 (except AMG)
- M119
- M120
- Diesel engines:
- 2.0D / 2.2D / 2.3D / 2.5D / 2.5TD
- 2.9D / 2.9TD / 3.0D / 3.0TD
- 3.5D / 3.5TD
- 2.0 CDI / 2.2 CDI / 2.3 CDI
- 2.7 CDI / 3.2 CDI / 3.5 CDI / 3.9 CDI / 4.0 CDI
- 2.2 CRD / 2.7 CRD
- Engine codes:
- OM601
- OM602
- OM603
- OM604
- OM605
- OM606
- OM611
- OM612
- OM613
- OM628
- OM646
- OM647
- OM648
- EDJ
Technical Specifications
- Tool type: Engine timing tool set
- Application: Timing locking and adjustment
- Engine types: Petrol and diesel
- Vehicle compatibility: Mercedes-Benz and Chrysler
Scope of Delivery
| Description | OEM Reference |
|---|---|

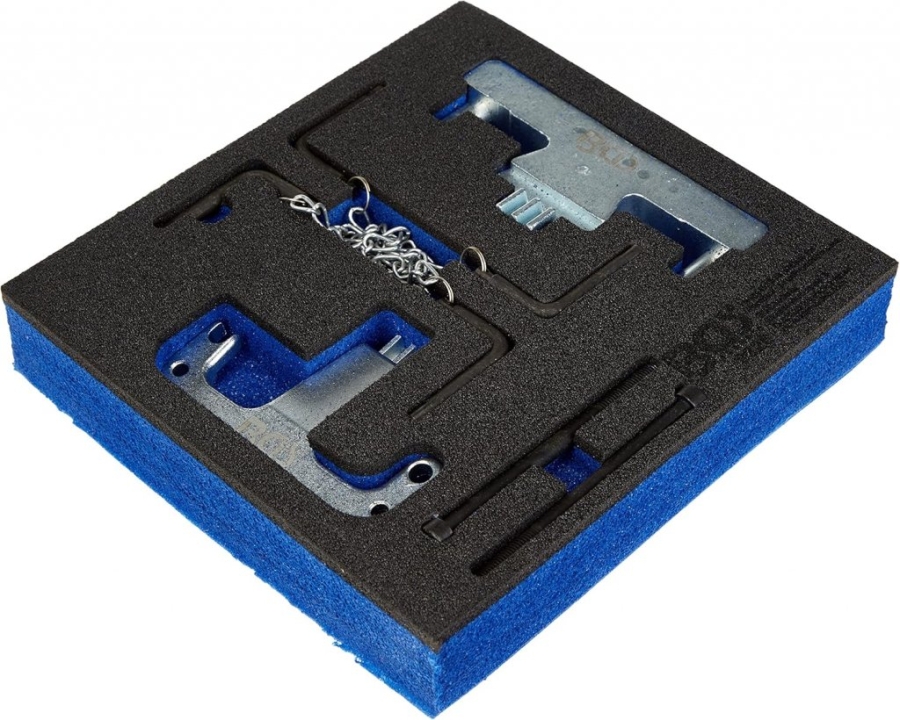

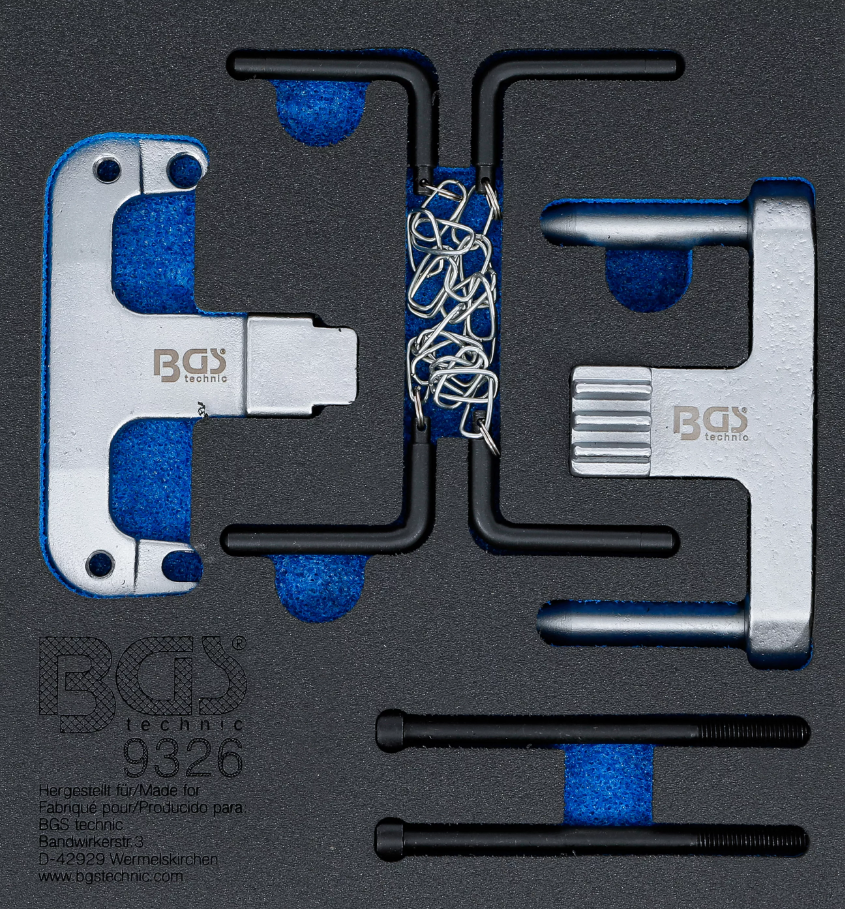

| Flywheel locking tool incl. 2x M6 x 90 mm bolts | 601589024000, 8933 |
| Flywheel locking tool | 112589034000 |
| Camshaft locking pin set | 602589004000, 8929 |
OEM Reference
Compatible for use as:
- 601589024000
- 8933
- 112589034000
- 602589004000
- 8929
OEM numbers are provided for identification purposes only. This product is not an original tool.

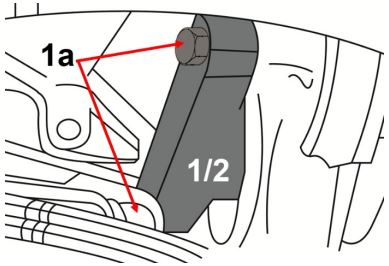

The flywheel locking tools (1 or 2) are mounted at the starter mounting points on the bell housing and prevent the flywheel from rotating when loosening or tightening the crankshaft pulley.

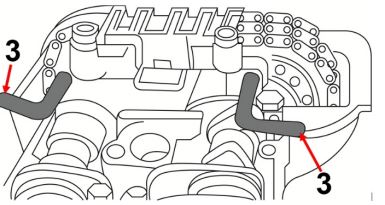

The camshaft locking pins (3) are suitable for use with single, double, and quad camshaft setups.
On engines with four camshafts and larger displacement, the locking pins are inserted through corresponding holes on the rear side of the valve cover into the holes of the camshaft gears.
