Engine Timing Tool Set for Porsche M46 & M48 (3.6L, 4.5L, 4.8L) with Timing Chain

Price: €395.00 772.55лв.

Code:

999146
Weight:

3.672 Kgs

Overview:
✔ Professional engine timing tool set for Porsche M46 and M48 engines
✔ Designed for precise camshaft timing adjustment on 3.6L, 4.5L and 4.8L engines
✔ Includes pneumatic chain tensioner with OEM-equivalent feed performance
✔ Compatible with a wide range of M46 and M48 engine codes
✔ Supplied in foam insert and durable workshop case
✔ Used as OEM 9678/1, 9683/1, 9595/1
✔ Ideal for professional workshop use

Engine Timing Tool Set for Porsche M46 & M48 (3.6L, 4.5L, 4.8L) with Timing Chain

Send to friend

Rate this product

This high-quality engine timing tool set is designed for accurate adjustment of camshaft timing on Porsche engines with timing chains. It is essential for engine repair operations such as camshaft replacement, cylinder head service, and timing chain maintenance.

Professional Tool Design

All included tools are manufactured to match OEM specifications, ensuring precise fit and reliable operation. The pneumatic chain tensioner is engineered to deliver identical feed performance to the original tool, which is critical for correct timing setup.

Important Thread Compatibility Note

The included pneumatic chain tensioner features a 22 mm thread with 1.0 pitch. Some vehicles are equipped with a 1.5 pitch thread, and it is not possible to determine the thread type without inspection.

It is essential to verify that your engine uses a 22 mm thread with 1.0 pitch before purchasing. If your vehicle requires a 1.5 pitch tensioner, a different tool or replacement tensioner will be necessary.

Repair Notes

(Reference: M48/51 engine, Porsche Cayenne 9PA)
The pneumatic chain tensioner must first be pressurized with 1.0 bar, then increased to 5.0–5.5 bar for correct operation.

Torque Specifications

Camshaft central bolts: 10 Nm → 50 Nm → +90°
Camshaft adjuster central bolts: 10 Nm → 50 Nm → +135°
Crankshaft pulley central bolt: 20 Nm → 50 Nm → 100 Nm → +180°

Engine Compatibility

Compatible with the following engine codes:
M46/20, M46/40
M48/00, M48/01, M48/02, M48/20, M48/40, M48/50, M48/50S, M48/50T, M48/51, M48/52, M48/70

Key Features

✔ Precision-engineered special tools
✔ OEM-equivalent design and fit
✔ Includes application data sheet and reference table
✔ Professional storage in foam insert and workshop case

Tool Reference

Used as:
9678/1, 00072196781
9683/1, 00072196831
9595/1, 00072195951

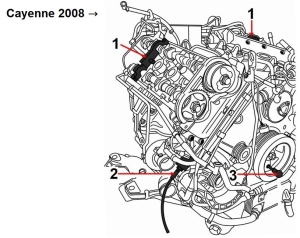

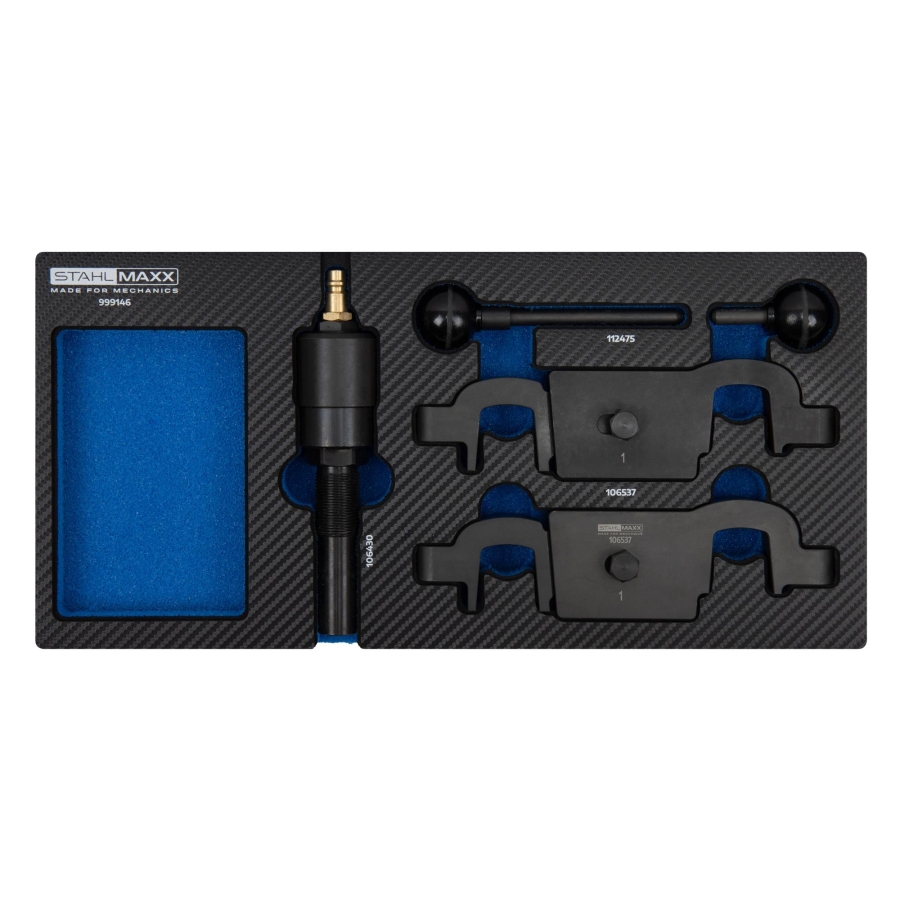

Scope of Delivery

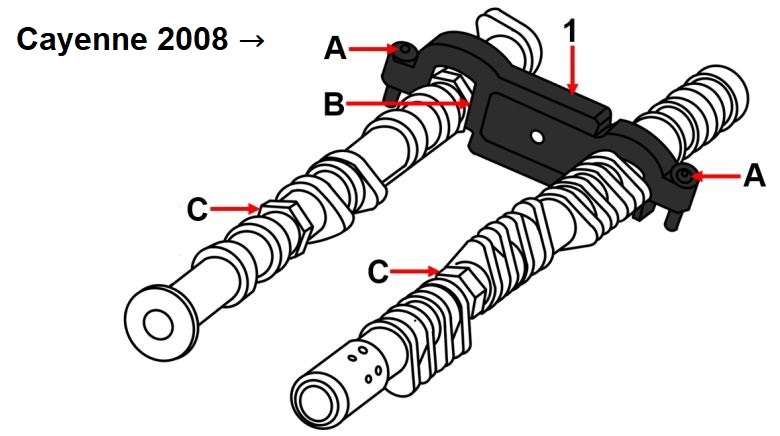

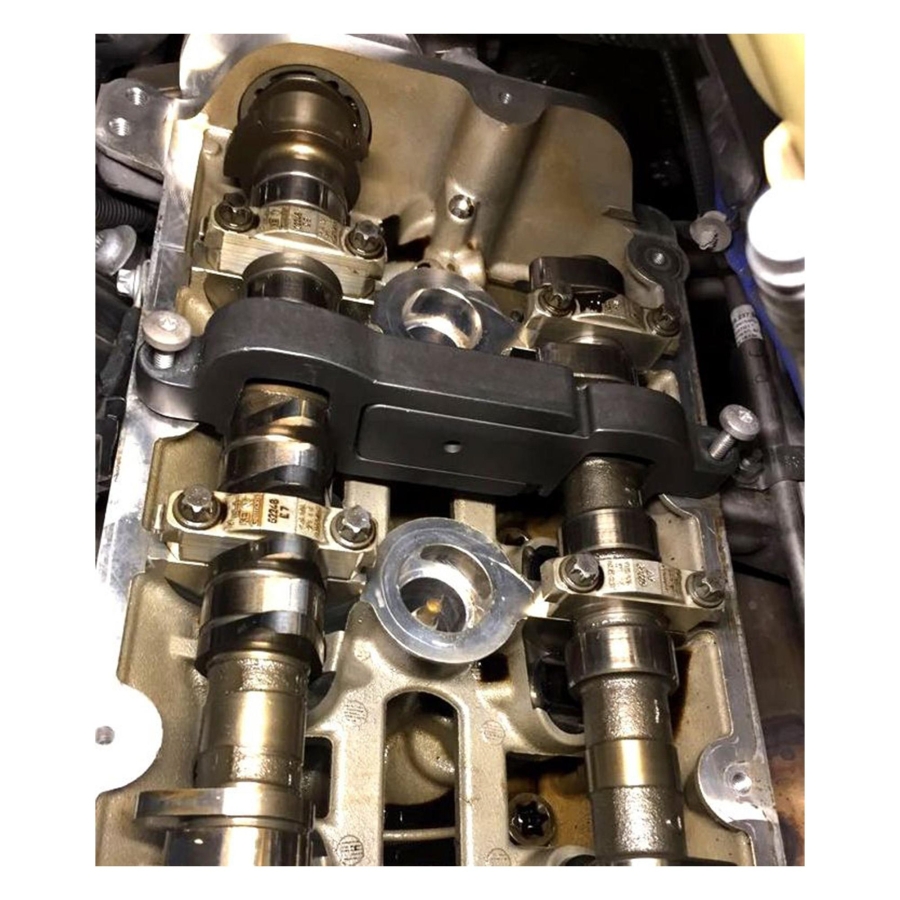

✔ item.no. 106537 Camshaft alignment tools (2 pcs) – as 9678/1, 00072196781
✔ item.no. 106430 Pneumatic chain tensioner – as 9683/1, 00072196831

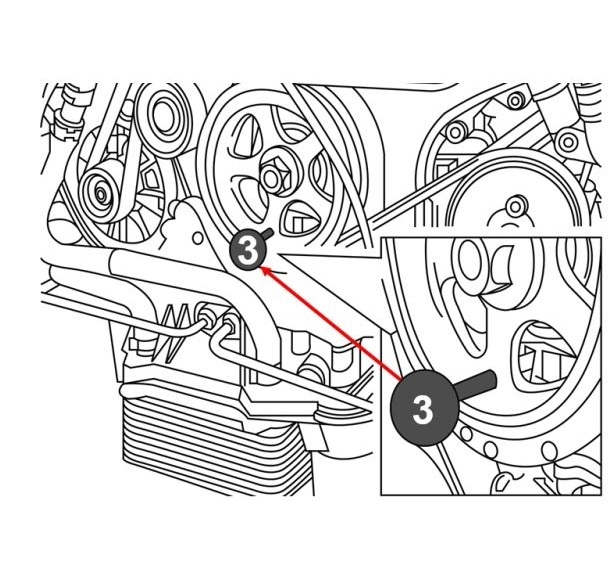

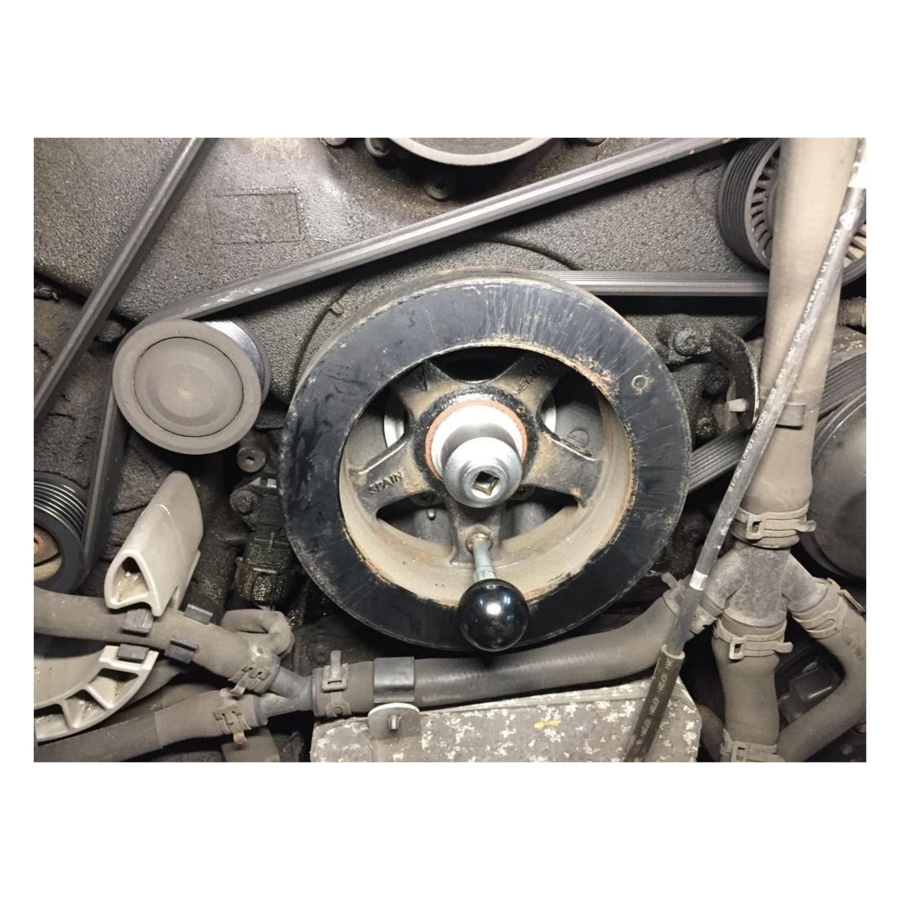

✔ item.no. 112475 Locking pins (2 pcs) – as 9595/1, 00072195951

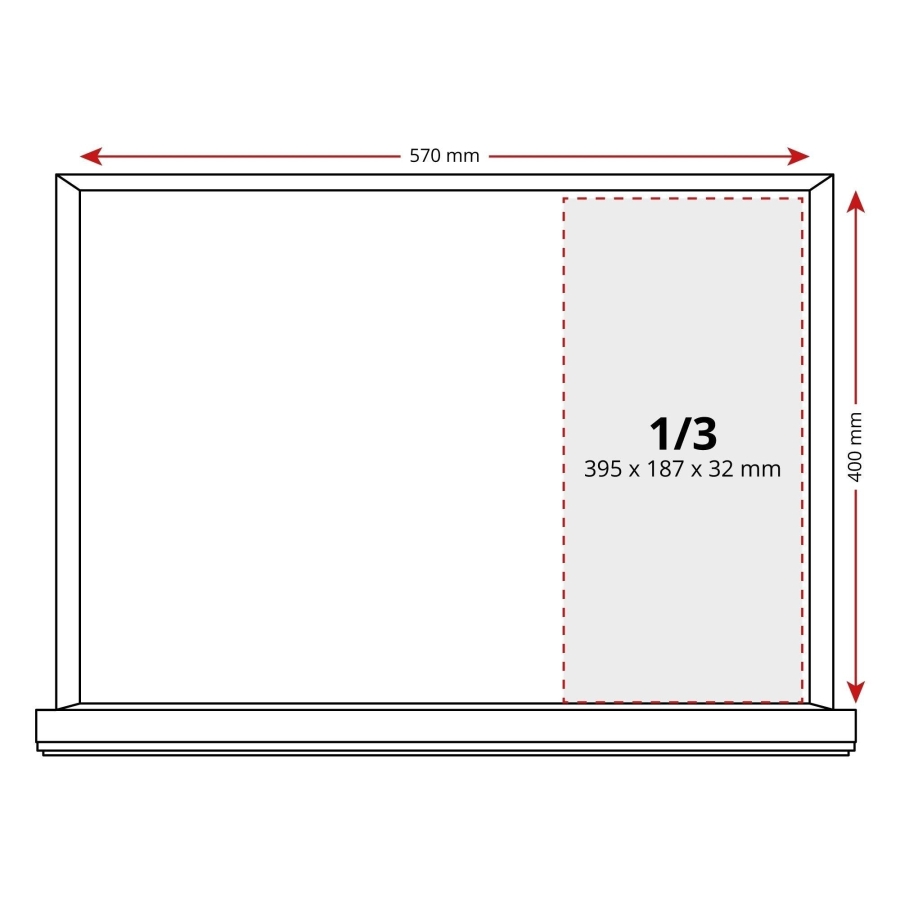

✔ item.no. 999146S Foam insert 1/3 [395 × 187 × 32 mm]

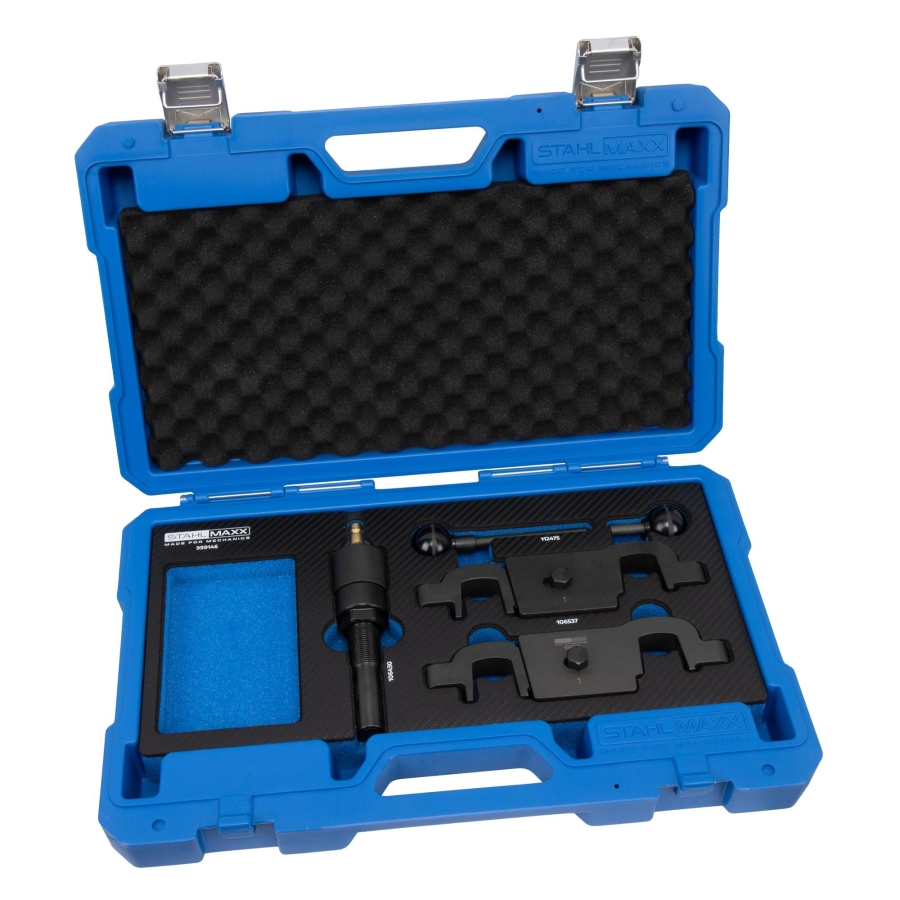

✔ item.no. 115269 Storage case 1/3

Original numbers are for comparison purposes only. This is not an original tool.

PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 GTS (420 HP, 309 kW)

PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 S (400 HP, 294 kW)

PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 Turbo (500 HP, 368 kW)

PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 Turbo (540 HP, 397 kW)

PORSCHE CAYENNE (92A) (06.2010 - ) 4.8 Turbo S (550 HP, 405 kW)

PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) GTS 4.8 (405 4.8 hp (298 kW)

PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) S 4.8 (385 hp, 283 kW)

PORSCHE CAYENNE (9PA) (09.2002 - 12.2010) Turbo 4.5 (450 hp, 331 kW)

PORSCHE PANAMERA (970) (03.2009 - 12.2017) 3.6 (300 hp, 220 kW)

PORSCHE PANAMERA (970) (03.2009 - 12.2017) 3.6 4 (300 hp, 220 kW)

PORSCHE PANAMERA (970) (03.2009 - 12.2017) 4.8 (411 hp, 302 kW)
