Engine Timing Tool Set for VAG 2.0 FSI
-
Code:999128
-
Weight:1.890 Kgs
Overview:
✔ Professional engine timing tool set for VAG 2.0 FSI engines
✔ Designed for timing chain and timing belt service operations
✔ Suitable for Audi, VW, Seat and Skoda petrol engines
✔ Includes camshaft locking, crankshaft positioning and tensioning tools

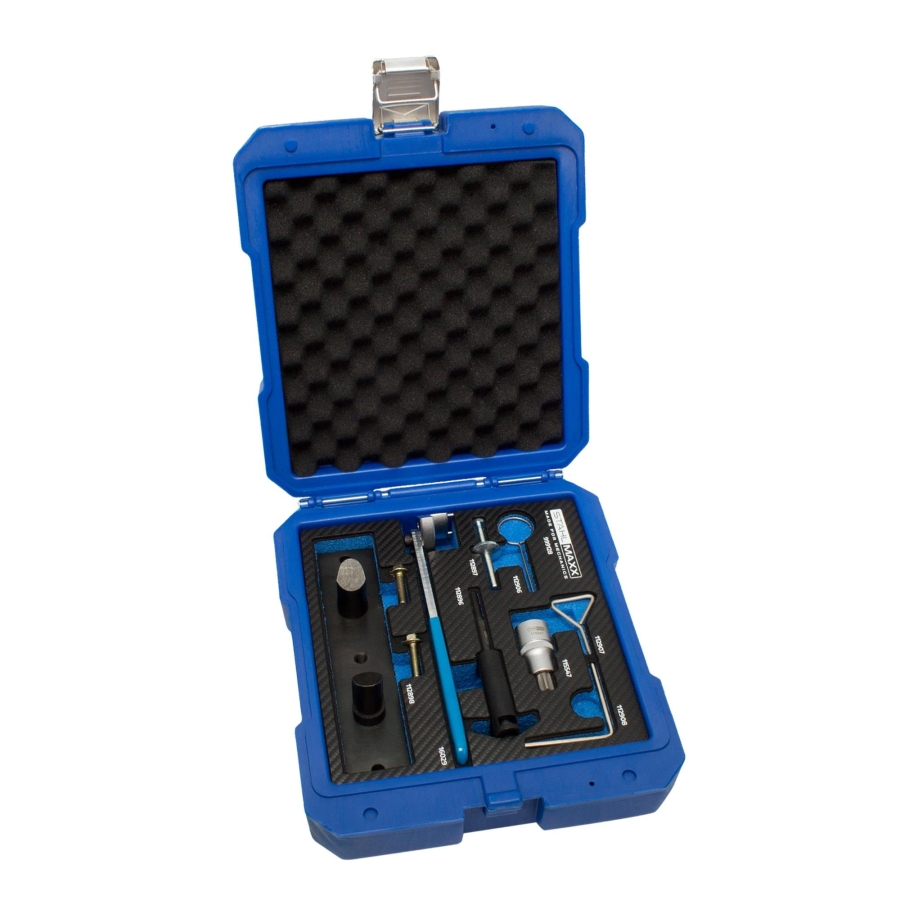

✔ Supplied in durable case with precision-cut foam insert
Professional special tool set designed for engine timing service and repair work on VAG 2.0 FSI engines.

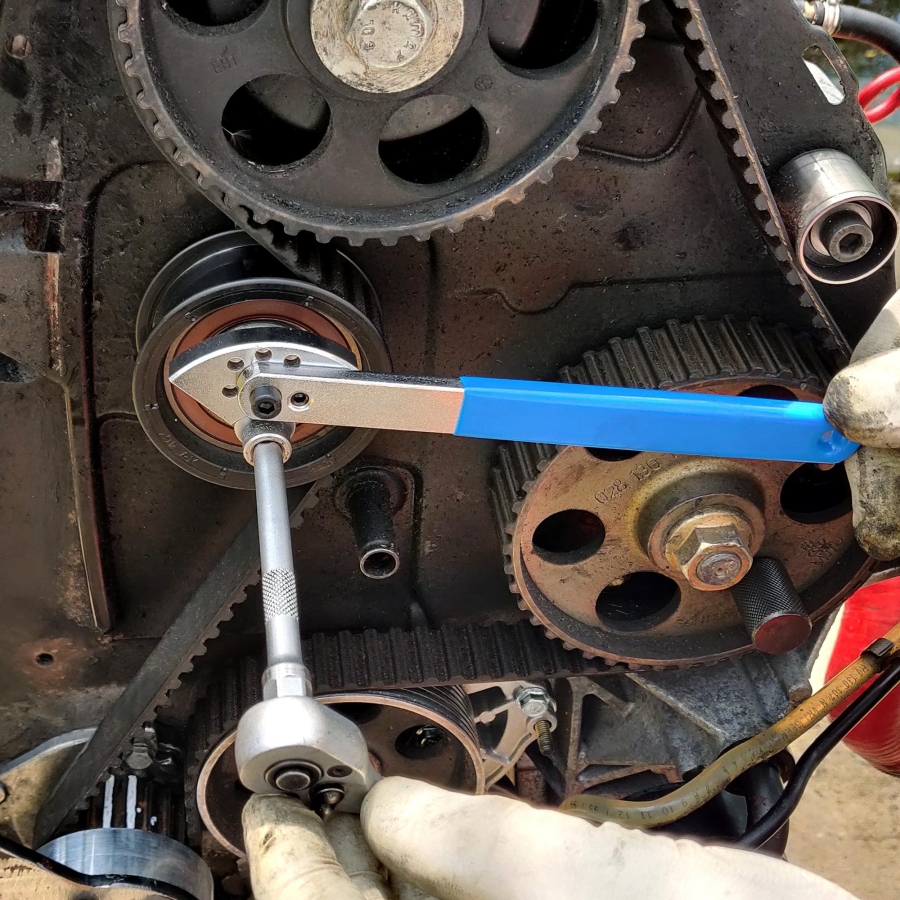

Suitable for procedures such as camshaft locking, crankshaft positioning, timing chain or timing belt replacement, and tensioning system adjustment.
Compatibility
Compatible with the following engine codes:
AWA, AXW, AXX, BLR, BLX, BLY, BMB, BPY, BVX, BVY, BVZ, BWA, BWA1, CAWB, CBFA, CCTA, CCZA
Applicable for: Audi, Volkswagen, Seat, Skoda
Key Features
- Complete set for timing chain and timing belt service
- Designed for professional daily workshop use
- Durable storage case with high-quality foam insert
- Foam insert is resistant, easy to clean, and ensures tool stability
OEM Reference
T10252, 3366, T10092, T40080, T10020, T40011, T10115, T10060A

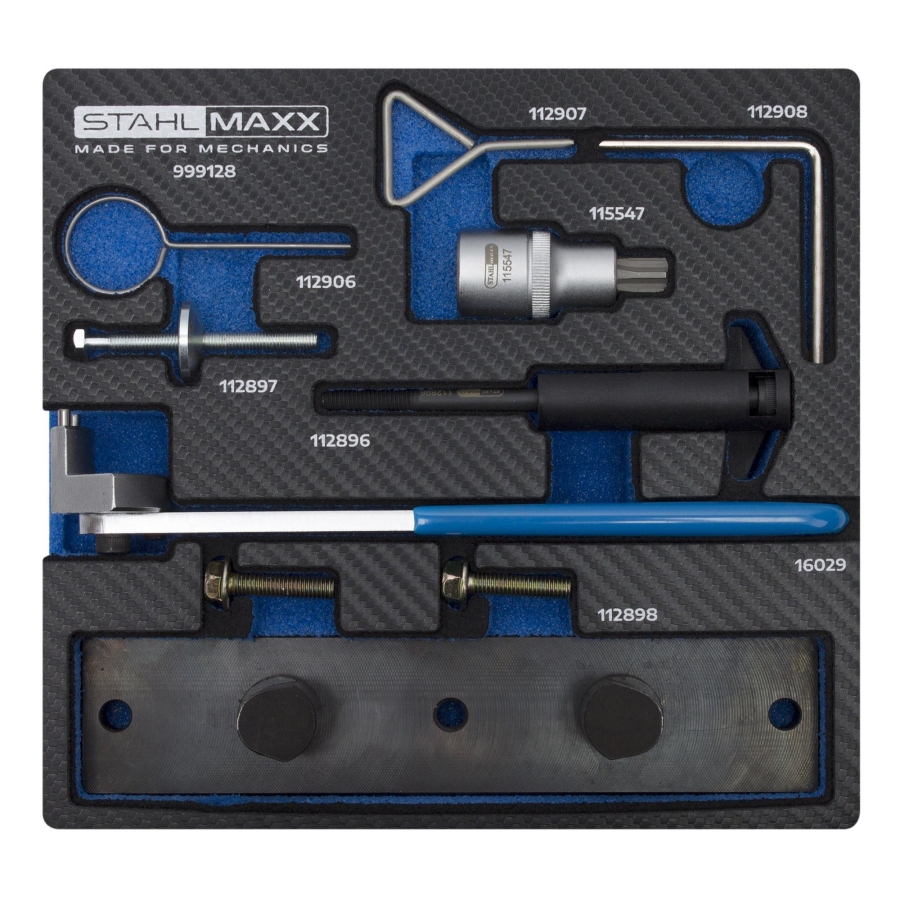

Scope of Delivery
| Description | OEM Reference |
|---|---|
| Camshaft locking tool | T10252 |
| Chain tensioner holder | 3366 |
| Timing belt tensioning screw | T10092 |
| Bit socket M10 Polydrive | T40080 |
| Two-pin spanner for tensioner pulley | T10020 |
| Locking pin for belt tensioner | T40011 |
| Locking pin for tensioner pulley | T10115 |
| Locking pin for belt tensioner | T10060A |
The OEM numbers are provided for identification purposes only. This product is not an original manufacturer tool.
AUDI A3 (8P1) (05.2003 - 08.2012) 2.0 FSI (150 HP, 110 kW)
AUDI A3 (8P1) (05.2003 - 08.2012) 2.0 TFSI (200 HP, 147 kW)
AUDI A3 (8P1) (05.2003 - 08.2012) 2.0 TFSI quattro (200 HP, 147 kW)
AUDI A3 Sportback (8PA) (09.2004 - 12.2015) 2.0 FSI (150 HP, 110 kW)
AUDI A3 Sportback (8PA) (09.2004 - 12.2015) 2.0 TFSI (200 HP, 147 kW)
AUDI A3 Sportback (8PA) (09.2004 - 12.2015) 2.0 TFSI quattro (200 HP, 147 kW)
AUDI A4 B6 (8E2) (11.2000 - 12.2005) 2.0 FSI (150 HP, 110 kW)
AUDI A4 B6 Avant (8E5) (04.2001 - 12.2005) 2.0 FSI (150 HP, 110 kW)
AUDI A4 B7 (8EC) (11.2004 - 06.2008) 2.0 FSI (150 HP, 110 kW)
AUDI TT (8J3) (07.2006 - 01.2015) 2.0 TFSI (200 HP, 147 kW)
AUDI TT (8J3) (07.2006 - 01.2015) 2.0 TFSI quattro (200 HP, 147 kW)
AUDI TT Roadster (8J9) (05.2008 - 06.2014) 2.0 TFSI (200 HP, 147 kW)
SEAT ALTEA (5P1) (03.2004 - 08.2011) 2.0 FSI (150 HP, 110 kW)
SEAT ALTEA (5P1) (03.2004 - 08.2011) 2.0 TFSI (200 HP, 147 kW)
SEAT ALTEA XL (5P5, 5P8) (10.2006 - 12.2012) 2.0 FSI (150 HP, 110 kW)
SEAT ALTEA XL (5P5, 5P8) (10.2006 - 12.2012) 2.0 TFSI (200 HP, 147 kW)
SEAT ALTEA XL (5P5, 5P8) (10.2006 - 12.2012) 2.0 TFSI 4x4 (200 HP, 147 kW)
SEAT LEON (1P1) (05.2005 - 12.2013) 2.0 FSI (150 HP, 110 kW)
SEAT LEON (1P1) (05.2005 - 12.2013) 2.0 TFSI (185 HP, 136 kW)
SEAT LEON (1P1) (05.2005 - 12.2013) 2.0 TFSI (200 HP, 147 kW)
SEAT TOLEDO III (5P2) (04.2004 - 05.2009) 2.0 FSI (150 HP, 110 kW)
SEAT TOLEDO III (5P2) (04.2004 - 05.2009) 2.0 TFSI (200 HP, 147 kW)
SKODA OCTAVIA III (1Z3) (02.2004 - 06.2013) 2.0 FSI (150 HP, 110 kW)
SKODA OCTAVIA III (1Z3) (02.2004 - 06.2013) 2.0 RS (200 HP, 147 kW)
SKODA OCTAVIA III Combi (1Z5) (02.2004 - 06.2013) 2.0 FSI (150 HP, 110 kW)
SKODA OCTAVIA III Combi (1Z5) (02.2004 - 06.2013) 2.0 FSI 4x4 (150 HP, 110 kW)
SKODA OCTAVIA III Combi (1Z5) (02.2004 - 06.2013) 2.0 RS (200 HP, 147 kW)
VW EOS (1F7, 1F8) (03.2006 - 08.2015) 2.0 FSI (150 HP, 110 kW)
VW EOS (1F7, 1F8) (03.2006 - 08.2015) 2.0 TFSI (200 HP, 147 kW)
VW GOLF PLUS V (5M1, 521) (12.2004 - 12.2013) 2.0 FSI (150 HP, 110 kW)
VW GOLF V (1K1) (10.2003 - 02.2009) 2.0 FSI (150 HP, 110 kW)
VW GOLF V (1K1) (10.2003 - 02.2009) 2.0 FSI 4motion (150 HP, 110 kW)
VW GOLF V (1K1) (10.2003 - 02.2009) 2.0 GTI (200 HP, 147 kW)
VW GOLF V Variant (1K5) (01.2007 - 07.2009) 2.0 (200 HP, 147 kW)
VW JETTA III (1K2) (09.2004 - 12.2013) 2.0 FSI (150 HP, 110 kW)
VW JETTA III (1K2) (09.2004 - 12.2013) 2.0 TFSI (200 HP, 147 kW)
VW PASSAT B6 (3C2) (03.2005 - 11.2010) 2.0 FSI (150 HP, 110 kW)
VW PASSAT B6 (3C2) (03.2005 - 11.2010) 2.0 FSI (200 HP, 147 kW)
VW PASSAT B6 (3C2) (03.2005 - 11.2010) 2.0 FSI 4motion (150 HP, 110 kW)
VW PASSAT B6 Variant (3C5) (08.2005 - 10.2011) 2.0 FSI (150 HP, 110 kW)
VW PASSAT B6 Variant (3C5) (08.2005 - 10.2011) 2.0 FSI (200 HP, 147 kW)
VW PASSAT B6 Variant (3C5) (08.2005 - 10.2011) 2.0 FSI 4motion (150 HP, 110 kW)
VW TOURAN (1T1, 1T2) (02.2003 - 05.2010) 2.0 FSI (150 HP, 110 kW)
VW TOURAN VAN (1T1, 1T2) (02.2003 - 05.2010) 2.0 FSI (150 HP, 110 kW)
