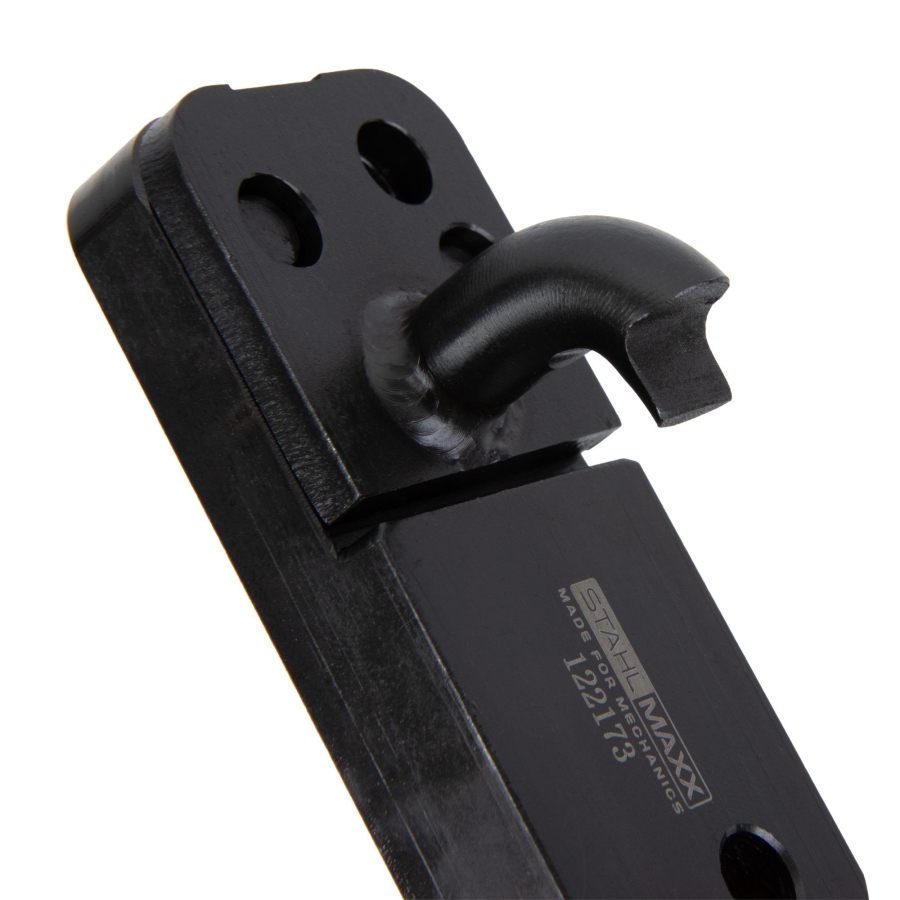

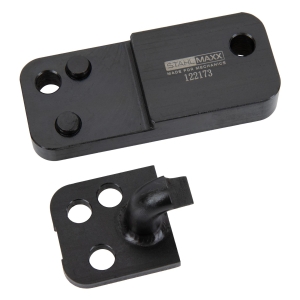

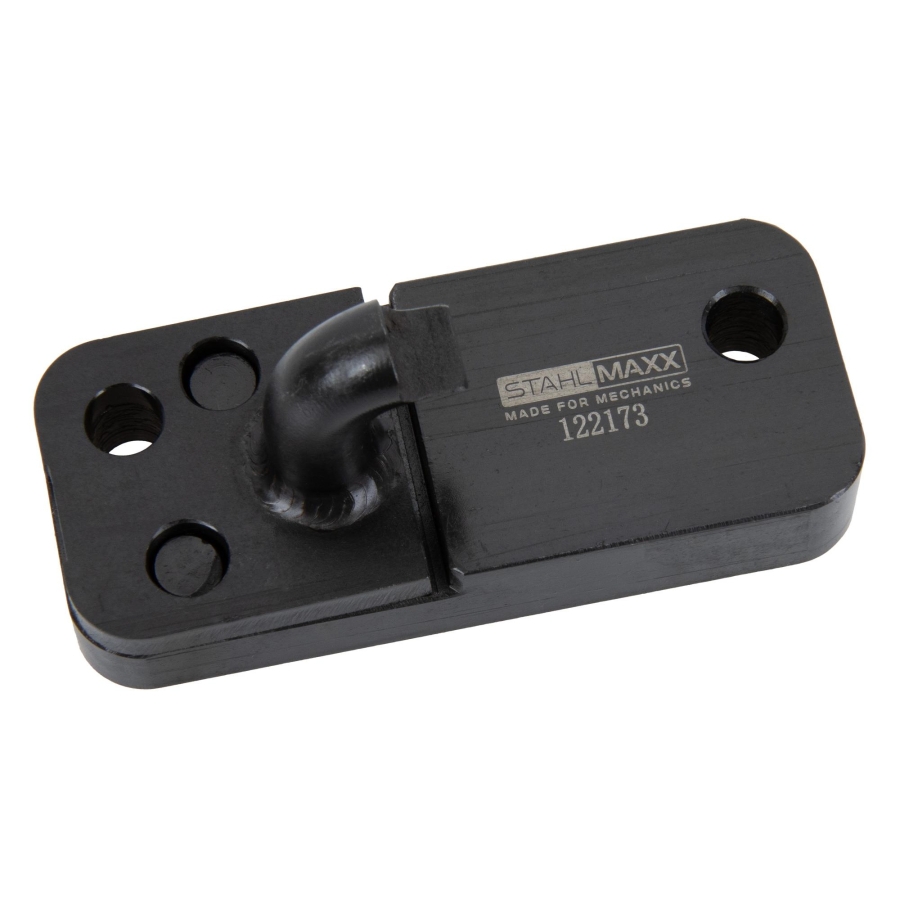

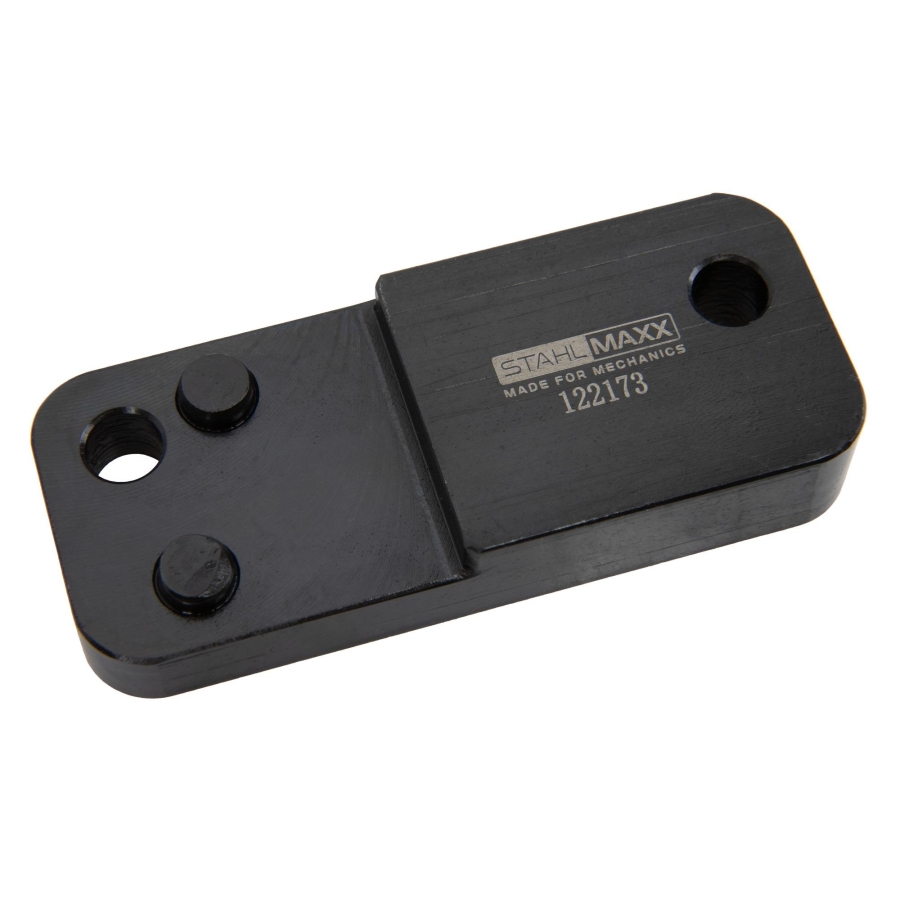

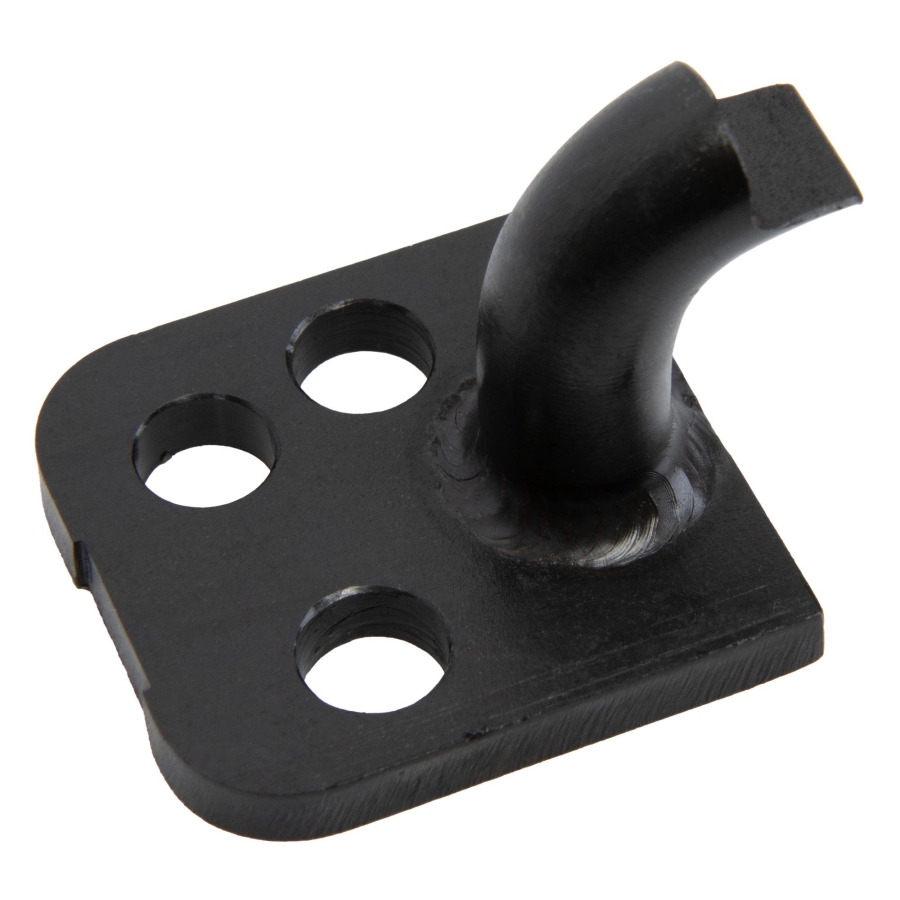

Exhaust Camshaft Holding & Adjustment Tool for PSA EB2ADTS Engines

This specialized tool is designed for holding and adjusting the exhaust camshaft on PSA EB2ADTS engine generation.

It is required when loosening or removing camshaft adjusters and is used as an extension to existing engine timing tool kits.

The tool allows precise work on the camshaft system without requiring full disassembly of engine components.

Compatibility

Suitable for vehicles from:

• Peugeot
• Citroën
• Opel
• Fiat
• Toyota

Engine Codes

Compatible with:

• EB2ADTS
• D12XHT (EB2ADTS)
• F12XHT (EB2ADTS)
• HNS (EB2ADTS)
• HNV (EB2DTM)
• HNZ (EB2DT)

Functionality

The tool enables:

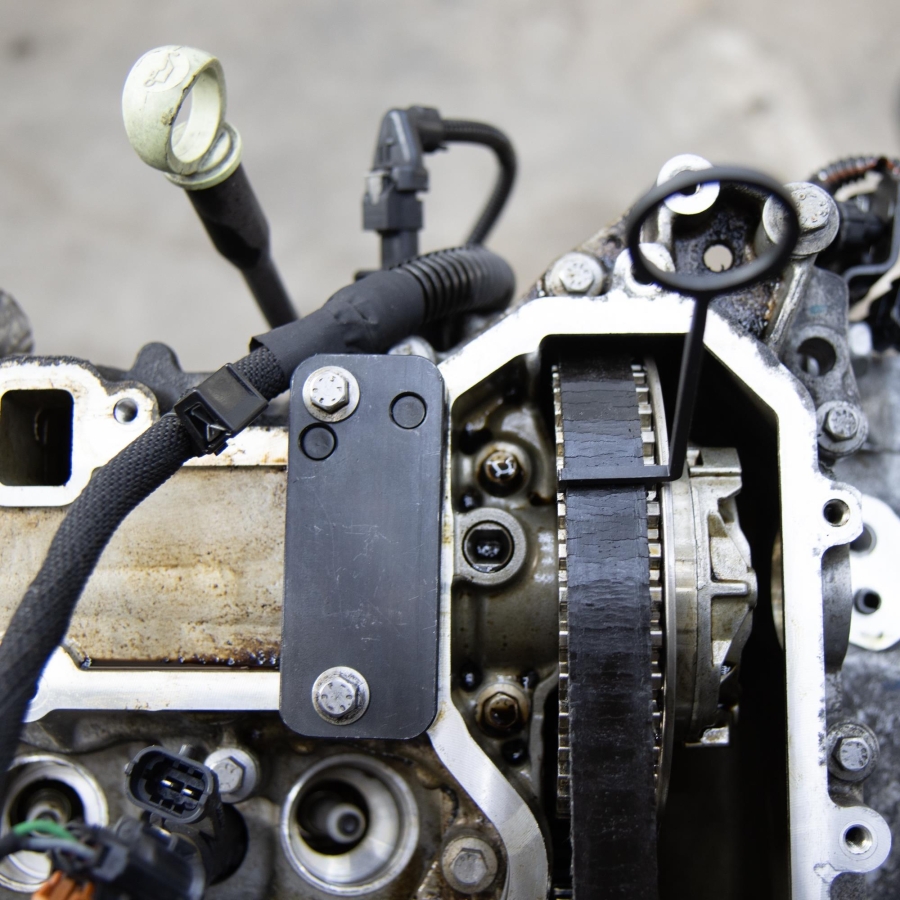

• Secure holding of the exhaust camshaft
• Precise adjustment during timing procedures
• Safe removal and installation of camshaft adjusters
• Accurate positioning without risk of misalignment

Usage Notes

• The vacuum pump does not need to be removed
• Only the upper front section of the valve cover must be removed
• Camshaft adjusters are visually similar (marked “IN” and “EX”) – caution is required to avoid incorrect installation

OEM Reference

Designed for use as:
0109-2E / 01092E (consisting of 0109-2E1 and 0109-2E2)
Fiat 2000037072

Original numbers are used for comparison purposes only, this is not an original tool!

CITROËN BERLINGO (ER_, EC_) (06.2018 - ) 1.2 PureTech 130 (131 HP, 96 kW)

CITROËN BERLINGO van/MPV (K9) (06.2018 - ) PureTech 130 (131 HP, 96 kW)

CITROËN C4 III (B_) (10.2020 - ) 1.2 PureTech 130 (BAHNSA, BAHNSB) (130 HP, 96 kW)

CITROËN C5 AIRCROSS (11.2018 - ) 1.2 PureTech 130 (131 HP, 96 kW)

OPEL COMBO Box Body/MPV (X19) (06.2018 - ) 1.2 (131 HP, 96 kW)

OPEL COMBO Tour / Life (X19) (06.2018 - ) 1.2 (131 HP, 96 kW)

OPEL CORSA F (07.2019 - ) 1.2 (68) (131 HP, 96 kW)

OPEL CORSA F (07.2019 - ) 1.2 (68) (75 HP, 55 kW)

OPEL GRANDLAND X Van (11.2017 - ) 1.2 (75) (131 HP, 96 kW)

OPEL MOKKA (06.2020 - ) 1.2 (76) (131 HP, 96 kW)

PEUGEOT 2008 II (UD_, US_, UY_, UK_) (08.2019 - ) 1.2 PureTech 130 (130 HP, 96 kW)

PEUGEOT 508 II (FB_, FH_, F3_) (09.2018 - ) PureTech 130 (131 hp, 96 kW)

PEUGEOT 508 SW II (FC_, FJ_, F4_) (09.2018 - ) PureTech 130 (131 hp, 96 kW)

PEUGEOT PARTNER Van/MPV (K9) (09.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW)

PEUGEOT PARTNER TEPEE (04.2008 - 12.2018) 1.2 THP (110 hp, 81 kW)

PEUGEOT RIFTER (09.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW)

TOYOTA PROACE CITY Van/MPV (10.2019 - ) 1.2 VVT-i 130 (BPZNP) (131 HP, 96 kW)

TOYOTA PROACE CITY VERSO MPV (10.2019 - ) 1.2 VVT-i 130 (BKYNP) (131 HP, 96 kW)
