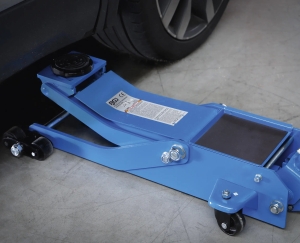

Extra-Low Hydraulic Trolley Jack 2 t with Quick-Lift Pedal, 70–500 mm

Professional hydraulic trolley jack with an exceptionally low minimum height of only 70 mm, making it particularly suitable for sports cars, lowered vehicles and other vehicles with very limited ground clearance.

The jack provides a wide lifting range from 70 to 500 mm and a maximum lifting capacity of 2000 kg.

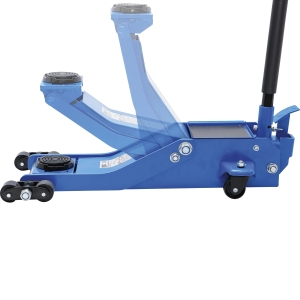

Quick-Lift Foot Pedal

An additional foot pedal allows the lifting arm to be raised quickly toward the vehicle lifting point before the load is applied.

This speeds up positioning and makes everyday workshop operation more convenient.

Twin Front Rollers with Tilting Mechanism

The lifting end is equipped with twin rollers mounted on a tilting mechanism.

This design improves manoeuvrability when moving the jack over workshop grating and similar uneven surfaces.

The two main rollers are made from PU to reduce rolling noise, while two steel steering castors allow precise positioning underneath the vehicle.

Vehicle-Friendly Operation

The operating handle is covered to help reduce the risk of accidental damage to the vehicle during use.

The handle grip area is also covered for improved comfort and more secure handling during lifting and lowering.

Technical Data

• Maximum load capacity: 2 t / 2000 kg

• Lifting height: 70–500 mm

• Length: 822 mm

• Width: 360 mm

• Height: 214 mm

• Front roller system: Twin rollers with tilting mechanism

• Main rollers: 2 x PU

• Steering castors: 2 x steel

• Quick-lift function: Foot pedal

• Operating handle: Covered

• Handle grip: Covered
