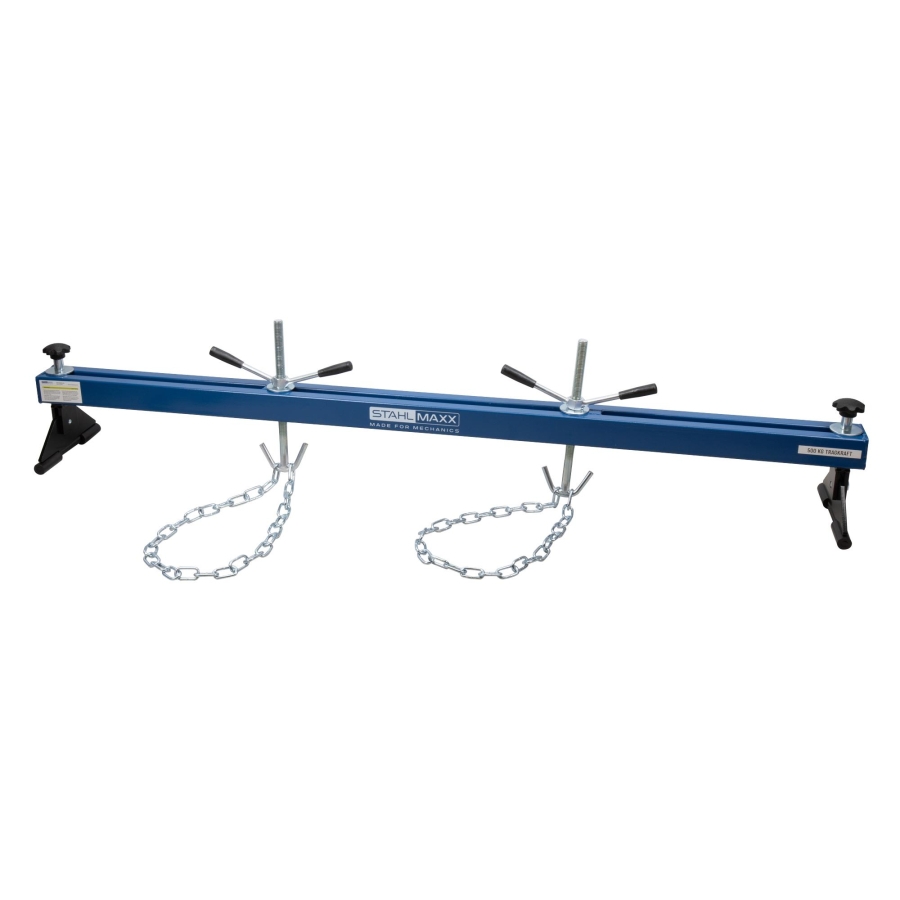

Extra-Wide Universal Engine Support Bridge with Two Chain Hooks, 170 cm, 500 kg

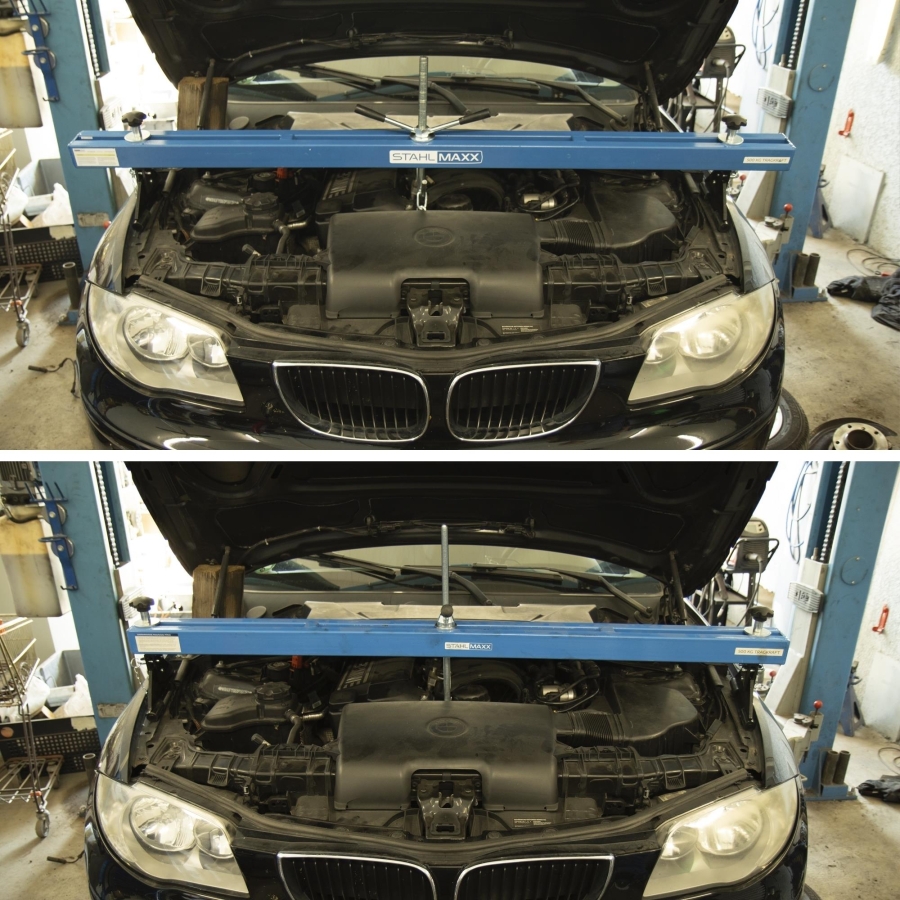

This universally adjustable engine support bridge securely supports engines and gearboxes during repair, removal and installation work.

Its 1,700 mm overall length makes it suitable for newer and wider vehicles. Typical applications include replacing timing belts, timing chains, engine mounts and clutches, as well as removing gearboxes or subframes.

Extra-Wide Adjustable Construction

The bridge is manufactured from high-quality steel and designed to resist twisting under load. Its two 30 × 60 mm rectangular steel tubes allow the wing supports to be adjusted continuously from 750 to 1,650 mm.

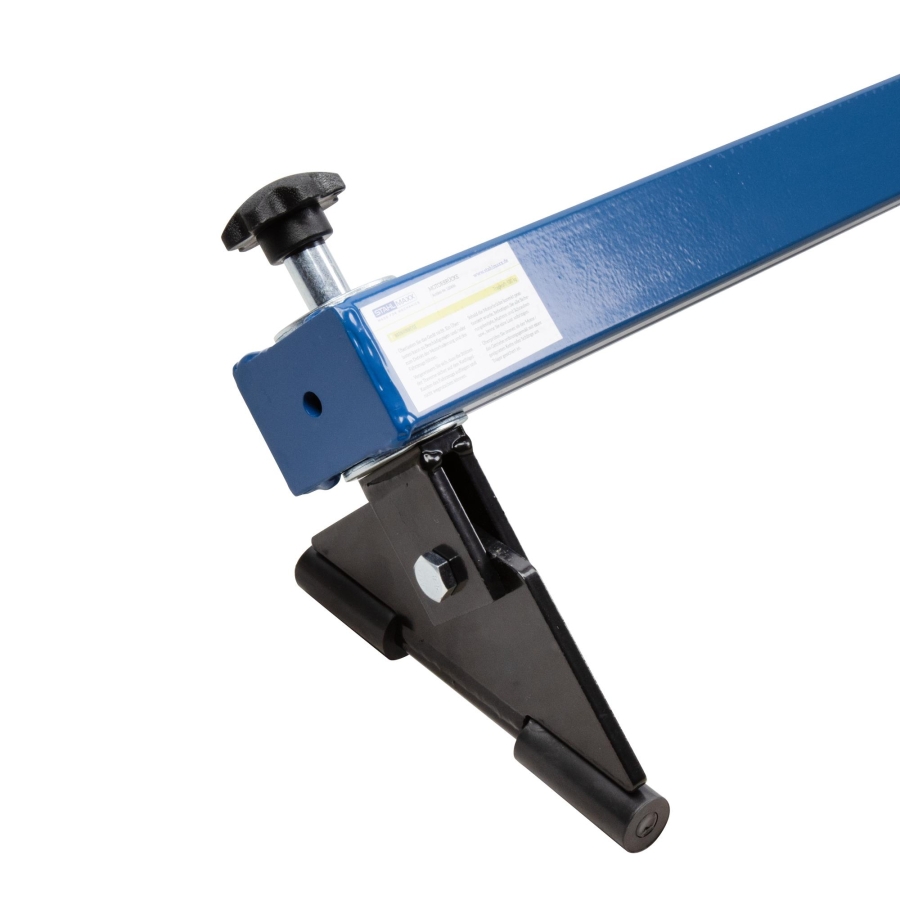

The pivoting wing supports adapt to the inclination of the vehicle’s wings, allowing the bridge to be positioned securely on different body designs.

Adjustable Chain-Hook System

Two load hooks with M20 threaded rods and 1,000 mm support chains provide flexible attachment to the engine or gearbox.

The T-handle lever nuts allow the lifting height to be adjusted gradually and precisely. Each load hook is 340 mm long.

Protection of Vehicle Surfaces

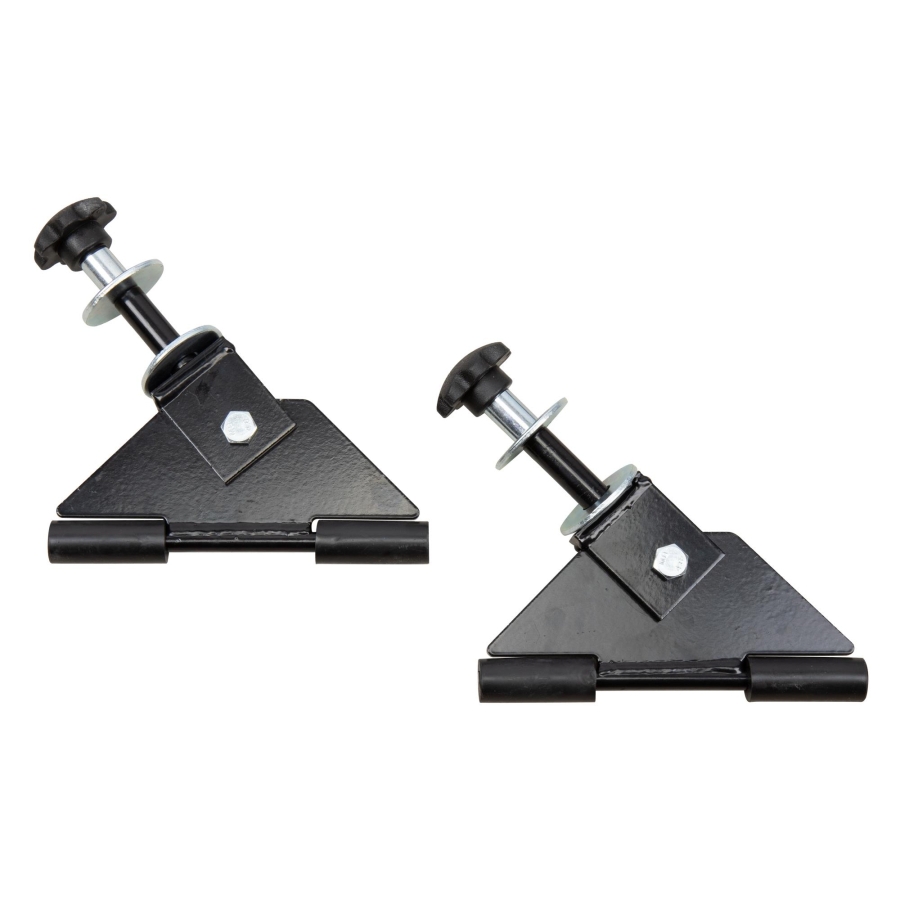

The support feet feature rubber protection and pivoting blocks that adapt to the contact angle. Additional side protectors help prevent damage to the wing edges during use.

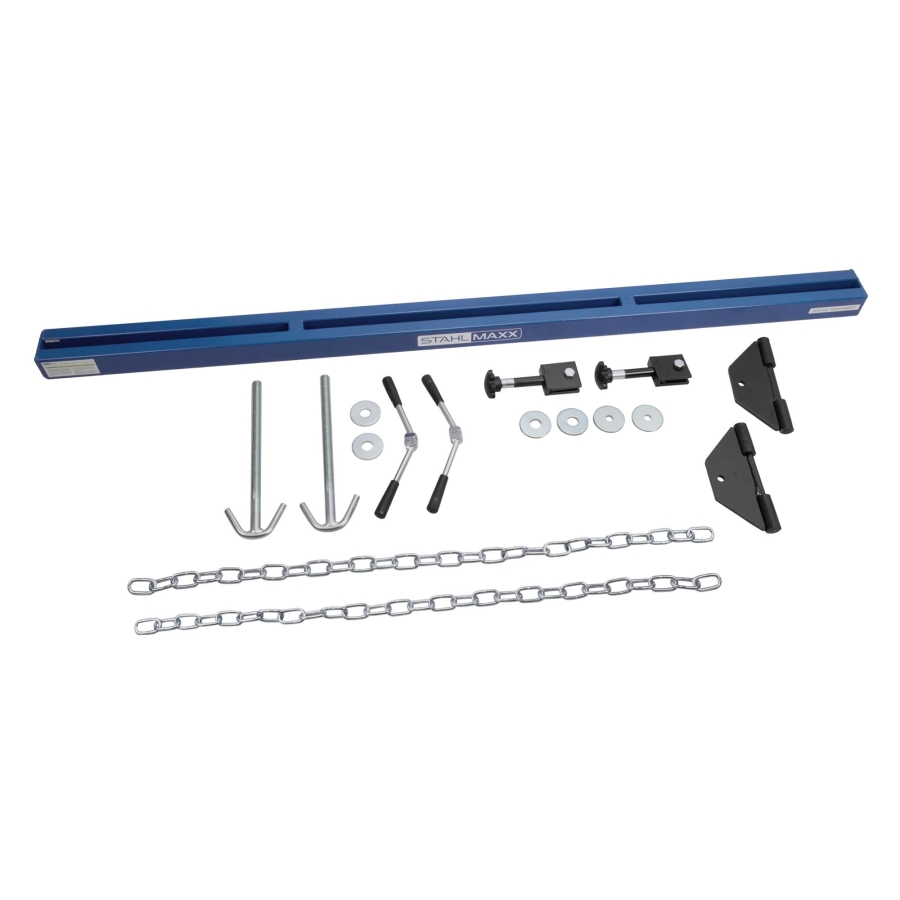

Scope of Delivery

• 1 base beam made from rectangular steel tubing, 1,700 × 86 × 65 mm
• 2 grip nuts
• 2 T-handle lever nuts with plastic end caps
• 2 support feet with rubber protection and pivoting blocks
• 2 load hooks, length 340 mm
• 2 support chains, length 1,000 mm

Technical Specifications

• Maximum load capacity: 500 kg
• Overall length: 1,700 mm
• Wing-support adjustment range: 750–1,650 mm
• Steel-tube dimensions: 30 × 60 mm
• Base-beam dimensions: 1,700 × 86 × 65 mm
• Threaded hook rods: M20
• Load-hook length: 340 mm
• Support-chain length: 1,000 mm
• Number of load hooks: 2
• Number of support chains: 2
