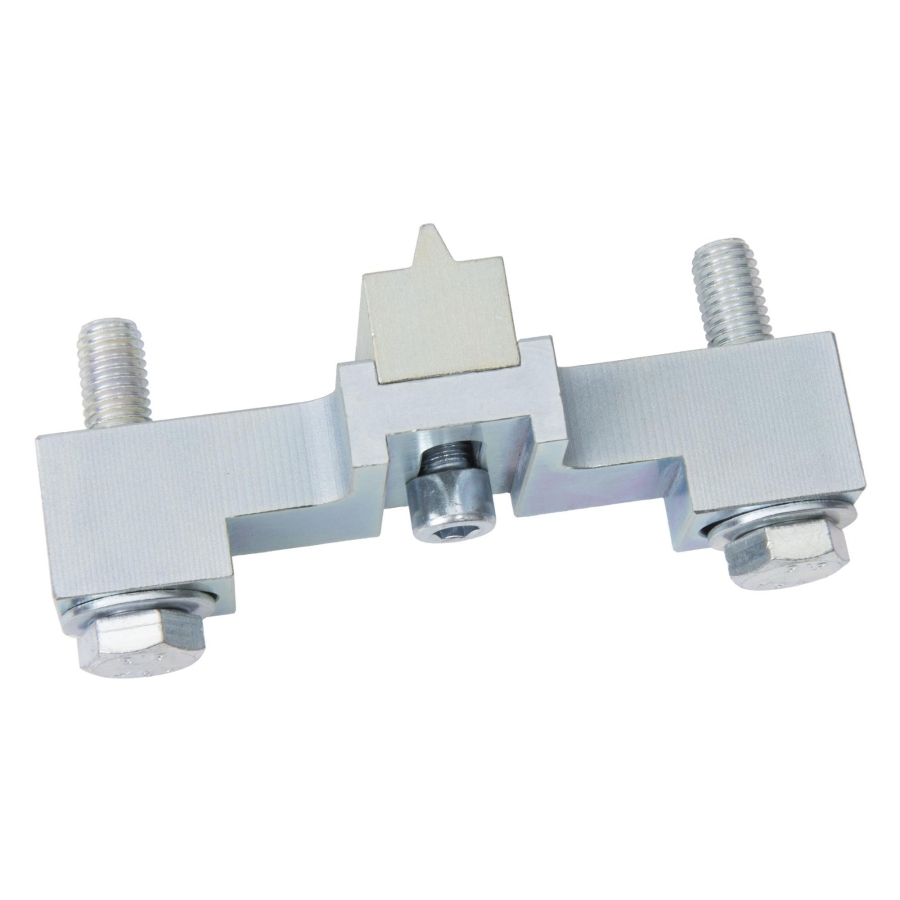

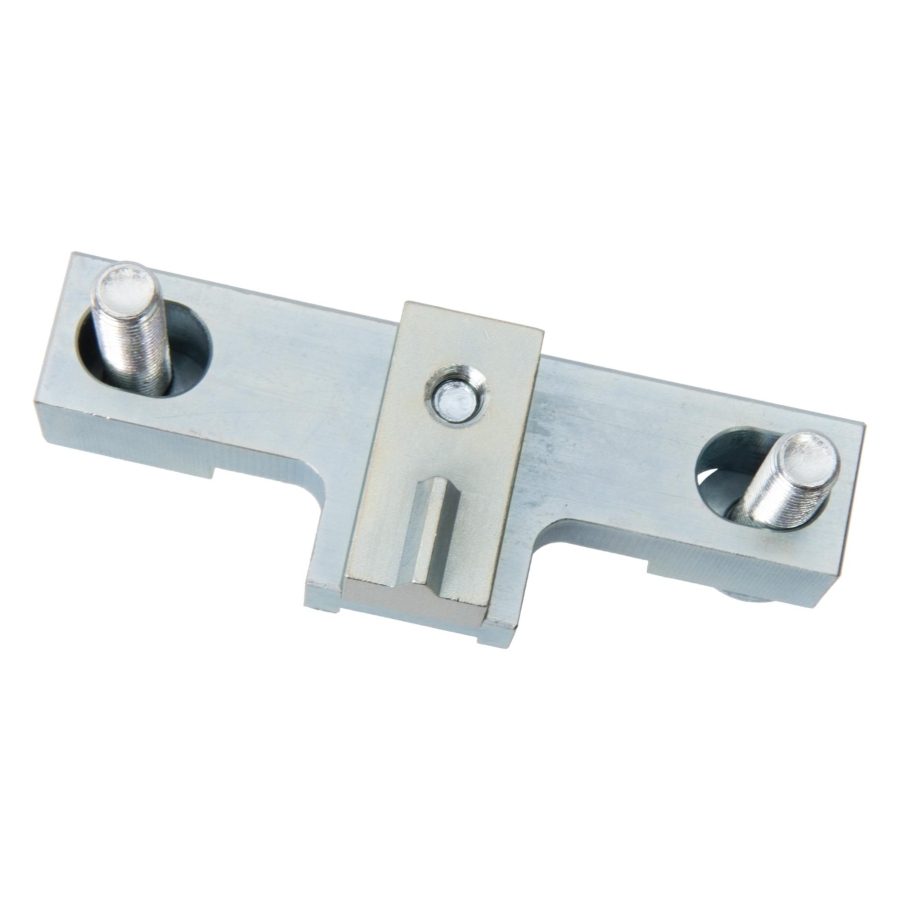

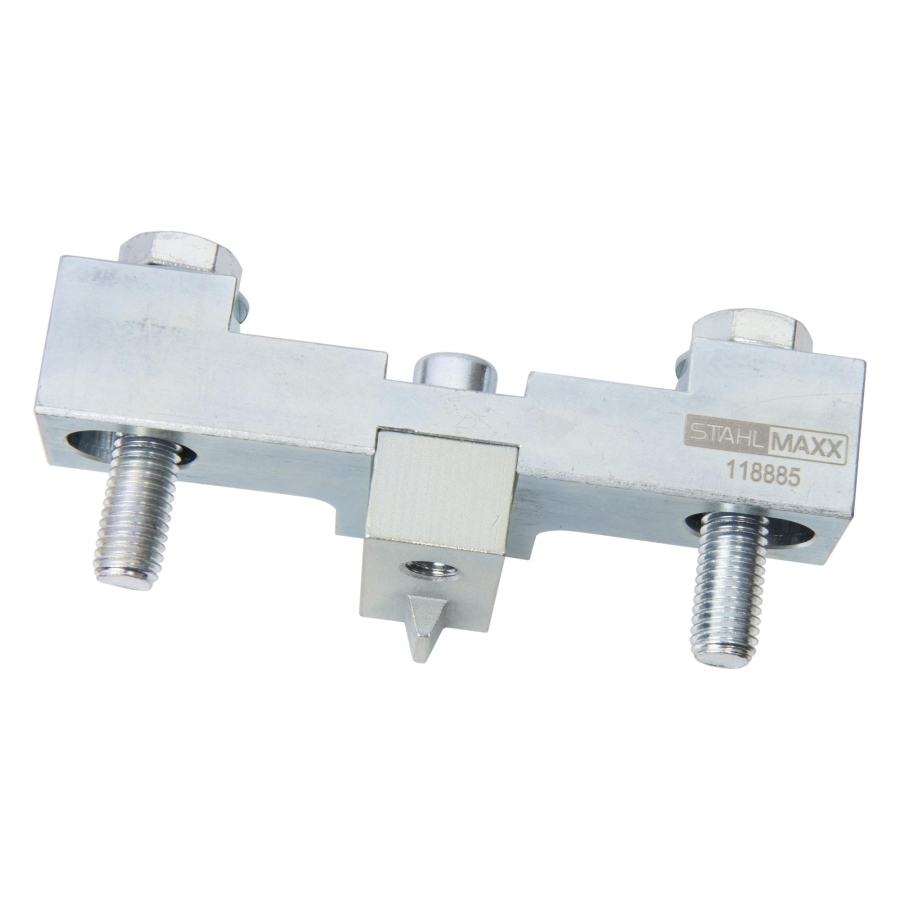

Flywheel Locking Tool for Ford EcoBoost / EcoBlue / Duratec – as 303-1643
-
Code:118885
-
Weight:0.526 Kgs
Overview:
✔ Flywheel locking and counterhold tool for Ford engines
✔ Suitable for EcoBoost, EcoBlue and Duratec engines (Gen. 2)
✔ Mounts in place of the starter motor
✔ Designed for high-torque crankshaft operations
✔ Ensures safe and stable engine locking during service
This flywheel locking tool is designed to securely lock and hold the flywheel during engine service operations. It is essential for safely loosening and tightening high-torque crankshaft bolts, especially on modern Ford engines.
Design & Operation

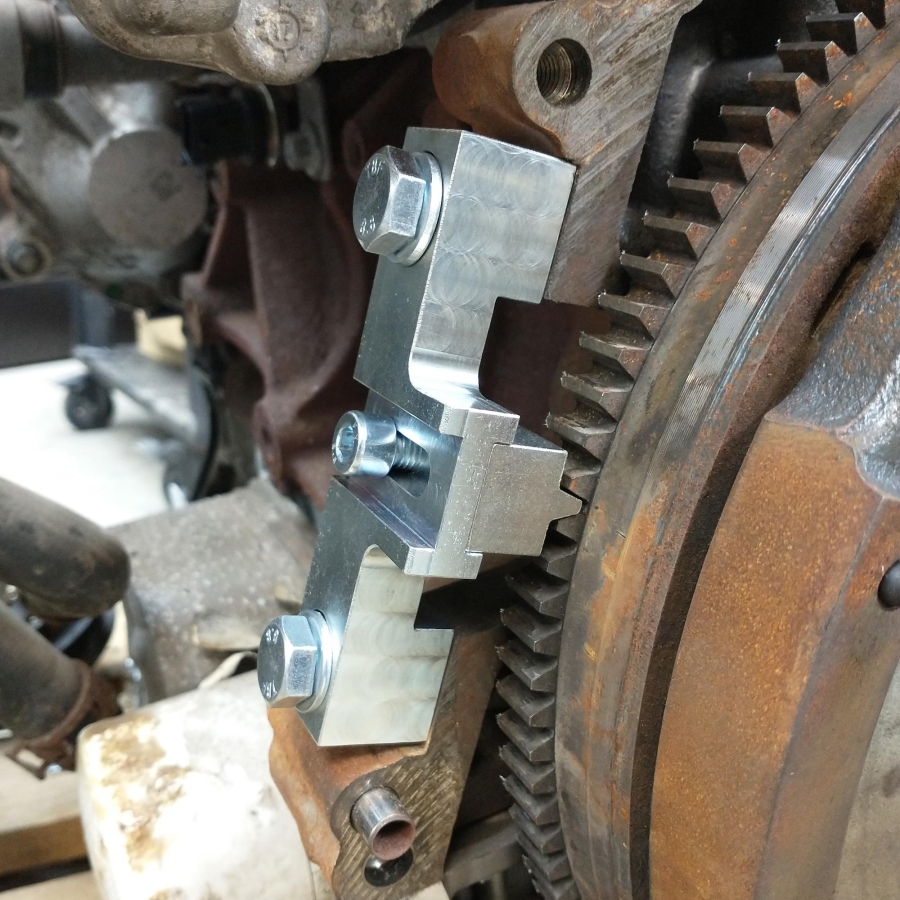

The tool is installed in place of the starter motor and acts as a mechanical lock against the flywheel ring gear.
- Mounted using the original starter mounting points
- Locking tooth engages directly with the ring gear
- Adjustable locking block allows precise positioning
- Can be disengaged quickly for engine rotation or timing checks
Application
Used during:
- Crankshaft pulley bolt loosening and tightening
- Timing chain and timing belt service
- Engine repair and maintenance
- Engine rotation and timing verification
Important Notes
- Required for engines with extremely high torque specifications
- Designed according to OEM geometry—no need for spacers or washers
- Prevents risk of components falling into the transmission housing
- For engine rotation, simply disengage the locking block from the ring gear
Compatibility – Engine Codes
Ford Duratec 1.2L:
B1KE, C12FDOS, ENAP, ENBI
Ford Duratec 1.5L:
XZJF, Y2DA
Ford EcoBoost 1.0L:
B3DA, B3GA, B3GB, B7DA, B7DC, B7JA, B7JB, BZJA, M0DC, M0JA, M0JB
Ford EcoBoost 1.5L:
C15FDOS, XZJF, Y1DA, Y2DA, YZDA, YZDB, YZJA
Ford EcoBlue 2.0L:
BCCA, BCCB, BCCC, BCCD, BCDA, BCFA, BCFB, BCFC, BCFD, BCRA, BJFA, BJFB, BJFC, BJFD, BJRA, BJRB, BKFA, BKFB, BKFC, BKFD, BKRA, BKRB, BLFA, BLFB, BLFC, BLFD, BLHA, BLRA, BLRB, YLCA, YLCB, YLCC, YLDA, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCA, YMCB, YMCC, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YNCA, YNF6, YNFA, YNFB, YNFS, YNHA, YNR6, YNRA
Additional Engine Codes:
M1DA, M1DD, M2DA, M2DC, M2GA, M2GB, SFCB, SFDA, B7JC, B2KA
Reference Numbers
Used as:
- Ford: 303-1643
- Ford: 3031643
The OEM reference numbers are for identification purposes only. This tool is not an original OEM product.
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.0 EcoBoost (100 HP, 74 kW)
FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.0 EcoBoost (125 HP, 92 kW)
FORD FIESTA VII (HJ, HF) (05.2017 - ) 1.0 EcoBoost mHEV (125 HP, 92 kW)
FORD FOCUS IV (HN) (01.2018 - ) 1.0 EcoBoost (101 HP, 74 kW)
FORD FOCUS IV (HN) (01.2018 - ) 1.0 EcoBoost (125 HP, 92 kW)
FORD FOCUS IV (HN) (01.2018 - ) 1.0 EcoBoost mHEV (125 hp, 92 kW)
FORD FOCUS IV Saloon (HM) (11.2018 - ) 1.0 EcoBoost (101 hp, 74 kW)
FORD FOCUS IV Saloon (HM) (11.2018 - ) 1.0 EcoBoost (125 hp, 92 kW)
FORD FOCUS IV Estate (HP) (09.2018 - ) 1.0 EcoBoost (100 hp, 74 kW)
FORD FOCUS IV Estate (HP) (09.2018 - ) 1.0 EcoBoost (125 hp, 92 kW)
FORD KA+ (UK, FK) (08.2014 - 12.2018) 1.2 (70 hp, 51 kW)
FORD PUMA (09.2019 - ) 1.0 EcoBoost (95 hp, 70 kW)
FORD PUMA (09.2019 - ) 1.0 EcoBoost mHEV (125 hp, 92 kW)
FORD PUMA (09.2019 - ) 1.0 EcoBoost mHEV (155 hp, 114 kW)
FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 MPV (09.2013 - ) 1.0 EcoBoost (100 hp, 74 kW)
FORD TRANSIT CONNECT V408 Panel Van/MPV (02.2013 - ) 1.0 EcoBoost (100 hp, 74 kW)
