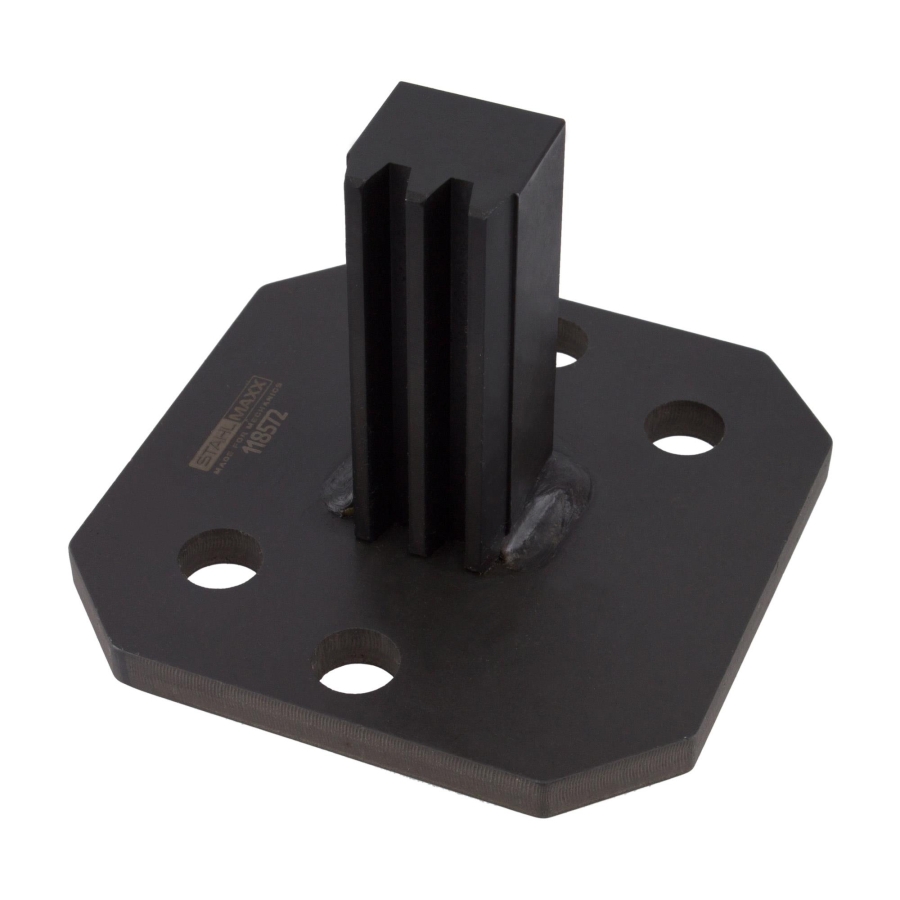

Flywheel Locking Tool Set for Porsche 928 (1978–1995) (as 9161, 9161/1)
-
Code:118572
-
Weight:0.400 Kgs
Overview:
✔ Professional flywheel locking tool set for Porsche 928
✔ Includes both variants to cover all model years (1978–1995)
✔ Designed with different tooth segment angles for full compatibility
✔ Suitable for a wide range of M28 engine codes
✔ Secures flywheel during engine service and repair
✔ Used as Porsche 9161, 9161/1 (00072191610, 00072191611)
✔ Ideal for workshop and professional use
This flywheel locking tool set is designed to securely hold the flywheel in place during engine service procedures such as bolt removal, installation, and timing work. It prevents unwanted rotation, ensuring safe and precise operation.
Dual Variant Design
The set includes both tooth segment versions, which differ only in the angle of the gear segments. This allows full compatibility across all Porsche 928 model years without requiring separate tools.
Service Flexibility
The locking segment can be used with both automatic and manual transmissions, providing versatility across different drivetrain configurations. The tool is designed for use with the engine installed, eliminating the need for engine removal during service.
For manual transmission versions, the slave cylinder must be removed to gain access. For automatic transmission models, an inspection plate must be removed prior to installation of the tool.
Vehicle and Engine Compatibility
Suitable for Porsche 928 models from 1978 to 1995.
Compatible with the following engine codes:
M28.01, M28.02, M28.03, M28.04, M28.09, M28.10, M28.11, M28.12, M28.13, M28.14, M28.17, M28.18, M28.20, M28.21, M28.22, M28.41, M28.42, M28.43, M28.44, M28.45, M28.46, M28.47, M28.49, M28.50
Tool Reference
Used as:
Porsche 9161 (1978–1982) – item.no. 00072191610
Porsche 9161/1 (1983–1995) – item.no. 00072191611
Original numbers are for comparison purposes only. This is not an original tool.
PORSCHE 928 (09.1977 - 11.1995) 4.5 (222 hp, 163 kW)
PORSCHE 928 (09.1977 - 11.1995) 4.5 (230 hp, 169 kW)
PORSCHE 928 (09.1977 - 11.1995) 4.5 (231 hp, 170 kW)
PORSCHE 928 (09.1977 - 11.1995) 4.5 (241 hp, 177 kW)
PORSCHE 928 (09.1977 - 11.1995) 4.7 S (242 hp, 178 kW)
PORSCHE 928 (09.1977 - 11.1995) 4.7 S (301 4.7 S (310 hp, 228 kW)
PORSCHE 928 (09.1977 - 11.1995) 5.0 GT (330 hp, 243 kW)
PORSCHE 928 (09.1977 - 11.1995) 5.0 S (272 hp, 200 kW)
PORSCHE 928 (09.1977 - 11.1995) 5.0 S (288 hp, 212 kW)
PORSCHE 928 (09.1977 - 11.1995) 5.0 S (292 hp, 215 kW)
PORSCHE 928 (09.1977 - 11.1995) 5.0 S,S4 (320 HP, 235 kW)
PORSCHE 928 (09.1977 - 11.1995) 5.0 S4 (300 HP, 221 kW)
PORSCHE 928 (09.1977 - 11.1995) 5.0 S4 Cat (320 HP, 235 kW)
PORSCHE 928 (09.1977 - 11.1995) 5.4 GTS (350 HP, 257 kW)
