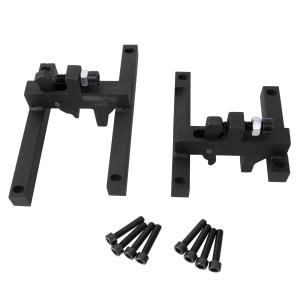

Camshaft Sprocket & VCT Adjustment Tool Set for Ford 1.0 / 1.1 EcoBoost

This locking and adjustment tool set is designed for the base setting of camshaft adjusters (VCT units) on Ford 1.0L and 1.1L EcoBoost engines.

It is essential during timing service and engine repair to ensure correct camshaft positioning.

Function

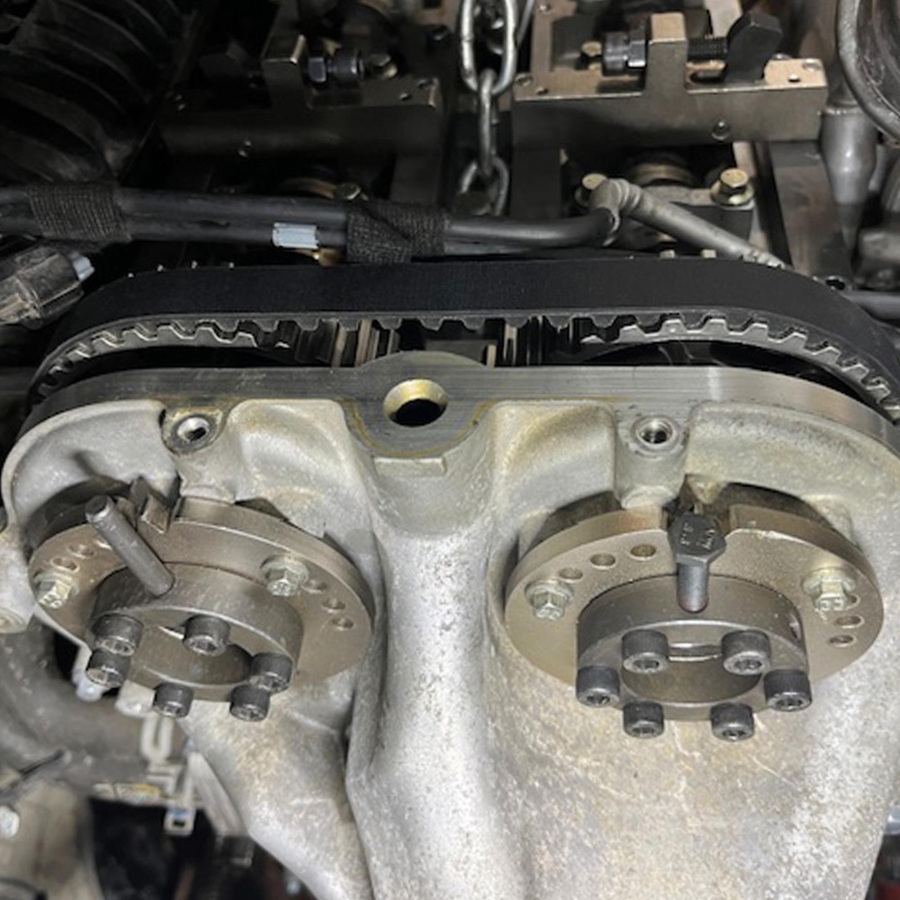

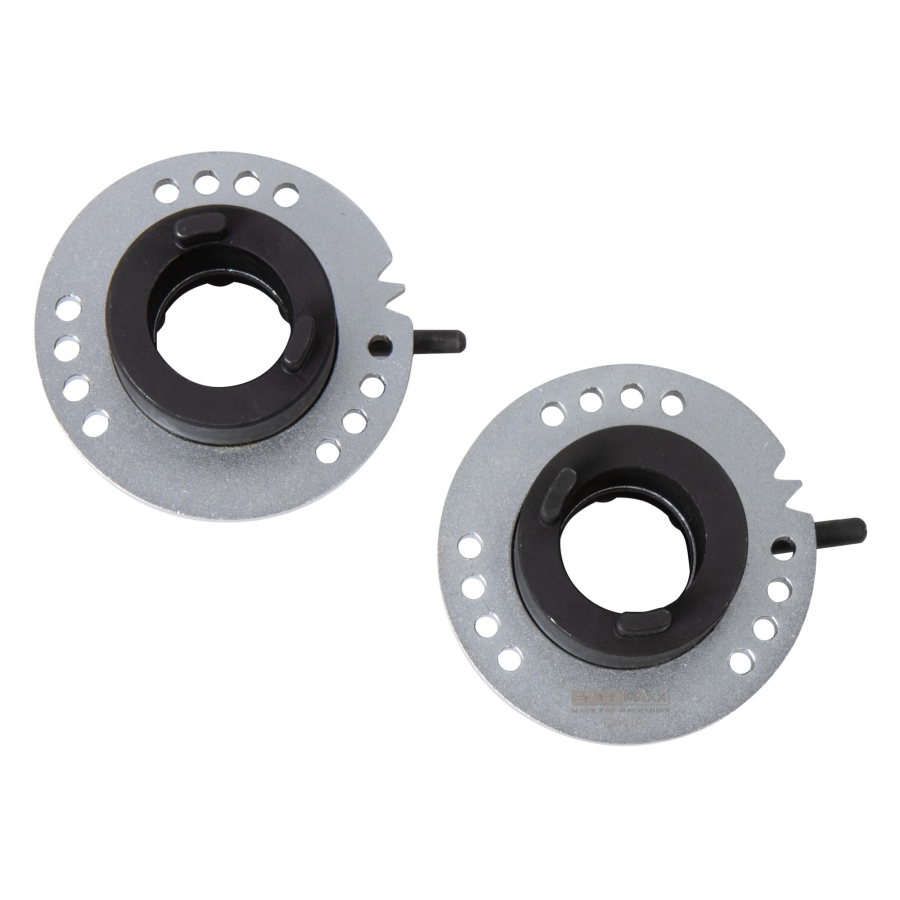

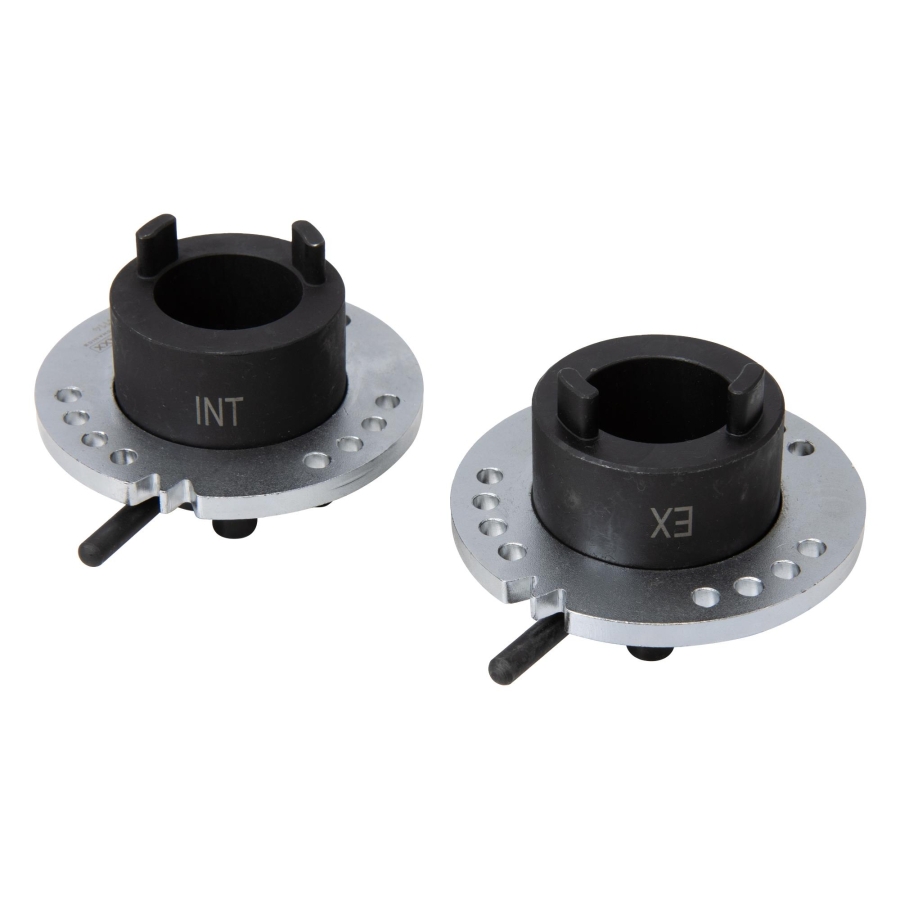

The tools are mounted directly onto the camshaft adjusters and are used to rotate the camshaft sprockets to their defined end position (left stop).

This ensures correct base alignment of the camshaft timing system before final assembly.

Engine Compatibility

Engine codes:
M1CA, M1CB, M1DA, M1DC, M1DD, M1DH, M1FA, M1JA, M1JC, M1JE, M1JH, M1JJ, M1JL, M1JM, M1JU, M2DA, M2DB, M2DC, M2GA, M2GB, P4JA, P4JB, P4JC, P4JD, Q0JA, Q0JB, Q0JC, Q0JD, SFCA, SFCB, SFCC, SFCD, SFCE, SFCF, SFDA, SFDB, SFDC, SFJA, SFJB, SFJC, SFJD, SFJE, SFJF, SFJH, SFJJ, SFJK, SFJL, SFJN, SFJP, YYJA, YYJB, YYJD, YYJE

OEM Reference

To be used as:
303-1606, 3031606

OEM numbers are for reference purposes only and do not imply original manufacturer tools.

FORD B-MAX (JK) (10.2012 - ) 1.0 EcoBoost (100 HP, 74 kW)

FORD B-MAX (JK) (10.2012 - ) 1.0 EcoBoost (120 HP, 88 kW)

FORD B-MAX (JK) (10.2012 - ) 1.0 EcoBoost (125 HP, 92 kW)

FORD B-MAX Van (JK) (08.2012 - ) 1.0 EcoBoost (100 HP, 74 kW)

FORD B-MAX Van (JK) (08.2012 - ) 1.0 EcoBoost (120 HP, 88 kW)

FORD B-MAX Van (JK) (08.2012 - ) 1.0 EcoBoost (125 HP, 92 kW)

FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.0 EcoBoost (100 HP, 74 kW)

FORD C-MAX II (DXA/CB7, DXA/CEU) (04.2010 - 12.2014) 1.0 EcoBoost (125 HP, 92 kW)

FORD C-MAX II Van (10.2010 - ) 1.0 EcoBoost (100 HP, 74 kW)

FORD C-MAX II Van (10.2010 - ) 1.0 EcoBoost (125 HP, 92 kW)

FORD ECOSPORT (01.2012 - 07.2017) 1.0 EcoBoost (100 HP, 74 kW)

FORD ECOSPORT (01.2012 - 07.2017) 1.0 EcoBoost (125 HP, 92 kW)

FORD ECOSPORT (01.2012 - 07.2017) 1.0 EcoBoost (140 HP, 103 kW)

FORD ECOSPORT (01.2012 - 07.2017) 1.0 Ti-VCT Ecoboost (120 HP, 88 kW)

FORD FIESTA Saloon (04.2010 - 12.2016) 1.0 EcoBoost (125 HP, 92 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.0 (80 HP, 59 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.0 EcoBoost (100 HP, 74 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.0 EcoBoost (125 HP, 92 kW)

FORD FIESTA VI (CB1, CCN) (06.2008 - 12.2019) 1.0 Sport (140 HP, 103 kW)

FORD FIESTA VI Van (08.2008 - 12.2012) 1.0 (80 HP, 59 kW)

FORD FIESTA VI Van (08.2008 - 12.2012) 1.0 EcoBoost (100 HP, 74 kW)

FORD FIESTA VI Van (08.2008 - 12.2012) 1.0 EcoBoost (125 HP, 92 kW)

FORD FIESTA VI Van (08.2008 - 12.2012) 1.0 EcoBoost (140 hp, 103 kW)

FORD FIESTA VII (HJ, HF) (05.2017 - ) 1.0 EcoBoost (101 HP, 74 kW)

FORD FIESTA VII (HJ, HF) (05.2017 - ) 1.0 EcoBoost (125 HP, 92 kW)

FORD FIESTA VII (HJ, HF) (05.2017 - ) 1.0 EcoBoost (140 HP, 103 kW)

FORD FIESTA VII (HJ, HF) (05.2017 - ) 1.0 EcoBoost (85 HP, 63 kW)

FORD FIESTA VII Van (09.2018 - ) 1.0 EcoBoost (101 HP, 74 kW)

FORD FIESTA VII Van (09.2018 - ) 1.0 EcoBoost (125 hp, 92 kW)

FORD FIESTA VII Van (09.2018 - ) 1.0 EcoBoost (140 HP, 103 kW)

FORD FOCUS III (07.2010 - 06.2019) 1.0 EcoBoost (100 HP, 74 kW)

FORD FOCUS III (07.2010 - 06.2019) 1.0 EcoBoost (125 HP, 92 kW)

FORD FOCUS III (07.2010 - 06.2019) 1.0 EcoBoost (140 HP, 103 kW)

FORD FOCUS III Box Body/Estate (02.2012 - ) 1.0 EcoBoost (100 HP, 74 kW)

FORD FOCUS III Box Body/Estate (02.2012 - ) 1.0 EcoBoost (125 hp, 92 kW)

FORD FOCUS III Van/Hatchback (01.2011 - 06.2014) 1.0 EcoBoost (100 hp, 74 kW)

FORD FOCUS III Van/Hatchback (01.2011 - 06.2014) 1.0 EcoBoost (125 hp, 92 kW)

FORD FOCUS III Saloon (07.2010 - 06.2019) 1.0 EcoBoost (100 hp, 74 kW)

FORD FOCUS III Saloon (07.2010 - 06.2019) 1.0 EcoBoost (125 hp, 92 kW)

FORD FOCUS III Saloon (07.2010 - 06.2019) 1.0 EcoBoost (140 hp, 103 kW)

FORD FOCUS III Turnier (07.2010 - ) 1.0 EcoBoost (100 hp, 74 kW)

FORD FOCUS III Turnier (07.2010 - ) 1.0 EcoBoost (125 hp, 92 kW)

FORD FOCUS III Turnier (07.2010 - ) 1.0 EcoBoost (140 hp, 103 kW)

FORD FOCUS IV (HN) (01.2018 - ) 1.0 EcoBoost (85 hp, 63 kW)

FORD FOCUS IV Turnier (HP) (09.2018 - ) 1.0 EcoBoost (85 hp, 63 kW)

FORD GRAND C-MAX (DXA/CB7, DXA/CEU) (12.2010 - ) 1.0 EcoBoost (100 hp, 74 kW)

FORD GRAND C-MAX (DXA/CB7, DXA/CEU) (12.2010 - ) 1.0 EcoBoost (125 HP, 92 kW)

FORD GRAND C-MAX Van (12.2010 - 12.2014) 1.0 EcoBoost (100 HP, 74 kW)

FORD GRAND C-MAX Van (12.2010 - 12.2014) 1.0 EcoBoost (125 hp, 92 kW)

FORD KA+ Saloon (TK, FK) (08.2014 - 01.2018) 1.0 Flexfuel (86 hp, 63 kW)

FORD MONDEO V Hatchback (CE) (09.2014 - ) 1.0 EcoBoost (125 hp, 92 kW)

FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 1.0 EcoBoost (125 hp, 92 kW)

FORD MONDEO V Estate (CF) (09.2014 - ) 1.0 EcoBoost (125 hp, 92 kW)

FORD TOURNEO CONNECT / GRAND TOURNEO CONNECT V408 Ford Tourneo Courier B460 MPV (09.2013 - ) 1.0 EcoBoost (100 hp, 74 kW)

Ford Tourneo Courier B460 MPV (02.2014 - ) 1.0 EcoBoost (100 hp, 74 kW)

Ford Tourneo Custom V362 Bus (F3) (04.2012 - 12.2015) 1.0 EcoBoost PHEV (125 hp, 92 kW)

Ford Transit Connect V408 Panel Van/MPV (02.2013 - ) 1.0 EcoBoost (100 hp, 74 kW)

Ford Transit Courier B460 MPV (02.2014 - ) 1.0 EcoBoost (100 hp, 74 kW)

Ford Transit Courier B460 Panel Van/MPV (02.2014 - ) 1.0 EcoBoost (100 hp, 74 kW)

FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 1.0 EcoBoost PHEV (125 hp, 92 kW)

FORD TRANSIT CUSTOM V362 Panel Van (FY, FZ) (04.2012 - 12.2015) 1.0 EcoBoost PHEV (125 hp, 92 kW)
