Cylinder Head Bolt Installation and Removal Tool for Ford 2.0 EcoBlue, as 303-1611-03/1

Price: €119.00 232.74лв.

Code:

124771
Weight:

1.360 Kgs

Overview:
✔ For tightening and loosening cylinder head bolts on Ford 2.0 EcoBlue engines
✔ Installs in the injector bore to support the torque multiplier
✔ Suitable for numerous Ford passenger and commercial vehicles
✔ Improved compact design for faster and easier workshop use
✔ Eliminates repeated changing of mounting screws during operation
✔ Includes a holding tool and 17 mm socket

Cylinder Head Bolt Installation and Removal Tool for Ford 2.0 EcoBlue, as 303-1611-03/1

Send to friend

Rate this product

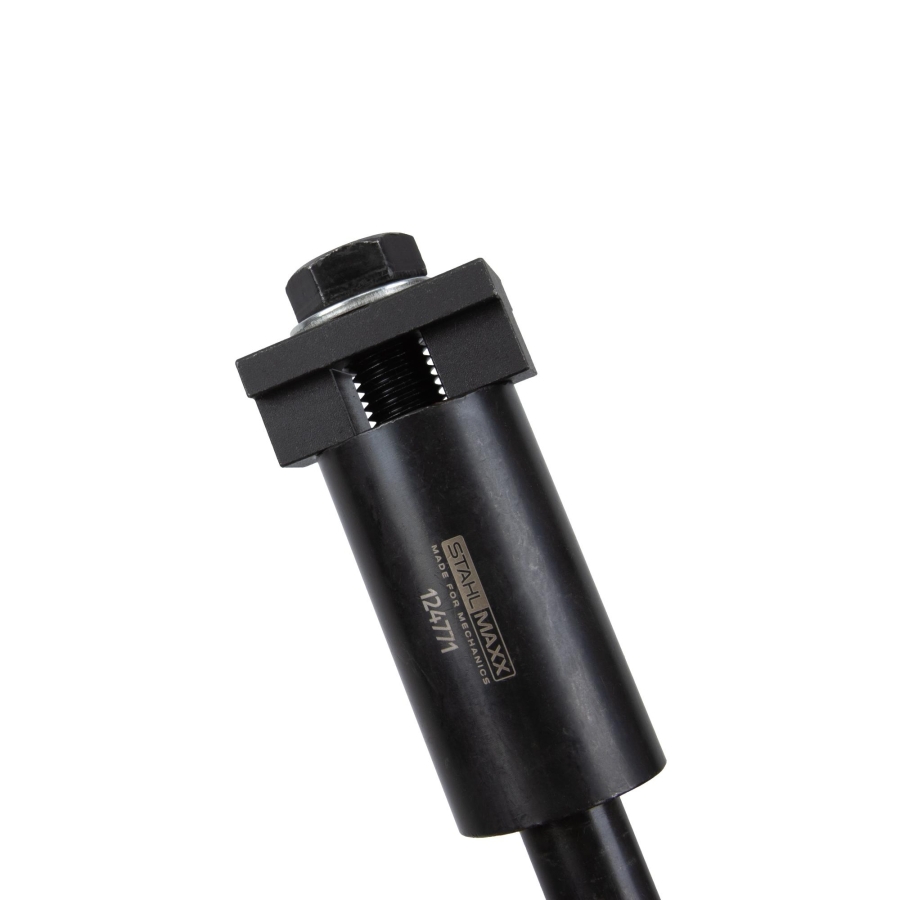

Special tool for professional installation and removal of cylinder head bolts on Ford 2.0 EcoBlue engines.

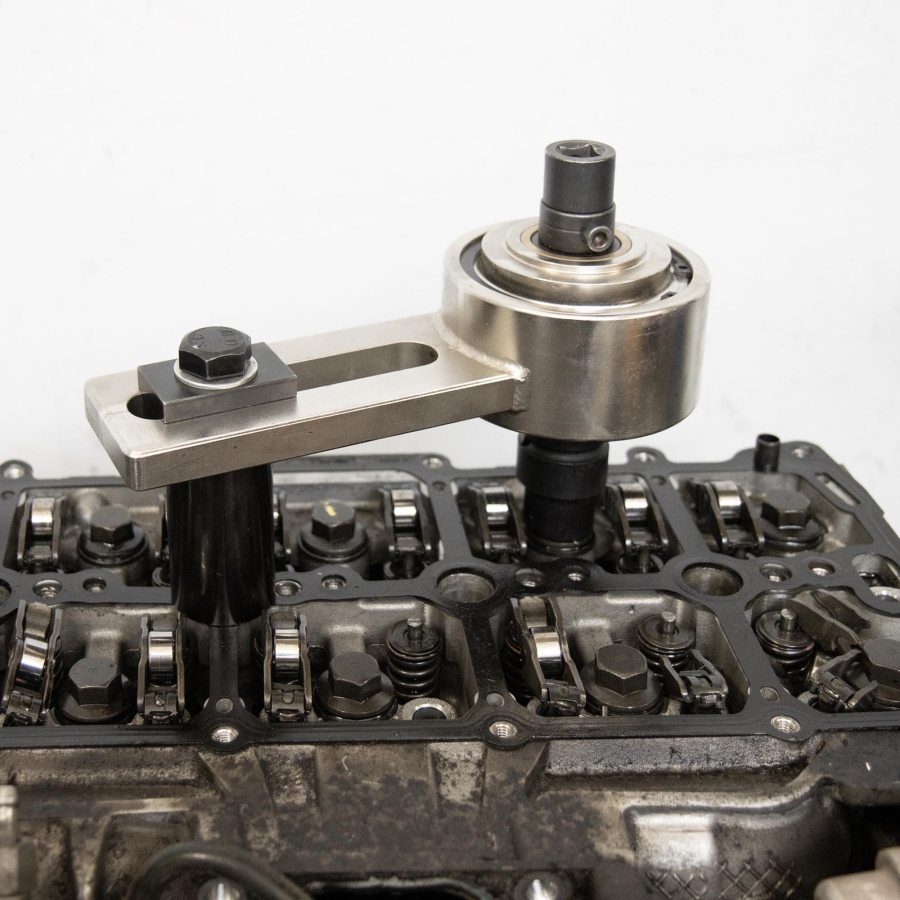

The holding tool is installed in the injector bore and used together with a suitable torque multiplier, such as Item no. 121148, as Ford 303-1611. This arrangement provides the necessary support when applying the specified tightening torque and angle.

The Stahlmaxx tool is based on the original special-tool design but has been further developed for more convenient workshop use. It performs the required functions while being more compact and economical. The optimized construction also allows faster operation because repeated changing of mounting screws is no longer necessary.

Important Note

A suitable torque multiplier is required to use this tool and is not included in the scope of delivery.

Suitable Engine

Ford 2.0-litre EcoBlue

Suitable Engine Codes

BC2X, BCCA, BCCB, BCCC, BCCD, BCDA, BCFA, BCFA(DZJE), BCFADZJE, BCFB, BCFC, BCFD, BCRA, BJFA, BJFA(ENBJ), BJFAENBJ, BJFB, BJFC, BJFD, BJRA, BJRB, BKFA, BKFA(DZJA), BKFADZJA, BKFB, BKFB(ENBK), BKFBENBK, BKFC, BKFD, BKRA, BKRB, BLFA, BLFB, BLFC, BLFD, BLHA, BLRA, BLRB, DZJA(BKFA), DZJABKFA, DZJF(BJFA), DZJFBJFA, ENBC, ENBJ, ENBK, T20DD0J, Y2LX, YLCA, YLCB, YLCC, YLDA, YLF6, YLFA, YLFB, YLFS, YLR6, YLRA, YMCA, YMCB, YMCC, YMF6, YMFA, YMFB, YMFS, YMHA, YMR6, YMRA, YNCA, YNF6, YNFA, YNFB, YNFS, YNR6, YNRA, YNSX

Suitable Ford Vehicles

C-MAX, EcoSport, Focus, Grand Tourneo Connect, Tourneo Connect, Transit, Transit Connect, Transit Courier

Example Tightening Procedure

Example procedure for a Ford Transit 2.0 EcoBlue:

Stage 1: 15 Nm
Stage 2: 25 Nm
Stage 3: 40 Nm
Stage 4: 90°
Stage 5: 90°
Stage 6: 90° using a torque multiplier, as Ford 303-1611, and adapter, as Ford 303-1611-03/1

Always verify the exact tightening sequence, torque values and angle specifications in the manufacturer’s repair instructions for the relevant vehicle and engine.

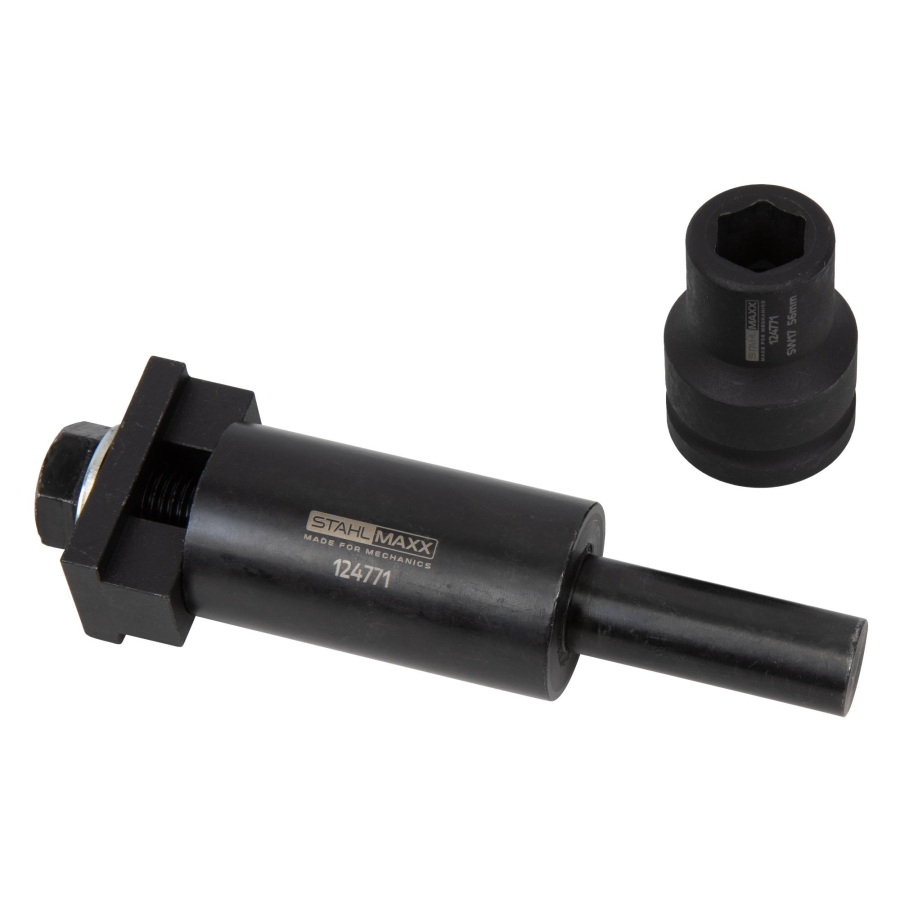

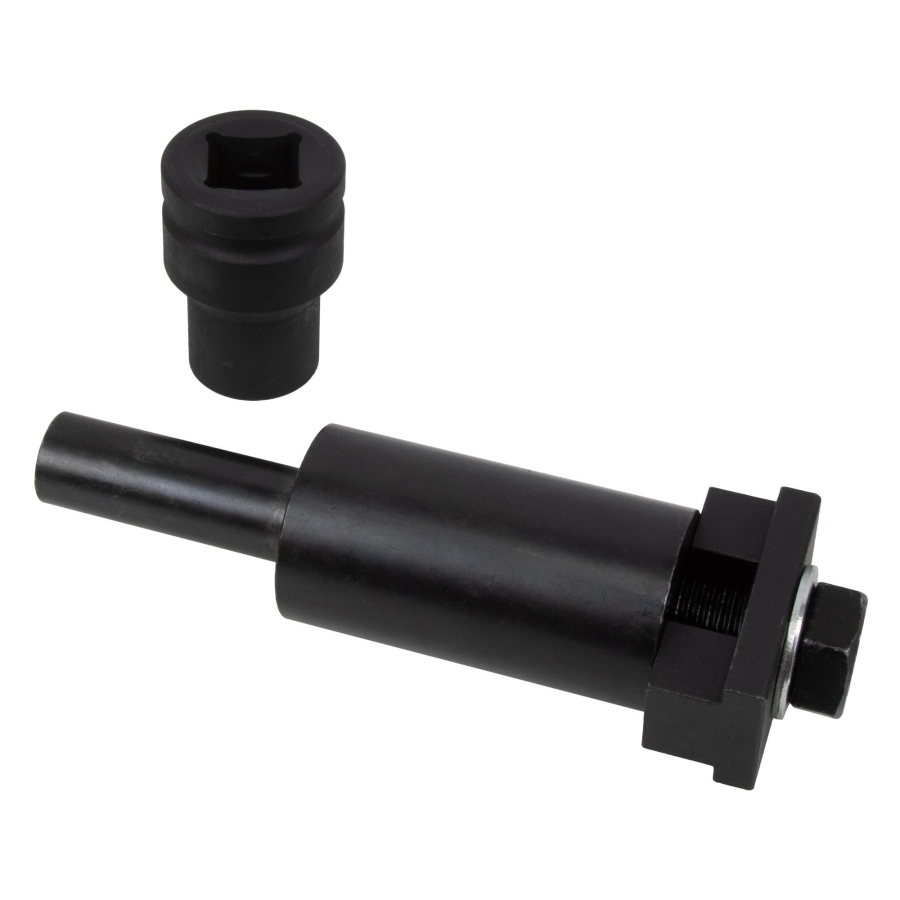

Scope of Delivery

1 holding tool for the torque multiplier
1 socket, 17 mm, with 20 mm square drive

To Be Used as Ford

303-1611-03/1

Recommended Additional Tool

Item no. 121148 – Torque multiplier for Ford EcoBoost and ECOnetic, as Ford 303-1611

Not included in the scope of delivery.

Original numbers are for comparison purposes only; this is not an original tool!

Vehicle Compatibility

Search by brand, model, engine, power, year or chassis code.

0 vehicles found

FORD FOCUS IV (HN) (01.2018 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD FOCUS IV (HN) (01.2018 - ) 2.0 ST EcoBlue (190 hp, 140 kW) FORD FOCUS IV Estate (HP) (09.2018 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD FOCUS IV Estate (HP) (09.2018 - ) 2.0 ST EcoBlue (190 hp, 140 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (120 hp, 88 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (150 hp, 110 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue (190 hp, 140 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue AWD (150 hp, 110 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD GALAXY (CK) (01.2015 - 06.2018) 2.0 EcoBlue Bi-Turbo (240 hp, 176 kW) FORD GALAXY MK III VAN (CK) (03.2019 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD GALAXY MK III VAN (CK) (03.2019 - ) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (120 hp, 88 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue (190 hp, 140 kW) FORD MONDEO V Hatchback (CE) (09.2014 - ) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (120 hp, 88 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (150 hp, 110 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue (190 hp, 140 kW) FORD MONDEO V Saloon (CD) (09.2012 - 07.2016) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD MONDEO V Estate (CF) (09.2014 - ) 2.0 EcoBlue (120 hp, 88 kW) FORD MONDEO V Estate (CF) (09.2014 - ) 2.0 EcoBlue (150 hp, 110 kW) FORD MONDEO V Estate (CF) (09.2014 - ) 2.0 EcoBlue (190 hp, 140 kW) FORD MONDEO V Estate (CF) (09.2014 - ) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD RANGER (TKE) (04.2011 - ) 2.0 EcoBlue AWD (170 hp, 125 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (120 hp, 88 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (150 hp, 110 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue (190 hp, 140 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue AWD (150 hp, 110 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue AWD (190 hp, 140 kW) FORD S-MAX (CJ, WA6) (01.2015 - 06.2018) 2.0 EcoBlue BI-Turbo (240 hp, 176 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (105 hp, 77 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (130 hp, 96 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (170 hp, 125 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (185 hp, 136 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TOURNEO CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 hp, 136 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue (185 hp, 136 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (105 hp, 77 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT CUSTOM V362 Bus (F3) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 hp, 136 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue (185 hp, 136 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT CUSTOM V362 Box Body (FY, FZ) (04.2012 - 12.2015) 2.0 EcoBlue mHEV (185 hp, 136 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 hp, 96 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 hp, 125 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT V363 Bus (FAD, FBD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue (185 hp, 136 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue AWD (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue AWD (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (105 hp, 77 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (185 hp, 136 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (130 hp, 96 kW) FORD TRANSIT V363 Box Body (FCD, FDD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (105 hp, 77 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue (185 hp, 136 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue AWD (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue AWD (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (105 hp, 77 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue RWD (185 hp, 136 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV (170 hp, 125 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (130 hp, 96 kW) FORD TRANSIT V363 Platform/Chassis (FED, FFD) (08.2013 - 11.2017) 2.0 EcoBlue mHEV RWD (170 hp, 125 kW)
